1983 CB1000C'83 1000 Custom
- ENGINE
- Engine type: Four cylinder DOHC 16 valve
- Displacement: 973cc
- Bore and Stroke: 67mm x 69mm
- Compression Ratio: 9:1
- Fuel Delivery: Four 32mm CV-type Carburetors
- Exhaust system: Four-into-four
- Ignition system: Transistorized pointless
- Starting system: Electric
- Fuel type: Regular gasoline
- DRIVETRAIN
- Transmission: Five speed witdh Hi/Lo Secondary Transmission
- Clutch: Wet multi-plate
- Wheels: Honda cast wheels
- CHASSIS / SUSPENSION / BRAKES
- Front suspension: Air-assisted telescopic with TRACTM anti-dive
- Rear suspension: Swing arm with air-assisted shocks
- Front Brakes: Double piston caliper type dual disc
- Rear Brakes: Single disc
- Front tire: 110/90H18
- Rear tire: 140/90H16
- DIMENSION
- Wheelbase: 1612mm (63.5 in.)
- Overall length: 2325mm (91.5 in.)
- Overall width: 890mm (35.0 in.)
- Seat height: 790mm (31.1 in.)
- Fuel capacity: 16.7 liter (4.4 GalUS)
- Dry weight: 266 kg (585 lb)
- OTHER
- It came in one of two color schemes: Black with Achilles black Metallic or Candy Regal Brown with Chestnut Gold Metallic
- the gas tank and side covers were two-tone
- the wheels were comcast
- The taillight was integrated
- The transmission was a 5-speed with dual range sub-transmission -- thus 10 speeds.
- Engine: Powerful, four-cylinder, 973cc, DOHC
- Transmission: Five-speed dual-range
- Drive: Shaft
- Suspension: Air-adjustable, leading-axle front forks
- Brakes: TRACTM anti-dive control system with integrated fork brace
- Oil cooler: Large capacity

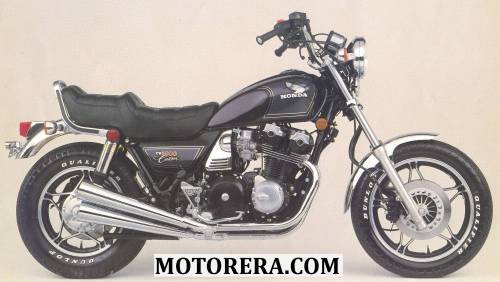

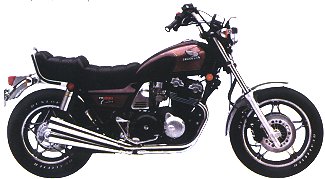

1983 CB1000C Custom

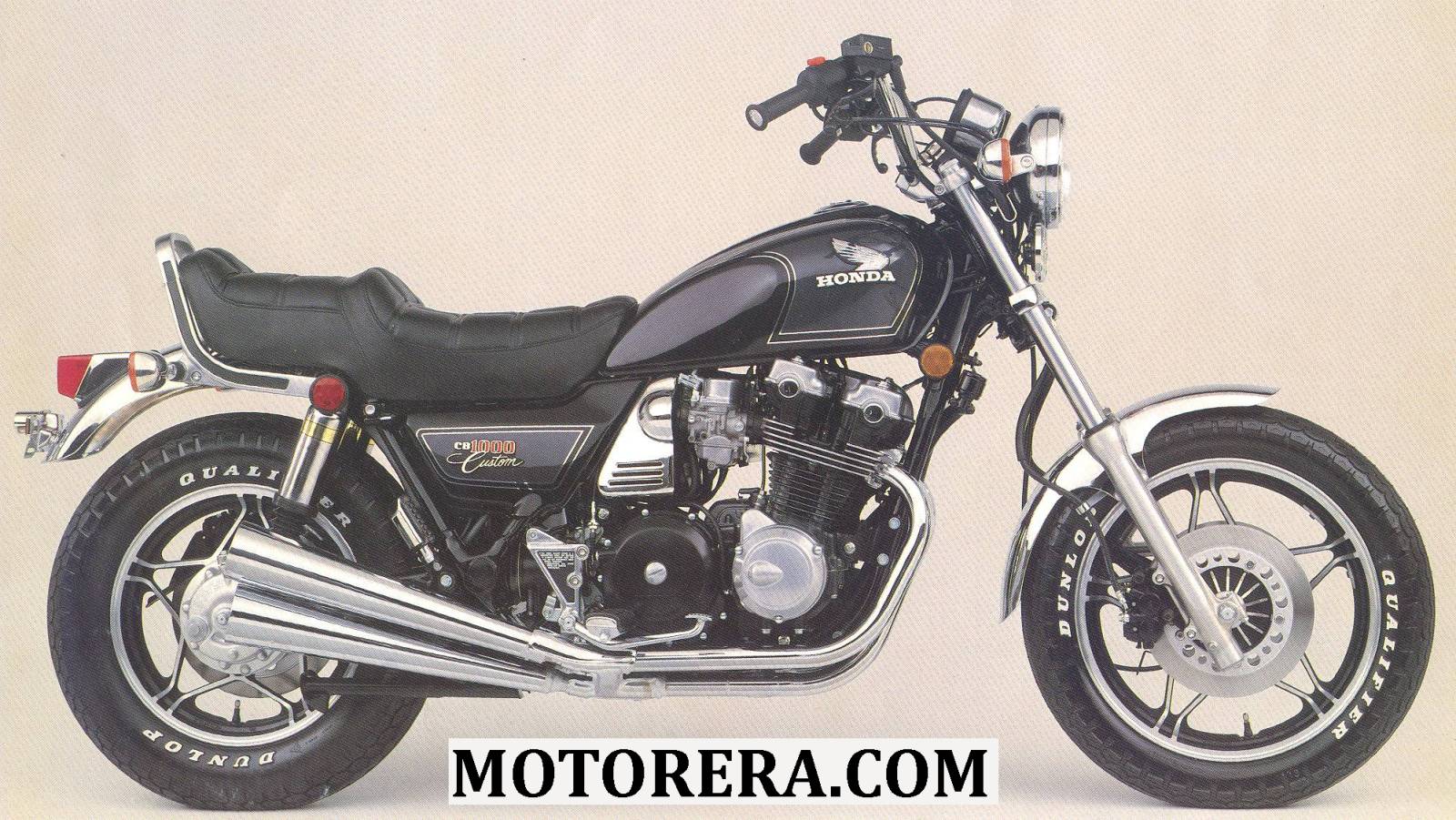

1983 CB1000C Custom
Click image to enlarge
