Front Suspension: 43.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
Rear Suspension: HMAS Pro-Link single shock with spring-preload, rebound and compression-damping adjustability; 5.3-inch travel
Front Brakes: Dual full-floating 320.0mm discs with four-piston radial-mounted calipers
Rear Brake: Single 220.0mm disc with single-piston caliper
Front Tire: 120/70ZR-17 radial
Rear Tire: 190/50ZR-17 radial
DIMENSION
Rake: 23.45 degrees
Trail: 100.0mm (3.9 inches)
Wheelbase: 55.2 inches
Seat Height: 32.3 inches
Dry Weight: 388.0 pounds
Fuel Capacity: 4.8 gallons, including 1.06-gallon reserve
OTHER
Emissions: Meets current CARB and EPA standards
California version differs slightly due to emissions standards.
Colors:

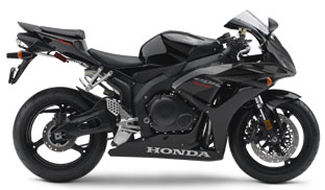

Black

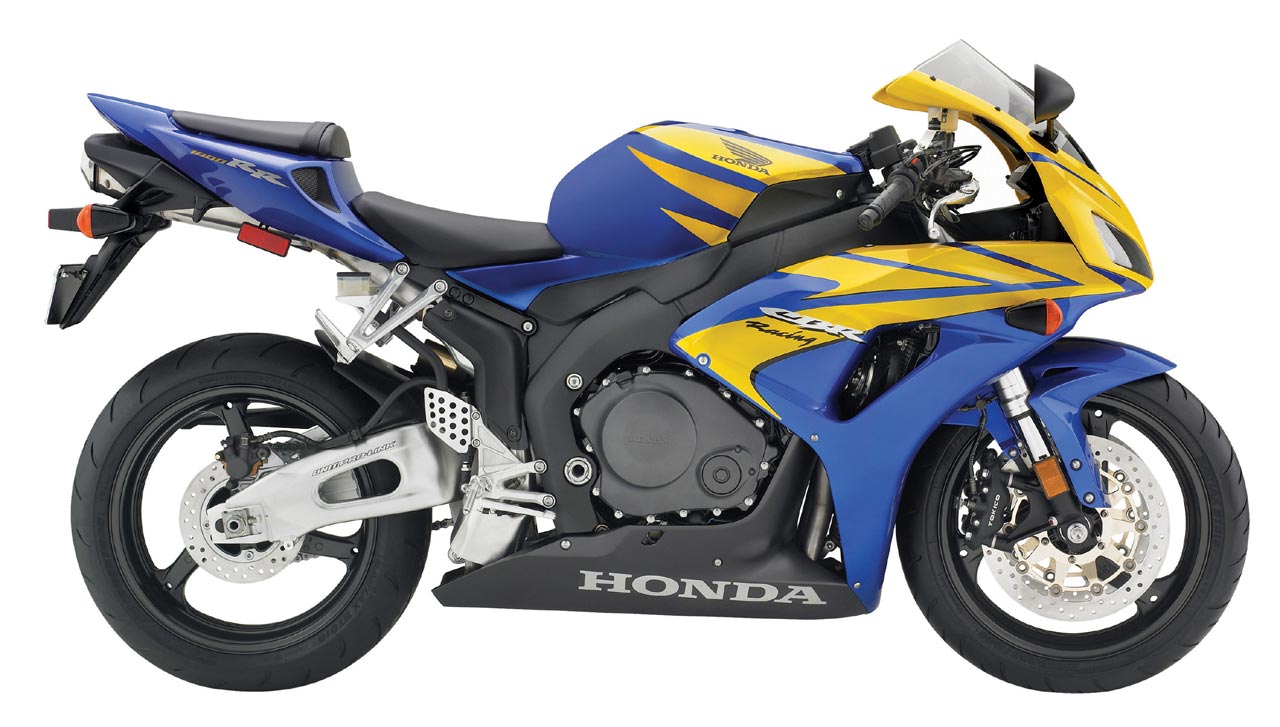

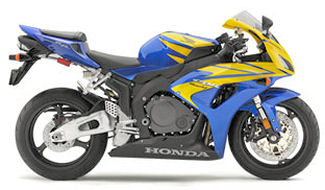

Candy Blue/Yellow
Red/Black

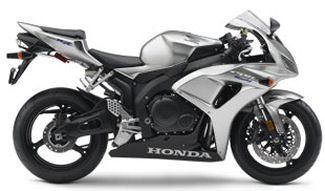

Silver/Metallic Silver
Model ID: CBR1000RR

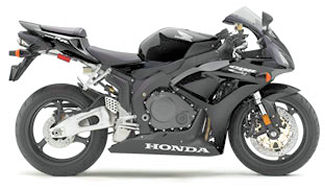

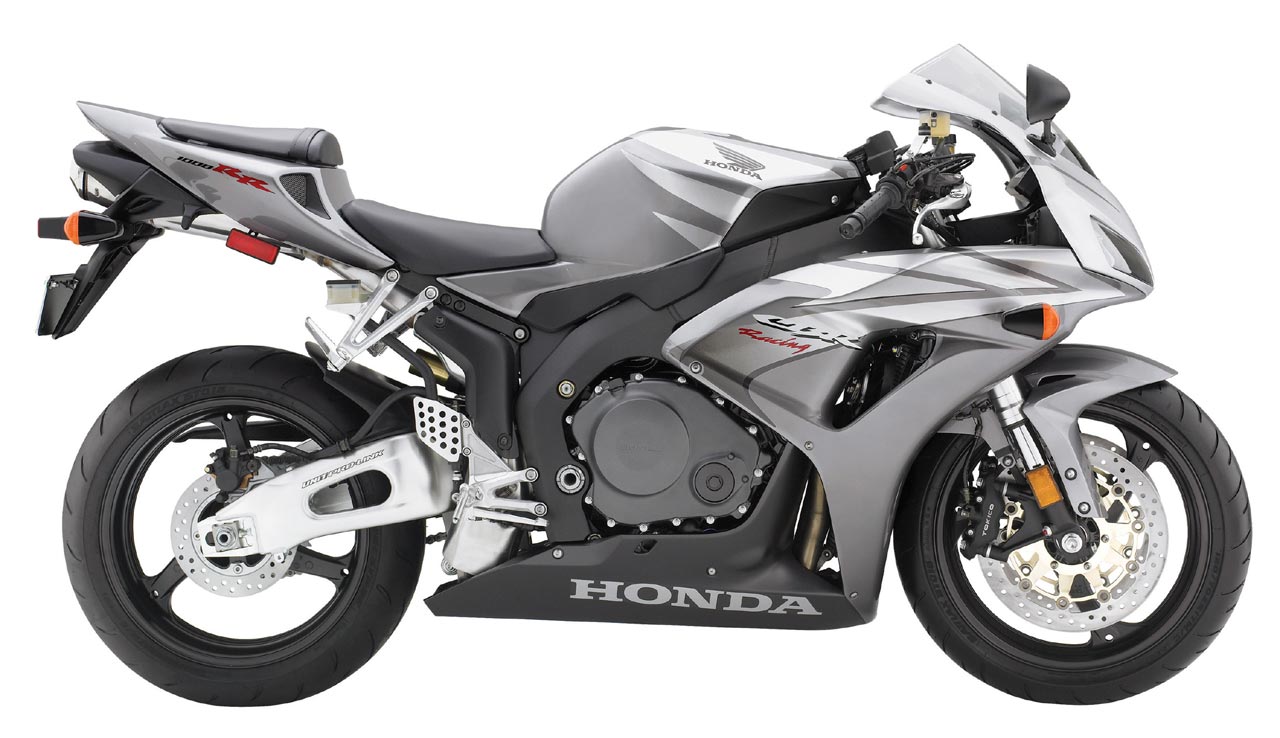

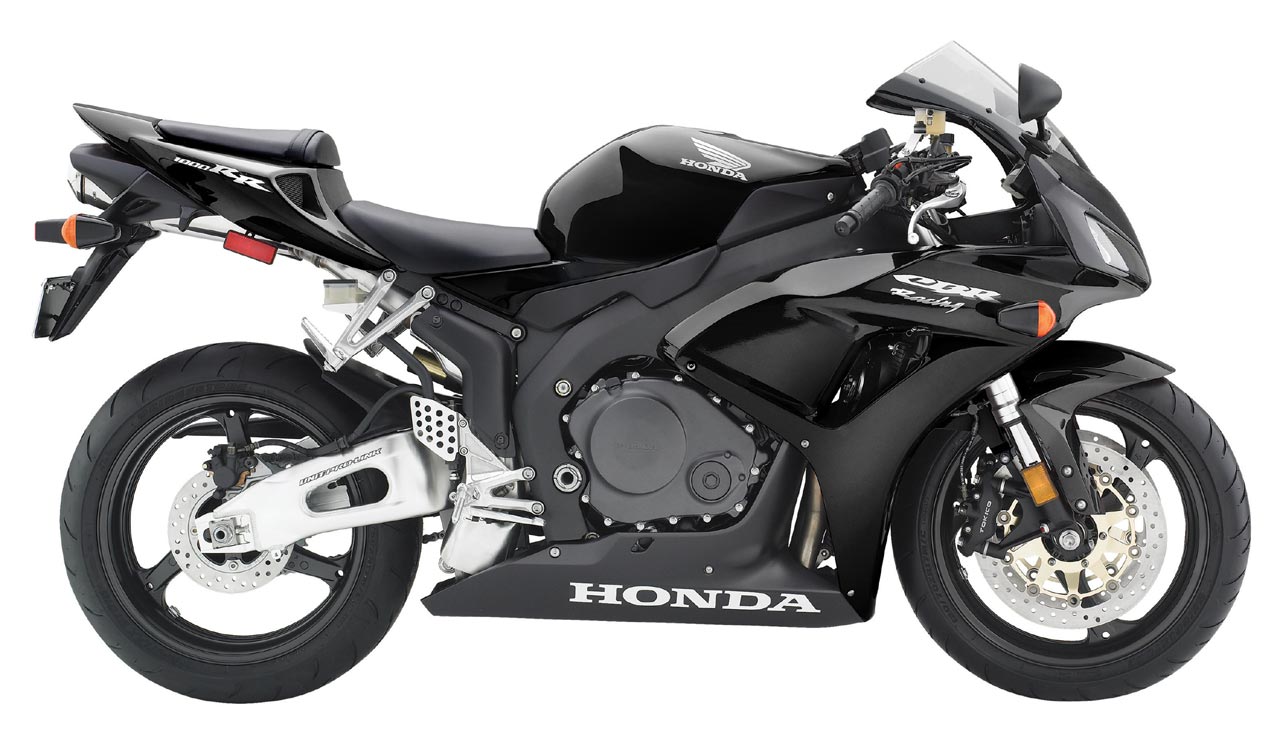

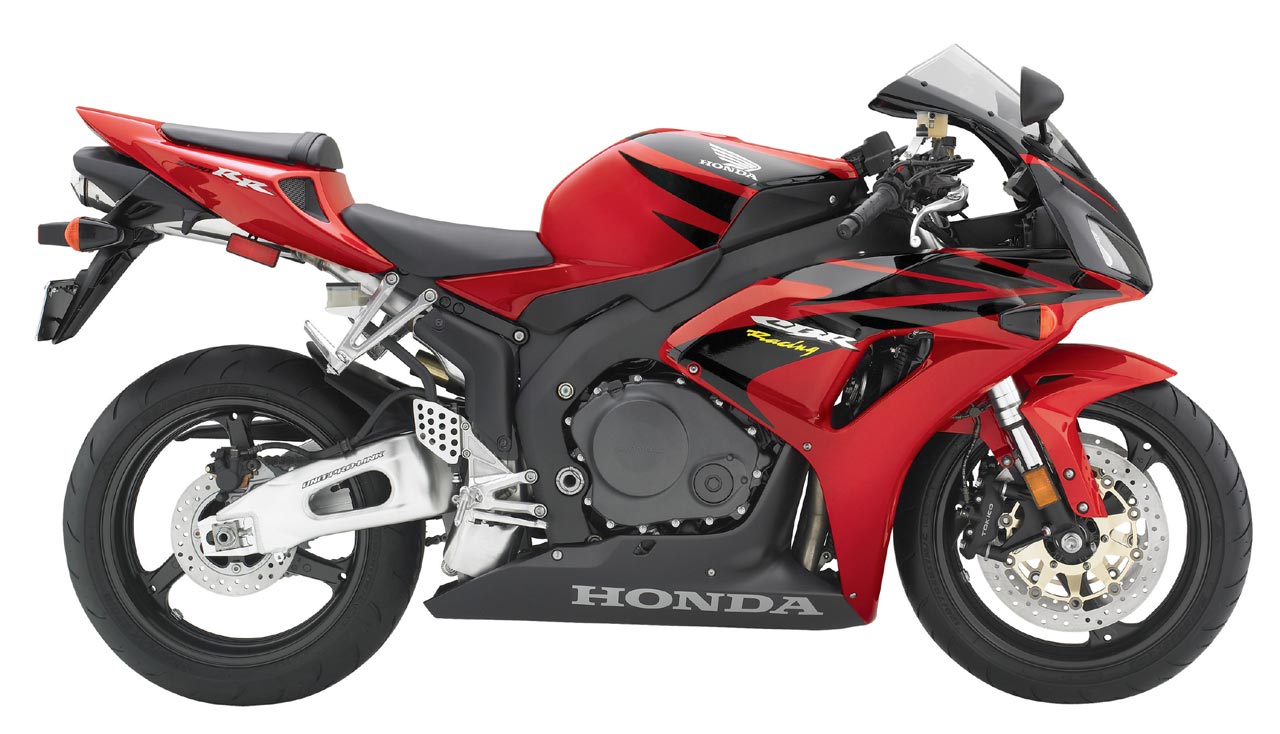

2006 cbr1000rr Click image to enlarge2006 cbr1000rr Click image to enlarge2006 cbr1000rr Click image to enlarge2006 cbr1000rr Click image to enlarge

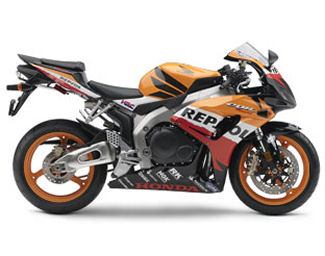

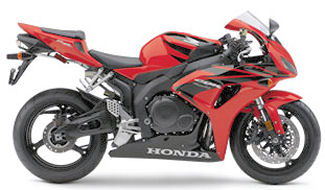

2007 CBR1000RR
OVERVIEW
Calling the CBR1000RR a "Superbike" almost doesn't do this machine justice. Where else can you find so much Honda RC211V MotoGP technology -- 998cc DOHC inline four with dual-stage fuel injection, all-aluminum frame, Unit Pro-Link rear suspension, center-up exhaust -- packed into one leading-edge literbike? Hint: Nowhere.
There's nothing like a liter-bike when it comes to awesome performance. But for 2008, Honda's taking that level of performance -- and handling -- to a whole new level. New engine. New chassis. MotoGP-style exhaust. The all-new CBR1000RR is a Superbike that handles like a 600, but is built to dominate the Superbike class.
Ignition: Computer-controlled digital transistorized with three-dimensional mapping
Compression Ratio: 12.3:1
Valve Train: DOHC; four valves per cylinder
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm inverted HMAS cartridge fork with spring preload, rebound- and compression-damping adjustability; 4.3 inches travel
Rear Suspension: Unit Pro-Link® HMAS single shock with spring preload rebound and compression-damping adjustability; 5.4 inches travel
Front Brake: Dual radial-mounted four-piston calipers with full-floating 320mm discs
Rear Brake: Single 220mm disc
Front Tire: 1207/70ZR-17 radial
Rear Tire: 190/50ZR-17 radial
DIMENSION
Rake: 23.3 degrees (Caster Angle)
Trail: 96.2mm (3.8 inches)
Wheelbase: 55.4 inches
Seat Height: 32.3 inches
Curb Weight: 439 pounds (Includes all standard equipment, required fluids and full tank of fuel--ready to ride.)
Fuel Capacity: 4.7 gallons, including 1.06-gallon reserve
OTHER
Fuel consumption: 6.3 L/100km (37 mpgUS)
Model Id: CBR10RR
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards.
Colors:
Red/Black
Black
Blue/White/Orange/Red
Warranty: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

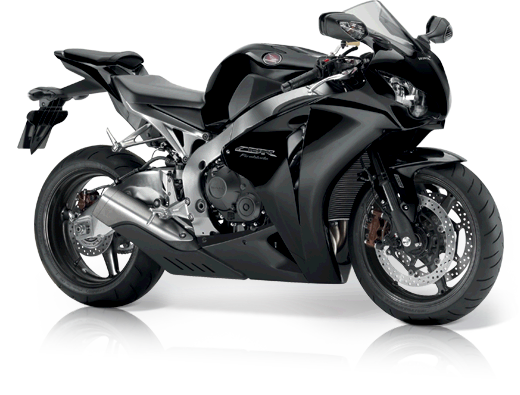

2011 CBR1000RR2011 CBR1000RR2011 CBR1000RR

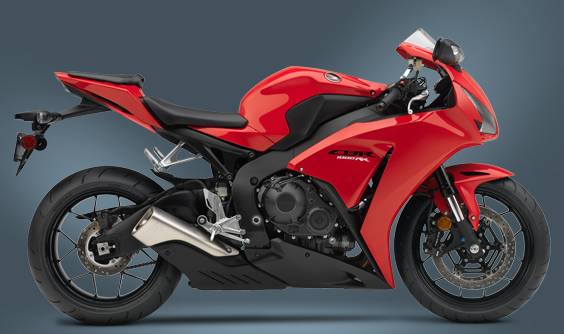

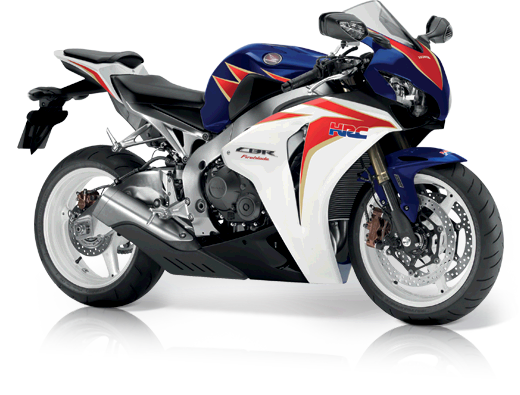

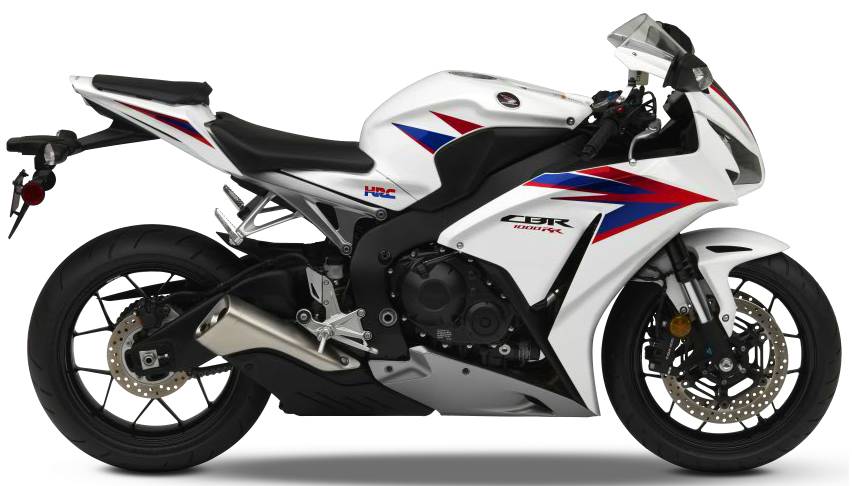

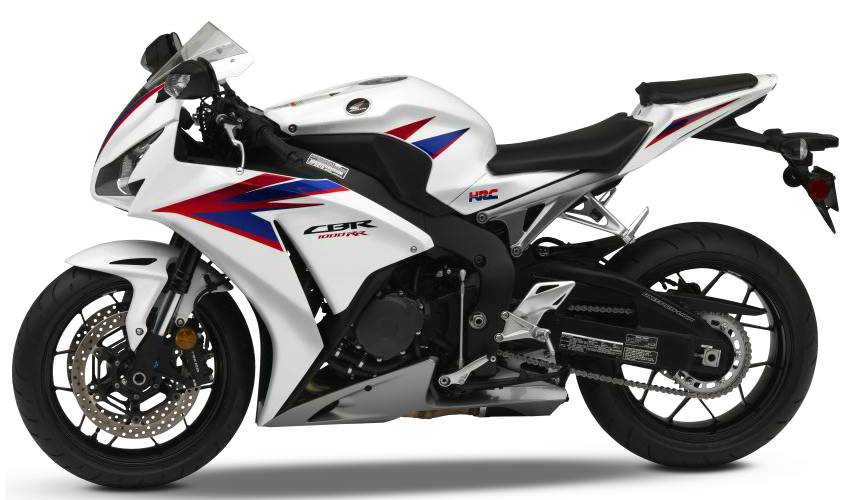

2012 CBR1000RR
ENGINE
Engine Type: Liquid-cooled 4-stroke 16-valve DOHC
Engine Displacement: 999.8cc
Bore and Stroke: 76 x 55.1mm
Compression Ratio: 12.3:1
Valve Train: DOHC; four valves per cylinder
Fuel Delivery: Dual Stage Fuel Injection (DSFI)
Ignition: Computer-controlled digital transistorized with 3-D mapping and electronic advance
Max. Power Output: 131kW/12,000min-1 (95/1/EC)
Max. Torque: 112Nm/8,500min-1 (95/1/EC)
Starter: Electric
DRIVETRAIN
Final Drive: #530 O-ring sealed chain
Transmission: Close-ratio six-speed
Front Wheels: Hollow-section triple-spoke cast aluminium 17M/C x MT3.5
Rear Wheels: Hollow-section triple-spoke cast aluminium 17M/C x MT6
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm inverted Big Piston HMAS cartridge-type telescopic fork with stepless preload, compression and rebound adjustment, 120mm axle travel
Rear Suspension: Unit Pro-Link&/174; Balance Free Rear Shock with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 135mm axle travel
Front Brakes: 320 x 4.5mm dual hydraulic disc with 4-piston calipers, Combined ABS and sintered metal pads
Rear Brakes: 220 x 5mm hydraulic disc with single-piston caliper, Combined ABS and sintered metal pads
Front Suspension: Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment, 120mm stroke
Rear Suspension: Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment, 138.2mm stroke. Rear Balance Free Rear Cushion with preload, compression and rebound adjustment, 62mm stroke
Front Brakes: 320 x 4.5mm dual hydraulic disc with 4-piston calipers and sintered metal pads
Rear Brakes: 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
