Ignition: Computer controlled with 3-dimensional mapping
Starting: Electric
DRIVETRAIN
Transmission: Close-Raito, 6-speed
Final Drive: O ring chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41mm, cartridge fork, with adjustable preload, 120mm travel
Rear Suspension: Pro-Link, single shock with adjustable preload and rebound damping, 120 mm travel.
Front Brakes: Dual 296mm floating discs with three piston calipers, LBS.
Rear Brakes: Single 256mm disc with LBS triple piston caliper.
Front Tires: 120/70ZR - 17
Rear Tires: 180/55ZR - 17
DIMENSION
Seat Height: 805mm (31.7 in.)
Wheelbase: 1440mm (56.7 in.)
Dry Weight: 208 kg (458 lbs.)
Fuel Capacity: 21 litres (4.6 Imp. gal.)
OTHER

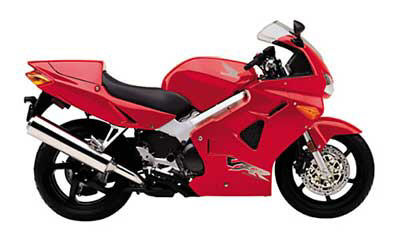

2001 Interceptor VFR800Fi
2002 Interceptor (VFR800)
ENGINE
Engine: 781cc liquid-cooled 90 degree V-4
Bore and Stroke: 72mm x 48mm
Compression Ratio: 11.6: 1
Valve Train: VTEC DOHC; four valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichener circuit
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm HMAS cartridge fork with spring preload adjustability; 109mm (4.3 in.) travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring preload and rebound damping adjustability; 120mm (4.7 in.) travel
Front Brakes: Dual full-floating 296mm discs with LBS three-piston calipers (ABS optional)
Rear Brake: Single 256mm disc with LBS three-piston caliper (ABS optional)
Front Tire: 120/70 ZR-17 radial
Rear Tire: 180/55ZR-17 radial
DIMENSION
Wheelbase: 1458mm (57.4 in.)
Seat Height: 805mm (31.7 in.
Dry Weight:
Non-ABS: 214 kg (472 pounds)
ABS: 219 kg (483 pounds)
Fuel Capacity: 22 litres (4.7 Imp. gal.)
OTHER

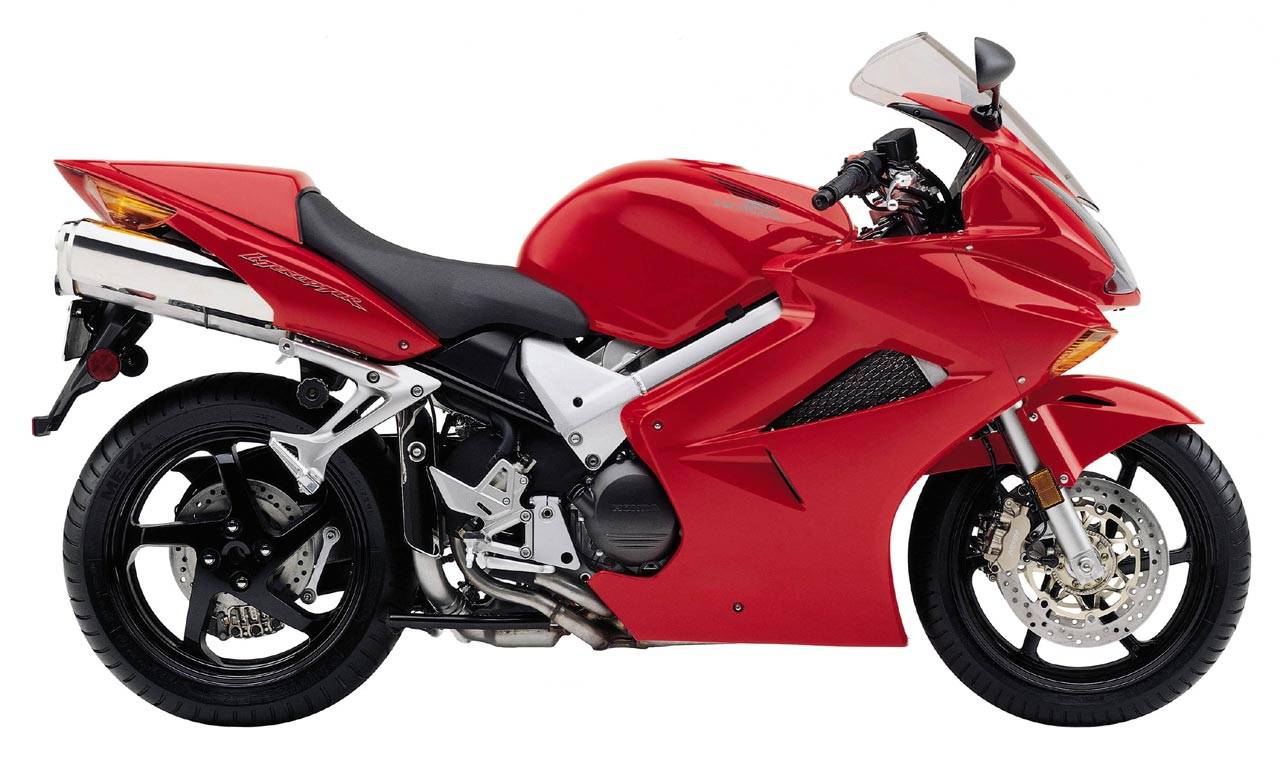

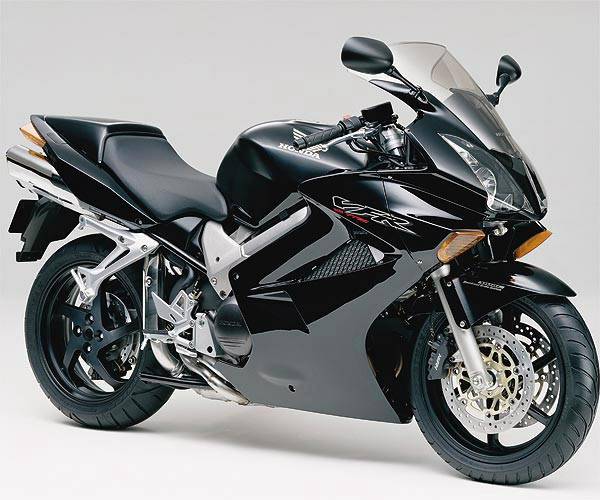

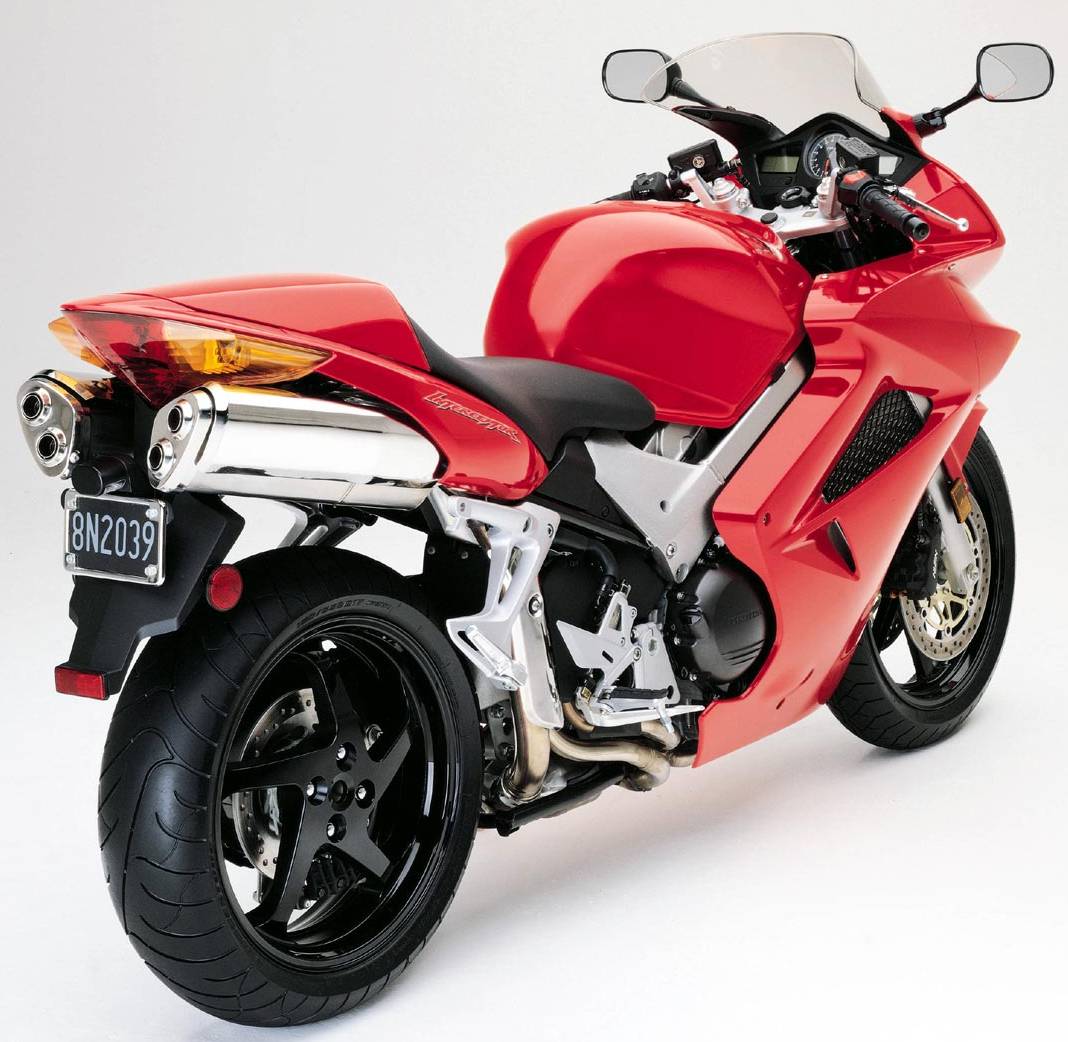

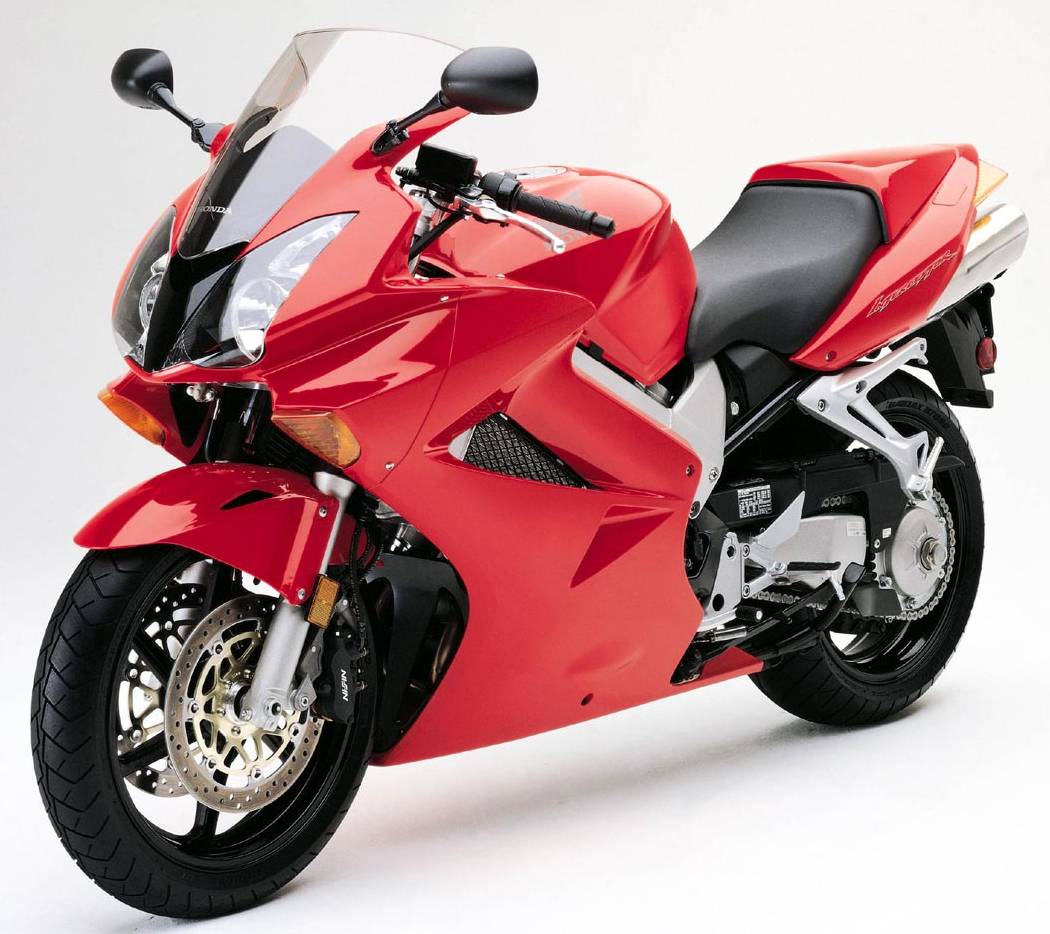

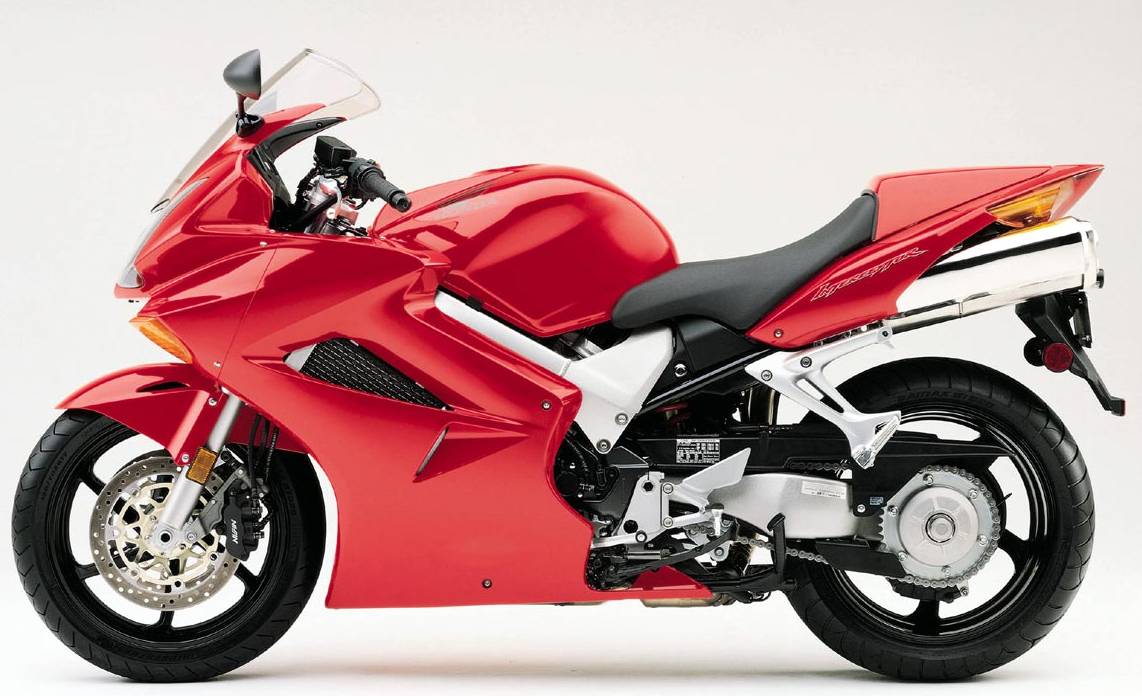

2002 Interceptor VFR800Fi Click image to enlarge2002 Interceptor VFR800Fi Click image to enlarge2002 Interceptor VFR800Fi Click image to enlarge2002 Interceptor VFR800Fi Click image to enlarge2002 Interceptor VFR800Fi Click image to enlarge

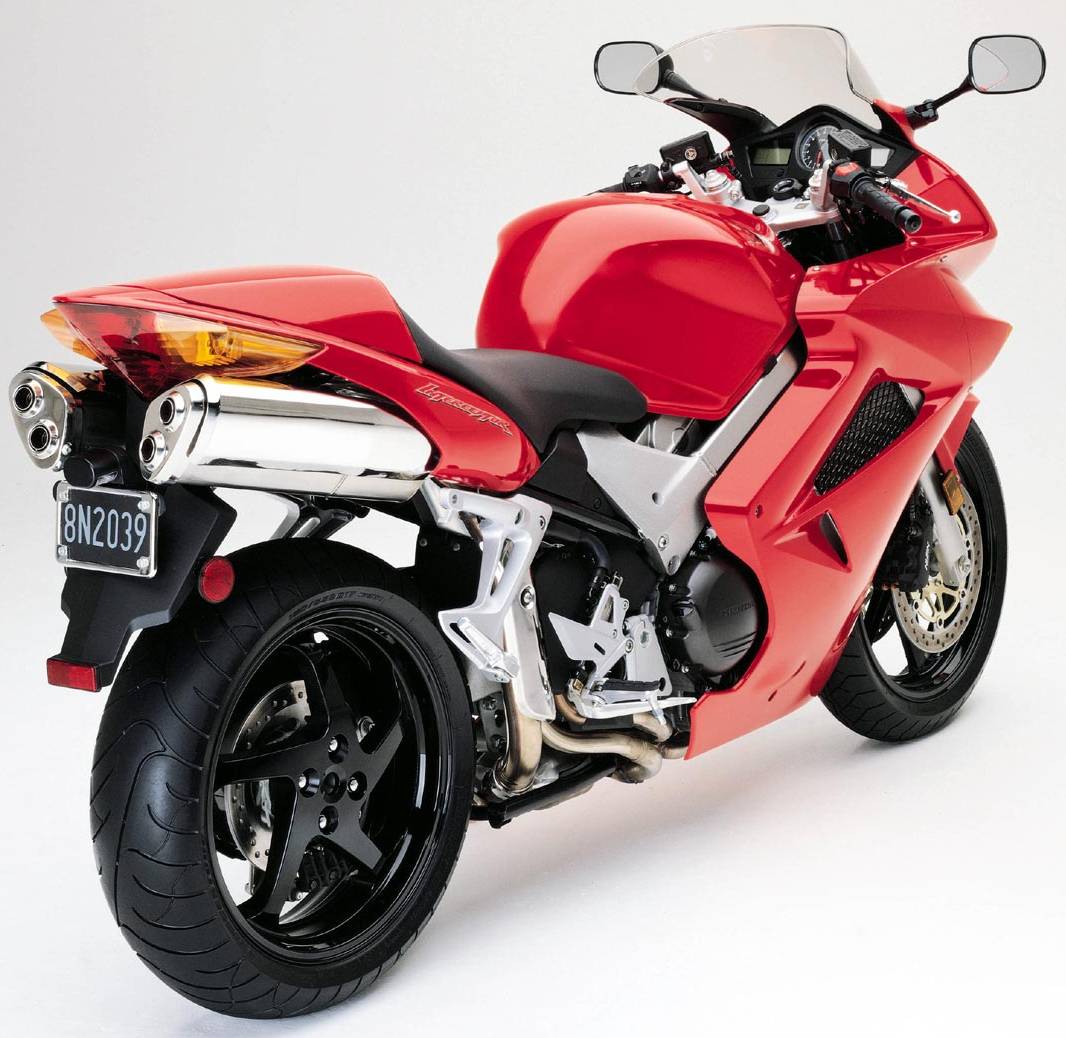

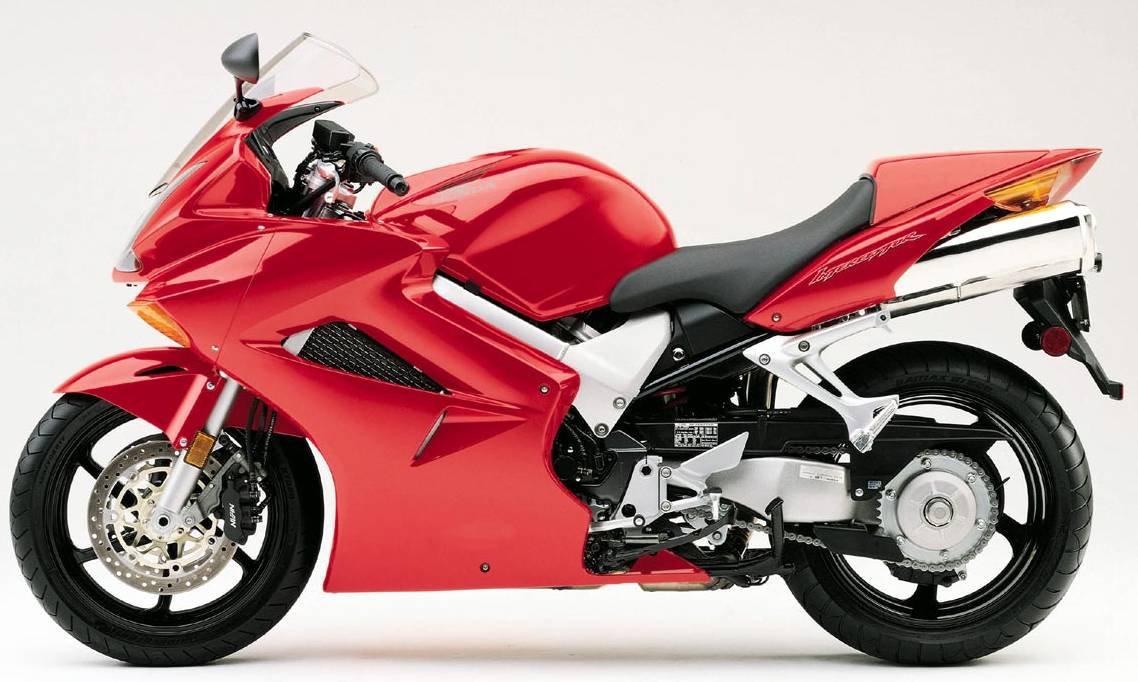

2003 Interceptor (VFR800)
ENGINE
Engine: 781cc DOHC liquid-cooled 90° V-4 with VTEC
Bore and Stroke: 72.0 x 48.0 mm
Compression Ratio: 11.6:1
Valve Train: VTEC DOHC; four valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichener circuit
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm HMAS cartridge fork with spring preload adjustability; 110mm travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring preload and rebound damping adjustability; 120mm travel
Front brake: Linked Braking System; dual full-floating 296mm discs with three-piston calipers (opt: Anti-Lock Braking System)
Valve Train: : VTEC DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers [Opt: Anti-Lock Braking System (ABS)]
Rear Brake: Single 256.0mm disc with LBS three-piston caliper
Front Tire: 120/70ZR-17 radial
Rear Tire: 180/55ZR-17 radial
DIMENSION
Rake: 25.5 degrees
Trail: 95.0mm (3.74 inches)
Wheelbase: 57.4 inches
Seat Height: 31.7 inches
Dry Weight:
Non-ASB: 472.0 pounds
ASB: 483.0 pounds
Fuel Capacity: 5.8 gallons, including 0.8-gallon reserve
OTHER
Emissions: This model meets CARB 2008 emissions standards.
Valve Train: : VTEC DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake: Single 256.0mm disc with LBS three-piston caliper [Opt: Anti-Lock Braking System]
Front Tire: 120/70ZR-17 radial
Rear Tire: 180/55ZR-17 radial
DIMENSION
Rake: 25.5 degrees
Trail: 95.0mm (3.74 inches)
Wheelbase: 57.4 inches
Seat Height: 31.7 inches
Dry Weight:
Non-ASB: 472 pounds
ABS: 483 pounds
Fuel Capacity: 5.8 gallons, including 0.8-gallon reserve
OTHER
Emissions: This model meets CARB 2008 emissions standards.
Colors:
Light Silver Metallic
Red
Model ID: VFR800FI
Warranty: 1 year

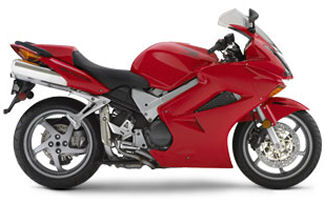

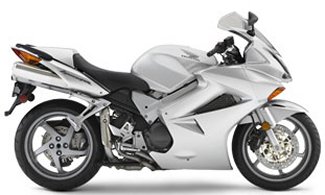

2005 Interceptor VFR8002005 Interceptor VFR800

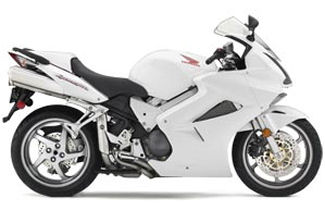

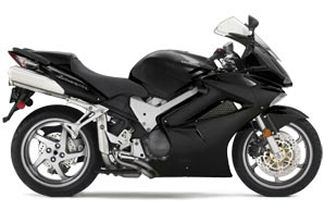

2006 VFR800FI Interceptor
ENGINE
Engine Type: 781cc liquid-cooled 90-degree V-4
Bore and Stroke: 72.0mm x 48.0mm
Compression Ratio: 11.6:1
Valve Train: : VTEC DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes: Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake: Single 256.0mm disc with LBS three-piston caliper (opt: Anti-Lock Braking System)
Front Tire: 120/70ZR-17 radial
Rear Tire: 180/55ZR-17 radial
DIMENSION
Rake: 25.3 degrees
Trail: 100.0mm (3.9 inches)
Wheelbase: 57.4 inches
Seat Height: 31.7 inches
Dry Weight:
Non-ASB: 470 pounds
ASB: 481 pounds
Fuel Capacity: 5.8 gallons, including 0.8-gallon reserve

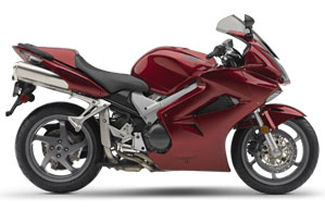

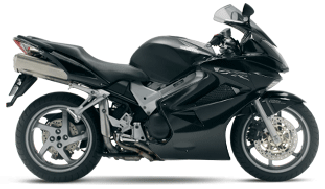

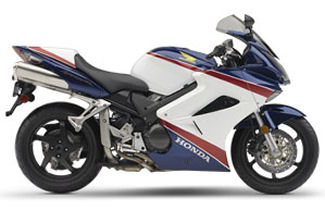

In the '80s, nobody could catch the AMA championship-winning VFR750. Today's Interceptor/Interceptor ABS, like its predecessors, boasts the most advanced technologies of its time, like an aluminum chassis and a fuel-injected V4 -- the goods that earn it best sportbike honors year after year. For '07, we're offering a paint scheme that lets all its racing DNA speak out -- loud and clear.
ENGINE
Engine Type: 781cc liquid-cooled 90-degree V-4
Bore and Stroke: 72mm x 48mm
Compression Ratio: 11.6:1
Valve Train: : VTEC DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection [PGM-FI] with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes: Dual full-floating 296mm discs with LBS three-piston calipers
Rear Brake: Single 256mm disc with LBS three-piston caliper (with Anti-Lock Braking System)
Front Tire: 120/70ZR-17 radial
Rear Tire: 180/55ZR-17 radial
DIMENSION
Rake: 25.3
Trail: 100.0mm (3.9 inches)
Wheelbase: 57.4 inches
Seat Height: 31.7 inches
Dry Weight: 470 pounds (481 pounds with ABS)
Fuel Capacity: 5.8 gallons, including 0.8-gallon reserve
Universally considered one of Honda's most illustrious race-bred sportbikes, the Interceptor® is also arguably one of the best all-around streetbikes ever made. Featuring a fuel-injected, VTEC-equipped V-4, aluminum chassis, comfortable, all-day ergos and an all-new color scheme for '08, this is a machine, though born of the track, whose razor-sharp performance is equally at home on any paved surface.
ENGINE
Engine Type: 781cc liquid-cooled 90-degree V-4
Bore and Stroke: 72mm x 48mm
Compression Ratio: 11.6:1
Valve Train: : VTEC DOHC; four valves per cylinder
Fuel Delivery: Programmed Fuel Injection [PGM-FI] with automatic enricher circuit
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
DRIVETRAIN
Transmission: Close-ratio six-speed
Final Drive: #530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 43mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes: Dual full-floating 296mm discs with LBS three-piston calipers
Rear Brake: Single 256mm disc with LBS three-piston caliper
Front Tire: 120/70ZR-17 radial
Rear Tire: 180/55ZR-17 radial
DIMENSION
Rake: 25.3°
Trail: 100.0mm (3.9 inches)
Wheelbase: 57.4 inches
Seat Height: 31.7 inches
Curb Weight: 540 lbs (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride)
Fuel Capacity: 5.8 gallons, including 0.8-gallon reserve
OTHER
Emissions: Meets 2008 CARB emissions standards.
Colors: Metallic Silver
Model ID: VFR800
1 year warranty: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

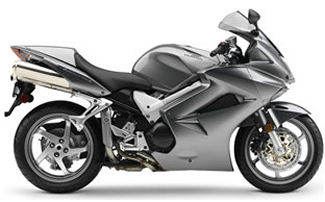

2008 VFR800FI Interceptor

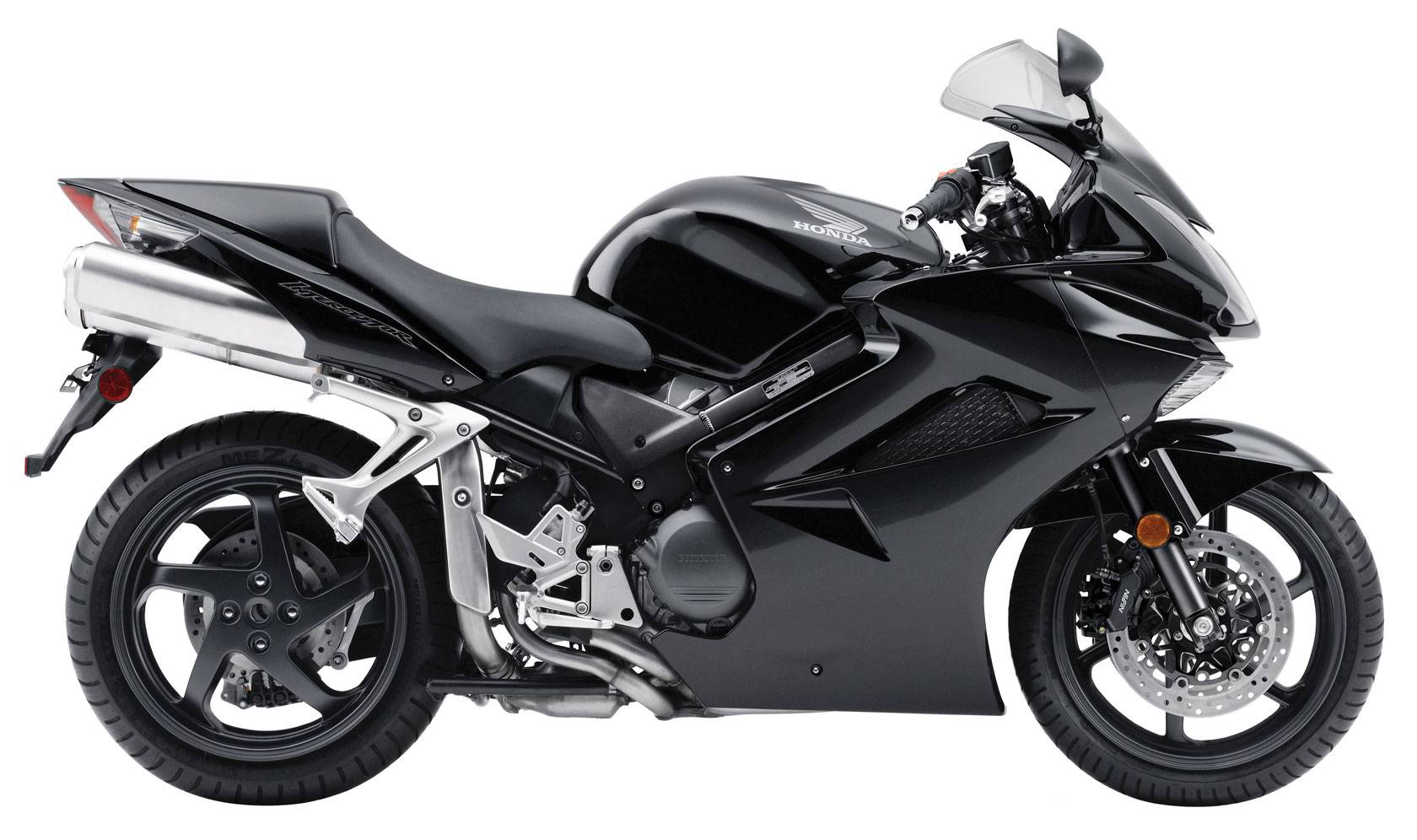

2009 Interceptor
ENGINE
Engine Size: 781cc
Engine Detail: liquid-cooled 90° V-4
Bore Stroke: 72mm x 48mm
Compression Ratio: 11.6:1
Fuel System: PGM-FI with automatic enricher circuit, 36mm throttle bodies, and 12-hole injectors
Ignition: Computer-controlled digital with three-dimensional mapping and electronic advance
Suspension Rear: Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound damping adjustability; 4.7 inches travel
Brakes Front: Dual full-floating 296 mm discs with LBS three-piston calipers
Brakes Rear: Single 256 mm disc with LBS three-piston caliper
