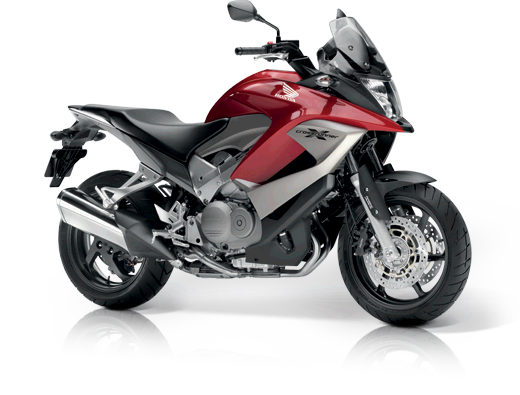

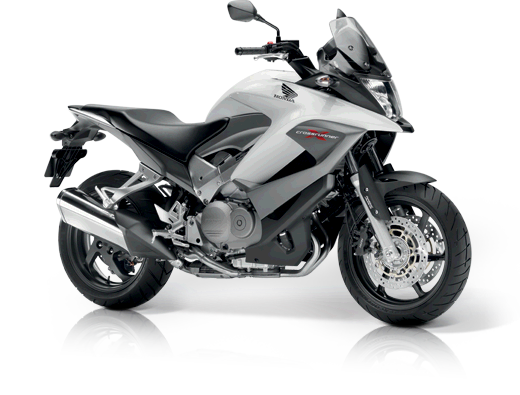

2012 Honda Crossrunner 800
- ENGINE
- Engine Type Liquid-cooled 4-stroke 16-valve DOHC 90° V-4
- Displacement: 782cc
- Bore and Stroke: 72 X 48mm
- Compression Ratio: 11.6:1
- Spark Plug Type: IMR9D-9H (NGK); VNH27Z (DENSO)
- Fuel Delivery: PGM-FI electronic fuel injection
- Throttle Bore: 36mm
- Idling Speed: 1200min-1
- Ignition System: Computer-controlled digital transistorised with electronic advance
- Ignition Timing: 8° BTDC (idle) ~ 50° BTDC (1200min-1)
- Battery Capacity: 12V/11AH (YTZ-12S)
- Starter: Electric
- Max. Torque: 72.8Nm/9,500min-1 (95/1/EC)
- Max. Power Output: 74.9kW/10,000min-1 (95/1/EC)
- ACG Output: 386W
- DRIVETRAIN
- Transmission Type: Constant mesh 6-speed
- Primary Reduction: 1.934 (64/33)
- Final Reduction: 2.687 (43/16)
- Final Drive: O-ring sealed chain
- Clutch: Wet, multiplate with coil springs
- Clutch Operation: Hydraulic
- CHASSIS / SUSPENSION / BRAKES
- Frame type: Diamond; aluminium twin-spar; pivotless
- Caster Angle: 25° 45'
- DIMENSION
- Oil Capacity 3.8 Litres (4 qt)
- Fuel Tank Capacity: 21.5 Litres (5.7 Gal
- Air Cleaner: Oil-permeated, cartridge-type paper filter
- Wheelbase: 1,464mm (57.6 inches)
- Overall Length: 2130mm (83.9 inches)
- Overall Width: 799mm (34.5 inches)
- Overall Height: 1243mm (48.9 inches)
- Trail: 96mm
- OTHER
