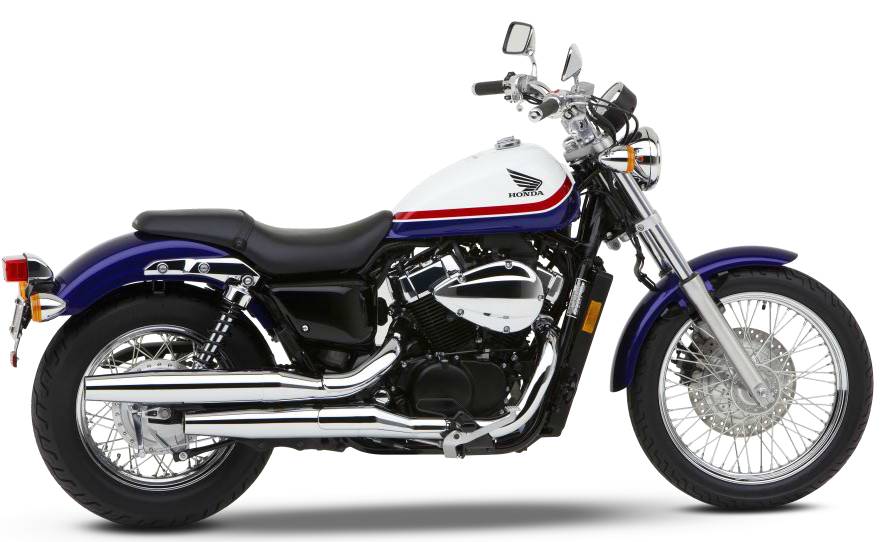

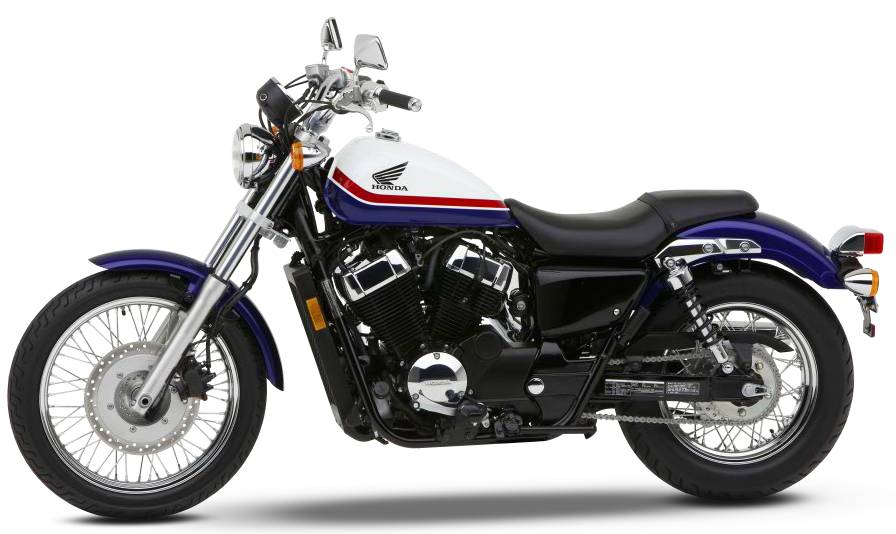

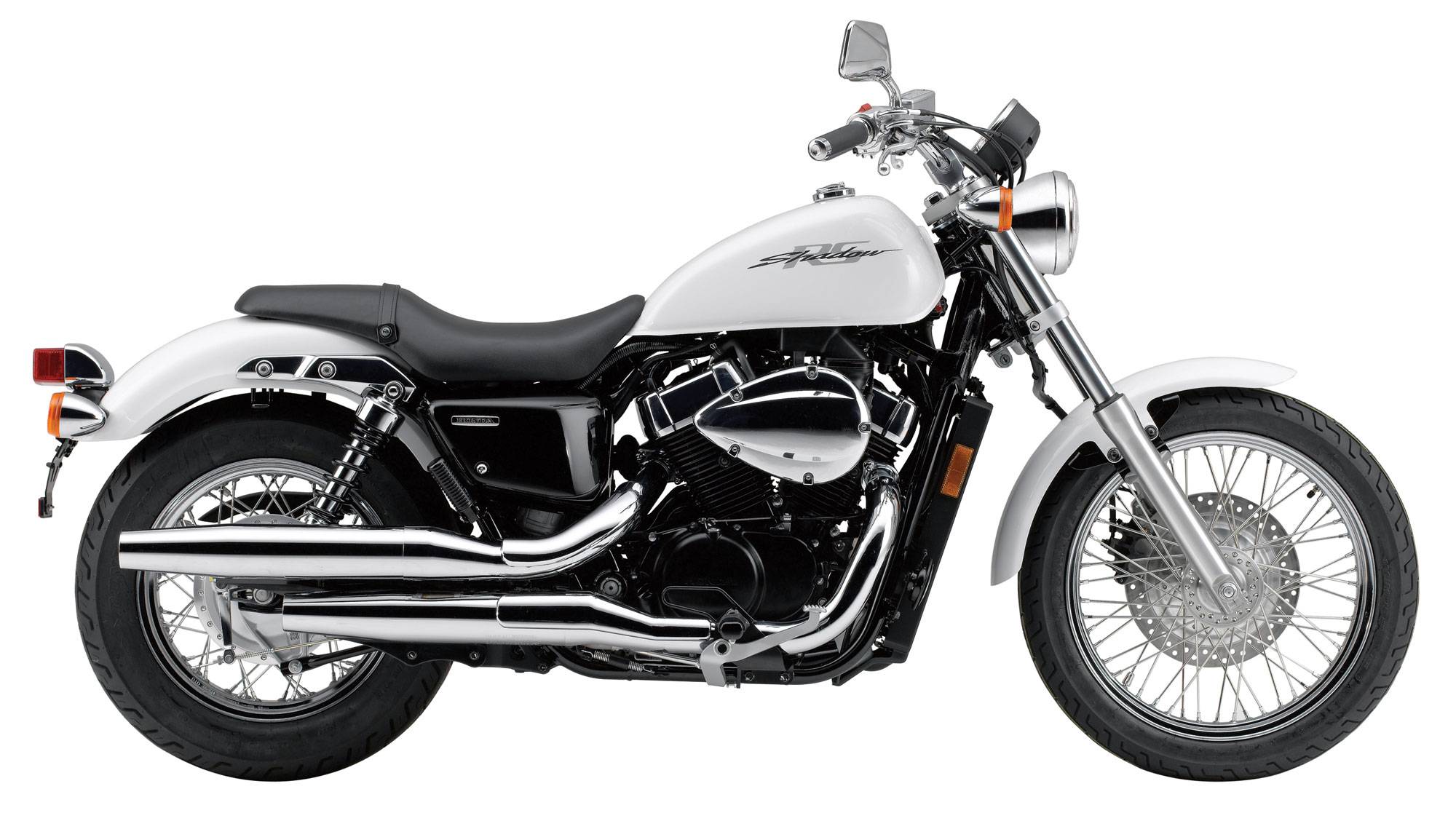

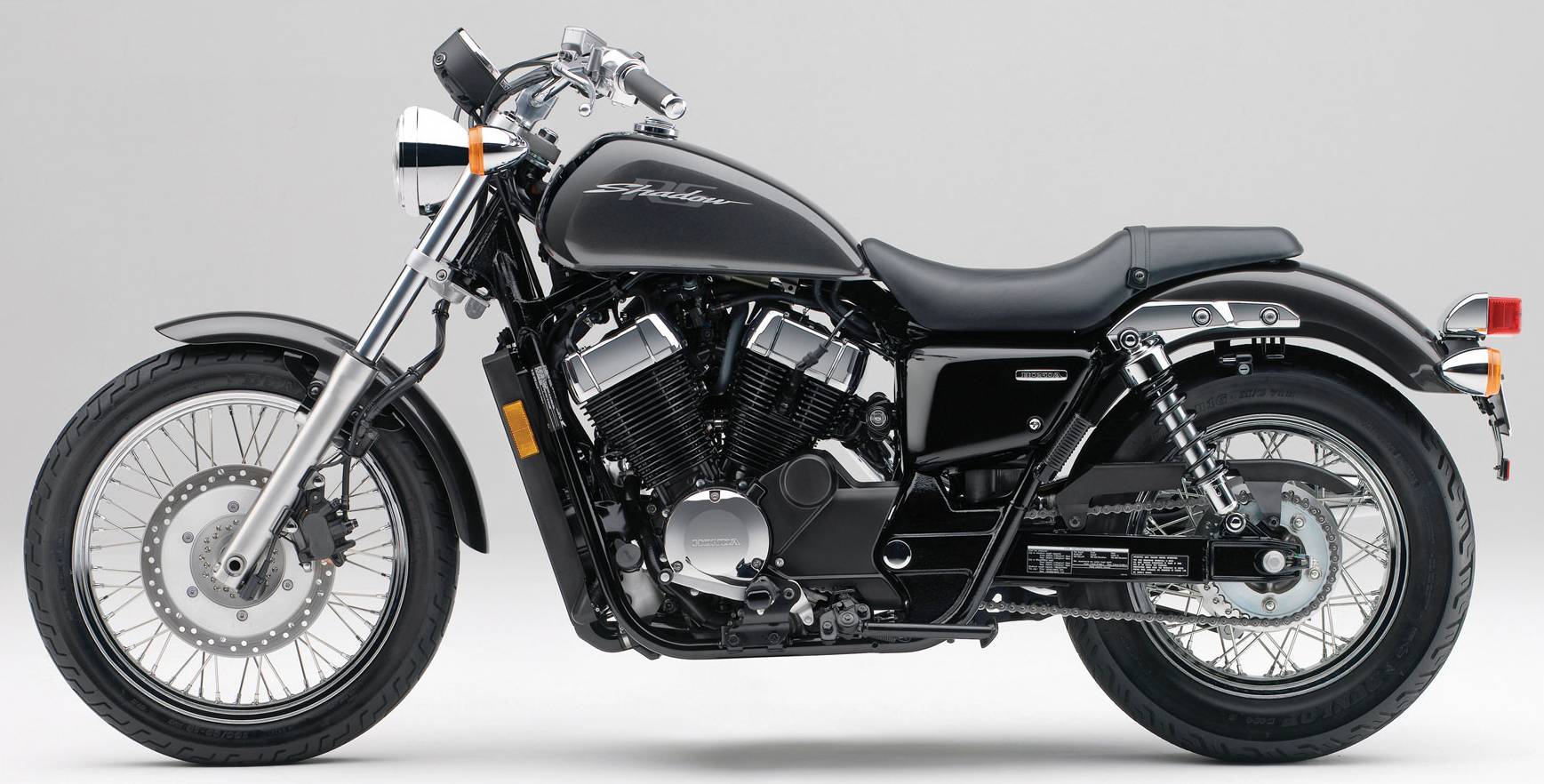

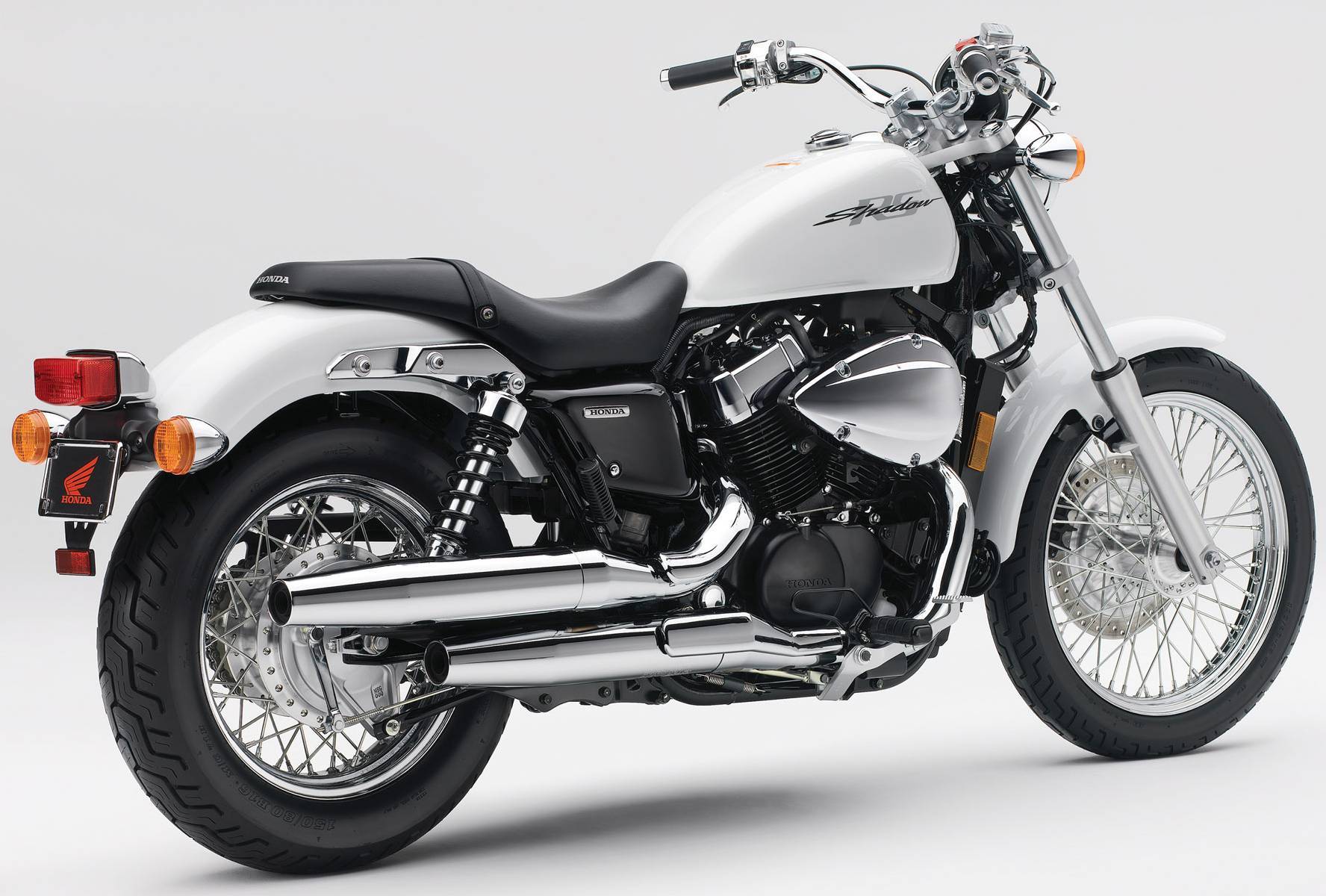

Honda VT750RS Shadow RS Motorcycles

2010 Honda VT750RS Shadow RS

ENGINE
- Engine Type: liquid-cooled 52° V-twin
- Displacement: 745cc
- Bore Stroke: 79mm x 76mm
- Compression Ratio: 9.6:1
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) incorporates a single 34mm-diameter throttle body for improved fuel efficiency, easy startups and lower emissions
DRIVETRAIN
- Transmission: Wide-ratio fi ve-speed
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Suspension Front: "Sturdy 41mm front fork features a large-diameter billet-aluminum triple-clamp for a distinctive look plus confi dent, neutral handling and a plush 4.6 inches of wheel travel"
- Suspension Rear: "Classic dual-shock rear suspension features five-position spring preload adjustability and 3.5 inches of wheel travel for a smooth ride"
- Brakes Front: Single front disc
- Brakes Rear: rear drum
- Tire Front: 100/90-19
- Tire Rear: 150/80-16
DIMENSION
- Wheelbase: 61.5 in.
- Seat Height: 29.4 in.
- Curb Weight: 507 lb
- Fuel Capacity: 2.8 GalUS
OTHER
- Colors:
  - Pearl White
  - Metallic Gray

ENGINE
- Engine Type: 745cc liquid-cooled 52 degrees V-twin
- Bore And Stroke: 79mm x 76mm
- Fuel Delivery: PGM-FI with automatic enrichment circuit, one 34mm throttle body
- Ignition: CD with electronic advance, two spark plugs per cylinder
- Compression Ratio: 9.6:1
- Valve Train: SOHC; three valves per cylinder
DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork; 4.6 inches travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.5 inches travel
- Front Brake: Single 296mm disc with twin-piston caliper
- Rear Brake: 180mm Drum
- Front Tire: 100/90-19
- Rear Tire: 150/80-16
DIMENSION
- Rake: (Caster Angle) 32.30 degrees
- Trail: 134mm (5.3 inches)
- Wheelbase: 61.5 inches
- Seat Height: 29.4 inches
- Curb Weight: 507 lb
- Fuel Capacity: 2.8 gallons, including 0.7-gallon reserve
OTHER
- Fuel consumption: 4.2 L/100km (56 mpgUS)
- Model Id: VT750RS
- Emissions: Meets current EPA standards. 50-state version meets current CARB standards and may differ slightly due to emissions equipment.
- Colors: Blue White Red
- Warranty: One Year: Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

ENGINE
- Engine Type: 745cc liquid-cooled 52 degree V-twin
- Bore And Stroke: 79mm x 76mm
- Fuel Delivery: PGM-FI with automatic enrichment circuit, one 34mm throttle body
- Ignition: Digital with 3-D mapping, two spark plugs per cylinder
- Compression Ratio: 9.6:1
- Valve Train: SOHC; three valves per cylinder
DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork; 4.6 inches travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.5 inches travel
- Front Brake: Single 296mm disc with twin-piston caliper
- Rear Brake: Drum
- Front Tire: 100/90-19
- Rear Tire: 150/80-16
DIMENSION
- Rake: (Caster Angle) 32.30 degrees
- Trail: 134mm (5.3 inches)
- Wheelbase: 1560mm (61.4 inches)
- Seat Height: 747mm (29.4 inches)
- Curb Weight: 228.6 kg (503 lb) (Includes all standard equipment, required fluids and a full tank of fuel ready to ride)
- Fuel Capacity: 9.8 Litre (2.6 GalUS), including 2.6 Litre (0.7 GalUS) reserve
OTHER
- Fuel consumption: 4.2 L/100km (56 mpgUS)
- Emissions: Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
- Model Id: VT750RS
- Colors: Candy Blue
- FACTORY WARRANTY: One Year: Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
