2001 VT750DC'01 SHADOW SPIRIT 750
- ENGINE
- Engine Type: Liquid cooled, 52° V-twin, single pin crank
- Displacement: 745cc
- Bore and Stoke: 79mm x 76mm
- Compression Ratio: 9:1
- Valve Train: SOHC, 3 valve per cylinder
- Fuel Delivery: Twin 36mm, diaphragm-type CV
- DRIVETRAIN
- Transmission: Wide-Ratio, 5-speed
- Final Drive: "O" ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork, 130mm travel
- Rear Suspension: Dual shocks with 5-way spring preload adjustment, 90mm travel
- Front Tire: 110/80H-19
- Rear Tire: 160/80H-15
- Front Brakes: Single 296mm disc with twin piston caliper
- Rear Brakes: Mechanical drum
- DIMENSION
- Seat Height: 676mm (26.6")
- Wheelbase: 1640mm (64.8")
- Dry Weight: 225 kg (496 lb)
- Fuel Capacity: 13.6 liters
- OTHER
2001 VT750DC
2001 VT750DC
2002 VT750DC
- ENGINE
- Engine: 745cc Liquid-cooled, 52 degree V-twin, single pin crank
- Bore and Stroke: 79.0mm X 76.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC, 3-valve
- Fuel Delivery: Twin, 34mm, diaphragm-type, CV
- DRIVETRAIN
- Transmission: Wide-ratio, 5-speed
- Final Drive: O ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork, 130mm travel
- Rear Suspension: Dual shocks with 5-way spring preload adjustment, 80mm travel
- Front Brakes: Single 296mm disc with twin piston caliper
- Rear Brake: Mechanical drum
- Front Tire: 110/80H-19
- Rear Tire: 160/80H-15
- DIMENSION
- Wheelbase: 1645 mm (64.8 in.)
- Seat Height: 675mm (26.6 in.)
- Dry Weight: 225 kg (496 lb.)
- Fuel Capacity: 13.4 litres (2.9 Imp. gal.)
- OTHER

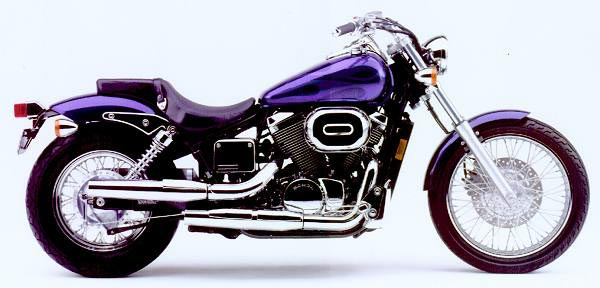

2002 VT750DC
Click image to enlarge

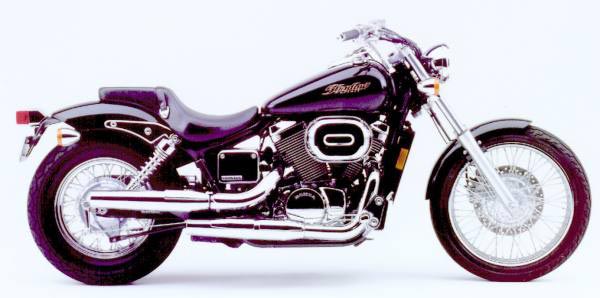

2002 VT750DC
Click image to enlarge

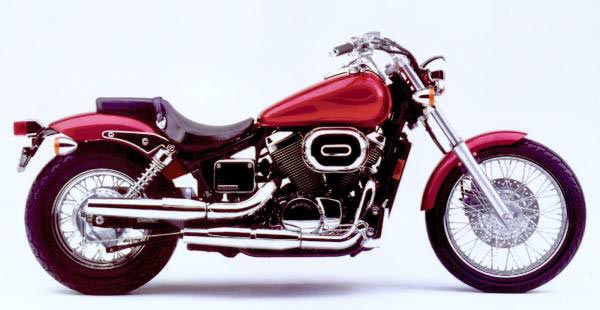

2002 VT750DC
Click image to enlarge
2003 VT750DC
- ENGINE
- Engine: 745cc Liquid-cooled, 52 degree V-twin, single pin crank
- Bore and Stroke: 79.0mm X 76.0mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC, 3-valve
- Fuel Delivery: Twin, 36mm, diaphragm-type, CV
- DRIVETRAIN
- Transmission: Wide-ratio, 5-speed
- Final Drive: O ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork, 130mm travel
- Rear Suspension: Dual shocks with 5-way spring preload adjustment, 80mm travel
- Front Brakes: Single 296mm disc with twin piston caliper
- Rear Brake: Mechanical drum
- Front Tire: 110/80H-19
- Rear Tire: 160/80H-15
- DIMENSION
- Wheelbase: 1645 mm (64.8 in.)
- Seat Height: 675mm (26.6 in.)
- Dry Weight: 225 kg (496 lb.)
- Fuel Capacity: 13.6 litres (3.0 Imp. gal.)
- OTHER
Colors:
- Candy Dark Red Flame
- Pearl Purple Flame
- Black

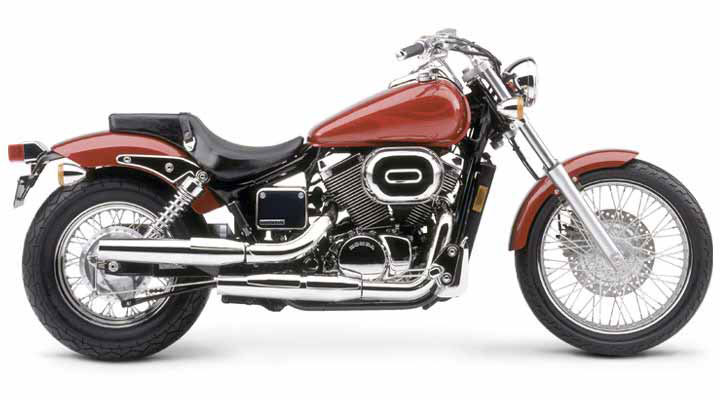

2003 VT750DC
Click image to enlarge
2004 Shadow VT750DC
- ENGINE
- Engine Type: Liquid-cooled 4-stroke SOHC 52° degrees V-twin
- Engine Displacement: 745cc
- Bore & Stroke: 79 x 76mm
- Compression Ratio: 9.0 :1
- Fuel Delivery: 34mm CV-type x 2
- Max Power Output: 44bhp at 5,500 rpm
- Max Torque: 63Nm at 5,000 rpm
- Ignition: Capacitor Discharge (CDI) with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: 'O'-Ring sealed chain
- Front Wheel: 19 x MT2.15 steel rim/wire spoke
- Rear Wheel: 15M/C x MT3.50 steel rim/wire spoke
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm telescopic fork, 108mm axle travel
- Rear Suspension: Dual conventional dampers with 5-step adjustable spring preload, 80mm axle travel
- Front Brakes: 296mm hydraulic disc with dual-piston caliper
- Rear Brakes: 180mm leading/trailing drum
- Front Tire: 110/80-19 (59S)
- Rear Tire: 160/80-15M/C (74S)
- DIMENSION
- Length x Width x Height: 2,310 x 800 x 1,070mm
- Wheelbase: 1,640mm
- Seat Height: 675mm
- Ground Clearance: 140mm
- Fuel Capacity: 13.4 litres (including 4.8 litre reserve)
- Dry Weight: 221kg
- OTHER
2004 VT750C
2004 VT750C
2005 Shadow Spirit 750 VT750DC
- ENGINE
- Engine Type: 745cc liquid-cooled 52-degree V-twin
- Bore and Stroke: 79.0mm x 76.0mm
- Compression Ratio: 9.0:1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Two 34mm diaphragm-type CV
- Ignition: CD with electronic advance, two spark plugs per cylinder
- DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork; 5.1-inch travel
- Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
- Front Brake: Single 296mm disc with twin-piston caliper
- Rear Brake: Drum
- Front Tire: 110/80-19
- Rear Tire: 160/80-15
- DIMENSION
- Wheelbase: 64.8 inches
- Seat Height: 26.6 inches
- Dry Weight: 496.0 pounds
- Fuel Capacity: 3.6 gallons, including 1.3-gallon reserve
- OTHER
- Emissions: California version differs slightly due to emissions equipment.
- Colors:
- Black
- Black/Red Flame
- Pearl Blue/Metallic Silver Flame
- Model ID: VT750DC
- Warranty: 1 year
2005 VT750DC
2005 VT750DC
2005 VT750DC
2008 VT750DC Shadow Spirit 750
- ENGINE
- Engine Size: 745cc
- Engine Detail: liquid-cooled 45 degree V-twin
- Bore Stroke: 79.0mm x 76.0mm
- Compression Ratio: 9.0:1
- Fuel System: Two 34mm diaphragm-type CV
- Ignition: CD with electronic advance, two spark plugs per cylinder
- DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 41mm fork; 5.1-inch travel
- Suspension Rear: Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
- Brakes Front: Single 296.0mm disc with twin-piston caliper
- Brakes Rear: Drum
- Tire Front: 110/80-19
- Tire Rear: 160/80-15
- DIMENSION
- Wheelbase: 64.8 in.
- Seat Height: 26.6 in.
- Curb Weight: N/A
- Fuel Capacity: N/A
- OTHER
- Colors: Candy Dark Red, Black, Black/Red Pinstripe Flame, Metallic Titanium
- Price: $6449
- Warranty: 1 Year
2008 Shadow Spirit VT750DC
