2011 Honda VT750C2B Phantom
ENGINE
Engine Type: Liquid-cooled 52-degree V-twin
Displacement: 745cc
Bore and Stroke: 79mm x 76mm
Compression Ratio: 9.6:1
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 34mm throttle body
Ignition: Digital transistorized with electronic advance
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork; 117 mm (4.6 in.) travel
Rear Suspension: Dual shocks with spring preload adjustment; 89 mm (3.5 in.) travel
Front Tire: 120/90-17
Rear Tire: 160/80-15
Front Brake: Single 296mm disc with twin-piston caliper
Rear Brake: Drum
DIMENSION
Rake: 34 degrees (Caster Angle)
Trail: 161mm (6.3 inches)
Wheelbase: 1640 mm (64.6 in.)
Ground Clearance: N/A
Seat Height: 655 mm (25.8 in.)
Curb Weight: 249 kg (549 lb)
Fuel Capacity: 14 litres (3.9 GalUS), including 3.5-litre (0.9 Gal) reserve
OTHER
Fuel consumption: 4.2 L/100km (56 mpgUS)
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Colour: Graphite Black
Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $9,599
Model Id: VT750C2B

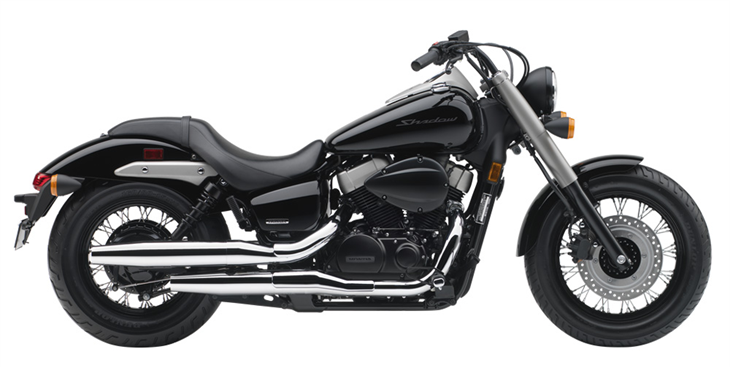

2011 VT750C2B Click image to enlarge
2012 Honda VT750C2B Phantom
ENGINE
Engine Type: Liquid-cooled 4-stroke 6-valve SOHC 52° V-twin
Engine Displacement: 745cc
Bore and Stroke: 79 x 76mm
Compression Ratio: 9.6:1
Valve Train: Chain-driven SOHC; three valves per cylinder
Fuel Delivery: PGM-FI with automatic enrichment circuit, one 34mm throttle body, automatic choke
Ignition: Digital with 3-D mapping, two spark plugs per cylinder
Max. Power Output: 33.5kW/5,500min-1 (95/1/EC)
Max. Torque: 65Nm/3,500min-1 (95/1/EC)
Starter: Electric
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Enclosed shaft
Front Wheels: Black painted steel rim/wire spoke 21M/C x MT3
Rear Wheels: Black painted steel rim/wire spoke 15M/C x MT3.5
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41mm telescopic fork, 117mm (4.6 in.) axle travel
Rear Suspension: Dual conventional shocks/dampers with 5-step adjustable spring preload, 90mm (3.5 in.) axle travel
Front Brakes: Single 296 x 6mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brakes: 180mm leading/trailing drum
Front Tires: 120/90-17
Rear Tires: 160/80-15
DIMENSION
Rake: 34 degrees (Caster Angle)
Trail: 161mm (6.3 inches)
Wheelbase: 1639mm (64.5 inches)
Overall Length: 2395mm (94.3 inches)
Overall Width: 835mm (32.9 inches)
Overall Height: 1089mm (42.9 inches)
Seat Height: 652mm (25.7 inches)
Ground Clearance: 130mm (5.1 inches)
Weight: Curb Weight: 251 kg (552 lb)
Front: 116 kg (255 lb)
Rear: 135 kg (297 lb)
Fuel Capacity: 14 Litres (3.8 GalUS) [including 3.5-Litre (0.9 Gal) reserve]
OTHER
Fuel Consumption: 4.2 L/100km (56 mpgUS)
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Colors:
Matte Black Metallic
Mat Gunpowder Black
Model Id: VT750C2B
FACTORY WARRANTY: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
MSRP: $8,999

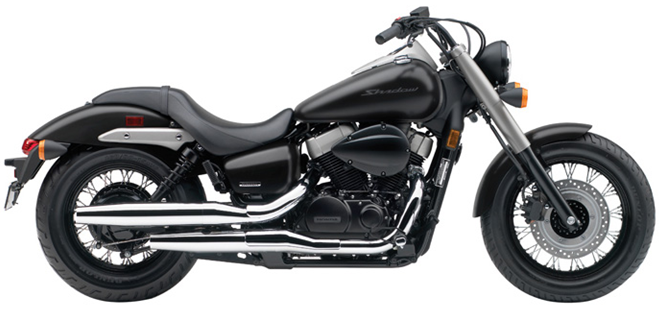

2012 VT750C2B Phantom
2012 VT750C2B Phantom Click image to enlarge
