With an all-new 21-inch front wheel and low-profile tires, this cruiser sports a low-low 25.7-inch seat height. Up to 60 pounds lighter than competitive models, this is the most agile and comfortable cruiser to "Be Seen" on! Plus, the bobbed fenders and smooth shaft drive make the Shadow Spirit 750 (VT750C2) a stunner in the classic chopped dragbike mold.
ENGINE
Engine Type: 745cc liquid-cooled 52-degree V-twin
Bore and Stroke: 79mm x 76mm
Compression Ratio: 9.6:1
Valve Train: : SOHC; three valves per cylinder
Fuel Delivery: Single 34mm constant-velocity
Ignition: CD with electronic advance, two spark plugs per cylinder
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41mm fork;4.6 inches travel
Rear Suspension: Dual shocks with five-position spring preload adjustability;3.5 inches travel
Front Brake: Single 296mm disc with twin-piston caliper
Rear Brake: 180mm Drum
Front Tire: 90/90-21
Rear Tire: 160/80-15
DIMENSION
Rake: 34-degree 30'
Trail: 158mm (6.2 inches)
Wheelbase: 65.0 inches
Seat Height: 25.7 inches
Dry Weight: 503.5 pounds
Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
OTHER
Emissions: Meets current EPA standards
California version meets current CARB standards and may differ slightly due to emissions equipment

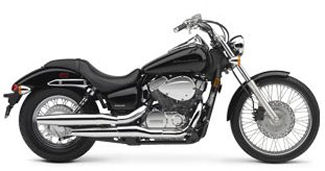

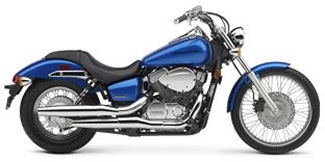

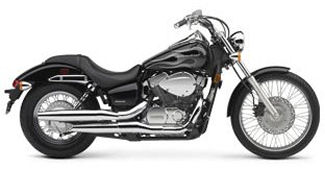

Colors: Black, Red/Flame, Black/Flame, Ultra Blue Metallic
A must-be-seen-on bad boy that should have a special place in every cruiser rider's garage, the Shadow Spirit 750 (VT750C2) is a stunner in the classic dragbike mold. Bobbed fenders wrap around low tires, while dual shorty pipes snake behind a super-low, 25.7-inch seat, delivering classic custom lines, light steering and agility. Style, performance and comfort -- talk about the best of all worlds.
ENGINE
Engine Type: 745cc liquid-cooled 52-degree V-twin
Bore and Stroke: 79mm x 76mm
Compression Ratio: 9.6:1
Valve Train: : SOHC: three valves per cylinder
Fuel Delivery: Single 34mm constant-velocity carburetor
Ignition: CD with electronic advance, two spark plugs per cylinder
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41mm fork;4.6 inches travel
Rear Suspension: Dual shocks with five-position spring preload adjustability;3.5 inches travel
Front Brake: Single 296mm disc with twin-piston caliper
Rear Brake: 180mm Drum
Front Tire: 90/90-21
Rear Tire: 160/80-15
DIMENSION
Rake: 34-degree 30'
Trail: 158mm (6.2 inches)
Wheelbase: 65.0 inches
Seat Height: 25.7 inches
Curb Weight: N/A
Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
OTHER
Emissions: Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment
Colors: Black, Metallic Silver, Candy Dark Red/Flame, Ultra Blue Metallic/Flame, Metallic Silver/Flame
Model ID: VT750C2
1 year Warranty: Coverage of defects in materials and workmanship

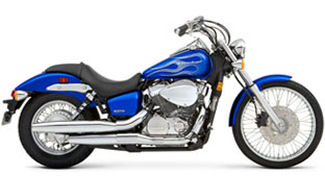

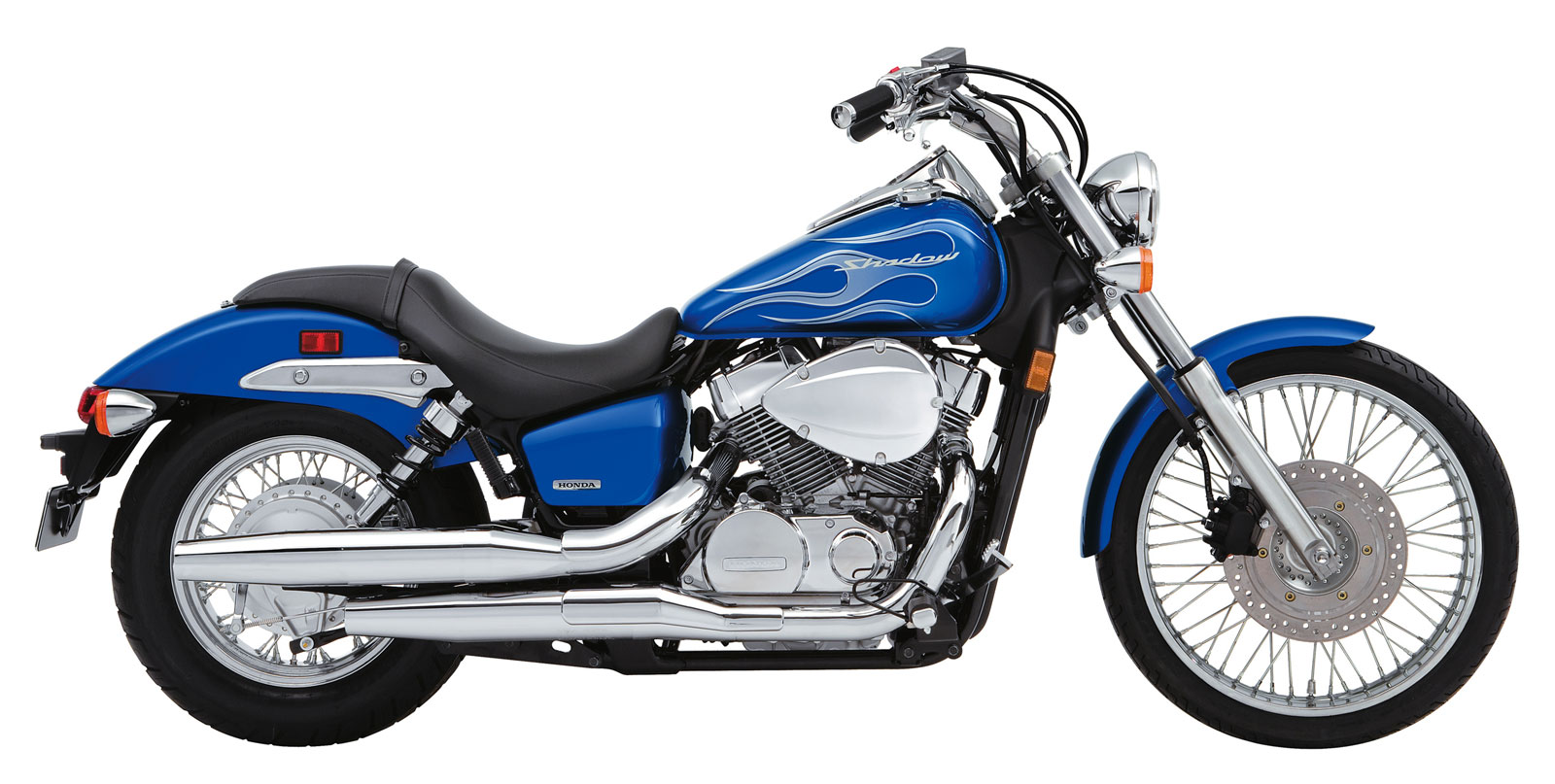

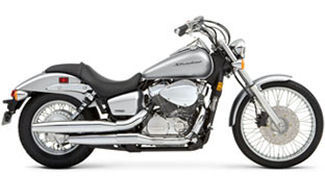

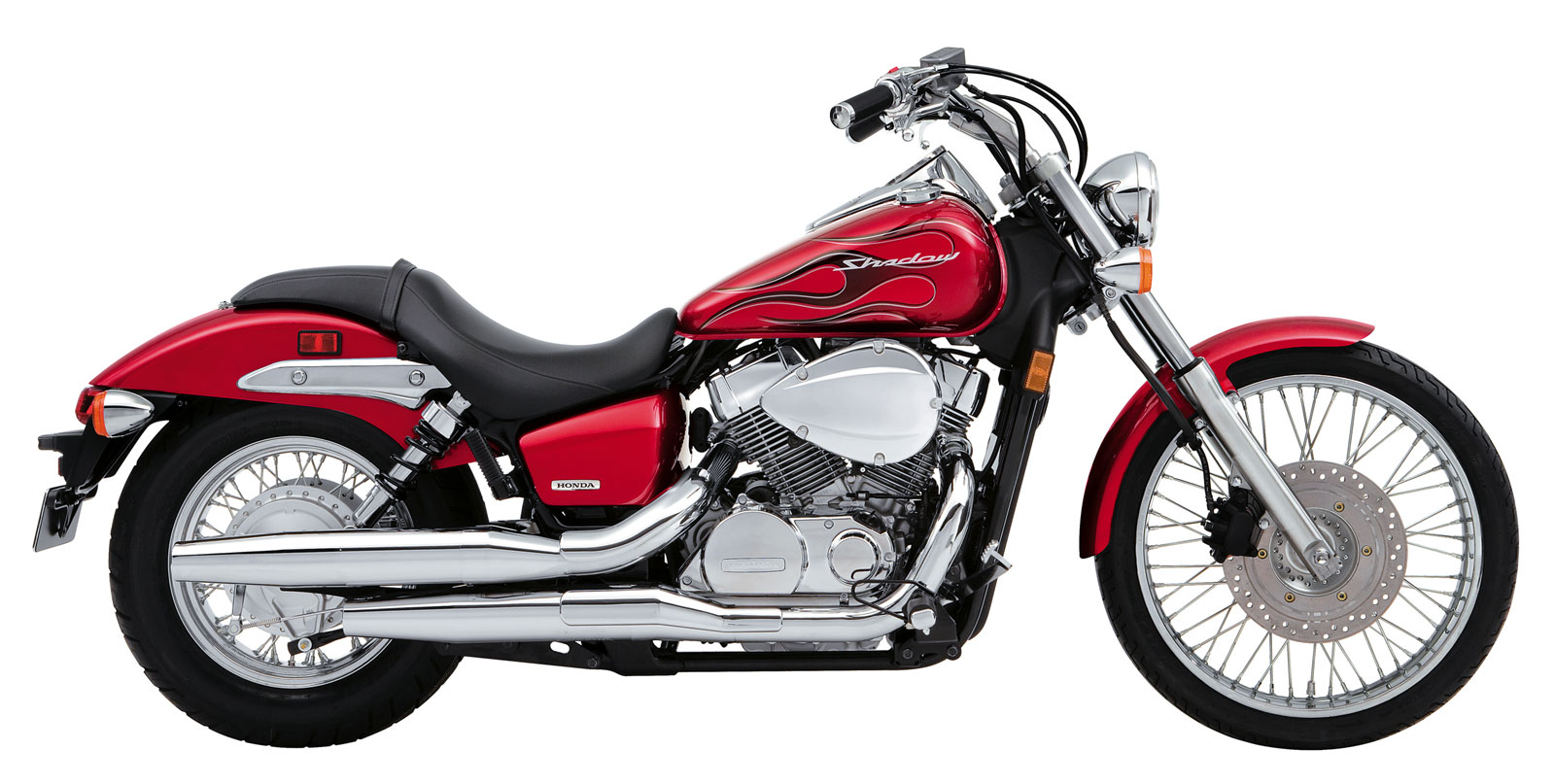

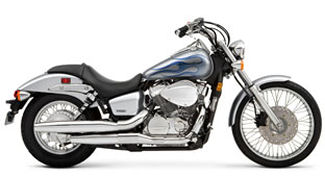

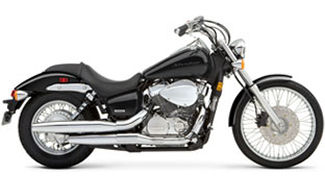

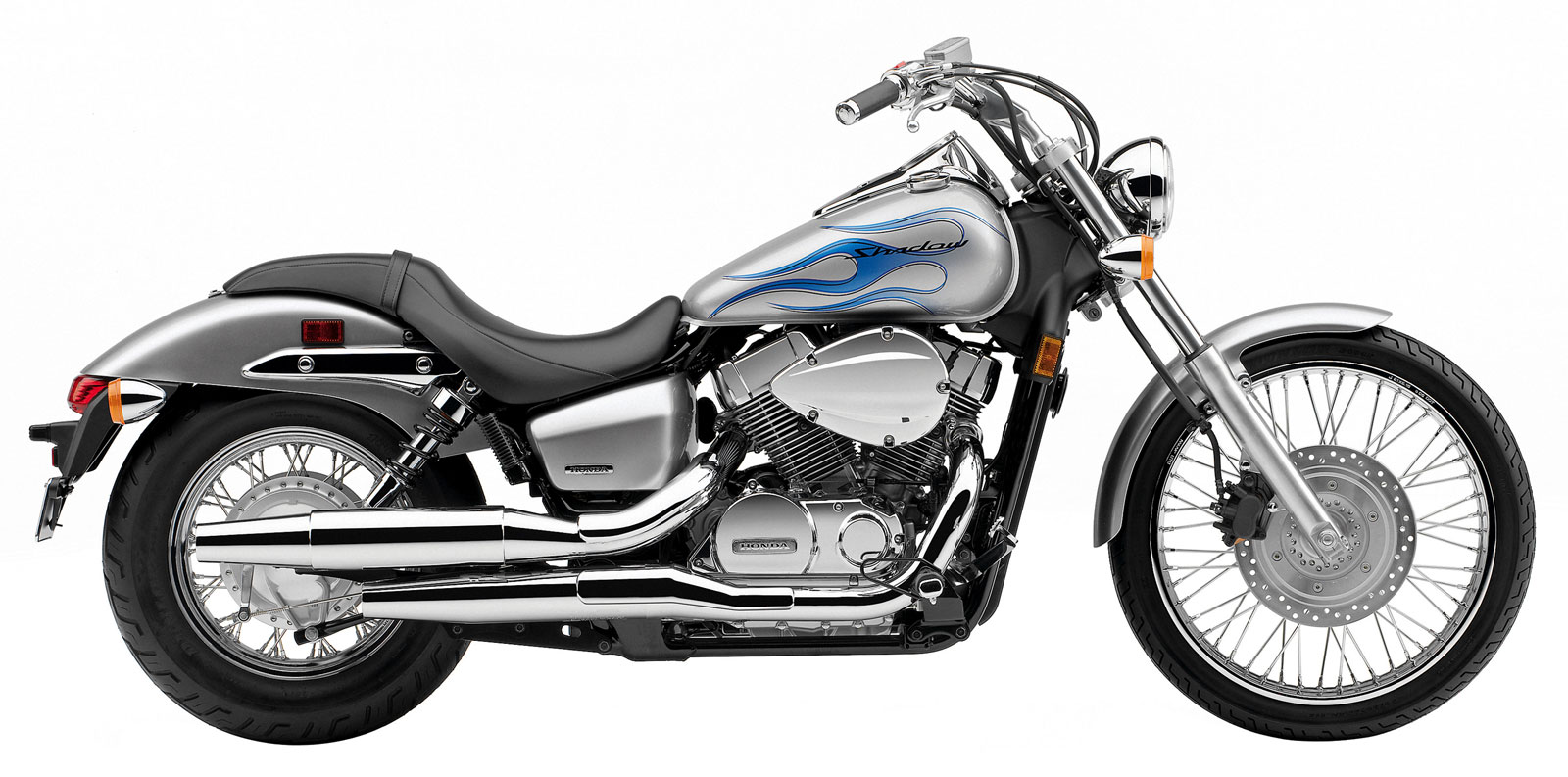

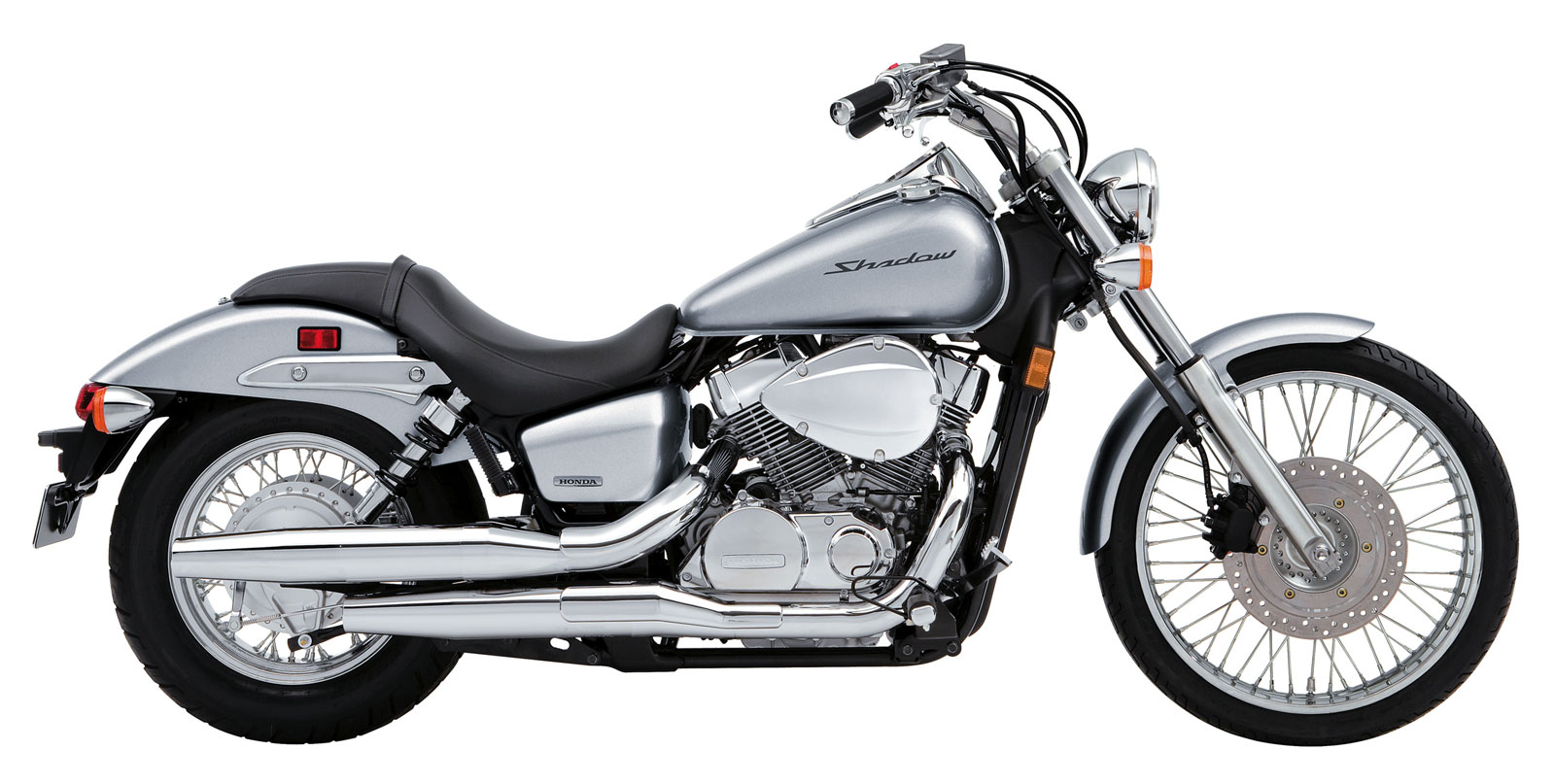

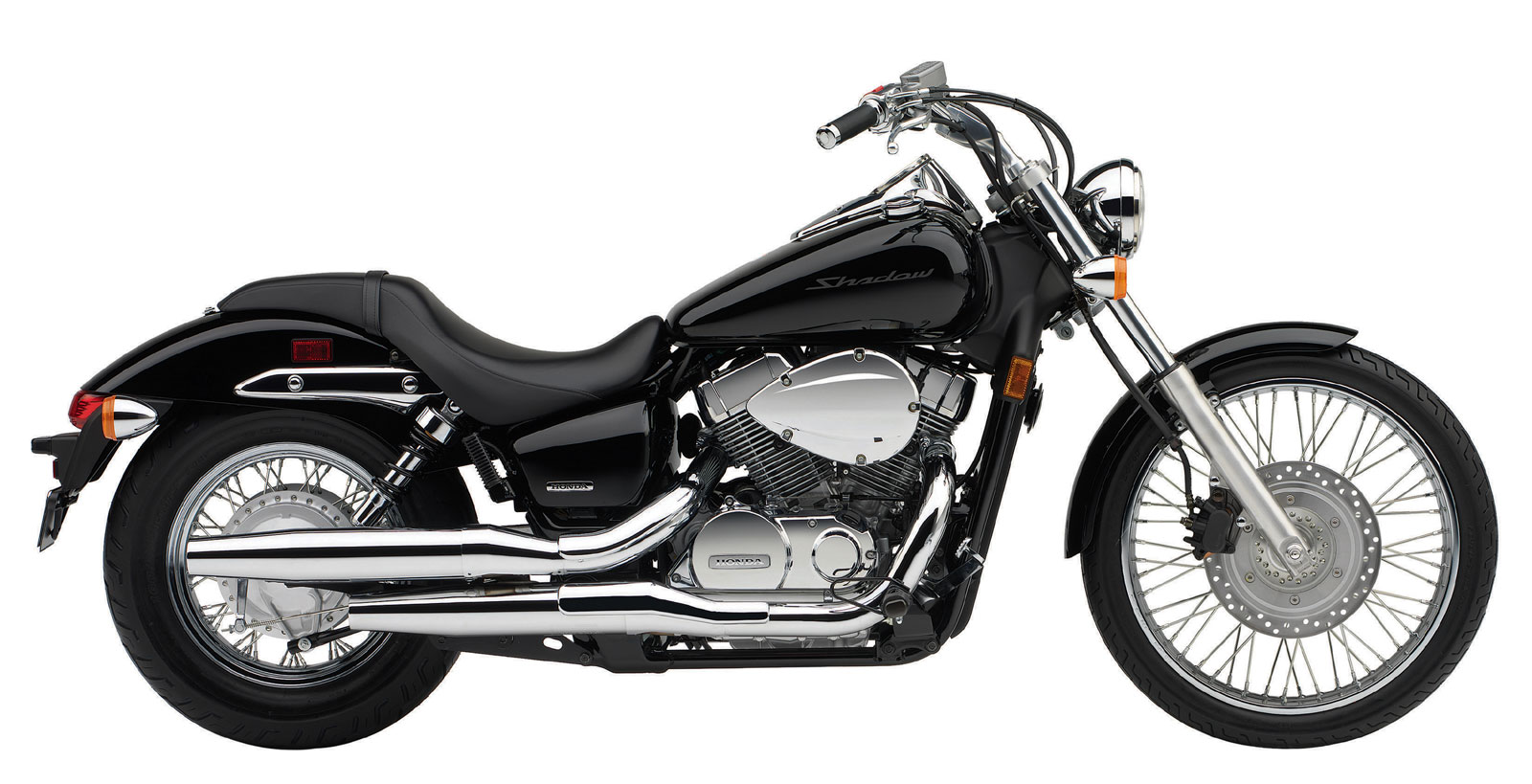

2008 vt750c2 Shadow Spirit 750 Click image to enlarge2008 vt750c2 Shadow Spirit 750 Click image to enlarge2008 vt750c2 Shadow Spirit 750 Click image to enlarge
2008 vt750c2 Shadow Spirit 750 Click image to enlarge
2008 vt750c2 Shadow Spirit 750 Click image to enlarge
2009 VT750C2 Shadow Spirit 750
ENGINE
Engine Type: 745cc liquid-cooled 52-degree V-twin
Bore And Stroke: 79.0mm x 76.0mm
Fuel Delivery: Single 34mm constant-velocity carburetor
Ignition: CD with electronic advance, two spark plugs per cylinder
Compression Ratio: 9.6:1
Valve Train: : SOHC; three valves per cylinder
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41.0mm fork; 4.6-inch travel
Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.5-inch travel
Front Brake: Single 296 mm disc with twin-piston caliper
Rear Brake: Drum
Front Tire: 90/90-21
Rear Tire: 160/80-15
DIMENSION
Rake: 34-degree 30'
Trail: 158mm (6.2 inches)
Wheelbase: 65 inches
Seat Height: 25.7 inches
Curb Weight: 536 pounds (Includes all standard equipment, required fluids and a full tank of fuel ready to ride)
Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
OTHER
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Available Colors: Candy Dark Red, Pearl White/Silver Pinstripe, Pearl Black/Red Pinstripe, Black
Model Id: VT750C2
Note: Big-bike looks in a surprisingly affordable package
FACTORY WARRANTY INFORMATION: One Year: Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

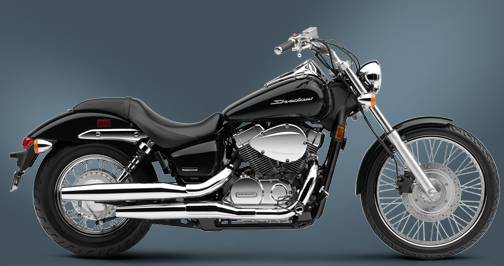

2009 VT750C2 Shadow Spirit
2010 VT750C2 Shadow Spirit
ENGINE
Engine Type: Liquid-cooled 52-degree V-twin
Displacement: 745 cc
Bore and Stroke: 79 mm x 76 mm
Compression Ratio: 9.6:1
Valve Train: Chain-driven SOHC, 3 valves per cylinder
Fuel Delivery: PGM-FI electronic fuel injection
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41 mm fork; 117 mm (4.6 in.) travel
Rear Suspension: Dual shocks with adjustable spring preload; 89 mm (3.5 in.) travel
Tires: 90/90 - 21 front; 160/80 - 15 rear
Front Brakes:
ASB: Single 296 mm disc with dual-piston caliper. Combined Braking System with ABS
Non-ABS: Single 296 mm disc with dual-piston caliper
Rear Brakes:
ASB: Single 276 mm disc with single-piston caliper. Combined Braking System with ABS
Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP:
Non-ABS: $8,899
ASB: $9,699

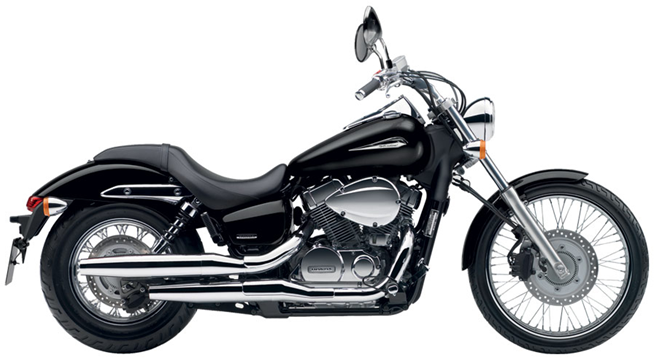

2010 VT750C2 Shadow Spirit Click image to enlarge2010 VT750C2 Shadow Spirit ASB Click image to enlarge
2012 VT750C2 Shadow Spirit
ENGINE
Engine Type: 745cc liquid-cooled 52-degree V-twin
Bore And Stroke: 79.0mm x 76.0mm
Fuel Delivery: PGM-FI with automatic enrichment, one 34mm throttle body
Ignition: CD with electronic advance, two spark plugs per cylinder
Compression Ratio: 9.6:1
Valve Train: SOHC; three valves per cylinder
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 41.0mm fork; 4.5-inch travel
Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.5-inch travel
Front Brake: Single 296mm disc with twin-piston caliper
Rear Brake: Drum
Front Tire: 90/90-21
Rear Tire: 160/80-15
DIMENSION
Rake: 34°30'
Trail: 158mm (6.2 inches)
Wheelbase: 65.2 inches
Seat Height: 25.7 inches
Curb Weight: 536 pounds (Includes all standard equipment, required fluids and a full tank of fuel/ready to ride)
Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
OTHER
Model Id: VT750C2
Emissions: Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment.
Colors:
Candy Orange Flame
Black
FACTORY WARRANTY: One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
