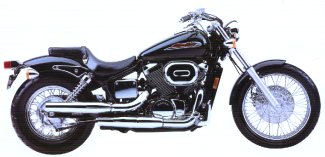

2001 VT750DC'01 SHADOW SPIRIT 750

• Engine Type: Liquid cooled, 52° V-twin, single pin crank
• Displacement: 745cc
• Bore and Stoke: 79mm x 76mm
• Compression Ratio: 9:1
• Valve Train: SOHC, 3 valve per cylinder
• Carburetion: Twin 36mm, diaphragm-type CV
• Transmission: Wide-Ratio, 5-speed
• Final Drive: "O" ring chain
• Front Suspension: 41mm fork, 130mm travel
• Rear Suspension: Dual shocks with 5-way spring preload adjustment, 90mm travel
• Front Tire: 110/80H-19
• Rear Tire: 160/80H-15
• Front Brakes: Single 296mm disc with twin piston caliper
• Rear Brake: s: Mechanical drum
• Seat Height: 676mm (26.6")
• Wheelbase: 1640mm (64.8")
• Dry Weight: 225 kg (496 lb)
• Fuel Capacity: 13.6 liters
• Color: Black or White

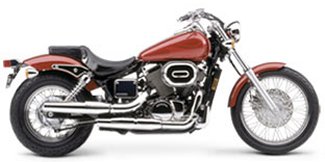

2003 VT750DC

• Colors:
  • Candy Dark Red Flame
  • Pearl Purple Flame
  • Black
• Engine: 745cc liquid-cooled 52° V-twin
• Compression Ratio: 9.0:1
• Transmission: Five-speed
• Driveline: O-ring-sealed chain
• Front Tire: 110/80-19
• Rear Tire: 160/80-15
• Seat height: 675mm (26.6 in.)
• Wheelbase: 1645mm (64.8 in.)
• Dry weight: 225 kg (496 lb)
• Fuel capacity: 13.6 liters

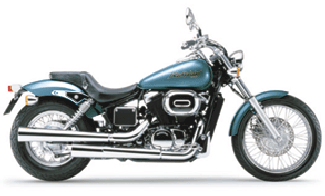

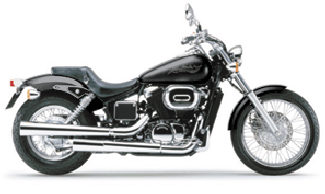

2004 Shadow VT750DC

• Engine Type: Liquid-cooled 4-stroke SOHC 52° degrees V-twin
• Engine Displacement: 745cc
• Bore & Stroke: 79 x 76mm
• Compression Ratio: 9.0 : 1
• Carburetion: 34mm CV-type x 2
• Max Power Output: 44bhp at 5,500 rpm
• Max Torque: 63Nm at 5,000 rpm
• Ignition: Capacitor Discharge (CDI) with electronic advance
• Starter: Electric
• Transmission: 5-speed
• Final Drive: 'O'-Ring sealed chain
• Length x Width x Height: 2,310 x 800 x 1,070mm
• Wheelbase: 1,640mm
• Seat Height: 675mm
• Ground Clearance: 140mm
• Fuel Capacity: 13.4 litres (including 4.8 litre reserve)
• Dry Weight: 221kg
• Front Wheel: 19 x MT2.15 steel rim/wire spoke
• Rear Wheel: 15M/C x MT3.50 steel rim/wire spoke
• Front Tire: 110/80-19 (59S)
• Rear Tire: 160/80-15M/C (74S)
• Front Suspension: 41mm telescopic fork, 108mm axle travel
• Rear Suspension: Dual conventional dampers with 5-step adjustable spring preload, 80mm axle travel
• Front Brakes: 296mm hydraulic disc with dual-piston caliper
• Rear Brake: s: 180mm leading/trailing drum

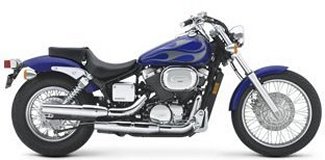

2005 Shadow Spirit 750 VT750DC

• Engine Type: 745cc liquid-cooled 52-degree V-twin
• Bore and Stroke: 79.0mm x 76.0mm
• Compression Ratio: 9.0:1
• Valve Train: SOHC; three valves per cylinder
• Carburetion: Two 34mm diaphragm-type CV
• Ignition: CD with electronic advance, two spark plugs per cylinder
• Transmission: Wide-ratio five-speed
• Final Drive: O-ring-sealed chain
• Front Suspension: 41mm fork; 5.1-inch travel
• Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
• Front Brake: Single 296mm disc with twin-piston caliper
• Rear Brake: Drum
• Front Tire: 110/80-19
• Rear Tire: 160/80-15
• Wheelbase: 64.8 inches
• Seat Height: 26.6 inches
• Dry Weight: 496.0 pounds
• Fuel Capacity: 3.6 gallons, including 1.3-gallon reserve
• Emissions: California version differs slightly due to emissions equipment.
• Colors:
  • Black
  • Black/Red Flame
  • Pearl Blue/Metallic Silver Flame
• Model ID: VT750DC
• Warranty: 1 year

2006 VT750DC Shadow Spirit

• Engine Type: 745cc liquid-cooled 52-degree V-twin
• Bore and Stroke: 79.0mm x 76.0mm
• Compression Ratio: 9.0:1
• Valve Train: SOHC; three valves per cylinder
• Carburetion: Two 34mm diaphragm-type CV
• Ignition: CD with electronic advance, two spark plugs per cylinder
• Transmission: Wide-ratio five-speed
• Final Drive: O-ring-sealed chain
• Front Suspension: 41mm fork; 5.1-inch travel
• Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
• Front Brake: Single 296mm disc with twin-piston caliper
• Rear Brake: Drum
• Front Tire: 110/80-19
• Rear Tire: 160/80-15
• Rake: 34-degree
• Trail: 152mm (6.0 inches)
• Wheelbase: 64.8 inches
• Seat Height: 26.6 inches
• Dry Weight: 496.0 pounds
• Fuel Capacity: 3.6 gallons, including 1.3-gallon reserve
• Emissions: California version differs slightly due to emissions equipment.
• Colors:

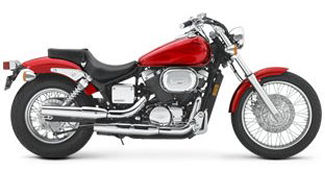

  • Candy Dark Red/Flame

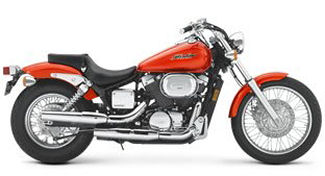

  • Candy Orange

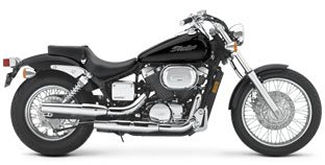

  • Black

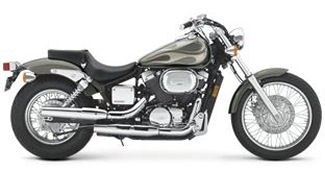

  • Titanium/Flame
• Model ID: VT750DC

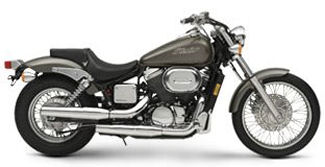

2007 VT750DC Shadow Spirit 750

• Engine Type: 745cc liquid-cooled 52-degree V-twin
• Bore and Stroke: 79.0mm x 76.0mm
• Compression Ratio: 9.0:1
• Valve Train: SOHC; three valves per cylinder
• Carburetion: Two 34mm diaphragm-type CV
• Ignition: CD with electronic advance, two spark plugs per cylinder
• Transmission: Wide-ratio five-speed
• Final Drive: O-ring-sealed chain
• Front Suspension: 41mm fork; 5.1-inch travel
• Rear Suspension: Dual shocks with five-position spring-preload adjustability; 3.2-inch travel
• Front Brake: Single 296mm disc with twin-piston caliper
• Rear Brake: Drum
• Front Tire: 110/80-19
• Rear Tire: 160/80-15
• Rake: 34-degree
• Trail: 152mm (6.0 inches)
• Wheelbase: 64.8 inches
• Seat Height: 26.6 inches
• Dry Weight: 496.0 pounds
• Fuel Capacity: 3.6 gallons, including 1.3-gallon reserve
• Emissions: California version differs slightly due to emissions equipment.
• Colors:

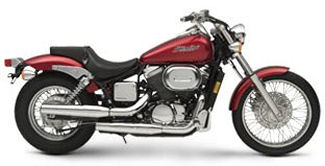

  • Candy Dark Red
  • Black
  • Black/Red Pinstripe Flame
  • Metallic Titanium
• Model ID: VT750DC
