Honda V45 Sabre, Sabre 750 (VF750S) Motorcycles

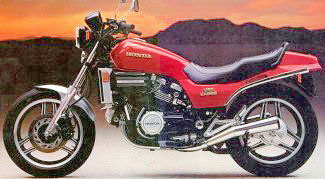

1982 VF750S'82 V45 Sabre

ENGINE
- Engine type: Liquid-cooled in-line V-4
- Displacement: 748cc
- Bore and Stroke: 70mm x 48.6mm
- Compression ratio: 10.5:1
- Fuel delivery: Four 32mm integrated dual-draft type carburetors
- Valving: 16-valve DOHC
- Exhaust system: Two-into-two
- Ignition system: Transistorized ;plointless with electronic advance
- Starting system: Electric
- Fuel type: Regular gasoline
DRIVETRAIN
- Transmission: Six-speed including overdrive
- Clutch: Wet, multi-plate, Hydraulic-operated
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front suspension: Air-assisted telescopic fork with TRAC^TM anti-dive
- Rear Suspension: Air-assisted Pro-Link^TM single shock with adjustable damping
- Front Brakes: Dual disc, dual piston caliper
- Rear Brakes: Drum
- Front tire: 110/90H18
- Rear tire: 130/90H17
DIMENSION
- Wheelbase: 1570mm (61.8 in.)
- Overall length: 2245mm (88.4 in.)
- Overall width: 830mm (32.7 in.)
- Seat height: 790mm (31.1 in.)
- Fuel capacity: 18 liters (4.8 GalUS) including 4 liter (1.1 gal) reserve
- Dry weight: 225 kg (496 lb)
OTHER
- Colors:
  - Black
  - Candy Bourgogne Red
- The front fender and exhaust system were chrome
- The air cleaner cover had a silver "V-FOUR" decal
- The speedometer had a 85 mph (135 kph) limit
- The front disc brake grooves were straight
- The serial number began JH2RC070*CM000025.

ENGINE
- Engine type: Liquid-cooled in-line V-4
- Displacement: 748cc
- Bore and Stroke: 70mm x 48.6mm
- Compression ratio: 10.5:1
- Fuel delivery: Four 32mm integrated dual-draft type carburetors
- Valving: 16-valve DOHC
- Exhaust system: Two-into-two
- Ignition system: Transistorized ;plointless with electronic advance
- Starting system: Electric
- Fuel type: Regular gasoline
DRIVETRAIN
- Transmission: Six-speed including overdrive
- Clutch: Wet, multi-plate, Hydraulic-operated
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front suspension: Air-assisted telescopic fork with TRAC^TM anti-dive
- Rear Suspension: Air-assisted Pro-Link^TM single shock with adjustable damping
- Front Brakes: Dual disc, dual piston caliper
- Rear Brakes: Drum
- Front tire: 110/90H18
- Rear tire: 130/90H17
DIMENSION
- Wheelbase: 1570mm (61.8 in.)
- Overall length: 2245mm (88.4 in.)
- Overall width: 830mm (32.7 in.)
- Seat height: 790mm (31.1 in.)
- Fuel capacity: 18 liters (4.8 GalUS) including 4 liter (1.1 gal) reserve
- Dry weight: 225 kg (496 lb)
OTHER
- Colors:
  - Black
  - Candy Wineberry Red
- The air cleaner cover "V4" decal was black with a white outline.
- The speedometer had a 150 mph (240 kph) limit.
- The front disc brake grooves were curved.
- The front fender and exhaust system were chrome.
- Handlebars: Adjustable
- The serial number began JH2RC070*DM100006.

ENGINE
- Engine type: Liquid-cooled in-line V-4
- Displacement: 748cc
- Bore and Stroke: 70mm x 48.6mm
- Compression ratio: 10.5:1
- Fuel delivery: Four 32mm integrated dual-draft type carburetors
- Valving: 16-valve DOHC
- Exhaust system: Two-into-two
- Ignition system: Transistorized ;plointless with electronic advance
- Starting system: Electric
- Fuel type: Regular gasoline
DRIVETRAIN
- Transmission: Six-speed including overdrive
- Clutch: Wet, multi-plate, Hydraulic-operated
- Final Drive: Shaft
CHASSIS / SUSPENSION / BRAKES
- Front suspension: Air-assisted telescopic fork with TRAC^TM anti-dive
- Rear Suspension: Air-assisted Pro-Link^TM single shock with adjustable damping
- Front Brakes: Dual disc, dual piston caliper
- Rear Brakes: Drum
- Front tire: 110/90H18
- Rear tire: 130/90H17
DIMENSION
- Wheelbase: 1570mm (61.8 in.)
- Seat height: 790mm (31.1 in.)
- Fuel capacity: 18 liters (4.8 gal.) including 4 liter (1.1 gal) reserve
- Dry weight: 225 kg (496 lb)
OTHER
- Handlebars: Adjustable
- The serial number began JH2RC070*EM100006.
