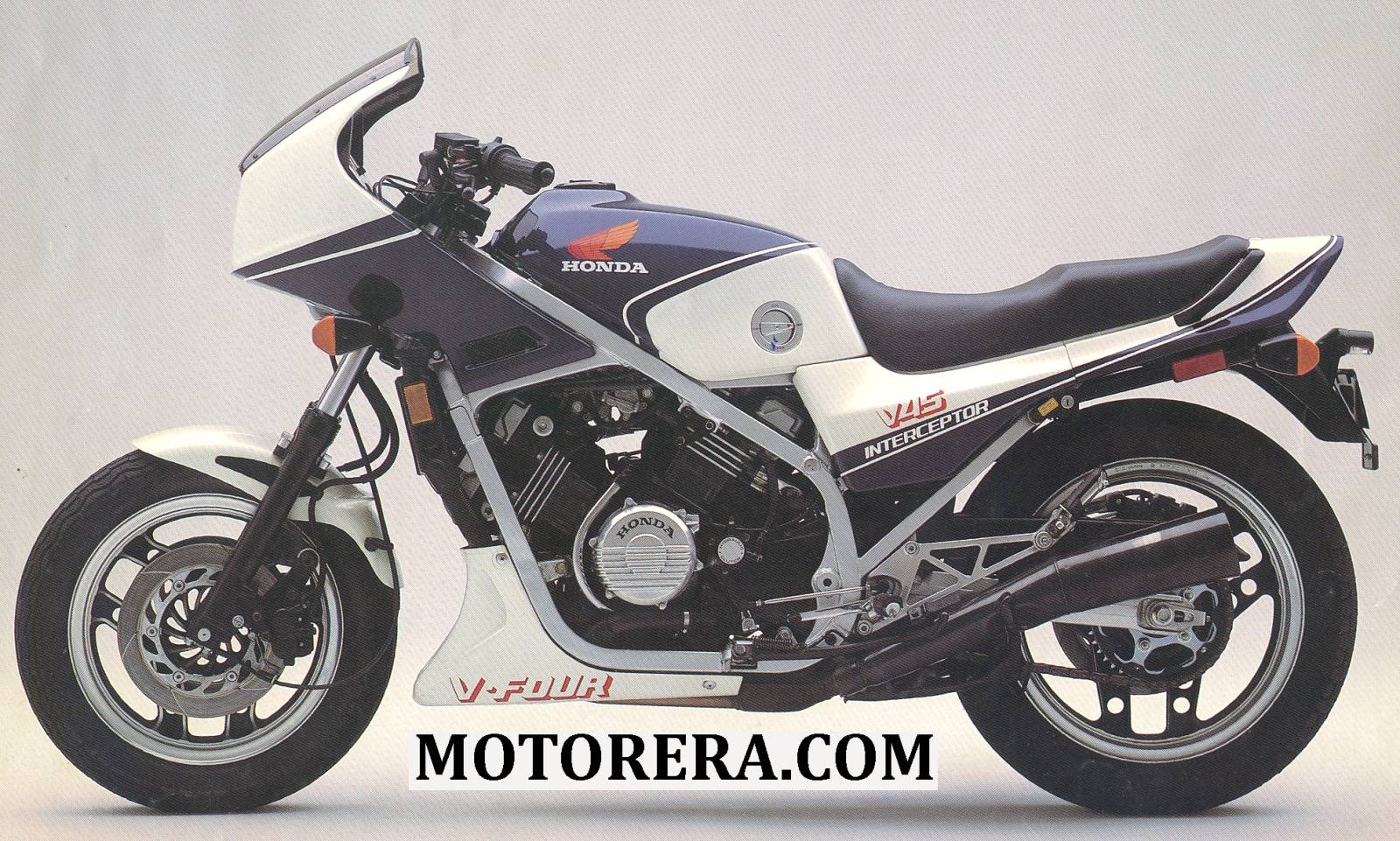

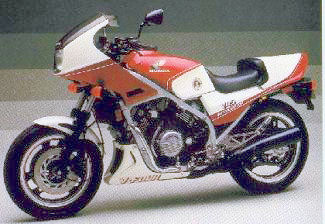

1983 VF750F'83 V45 Interceptor
- ENGINE
- Engine type: Liquid-cooled in-line 90° V-4
- Valving: 16-valve DOHC
- Displacement: 748cc (45 cid)
- Bore and Stroke: 70mm x 48.6mm
- Compression ratio: 10.5:1
- Fuel delivery: Four 32mm integrated dukal draft type carburetors
- Power: 86 horsepower
- Cooling: Liquid-cooling system using two slim-line radiators
- Exhaust system: Two-into-two
- Ignition system: Transistorized pointless with electronic advance
- Starting system: Electric
- Fuel type: Regular gasoline
- DRIVETRAIN
- Transmission: 5-speed constant mesh, close ratio
- Clutch: Wet multi-plate, hydraulic operated
- Final Drive: Chain
- Wheels: Special Honda ComCastTM alloy
- CHASSIS / SUSPENSION / BRAKES
- Frame: Race-designed rectangular section
- Front suspension: Air assisted 39mm fork with TRACTM anti-dive and damping adjustment
- Rear suspension: Air-assisted PRO-LINKTM single shock with four-way damping adjustment; box section extrukded aluminum alloy swing arm
- Front Brakes: Dual disc, dual position caliper
- Rear Brakes: Dual piston caliper, single disc
- Brake pads: Semi-metallic
- Front tire: 120/80H16
- Rear tire: 130/80H18
- DIMENSION
- Wheelbase: 1495mm (58.8 in.)
- Dry weight: 220.5 kg (486 lb)
- Seat height: 780mm (30.7 in.)
- Fuel capacity: 22 liters (5.8 GalUS)
- OTHER
- Colors:
- Pearl Shell White with Candy Aleutian Blue
- Pearl Shell White with Candy Bourgogne Red
- The stripes on the blue bike were blue and the "V45" decal was red; but on the red bike the stripes were red and the "V45" decal was black
- The serial number began JH2RC150*DM000001.

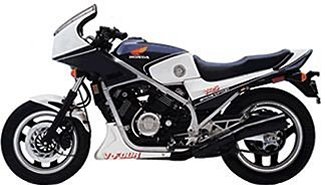

VF750F V45 Interceptor
Click image to enlarge

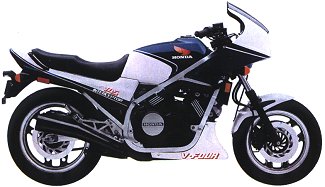

VF750F V45 Interceptor
VF750F V45 Interceptor
1984 VF750F'84 750 Interceptor

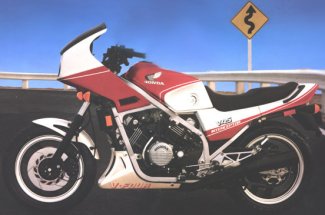

1984 VF750F
1984 VF750F
1984 VF750F
- It was available in one of two color schemes: Pearl Shell White with Candy Aleutian Blue or Pearl Shell White with Candy Bourgogne Red
- The stripes on the blue bike are red while they are black on the red bike
- The "750" decal was white with a black outline.
- Engine: Liquid-cooled, 90° V4, 16-valve, DOHC
- Displacement: 748cc
- Bore & Stroke: 70 x 48.6 mm
- Compression Ratio: 10.5:1
- Clutch: Hydraulic one-way limited-slip clutch
- Transmission: 5-speed
- Drive: Chain
- Frame: Rectangular section
- Front Brakes: Dual Disc, Dual Piston Caliper
- Rear Brake: s: Dual Piston Caliper Disc
- Front Suspension: Air-assisted Telescopic Fork with TRACTM Anti-dive
- Rear Suspension: Pro-LinkTM Single Shock
- Front Tire: size: 120/80-16
- Rear Tire: size: 130/80-18
- Wheelbase: 1495 mm (58.8 in.)
- Seat Height: 820 mm (32.3 in)
- Dry Weight: 221 kg (487.1 lb)
- Fuel Capacity: 22 liters (4.8 Imp
- Gal.) (5.7 US Gal.)
- The serial number began JH2RC150*EM100006.

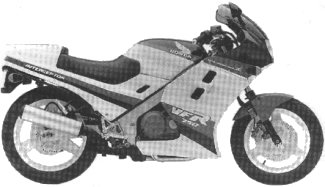

1986 VFR750F'86 750 Interceptor
1986 VFR750F
- It was available in just one color scheme: Fighting Red with Shasta White and Candy Aleutian Blue
- The fairing and body work were three-tone
- The front fender was solid red
- The "VF750" fairing decal was white on red
- The engine had a gear-driven camshaft and a 180° crankshaft
- The engine was a 748cc DOHC 4-valve liquid-cooled V-4 linked to a 6-speed transmission and a chain drive
- The serial number began JH2RC240*GM000001
1990 VFR750F'90 VFR

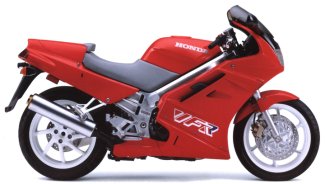

1990 VFR750F
- It was available in one color: Italian Red
- The wheels were white and the seat was gray
- The headlight was a twin-bulb system
- There was a single-sided swingarm
- The engine was a 748cc DOHC 16 valve liquid-cooled V-4 linked to a 6-speed transmission
- The serial number began JH2RC360*LM000009.
1991 VFR750F'91 VFR
1991 VFR750F
- It was available in one color: Italian Red
- The wheels were gold and the seat was gray
- The headlight was a twin-bulb system
- There was a single-sided swingarm
- The engine was a 748cc DOHC 16 valve liquid-cooled V-4 linked to a 6-speed transmission
- The serial number began JH2RC360*MM100001.

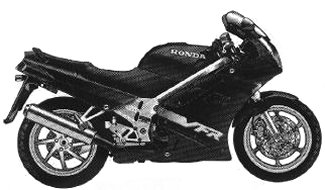

1992 VFR750F'92 VFR
1992 VFR750F
- It was available in one color: Granite Blue Metallic (Black)
- The wheels were metallic gray and the seat was gray
- The headlight was a twin-bulb system
- There was a single-sided swingarm
- There was a revised suspension
- The "VFR" logo was silver with a purple outline
- The engine had an increase in horsepower
- The engine was a 748cc DOHC 16 valve liquid-cooled V-4 linked to a 6-speed transmission
- The serial number began JH2RC360*NM000009.
1993 VFR750F'93 VFR
1993 VFR750F
- It was available in one color: Pearl Crystal White
- The "HONDA" logo was added to the lower cowl
- The wing logo was added to the gas tank
- The "VFR750F" logo was added to the rear cowl
- The wheels were white
- The serial number began JH2RC360*PM300001.

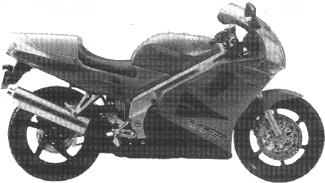

1994 VFR750F'94 VFR
1994 VFR750F
- It was available in one color: Pure Red
- The model was redesigned for 1994 with a new style frame
- The serial number began JH2RC360*RM400003

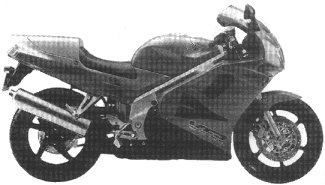

1995 VFR750F'95 VFR
1995 VFR750F
- It was available in one color: Pure Red
- The serial number began JH2RC360*SM500001.

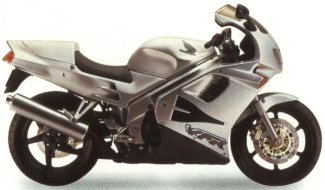

1996 VFR750F'96 VFR
1996 VFR750F
- It was available in one color in the USA: Pure Red; but in Canada it came in silver
- The serial number began JH2RC360*TM600001.

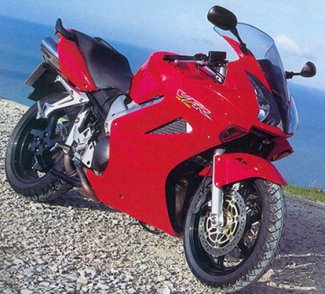

1997 VFR750F'97 VFR
1997 VFR750F
1997 VFR750F
- It was available in one color: Pure Red
- The serial number began JH2RC360*VM700001.
