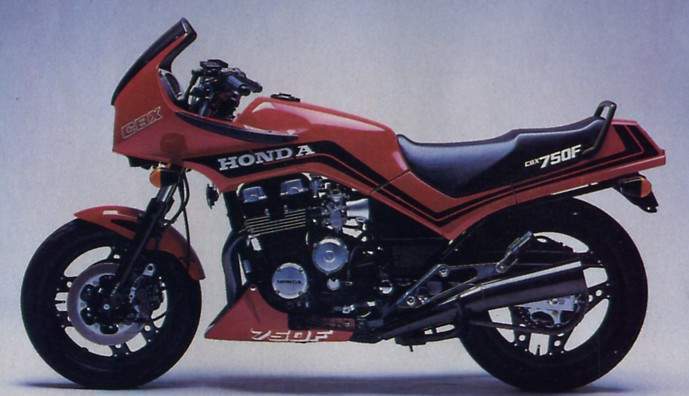

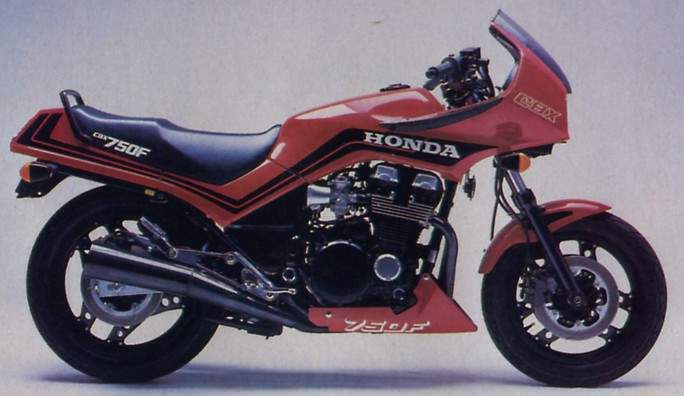

1984 CBX750F
- ENGINE
- Engine type: In-line four, four-stroke
- Displacement: 747.00 ccm (45.58 cubic inches)
- Power: 91.00 HP (66.4 kW)) @ 9500 RPM
- Top speed: 211.0 km/h (131.1 mph)
- Compression: 9.3:1
- Bore x stroke: 67.0 x 53.0 mm (2.6 x 2.1 inches)
- Valves per cylinder: 4
- Fuel control: DOHC
- Cooling system: Air
- Horsepower: 93 hp (69.4 kW) @ 9500 rpm
- Maximum Torque: 70.6 Nm (52.7 ft. lbs) @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: dual 260 mm discs with 2-piston calipers
- Rear Brakes: single 280 mm disc with 2-piston calipers
- Front tire: 110/90-16
- Rear tire: 130/80-18
- DIMENSION
Seat Height: 795 mm (31.3 inches)
Wheelbase: 1465 mm (57.7 inches)
Fuel Capacity: 22 litres (5.8 Gal) including 4 litres (1.1 Gal) reserve
Dry weight: (without fluids): 218 kg (480.6 pounds)
Weight incl. oil, gas, etc: 241.0 kg (531.3 pounds)
