Honda Shadow ACE 750 (VT750CO3) Motorcycles

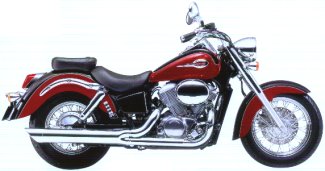

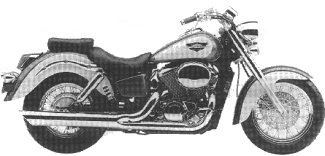

1998 VT750CD'98 Shadow American Classic Edition (ACE) 750 Deluxe

ENGINE
- N/A
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- It came in one of three color schemes: Black, Black with Pearl Canyon Copper, or Pearl Sedona Red with Pearl Ivory Cream
- The upper fork legs have chrome covers
- This model has more chrome than the VT750C'98
- The serial number began JH2RC443*WM000001.

ENGINE
- Engine: 745cc liquid-cooled, 52-degree, V-twin, single pin crank
- Bore and Stroke: 79mm x 76mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Two 36mm diaphragm-type CV
DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork; 140mm travel
- Rear Suspension: Dual shocks with five-position spring preload adjustability; 90mm travel
- Front Brakes: Single 296mm disc with twin-piston caliper
- Rear Brakes: Drum
- Front Tires: 120/90-17
- Rear Tires: 170/80-15
DIMENSION
- Wheelbase: 1618mm (63.6 in.)
- Seat Height: 700mm (27.6 in.)
- Dry Weight: 229 kg (504.9 lbs.)
- Fuel Capacity: 14 litres (3.2 Imp. gal.)
OTHER

ENGINE
- Engine Type: Liquid cooled, 52° V-twin, single pin crank
- Displacement: 745cc
- Bore and Stoke: 79mm x 76mm
- Compression Ratio: 9:1
- Valve Train: SOHC, 3 valve per cylinder
- Fuel Delivery: Twin 36mm, diaphragm-type CV
DRIVETRAIN
- Transmission: Wide-Ratio, 5-speed
- Final Drive: "O" ring chain
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork, 140mm travel
- Rear Suspension: Dual shocks with 5-way spring preload adjustment, 90mm travel
- Front Tire: 120/90H-17
- Rear Tire: 170/80H-15
- Front Brakes: Single 296mm disc with twin piston caliper
- Rear Brake: s: Mechanical drum
DIMENSION
- Seat Height: 700mm (27.5")
- Wheelbase: 1618mm (63.7")
- Dry Weight: 229 kg (505 lb)
- Fuel Capacity: 14.0 liters
OTHER
- Color:
  - Red/Black
  - Black/White
