1998 VT750C'98 Shadow American Classic Edition (ACE) 750
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
- It came in one color: Black
- This model does not have the upper fork covers like the Deluxe
- The serial number began JH2RC440*WM000001.

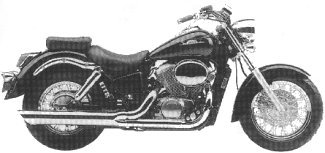

1998 VT750C Shadow ACE
2001 VT750C'01 SHADOW ACE 750
- ENGINE
- Engine Type: Liquid cooled, 52° V-twin, single pin crank
- Displacement: 745cc
- Bore and Stoke: 79mm x 76mm
- Compression Ratio: 9:1
- Valve Train: SOHC, 3 valve per cylinder
- Fuel Delivery: Twin 36mm, diaphragm-type CV
- DRIVETRAIN
- Transmission: Wide-Ratio, 5-speed
- Final Drive: "O" ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork, 140mm travel
- Rear Suspension: Dual shocks with 5-way spring preload adjustment, 90mm travel
- Front Brakes: Single 296mm disc with twin piston caliper
- Rear Brakes: Mechanical drum
- Front Tire: 120/90H-17
- Rear Tire: 170/80H-15
- DIMENSION
- Seat Height: 700mm (27.5")
- Wheelbase: 1618mm (63.7")
- Dry Weight: 229 kg (505 lb)
- Fuel Capacity: 14.0 liters
- OTHER

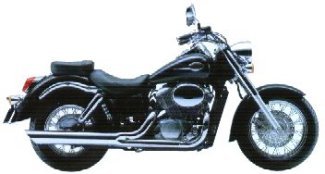

2001 VT750C Shadow ACE
2002 VT750C
- ENGINE
- Engine: 745cc liquid-cooled, 52-degree, V-twin, single pin crank
- Bore and Stroke: 79mm x 76mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC; three valves per cylinder
- Fuel Delivery: Fuel Delivery: Two 34mm diaphragm-type CV
- DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork; 140mm travel
- Rear Suspension: Dual shocks with five-position spring preload adjustability; 90mm travel
- Front Brakes: Single 296mm disc with twin-piston caliper
- Rear Brake: Drum
- Front Tire: 120/90 H - 17
- Rear Tire: 170/80 H - 15
- DIMENSION
- Wheelbase: 1615mm (63.7 in.)
- Seat Height: 700mm (27.6 in.)
- Dry Weight: 229 kg (505 lbs.)
- Fuel Capacity: 14 L (3.1 Imp.gal)
- OTHER

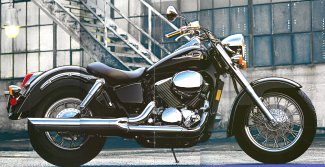

2003 VT750C
- ENGINE
- Engine: 745cc liquid-cooled, 52-degree, V-twin, single pin crank
- Bore and Stroke: 79mm x 76mm
- Compression Ratio: 9.0: 1
- Valve Train: SOHC, three valves per cylinder
- Fuel Delivery: Two 36mm diaphragm-type CV
- DRIVETRAIN
- Transmission: Wide-ratio five-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm fork; 130mm travel
- Rear Suspension: Dual shocks with five-position spring preload adjustability; 90mm travel
- Front Brakes: Single 296mm disc with twin-piston caliper
- Rear Brake: Drum
- Front Tire: 120/90H-17
- Rear Tire: 170/80H-15
- DIMENSION
- Wheelbase: 1615mm (63.6 in.)
- Seat Height: 700mm (27.6 in.)
- Dry Weight: 229 kg (505 lbs.)
- Fuel Capacity: 14 L (3.1 Imp.gal)
- OTHER
- Colors:
- Black monochrome (VT750CA)
- Red with silver pinstripe (VT750CB)
- Red/Black (VT750CC)
- Silver/Black (VT750CC)
- Candy Orange/Orange Motif (VT750CD)

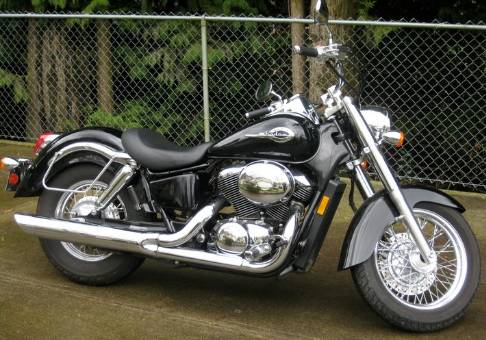

2003 VT750CA

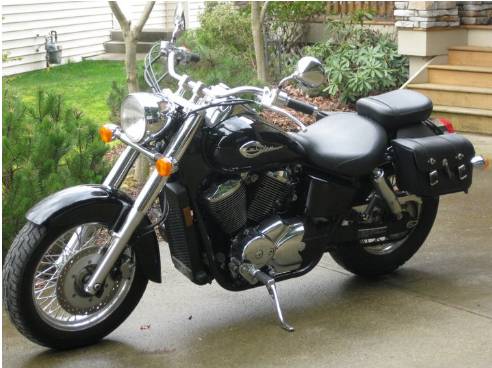

2003 VT750CA
2003 VT750CA
