2012 Honda NC700X
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
- Displacement: 670cc
- Bore and Stroke: 73 x 80mm
- Compression Ratio: 10.7:1
- Valve Train: Chain driven SOHC, 4 valves per cylinder
- Ignition System: Computer-controlled digital transistorised with electronic advance
- Fuel Delivery: PGM-FI electronic fuel injection, 36mm throttle body
- Throttle Bore: 36mm
- Starter: Electric
- Max. Torque: 60Nm/4,750min-1 (95/1/EC)
- Max. Power Output: 35kW/6,250min-1 - 95/1/EC (DCT version = 38.1kW/6,250min-1)
- DRIVETRAIN
- Transmission Type: 6-speed
- Clutch: Wet multiplate (DCT version =Wet multiplate, hydraulic 2-clutch)
- Clutch Operation: Manual (DCT version = D mode/S mode/Manual mode)
- Final Drive: O-ring sealed chain
- Front Wheels: Multi-spoke cast aluminium 17M/C x MT3.5
- Rear Wheels: Multi-spoke cast aluminium 17M/C x MT4.5
- CHASSIS / SUSPENSION / BRAKES
- Frame type: Diamond; steel pipe
- Front Suspension: 41mm telescopic fork, 153.5mm (6 in.) travel
- Rear Suspension: Monoshock damper, Pro-Link® swingarm, 150mm (5.9 in.) travel
- Front Brakes: 320mm single wave/wavy hydraulic disc with 2-piston caliper and sintered metal pads
- Rear Brakes: 240 single wave/wavy hydraulic disc with single-piston caliper and sintered metal pads
- Brakes: Combined Braking System with ABS
- Front Tire Size: 120/70-ZR17M/C (58W)
- Rear Tire Size: 160/60-ZR17M/C (69W)
- DIMENSION
- Rake: 27.0 degrees
- Trail: 110.0mm (4.3 inches)
- Wheelbase: 1540mm (60.6 inches)
- Overall Length: 2210mm (87 inches)
- Overall Width: 830mm (32.7 inches)
- Overall Height: 1285mm (50.6 inches)
- Curb Weight: 218kg (480 lb)
- Seat Height: 830mm (32.7 inches
- Ground Clearance: 165mm (6.5 inches)
- Fuel Tank Capacity: 14.1 Litres (3.7 Gal US)
- OTHER
- Fuel Consumption: 3.6 L/100km (78.2mpg Imp.) (65.1 mpg US)
- Color:
- Darkness Black Metallic
- Light Silver Metallic
- Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
- Model Id: NC700X
- Emissions: Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.

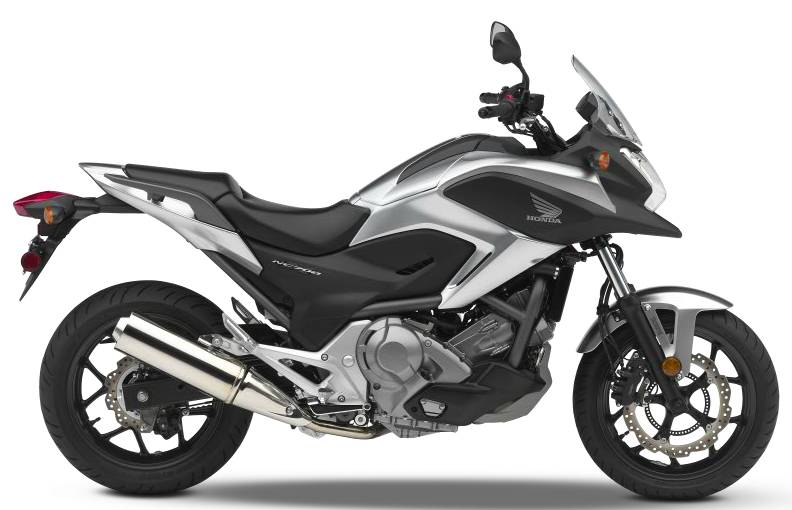

2012 NC700X
2012 NC700X
Click image to enlarge

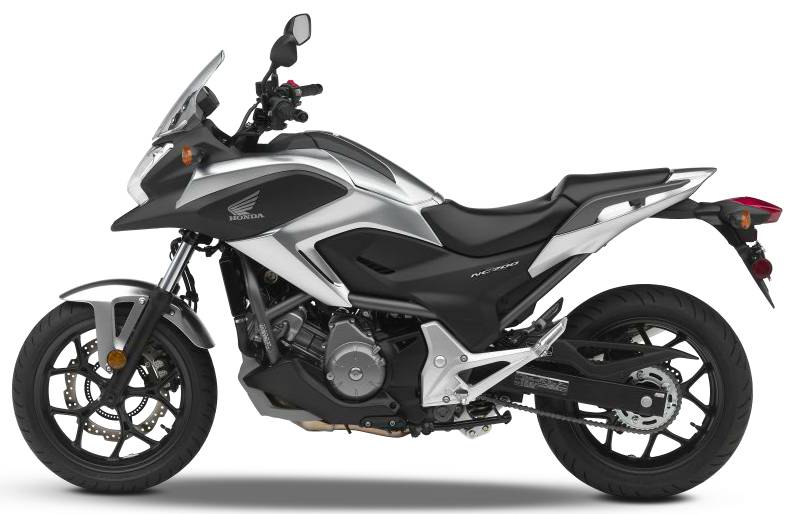

2012 NC700X
2012 NC700X
2012 NC700X
Click image to enlarge
2012 NC700XA
