Honda NC700S Motorcycles

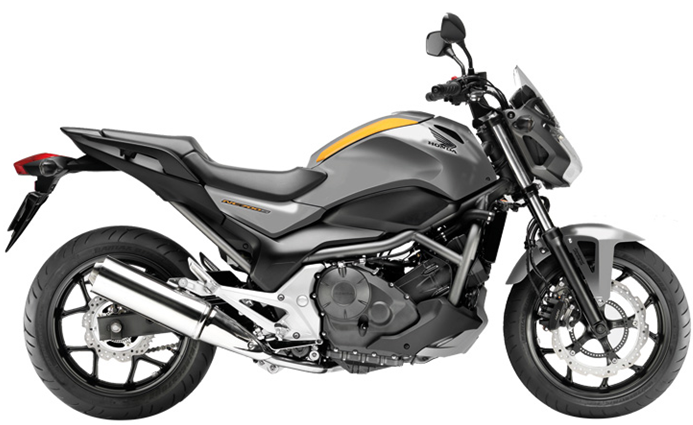

2012 Honda NC700S

ENGINE
- Engine Type: Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder
- Engine Displacement: 670cc
- Bore and Stroke: 73 x 80 mm
- Compression Ratio: 10.7:1
- Valve Train: Chain driven SOHC, 4 valves per cylinder
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition System: Computer-controlled digital transistorised with electronic advance
- Max. Power Output: 35kW/6,250min-1 (95/1/EC)
- Max. Torque: 60Nm/4,750min-1 (95/1/EC)
- Starter: Electric
DRIVETRAIN
- Transmission Type: 6-speed
- Clutch: Wet multiplate (* Wet multiplate, hydraulic 2-clutch)
- Final Drive: O-ring sealed chain
- Front Wheels: Cast aluminium 17M/C x MT3.5
- Rear Wheels: Cast aluminium 17M/C x MT4.5
CHASSIS / SUSPENSION / BRAKES
- Frame type: Diamond; steel pipe
- Front Suspension: 41mm telescopic fork; 120 mm (4.7 in.)travel
- Rear Suspension: Monoshock damper/shock, Pro-Link swingarm, 120mm (4.7 in.) travel
- Front Brakes: 320mm single wave/wavy hydraulic disc with 3-piston caliper and sintered metal pads
- Rear Brakes: 240mm single wave/wavy hydraulic disc with single-piston caliper and sintered metal pads
- Brakes: Combined Braking System with ABS
- Front Tires: 120/70ZR - 17 radial
- Rear Tires: 160/60ZR - 17 radial
DIMENSION
- Wheelbase: 1525mm (60 inches)
- Overall Length: 2195mm (86.4 inches)
- Overall Width: 760mm (30 inches)
- Overall Height: 1130mm (44.5 inches)
- Seat Height: 790mm (31.1 inches)
- Ground Clearance: 140mm (5.5 inches)
- Curb Weight: 211 kg (464 lb)
  - Front: 101 kg (222 lb)
  - Rear: 110 kg (242 lb)
- Fuel Tank Capacity: 14.1 Litres (3.7 GalUS)
OTHER
- Fuel Consumption: 3.6 L/100km (65.1 mpgUS)
- Colors:
  - Seal Silver Metallic with Thunder Yellow
  - White
  - Black
- Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
