1983 CX650T'83 650 Turbo
- ENGINE
- Engine type: Liquid-cooled,turbo-charged, transverse V-Twin
- Displacement: 674cc
- Bore and Stroke: 82.5mm x 63mm
- Compression ratio: 7.8:1
- Fuel delivery: Computerized fuel injection
- Exhaust system: Two-into-two
- Ignition system: High-energy transistorized
- Starting system: Electric
- Fuel type: Regular gasoline
- DRIVETRAIN
- Transmission: Five-speed constant mesh
- Clutch: Wet, multi-plate
- Final Drive: Shaft
- Wheels: ComStarTM
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Air-assisted telescopic with TRACTM anti-dive
- Rear Suspension: Pro-LinkTM air-assisted single shock
- Front Brakes: Dual discs, Double piston calipers
- Rear Brakes: Single disc, Double piston calipers
- Front tire: 100/90V18
- Rear tire: 120/90V17
- DIMENSION
- Wheelbase: 1495mm (58.9 in.)
- Seat height: 790mm (31.1 in.)
- Fuel capacity: 20 liters (5.3 GalUS)
- Dry weight: 235 kg (518 lb)
- Overall length: 2220mm (87.4 in.)
- Overall width: 775mm (30.5 in.)
- OTHER
- Color: Pearl Shell White with Candy Aleutian Blue.
- The body stripes were red and blue.
- The "CX650 TURBO" decal was white.
- The wheels were silver.
- The fork legs were black.
- The serial number began JH2RC160*DM000024.

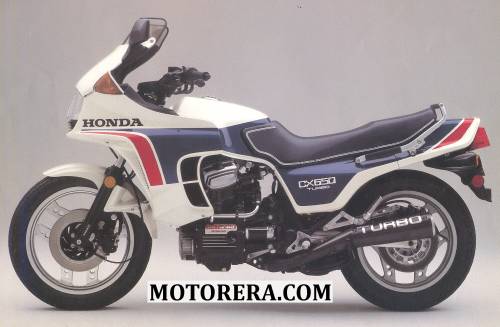

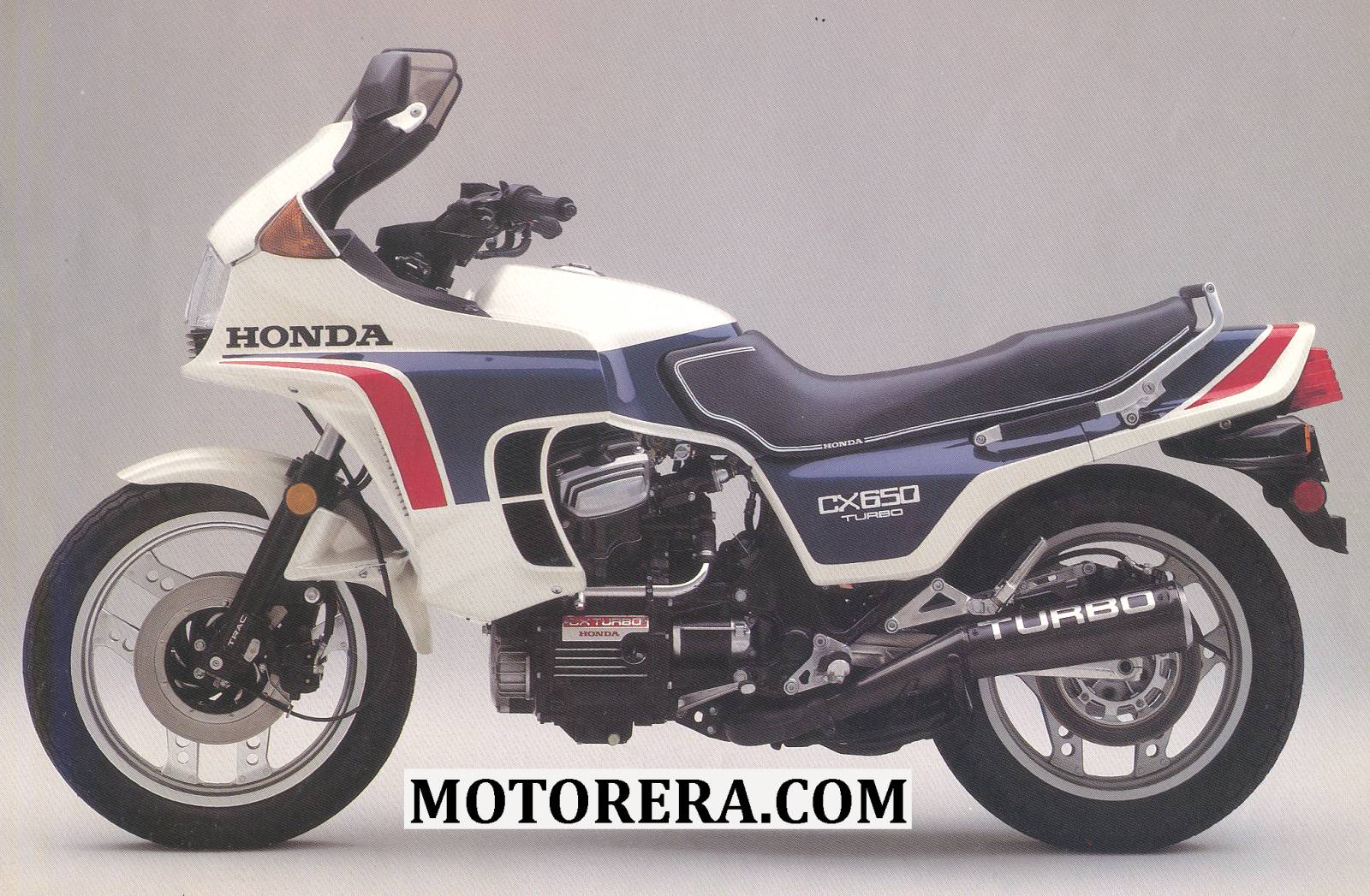

1983 CX650T Turbo
Click image to enlarge

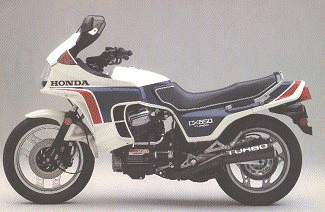

1983 CX650T Turbo
