1999 CBR600F4i
- ENGINE
- Engine Type: 599 cc, 4 Stroke - Liquid Cooled - Inline Four
- Bore and Stroke: 65 mm x 45.2 mm
- Valves: 4 valves/cylinder
- Horsepower: 105 hp (78.3 kW) @ 12000 rpm
- Maximum Torque: 66 Nm (48.7 ft. lbs) @ 10500 rpm
- DRIVETRAIN
- Transmission: type: 6 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 120/60-17
- Rear Tire: 160/70-17
- Front Brakes: dual 296 mm discs with 4-piston calipers
- Rear Brakes: single 220 mm disc with 1-piston calipers
- DIMENSION
- Seat Height: 810 mm (31.9 inches)
- Wheelbase: 1395 mm (54.9 inches)
- Fuel Capacity: 17 litres (4.5 Gal)
- Dry weight: (without fluids): 170 kg (374.8 pounds)
- OTHER
2000 CBR600F4i
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER
2000 CBR600F4
Click image to enlarge
2000 CBR600F4
Click image to enlarge
2001 CBR600F4i
- ENGINE
- Engine: 599cc Liquid-cooled, inline-four
- Bore and Stroke: 67mm X 42.5mm
- Compression Ratio: 12.0 : 1
- Valve Train: DOHC, 4-valve, shim-under bucket
- Fuel Delivery: PGM-FI with auto choke
- DRIVETRAIN
- Transmission: Close-ratio, 6-speed
- Final Drive: O ring chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm, cartridge fork, with adjustable preload, compression and rebound damping, 120mm travel
- Rear Suspension: Pro-link, single shock with adjustable preload, compression and rebound damping, 120mm travel
- Front Tires: 120/70ZR - 17
- Rear Tires: 180/55ZR - 17
- Front Brakes: Dual 296mm floating discs with four piston calipers
- Rear Brakes: Single 220mm disc with single piston caliper
- DIMENSION
- Seat Height: 810mm (31.9")
- Wheelbase: 1386mm (54.5")
- Dry Weight: 169 kg (370 lb.)
- Fuel Capacity: 18.0 litres (3.8 Imp. gal.)
- OTHER
2001 CBR600F4i
Click image to enlarge
2001 CBR600F4i
2001 CBR600F4i
2001 CBR600F4i
2001 CBR600F4i
2002 CBR600F4i
- ENGINE
- Engine: 599cc liquid-cooled inline four-cylinder
- Bore and Stroke: 67mm x 42.5mm
- Compression Ratio: 12.0: 1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: PGM-FI with automatic enricher circuit
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel
- Rear Suspension: Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel
- Front Brakes: Dual 296mm floating discs with four-piston calipers
- Rear Brake: Single 220mm disc with single piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- DIMENSION
- Wheelbase: 1385mm (54.5 in.)
- Seat Height: 810mm (31.9 in.)
- Dry Weight: 168 kg. (370 lb.)
- Fuel Capacity: 18 litres (3.8 Imp. gal.)
- OTHER
2002 CBR600F4i
Click image to enlarge
2002 CBR600F4i
Click image to enlarge
2002 CBR600F4i
Click image to enlarge
2005 CBR600F4i
- ENGINE
- Engine Type: 599cc liquid-cooled inline four-cylinder
- Bore and Stroke: 67.0mm x 42.5mm
- Compression Ratio: 12.0:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
- Ignition: Computer-controlled digital transistorized with three-dimensional mapping
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #525 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43.0mm HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
- Front Brakes: Dual 296.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- DIMENSION
- Rake: 24.0 degrees
- Trail: 96.0mm (3.8 inches)
- Wheelbase: 54.5 inches
- Seat Height: 31.7 inches
- Turning Radius: 10.8 feet
- Dry Weight: 370 pounds
- Fuel Capacity: 4.8 gallons, including 0.9-gallon reserve
- OTHER
- Colors:
- Candy Dark Red/Silver
- Silver/Metallic Silver
- Model ID: CBR600F4i
- Warranty: 1 year
2005 CBR600F
Click image to enlarge
2005 CBR600F
Click image to enlarge
2006 CBR600F4i
- ENGINE
- Engine Type: 599cc liquid-cooled inline four-cylinder
- Bore and Stroke: 67.0mm x 42.5mm
- Compression Ratio: 12.0:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
- Ignition: Computer-controlled digital transistorized with three-dimensional mapping
- DRIVETRAIN
- Transmission: Close-ratio six-speed
- Final Drive: #525 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 43.0mm HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
- Rear Suspension: Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel
- Front Brakes: Dual 296.0mm discs with four-piston calipers
- Rear Brake: Single 220.0mm disc
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- DIMENSION
- Rake: 24.0 degrees
- Trail: 96.0mm (3.8 inches)
- Wheelbase: 54.5 inches
- Seat Height: 31.9 inches
- Turning Radius: 10.8 feet
- Dry Weight: 370 pounds
- Fuel Capacity: 4.8 gallons, including 0.9-gallon reserve
- OTHER
- Emissions: Meets current CARB and EPA standards
- California version differs slightly due to emissions equipment.
- Colors:
- Candy Blue/Black
- Pearl Yellow/Metallic Titanium
- Model ID: CBR600F4i
2006 CBR600F4i
Click image to enlarge
2006 CBR600F4i
Click image to enlarge
2012 CBR600F4i
- ENGINE
- Type Liquid-cooled 4-stroke 16-valve
- Displacement: 599cc
- Bore and Stroke: 67 x 42.5mm
- Compression Ratio: 12:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Throttle Bore: 36mm ( inches)
- Ignition System: Computer-controlled digital transistorised with electronic advance
- Max. Power Output: 75kW/12,000min-1 (95/1/EC)
- Max. Torque: 64Nm/10,500min-1 (95/1/EC)
- Starter: Electric
- DRIVETRAIN
- Transmission Type: 6-speed
- Clutch: Wet, multiplate with coil springs
- Clutch Operation: Mechanical; cable-actuated
- Final Drive: #525 O-ring sealed chain
- Rim Size Front 17M/C x MT3.50
- Rim Size Rear 17M/C x 5.50
- CHASSIS / SUSPENSION / BRAKES
- Front 41mm tension and preload adjustable inverted HMAS cartridge-type telescopic fork, 120mm stroke
- Rear Monoshock damper with adjustable tension and preload, 128mm stroke
- Front Brakes: 296 x 4.5mm dual hydraulic disc with three-piston calipers, floating rotors and sintered metal pads
- Rear Brakes: 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
- Front Tire Size: 120/70 ZR17M/C
- Rear Tire Size: 180/55 ZR17M/C
- DIMENSION
- Caster Angle: 25
- Trail: 99mm (3.9 inches)
- Wheelbase: 1437mm (56.6 inches)
- Overall Length: 2150mm (84.6 inches)
- Overall Width: 740mm (29.1 inches)
- Overall Height: 1150 (45.3 inches)
- Seat Height: 800mm (31.5 inches)
- Ground Clearance: 135mm (5.3 inches)
- Battery Capacity: 12V/8.6AH
- Headlights 12V; 60/55W low and high
- OTHER

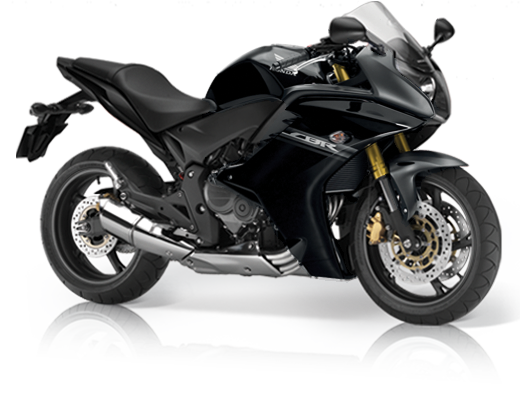

2012 CBR600F

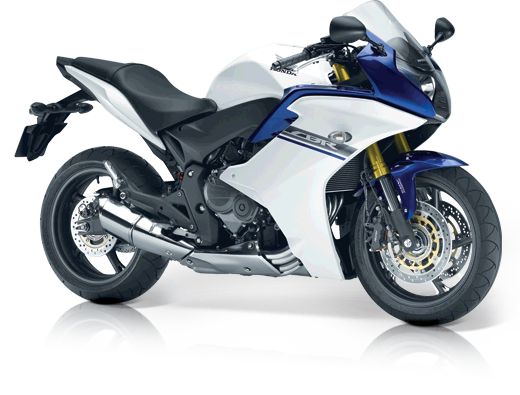

2012 CBR600F
2012 CBR600F
