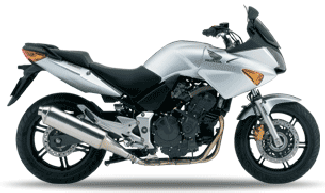

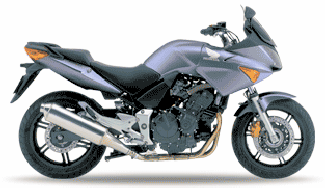

2004 CBF600S
- ENGINE
- Engine Type: Inline 4 Cylinder, liquid-cooled 4-stroke 16-valve DOHC
- Engine Displacement: 600cc
- Bore & Stroke: 65 x 45.2mm
- Compression Ratio: 11.6 :1
- Fuel Delivery: 34mm slanted flat-slide VP- type carburetors x 4
- Max. Power Output: 76 bhp at 10,500 rpm
- Max. Torque: 58Nm at 8000 rpm
- Ignition: Computer controlled digital system
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: Sealed O-ring chain
- Front Wheel: 6-spoke cast aluminum 17M/C x MT3.50
- Rear Wheel: 6-spoke cast aluminum 17M/C x MT5.00
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 120/70 ZR17M/C (58W)
- Rear Tire: 160/60 ZR17M/C (69W)
- Front Suspension: 41mm telescopic fork, 120mm axle travel
- Rear Suspension: Monoshock damper with 7- step adjustable preload, 125mm axle travel
- Front Brakes: 296 x 4.5mm dual hydraulic disc with dual-piston calipers and sintered metal pads
- Rear Brake: s: 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
- DIMENSION
- Length x Width x Height: 2170 x 760 x 1240mm
- Wheelbase: 1480mm
- Seat Height: 785mm
- Ground Clearance: 130mm
- Fuel Capacity: 19 litres (including 3.5-litre warning light reserve)
- Dry Weight: 197kg
- OTHER
2004 CBF600S
2004 CBF600S
2004 CBF600S

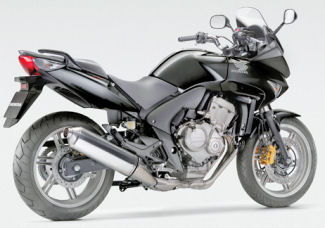

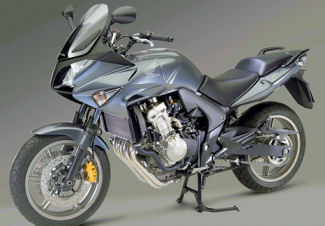

2008 CBF600S
- OVERVIEW
- New gravity die-cast aluminium Mono-Backbone frame helps to achieve the 8kg weight reduction
- Stronger seat rail for mounting of panniers and top box
- New smoother, and indicators narrower seat design
- Larger 20-litre fuel tank capacity
- New dogleg clutch and brake levers
- Dual-chamber HMAS damper with seven-step adjustable spring preload
- New 46mm longer swingarm enhances high-speed control
- New centrestand design improves leverage for easier operation
- Shorter transmission gear ratios for quicker torque and acceleration
- Lighter, more compact new fuel-injected 600cc engine tuned for smoother performance and stronger torque and acceleration
- New Combined-ABS version with 3-piston front brake calipers
- New lighter-weight 6-point floating front disc brake rotors
- New adjustable front fork preload
- New instrument panel features new fuel gauge and indicators
- 2-position adjustable windscreen provides excellent protection
- ENGINE
- Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Displacement: 599.3cc
- Max power: 57kW / 10,500min-1 (95/1/EC)
- Max torque: 59Nm / 8,250min-1 (95/1/EC)
- DRIVETRAIN
- Clutch: Mechanical; cable-actuated, Wet, multiplate with coil springs
- CHASSIS / SUSPENSION / BRAKES
- Tire front: 120/70 ZR17M/C (58W)
- Tire rear: 160/60 ZR17M/C (69W)
- DIMENSION
- Fuel capacity: 20 litres (including 4-litre warning light reserve)
- Dimensions: 2,160 x 765 x 1,240mm
- Curb weight: 222kg (F: 109kg; R: 113kg)
- OTHER
2008 CBF600S
2008 CBF600S
2010 Honda CBF600SA
- ENGINE
- Engine Type: Liquid-cooled inline-four
- Displacement: 599 cc
- Bore and Stroke: 67 mm x 42.5 mm
- Compression Ratio: 11.6:1
- Valve Train: Chain-driven DOHC, 4 valves per cylinder
- Fuel Delivery: PGM-FI electronic fuel injection
- DRIVETRAIN
- Transmission: Six-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41 mm fork with adjustable preload; 120 mm (4.7 in) travel
- Rear Suspension: Single shock with adjustable preload; 125 mm (4.9 in.) travel
- Tires: 120/70ZR - 17 radial front; 160/60ZR - 17 radial rear
- Brakes: Front dual 296 mm discs with three-piston calipers; rear single 240 mm disc with single-piston caliper. Combined Braking System with ABS
- DIMENSION
- Ground Clearance: N/A
- Seat Height: 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.)
- Wheelbase: 1,490 mm (58.7 in.)
- Curb Weight: 222 kg (489 lb) including required fluids and full tank of gas - ready to ride
- Fuel Capacity: 20 litres
- OTHER
- Color: Pearl Nightstar Black
- Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
- MSRP: $9,899
2010 CBF600SA
2011 Honda CBF600SA
- ENGINE
- Engine Type: Liquid-cooled inline-four
- Displacement: 599 cc
- Bore and Stroke: 67 mm x 42.5 mm
- Compression Ratio: 11.6:1
- Valve Train: Chain-driven DOHC, 4 valves per cylinder
- Fuel Delivery: PGM-FI electronic fuel injection
- DRIVETRAIN
- Transmission: Six-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41 mm fork with spring preload adjustment; 108 mm (4.3 in.) travel
- Rear Suspension: Single shock with spring preload adjustment; 125 mm (4.9 in.) travel
- Tires: 120/70ZR - 17 radial front; 160/60ZR - 17 radial rear
- Brakes: Front dual 296 mm discs with triple-piston calipers; rear 240 mm disc with single-piston caliper. Combined Braking System with ABS
- DIMENSION
- Ground Clearance: N/A
- Seat Height: 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.)
- Wheelbase: 1,490 mm (58.7 in.)
- Curb Weight: 222 kg (489 lb) including required fluids and full tank of gas - ready to ride
- Fuel Capacity: 20 litres including 4-litre reserve
- OTHER
- Colour: Pearl Nightstar Black
- MSRP: $9,999
- Warranty: 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
2011 CBF600S
2012 Honda CBF600SA
- ENGINE
- Engine Type: Liquid-cooled inline-four
- Displacement: 599 cc
- Bore and Stroke: 67 mm x 42.5 mm
- Compression Ratio: 11.6:1
- Valve Train: Chain-driven DOHC, 4 valves per cylinder
- Fuel Delivery: PGM-FI electronic fuel injection
- DRIVETRAIN
- Transmission: Six-speed
- Final Drive: O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41 mm fork with spring preload adjustment; 108 mm (4.3 in.) travel
- Rear Suspension: Single shock with spring preload adjustment; 125 mm (4.9 in.) travel
- Brakes: Front dual 296 mm discs with triple-piston calipers; rear 240 mm disc with single-piston caliper. Combined Braking System with ABS
- Tires: 120/70ZR - 17 radial front;160/60ZR - 17 radial rear
- DIMENSION
- Wheelbase: 1,490 mm (58.7 in.)
- Seat Height: 785 mm (30.9 in.) adjustable +/- 15 mm (0.6 in.)
- Ground Clearance: n.a.
- Curb Weight: 222 kg (489 lb) including required fluids and full tank of gas - ready to ride
- Fuel Capacity: 20 litres
- OTHER
- Color: Pearl Cool White
- Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
- MSRP: $10,299
2012 CBF600SA
