HONDA Motorcycle
CB600F Hornet

2000 CB600F Hornet

• Engine: Liquid-cooled 4-stroke,
• 16-valve DOHC inline-4
• Bore x Stroke: 65 x 45.2mm
• Displacement: 599cc
• Compression Ratio: 12:1
• Carburetors: Four 34mm downdraft flat-slide CV-type
• Max. Power Output : 88bhp@11,750rpm
• Max. Torque: 45lb/ft@9,250rpm
• Ignition: Computer-controlled digital transistorized with electronic advance
• Starter: Electric
• Transmission: 6-speed
• Final Drive: 'O'-ring sealed chain
• Dimensions: 2095 x 740 x 1065mm
• Wheelbase: 1425mm
• Seat Height: 790mm
• Ground Clearance: 140mm
• Fuel Capacity: 16 liters (including three-litre reserve)
• Front Wheel: 17 x MT3.50 hollow-section triple-spoke cast aluminum
• Rear Wheel: 17 x MT5.50 hollow-section triple-spoke cast aluminum
• Front Tire: 120/70 ZR17
• Rear Tire: 180/55 ZR17
• Front Suspension: 41mm telescopic fork, 120mm axle travel
• Rear Suspension: Monoshock damper with 7-step adjustable pre-load, 128mm axle travel
• Front Brakes: 296 x 4.5mm dual hydraulic disc with dual-piston calipers fitted with sintered metal pads and gripping floating steel rotors
• Rear Brakes: 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
• Dry Weight: 176kg

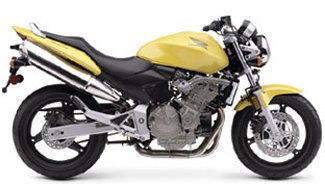

2004 CB600F

• Engine Type: 599cc liquid-cooled inline four-cylinder
• Bore and Stroke: 65.0mm x 45.2mm
• Compression Ratio: 12.0:1
• Valve Train: DOHC; four valves per cylinder
• Carburetion: Four 34.0mm slanted flat-slide CV
• Ignition: Computer-controlled digital transistorized with electronic advance
• Transmission: Six-speed
• Final Drive: #525 O-ring-sealed chain
• Front Suspension: 41mm telescopic fork; 4.3-inch travel
• Rear Suspension: Single shock with seven-position spring-preload adjustability; 5.0-inch travel
• Front Brakes: Dual full-floating 296.0mm discs with twin-piston calipers
• Rear Brake: Single 220.0mm disc with single-piston caliper
• Front Tire: 120/70ZR-17 radial
• Rear Tire: 180/55ZR-17 radial
• Rake: 25.0 degrees
• Trail: 98.0mm (3.9 inches)
• Wheelbase: 55.9 inches
• Seat Height: 31.1 inches
• Dry Weight: 401.0 pounds
• Fuel Capacity: 5.0 gallons
• Emissions: California version meets CARB 2004 emissions standards.
• Colors:
  • Asphalt
  • Yellow
• Warranty: 1 year

2006 CB600F "599"

• Engine Type: 599cc liquid-cooled inline four-cylinder
• Bore and Stroke: 65.0mm x 45.2mm
• Compression Ratio: 12.0:1
• Valve Train: DOHC; four valves per cylinder
• Carburetion: Four 34.0mm slanted flat-slide CV
• Ignition: Computer-controlled digital with electronic advance
• Transmission: Six-speed
• Final Drive: #525 O-ring-sealed chain
• Front Suspension: 41mm inverted fork; 4.7-inch travel
• Rear Suspension: Single shock with seven-position spring-preload adjustability; 5.0-inch travel
• Front Brakes: Dual full-floating 296.0mm discs with twin-piston calipers
• Rear Brake: Single 220.0mm disc with single-piston caliper
• Front Tire: 120/70ZR-17 radial
• Rear Tire: 180/55ZR-17 radial
• Rake: 25.5 degrees
• Trail: 96.0mm (3.8 inches)
• Wheelbase: 56.1 inches
• Seat Height: 31.1 inches
• Dry Weight: 404.0 pounds
• Fuel Capacity: 4.5 gallons
• Emissions: Meets current CARB and EPA standards
• California version differs slightly due to emissions equipment.
• Colors: Metallic Black
• Model ID: CB600F

2007 CB600F Hornet

• Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
• Engine Displacement: 599cc
• Bore & Stroke: 67 x 42.5mm
• Compression Ratio: 12: 1
• Carburation: PGM-FI electronic fuel injection
• Max. Power Output: 75kW/12,000min-1 (95/1/EC)
• Max. Torque: 63.5Nm/10,500min-1 (95/1/EC)
• Ignition: Computer-controlled digital transistorised with electronic advance
• Starter: Electric
• Gearbox: 6-speed
• Final Drive: #525 O-ring sealed chain
• Length x Width x Height: 2,090 x 740 x 1,095mm
• Wheelbase: 1,435mm
• Seat Height: 800mm
• Ground Clearance: 135mm
• Fuel Capacity: 19litres (including 4-litre LCD-indicated reserve)
• Dry Weight: 173kg
• Wheels Front: Hollow-section 5-spoke cast aluminium, 17M/C x MT3.5
• Wheels Rear: Hollow-section 5-spoke cast aluminium, 17M/C x MT5.5
• Tyres Front: 120/70-ZR17M/C (58W)
• Tyres Rear: 180/55-ZR17M/C (73W)
• Suspension Front: 41mm inverted telescopic fork, 120mm axle travel
• Suspension Rear: Monoshock damper with 7-step adjustable preload, 128mm axle travel
• Brakes Front: 296 x 4.5mm dual hydraulic disc with dual-piston callipers, floating rotors and sintered metal pads
• Brakes Rear: 240 x 5mm hydraulic disc with single-piston calliper and sintered metal pads
