1998 CB600F Hornet
- OVERVIEW
- The CB600F was called "599" in the North America, but "Hornet" in Europe.
- ENGINE
- Engine: Liquid cooled, four stroke, transverse four cylinder, DOHC
- Valving: 4 valves per cylinder
- Displacement: 600cc (36.6 cid)
- Bore and Stroke: 65 x 45.2 mm
- Compression Ratio: 12.0:1
- Fuel Delivery: Four 34mm carburetors
- Ignition: N/A
- Starter: Electric
- Max Power: 71.1 kW (97.5 hp) @ 12000 rpm
- Maximum Torque: 66.6 Nm (49.2 ft. lbs) @ 10000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm Telescopic forks
- Rear Suspension: Monoshock preload adjustable.
- Front Brakes: Two 296mm discs, 2 piston calipers
- Rear Brakes: Single 220mm disc 1 piston caliper
- Front Tire: 120/70-17
- Rear Tire: 180/55-17
- DIMENSION
- Seat Height: 790 mm (31.1 inches)
- Wheelbase: 1420 mm (55.9 inches)
- Fuel Capacity: 16 litres (4.2 Gal)
- Dry-Weight: 176 kg (387 lb)
- OTHER
- Fuel Consumption: 5.9 L/100km (40 mpg)
- Standing Quarter Mile: 11.4 sec /192.2 km/h (119.4 mph)
- Top Speed: 226.6 km/h (141 mph)
1999 CB600F Hornet
- OVERVIEW
- The CB600F was called "599" in the North America, but "Hornet" in Europe.
- ENGINE
- Engine: Liquid cooled, four stroke, transverse four cylinder, DOHC
- Valving: 4 valves per cylinder
- Displacement: 600cc (36.6 cid)
- Bore and Stroke: 65 x 45.2 mm
- Compression Ratio: 12.0:1
- Fuel Delivery: Four 34mm carburetors
- Ignition: N/A
- Starter: Electric
- Max Power: 71.1 kW (97.5 hp) @ 12000 rpm
- Max Torque: 66.6 Nm @ 10000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm Telescopic forks
- Rear Suspension: Monoshock preload adjustable.
- Front Brakes: Two 296mm discs, 2 piston calipers
- Rear Brakes: Single 220mm disc 1 piston caliper
- Front Tire: 120/70-17
- Rear Tire: 180/55-17
- DIMENSION
- Dry-Weight: 176 kg (387 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- Fuel Consumption: 5.9 L/100km (40 mpg)
- Standing Quarter Mile: 11.4 sec /192.2 km/h (119.4 mph)
- Top Speed: 226.6 km/h (141 mph)

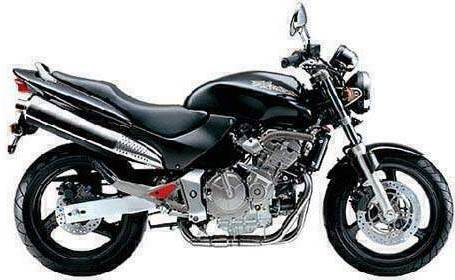

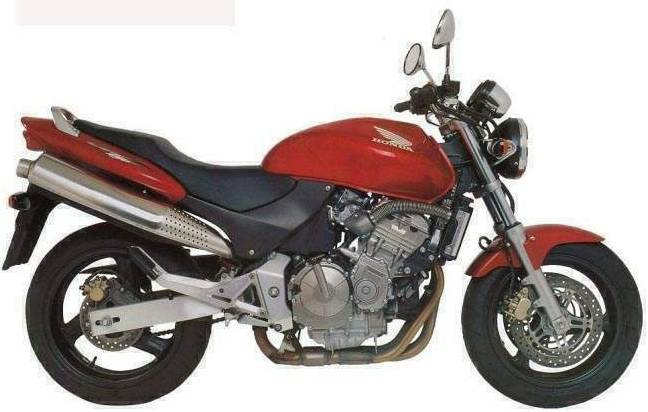

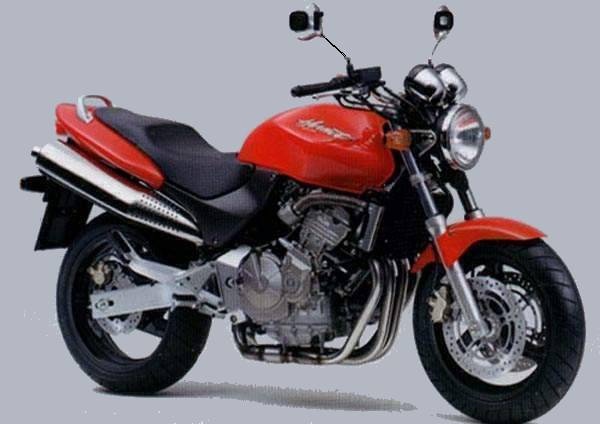

1998 CB600F Hornet
1998 CB600F Hornet
1998 CB600F Hornet
2000-03 CB600F Hornet
- ENGINE
- Engine: Liquid-cooled 4-stroke,
- 16-valve DOHC inline-4
- Bore x Stroke: 65 x 45.2mm
- Displacement: 599cc
- Compression Ratio: 12:1
- Carburetors: Four 34mm downdraft flat-slide CV-type
- Max. Power Output: 88 bhp @ 11,750rpm
- Max. Torque: 45 lb/ft @ 9,250rpm
- Ignition: Computer-controlled digital transistorized with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: 'O'-ring sealed chain
- Front Wheel: 17 x MT3.50 hollow-section triple-spoke cast aluminum
- Rear Wheel: 17 x MT5.50 hollow-section triple-spoke cast aluminum
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm telescopic fork, 120mm axle travel
- Rear Suspension: Monoshock damper with 7-step adjustable pre-load, 128mm axle travel
- Front Brakes: 296 x 4.5mm dual hydraulic disc with dual-piston calipers fitted with sintered metal pads and gripping floating steel rotors
- Rear Brakes: 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
- Front Tire: 120/70 ZR17
- Rear Tire: 180/55 ZR17
- DIMENSION
- Overall length: 2095mm (82.5 inches)
- Overall width: 740mm (29.1 inches)
- Overall height: 1065mm (41.9 inches)
- Wheelbase: 1425mm (56.1 inches)
- Seat Height: 790mm (31.1 inches)
- Ground Clearance: 140mm (5.5 inches)
- Fuel Capacity: 16 liters (4.2 Gal) (including three-litre reserve) (0.8 Gal)
- Dry Weight: 176 kg (387 lb)
- OTHER

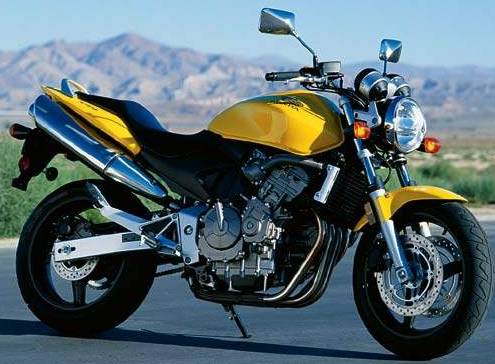

2000 CB600F Hornet
CB600F Hornet (1998 model shown)
2006 CB600F "599"
- ENGINE
- Engine Type: 599cc liquid-cooled inline four-cylinder
- Bore and Stroke: 65.0mm x 45.2mm
- Compression Ratio: 12.0:1
- Valve Train: DOHC; four valves per cylinder
- Fuel Delivery: Four 34.0mm slanted flat-slide CV
- Ignition: Computer-controlled digital with electronic advance
- DRIVETRAIN
- Transmission: Six-speed
- Final Drive: #525 O-ring-sealed chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm inverted fork; 4.7-inch travel
- Rear Suspension: Single shock with seven-position spring-preload adjustability; 5.0-inch travel
- Front Brakes: Dual full-floating 296.0mm discs with twin-piston calipers
- Rear Brake: Single 220.0mm disc with single-piston caliper
- Front Tire: 120/70ZR-17 radial
- Rear Tire: 180/55ZR-17 radial
- DIMENSION
- Rake: 25.5 degrees
- Trail: 96.0mm (3.8 inches)
- Wheelbase: 1425mm (56.1 inches)
- Seat Height: 790mm (31.1 inches)
- Dry Weight: 183.6 kg (404.0 lb)
- Fuel Capacity: 17 litre (4.5 Gal)
- OTHER
- Emissions: Meets current CARB and EPA standards
- California version differs slightly due to emissions equipment.
- Colors: Metallic Black
- Model ID: CB600F

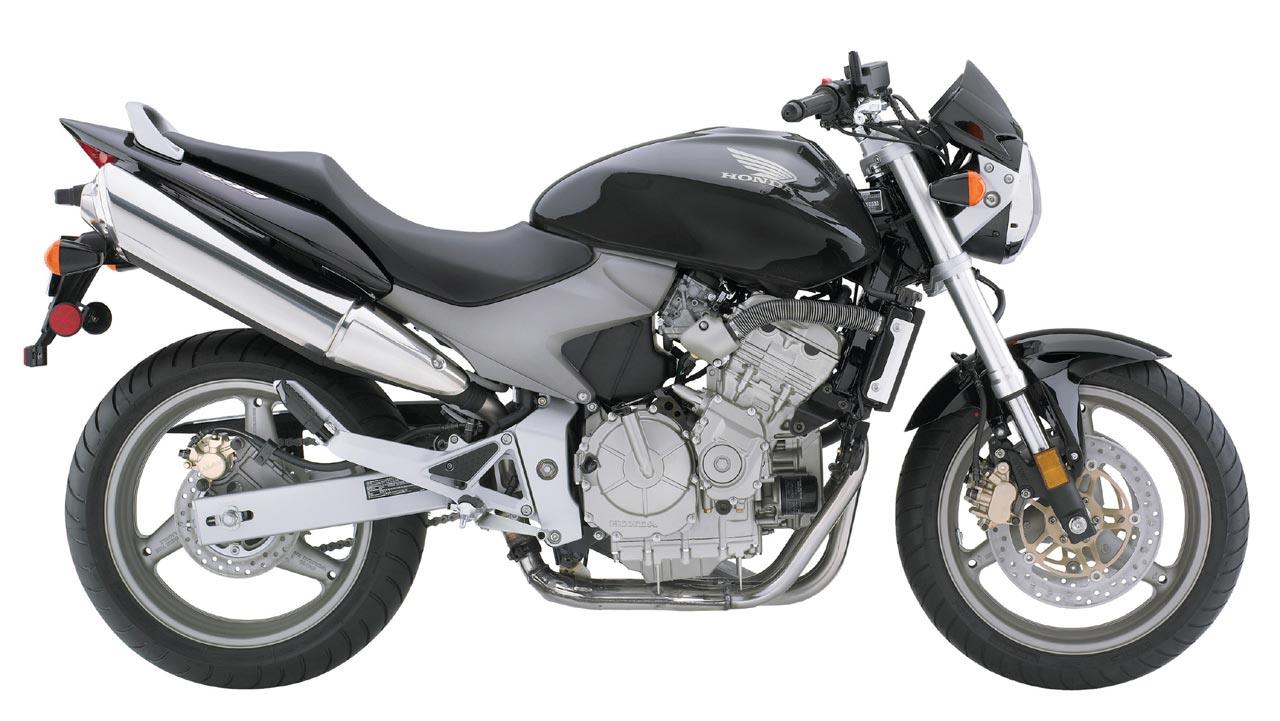

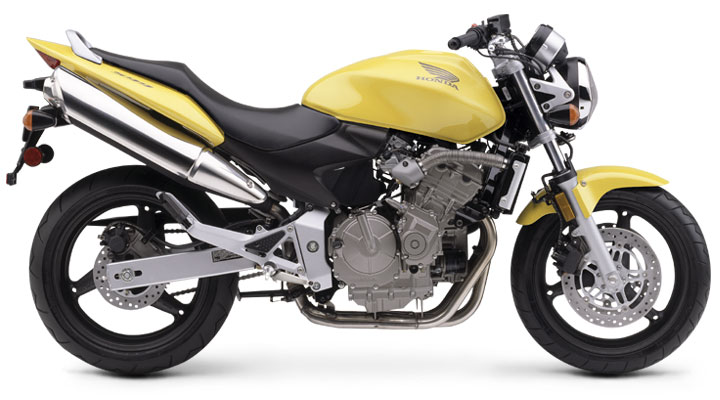

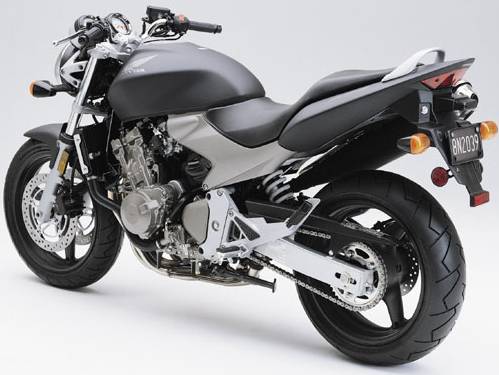

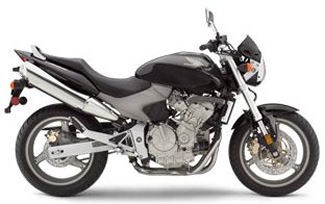

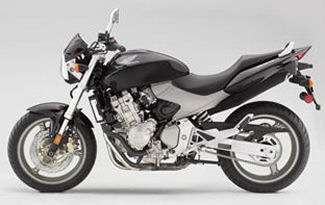

2006 CB600F '599'
2006 CB600F '599'
2006 CB600F '599'
Click image to enlarge
2012 CB600F Hornet
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 16-valve DOHC inline-4
- Engine Displacement: 599cc
- Bore and Stroke: 67 x 42.5mm
- Compression Ratio: 12:1
- Fuel Delivery: PGM-FI electronic fuel injection
- Ignition: Computer-controlled digital transistorised with electronic advance
- Max. Power Output: 75kW/12,000min-1 (95/1/EC)
- Max. Torque: 63.5Nm/10,500min-1 (95/1/EC)
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: #525 O-ring sealed chain
- Front Wheels: Hollow-section 5-spoke cast aluminium, 17M/C x MT3.5
- Rear Wheels: Hollow-section 5-spoke cast aluminium, 17M/C x MT5.5
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 41mm inverted telescopic fork, 120mm axle travel
- Rear Suspension: Monoshock damper with 7-step adjustable preload, 128mm axle travel
- Front Brakes: 296 x 4.5mm dual hydraulic disc with dual-piston calipers, floating rotors and sintered metal pads
- Rear Brakes: 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
- Front Tires: 120/70-ZR17M/C (58W)
- Rear Tires: 180/55-ZR17M/C (73W)
- DIMENSION
- Wheelbase: 1435mm (56.5 inches)
- Overall Length: 2090mm (82.3 inches)
- Overall Width: 740mm (29.1 inches)
- Overall Height: 1095mm (43.1 inches)
- Seat Height: 800mm (31.5 inches)
- Ground Clearance: 135mm (5.3 inches)
- Weight: Curb Weight: 198 kg (436 lb)
- Front: 99 kg (218 lb)
- Rear: 99 kg (218 lb)
- Fuel Capacity: 19 Litres (5.0 GalUS) [including 4-Litre (1 Gal) LCD-indicated reserve]
- OTHER

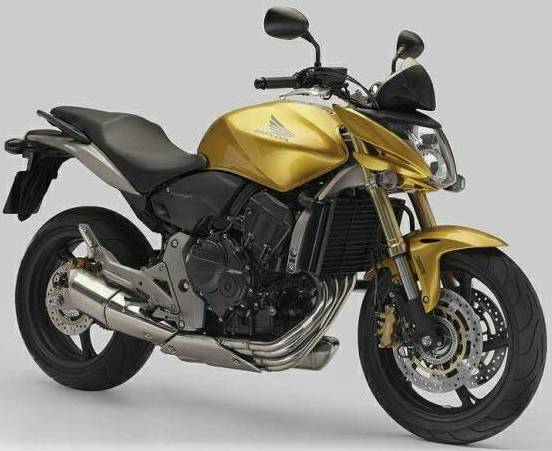

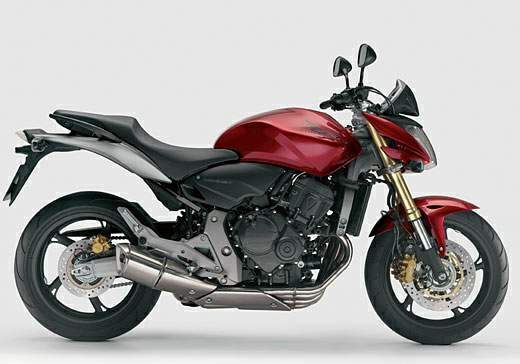

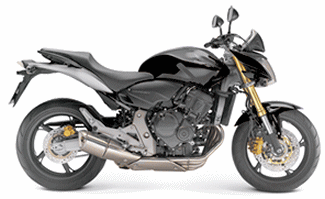

2012 CB600F
2012 CB600F
2012 CB600F
