1974 CB550K0 550 Four
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, wet sump
- Valving: 2 valves per cylinder
- Displacement: 544 (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four 22mm Keihin carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 50 hp @ 8500 rpm
- Max Torque: 30 ft-lb @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 270mm disc
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- Colors:
- Flake Sunrise Orange with Black
- Boss Maroon Metallic with Black
- Freedom Green Metallic with Black
- The gas tank was 2-tone with a black panel
- The exhaust system was a 4-into-4
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550-1000001.

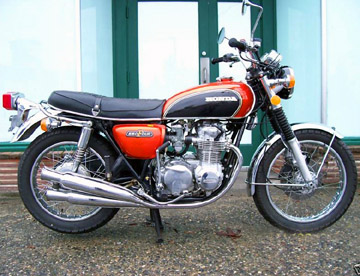

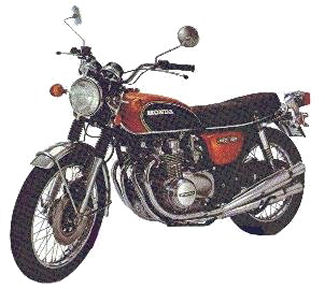

1974 CB550K0
1974 CB550K0
1975 CB550K1 550 Four
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, wet sump
- Valving: 2 valves per cylinder
- Displacement: 544 (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four 22mm Keihin carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 50 hp @ 8500 rpm
- Max Torque: 30 ft-lb @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 270mm disc
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- Colors:
- Candy Jade Green
- Flake Sunrise Orange
- The gas tank stripe was gold and black
- The instrument faces were dark green
- The exhaust system was a 4-into-4
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550-1200005.

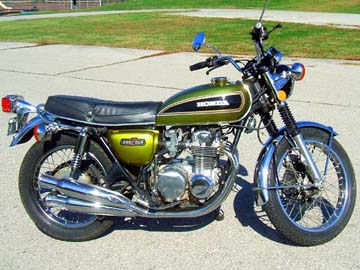

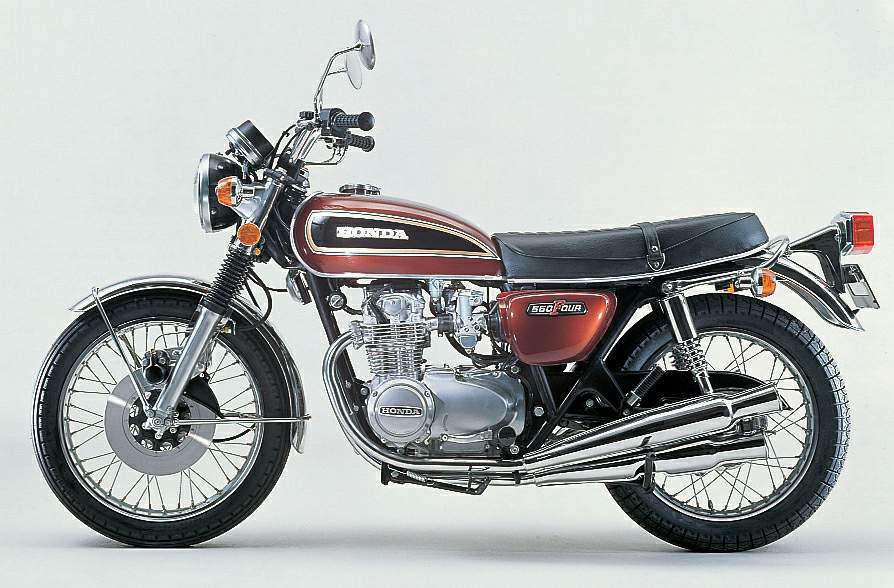

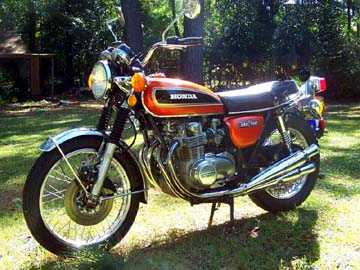

1975 CB550K1
1975 CB550K1
1975 CB550K1
Click image to enlarge
1976 CB550K'76 550 Four
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, wet sump
- Valving: 2 valves per cylinder
- Displacement: 544 (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four 22mm Keihin carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 50 hp @ 8500 rpm
- Max Torque: 30 ft-lb @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 270mm disc
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- It camein Candy Garnet Brown
- The gas tank stripe was gold and black
- The instrument faces were light green
- The exhaust system was a 4-into-4
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550-1230001.

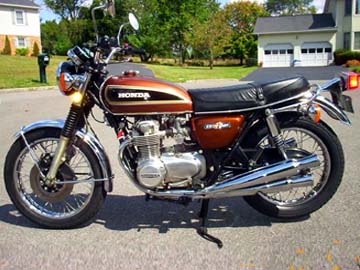

1976 CB550K2
1977 CB550K'77 550 Four K
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, wet sump
- Valving: 2 valves per cylinder
- Displacement: 544 (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four 22mm Keihin carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 50 hp @ 8500 rpm
- Max Torque: 30 ft-lb @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 270mm disc
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- It camein Excel Black
- The gas tank stripe was red with a gold pinstripe
- The "550 Four K" side cover emblem was gold
- The exhaust system was a 4-into-4
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550-2000007.

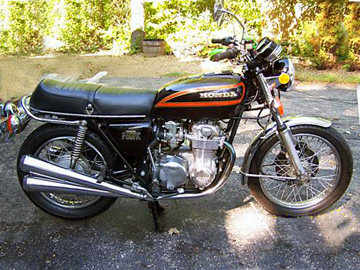

1977 CB550K3
1978 CB550K'78 550 Four K
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, wet sump
- Valving: 2 valves per cylinder
- Displacement: 544 (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four 22mm Keihin carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 50 hp @ 8500 rpm
- Max Torque: 30 ft-lb @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 270mm disc
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- Colors:
- The gas tank stripe was red with a gold pinstripe
- The "550 FOUR" side cover emblem was gold
- The "K" side cover decal and stripe were gold
- The seat had a dual contour
- The exhaust system was a 4-into-4
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550-2100001.

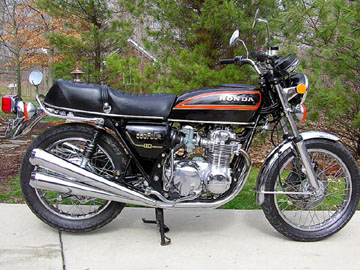

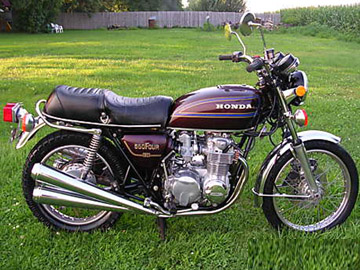

1978 CB550K4
1978 CB550K4
