1975 CB550F0 Super Sport 550 Four
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valves per cylinder.
- Displacement: 544cc (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four Keihin, 22 mm diameter carburetors
- Ignition: Breaker points and condenser
- Starter: Electrick and kickstart
- Max Power: 50 hp @ 8500 rpm
- Max Torque: 4.4 kg-m @ 7400 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: Double cradle tubular steal
- Front Suspension: 35mm Telescopic hydraulic forks
- Rear Suspension: Dual shocks, lateral adjustable preload
- Front Brakes: Single 270mm disc
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Dry-Weight: 191 kg (420 lb)
- Fuel Capacity: 17 Litres (4.5 Gal)
- OTHER
- Colors:
- Candy Sapphire Blue
- Flake Sunrise Orange
- The gas tank logo reads, "HONDA SUPER SPORT"
- The fork boots were black rubber
- The exhaust system was 4-into-1
- The instrument faces were dark green
- The serial number began CB550F-1000002.

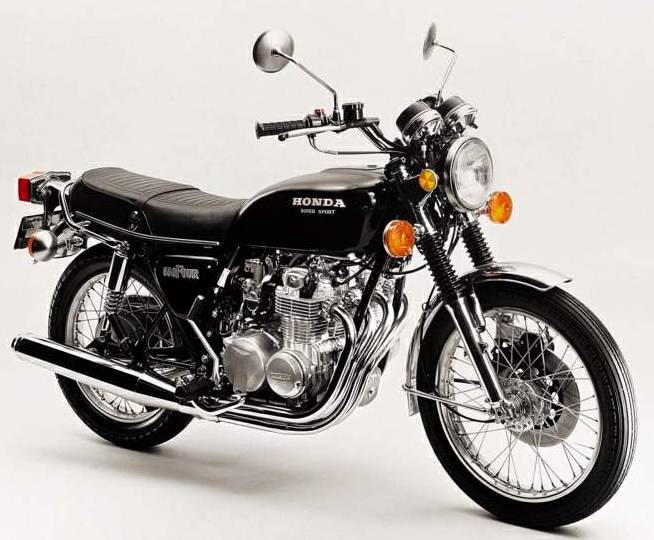

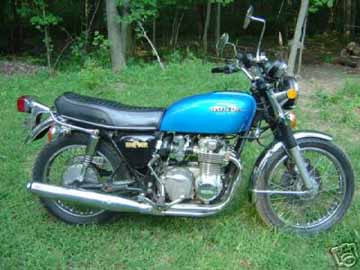

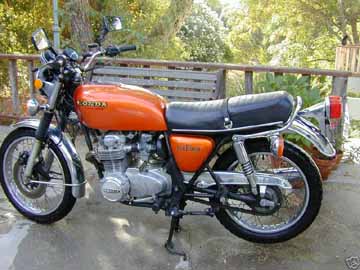

1975 CB550F0
1975 CB550F0
1975 CB550F0
Click image to enlarge
1976 CB550F'76 Super Sport 550 Four
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valves per cylinder.
- Displacement: 544cc (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four Keihin, 22 mm diameter carburetors
- Ignition: Breaker points and condenser
- Starter: Electrick and kickstart
- Max Power: 50 hp @ 8000 rpm
- Max Torque: 4.4 kg/m @ 7500rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: Double cradle tubular steal
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 236mm disc 1 piston caliper
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- Colors:
- Flake Sapphire Blue
- Shiny Orange
- The seat was dark brown
- The instrument faces were light green
- The gas tank logo reads, "HONDA SUPER SPORT"
- The fork boots were black rubber
- The exhaust system was 4-into-1
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550F-2000003.

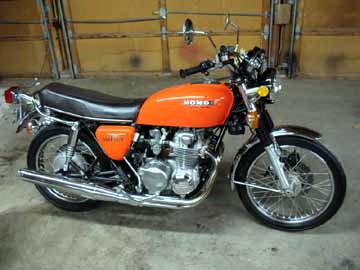

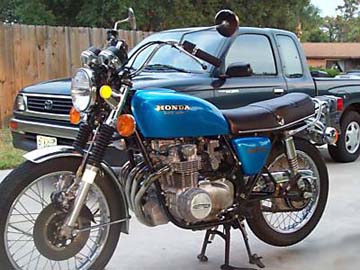

1976 CB550F
1976 CB550F
1976 CB550F
1977 CB550F'77 Super Sport 550 Four
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valves per cylinder.
- Displacement: 544cc (33.2 cid)
- Bore and Stroke: 58.5 x 50.6 mm
- Compression Ratio: 9.0:1
- Fuel Delivery: Four Keihin, 22 mm diameter carburetors
- Ignition: Breaker points and condenser
- Starter: Electrick and kickstart
- Max Power: 50 hp @ 8000 rpm
- Max Torque: 4.4 kg/m @ 7500rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: Double cradle tubular steal
- Front Suspension: Telescopic fork
- Rear Suspension: Swing arm
- Front Brakes: Single 236mm disc 1 piston caliper
- Rear Brakes: Drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Wet-Weight: 192 kg (422 lb)
- Fuel Capacity: 16 Litres (4.2 Gal)
- OTHER
- Colors:
- Candy Sword Blue
- Candy Presto Red
- The gas tank stripe was gold
- The instrument faces were dark blue
- The seat was black and the fork boots were deleted
- The gas tank logo reads, "HONDA SUPER SPORT"
- The exhaust system was 4-into-1
- Fuel Consumption: 5.7 L/100km (41 mpg)
- Standing quarter Mile: 14.5 sec / 144.2 km/h (89.6 mph)
- Top Speed: 164 km/h (102 mph)
- The serial number began CB550F-2100001.

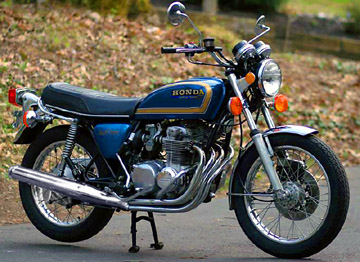

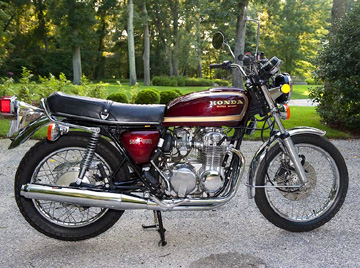

1977 CB550F
1977 CB550F
