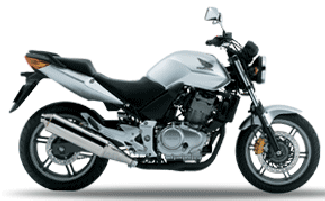

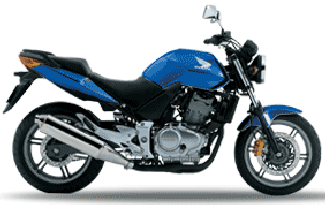

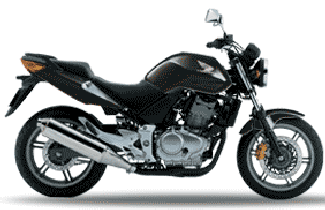

2004 CBF500 ABS
2004 cbf500
2004 cbf500
2004 cbf500
- Engine Type: Liquid-cooled 4-stroke 8-valve parallel twin cylinder
- Engine Displacement: 499cc
- Bore & Stroke: 73 x 59.6 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: 34mm slanted flat-slide VP- type carburetor x 2
- Max. Power Output: 56 bhp at 9500 rpm
- Max. Torque: 45 Nm at 8000 rpm
- Ignition: Computer-controlled digital system
- Starter: Electric
- Transmission: 6-speed
- Final Drive: O-ring sealed chain
- Length x Width x Height: 2170 x 765 x 1110 mm
- Wheelbase: 1480 mm
- Seat Height: 770 mm
- Ground Clearance: 140 mm
- Fuel Capacity: 19 litres (including 3.5-litre warning light reserve)
- Dry Weight: 183 kg
- Front Wheel: 6-spoke cast aluminum 17M/C x MT3.50
- Rear Wheel: 6-spoke cast aluminum 17M/C x MT5.00
- Front Tire: 120/70 ZR17M/C (58W)
- Rear Tire: 160/60 ZR17M/C (69W)
- Front Suspension: 41mm telescopic fork, 120mm axle travel
- Rear Suspension: Monoshock damper with 7- step adjustable preload, 125mm axle travel
- Front Brakes: 296 x 6mm hydraulic disc with dual-piston calipers and sintered metal pads
- Front Brakes: ABS. 296 x 6mm hydraulic disc with triple-piston calipers and sintered metal pads
- Rear Brake: s: 240 x 5mm hydraulic disc with single-piston caliper and sintered metal pads
- Rear Brake: s: ABS. 240 x 5mm hydraulic disc with single-piston caliper, (*ABS) and sintered metal pads

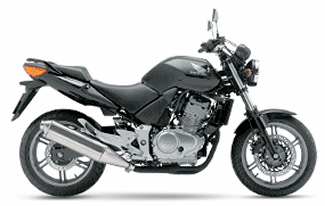

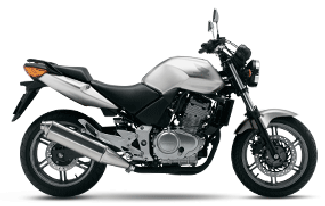

2007 CBF500 ABS
2007cbf500
2007 cbf500
2007 cbf500
- Engine Type: Liquid-cooled 4-stroke 8-valve parallel twin cylinder
- Engine Displacement: 499cc
- Bore & Stroke: 73 x 59.6 mm
- Compression Ratio: 10.5:1
- Carburation: 34mm slanted flat-slide VP-type carburetor x 2
- Max. Power Output: 56 bhp at 9,500 rpm
- Max. Torque: 45Nm at 8,000 rpm
- Ignition: Computer-controlled digital system
- Starter: Electric
- Gearbox: 6-speed
- Final Drive: O-ring sealed chain
- Length x Width x Height: 2,170 x 762 x 1,110 mm
- Wheelbase: 1,480mm
- Seat Height: 771mm
- Ground Clearance: 140mm
- Fuel Capacity: 19 litres (including 3.5-litre warning light reserve)
- Dry Weight: 186 kg
- Wheels Front: 6-spoke cast aluminium 17M/C x MT3.50
- Wheels Rear: 6-spoke cast aluminium 17M/C x MT5.00
- Tires Front: 120/70 ZR17M/C (58W)
- Tires Rear: 160/60 ZR17M/C (69W)
- Suspension Front: 41mm telescopic fork, 120mm axle travel
- Suspension Rear: Monoshock damper with 7-step adjustable preload, 125mm axle travel
- Brakes Front: ABS. 296 x 6mm hydraulic disc with triple-piston calipers and sintered metal pads
- Brakes Rear: ABS. 240 x 5mm hydraulic disc with single-piston caliper, (*ABS) and sintered metal pads
