1993-94 Honda CB500E
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV Carburetors
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks
- Rear Suspension: Twin shock adjustable.
- Front Brakes: Two 296mm discs 2 piston caliper
- Rear Brakes: 160mm drum
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Seat Height: 775 mm (30.5 inches)
- Dry-Weight: 170 kg (374 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER
- Fuel Consumption: 5.5 L/100km (42.6 mpg)
- Standing quarter Mile: 13.1 sec / 156.0 km/h (96.9 mph)
- Top Speed: 186.4 km/h (115.8 mph)

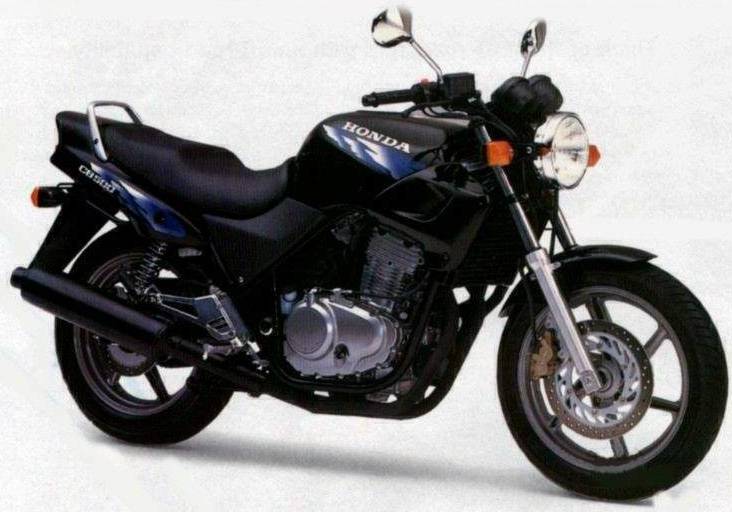

1994 CB500E
Click image to enlarge

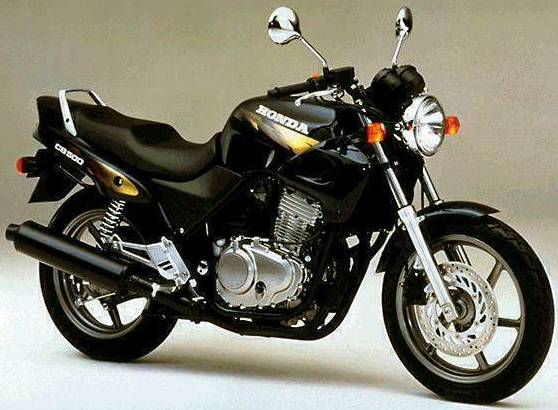

1994 CB500E
Click image to enlarge
1995-96 Honda CB500E
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV Carburetors
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks
- Rear Suspension: Twin shock adjustable.
- Front Brakes: Two 296mm discs 2 piston caliper
- Rear Brakes: 160mm drum
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Seat Height: 775 mm (30.5 inches)
- Dry-Weight: 170 kg (374 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER
- Fuel Consumption: 5.5 L/100km (42.6 mpg)
- Standing quarter Mile: 13.1 sec / 156.0 km/h (96.9 mph)
- Top Speed: 186.4 km/h (115.8 mph)

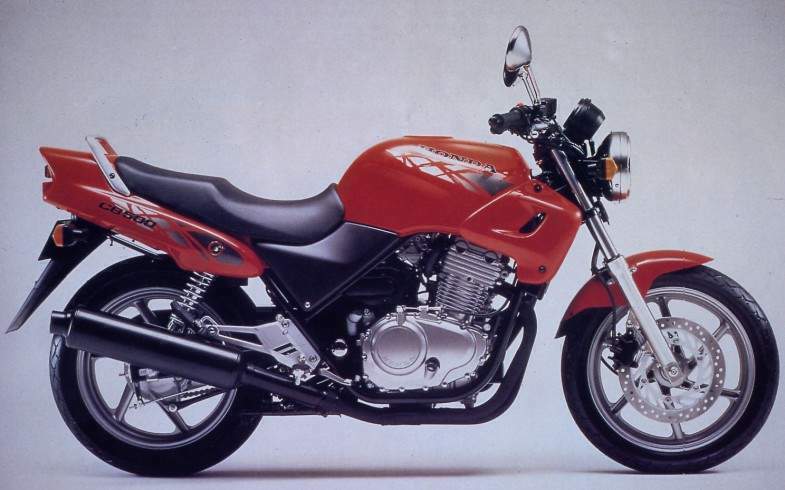

1995 CB500E
Click image to enlarge
1998-00 Honda CB500E
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV Carburetors
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks, 115mm wheel travel,
- Rear Suspension: Twin shock adjustable, 117mm wheel travel.
- Front Brakes: Two 296mm discs 2 piston caliper
- Rear Brakes: Single 240mm disc 1-piston caliper
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Seat Height: 775 mm (30.5 inches)
- Dry-Weight: 173 kg (381 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER

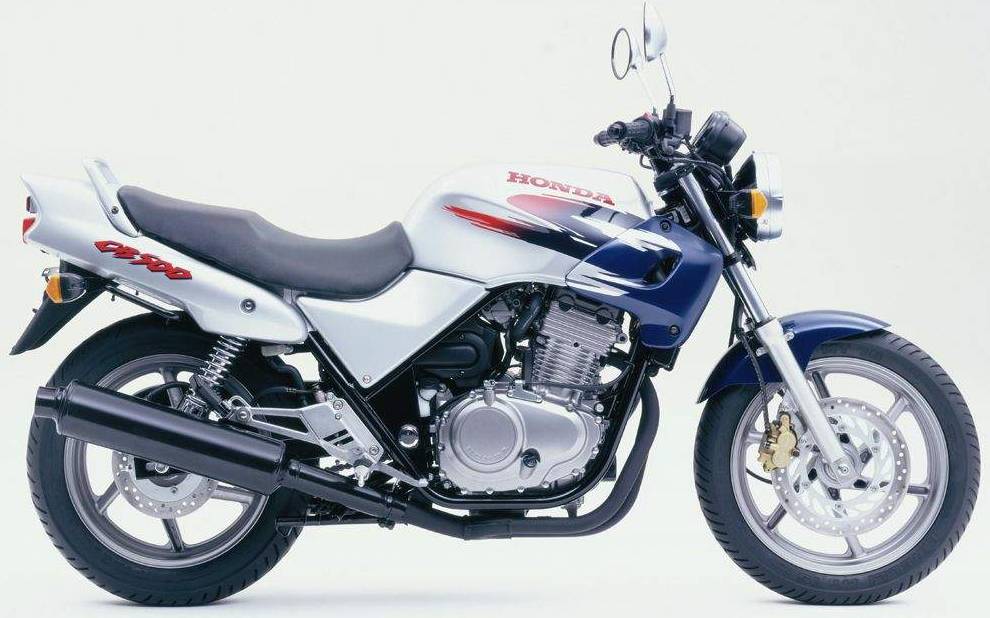

1998 CB500E
Click image to enlarge
1901-03 Honda CB500E
- ENGINE
- Engine: Liquid cooled, parallel twin cylinder, four stroke, DOHC, 4 valves per cylinder,
- Displacement: 494cc (30.1 cid)
- Bore and Stroke: 73 x 59 mm
- Compression Ratio: 10.5:1
- Fuel Delivery: Two 32mm Keihin CV Carburetors
- Ignition: CDI
- Starter: Electric
- Max Power: 58 hp 42.3 kW @ 9500 rpm
- Max Torque: 47 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm Telescopic forks, 115mm wheel travel,
- Rear Suspension: Twin shock adjustable, 117mm wheel travel.
- Front Brakes: Two 296mm discs 2 piston caliper
- Rear Brakes: Single 240mm disc 1-piston caliper
- Front Tire: 110/80-17
- Rear Tire: 130/80-17
- DIMENSION
- Seat Height: 775 mm (30.5 inches)
- Dry-Weight: 173 kg (381 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER

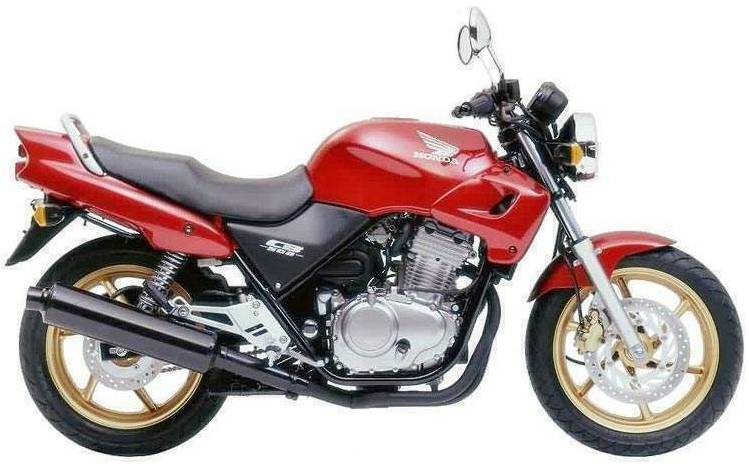

2001 CB500E
Click image to enlarge
2002 CB500E
Click image to enlarge
