Front Suspension: 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.5-inch travel
Front Brakes: Single 240mm disc with twin-piston caliper
Rear Brake: s: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 26.79 degrees
Trail: 109.4mm (4.3 inches)
Wheelbase: 58.7 inches
Seat Height: 37.6 inches
Ground Clearance: 13.4 inches
Dry Weight: 218.5 pounds
Fuel Capacity: 1.9 gallons
OTHER
Colors: Red
Model ID: CRF450R

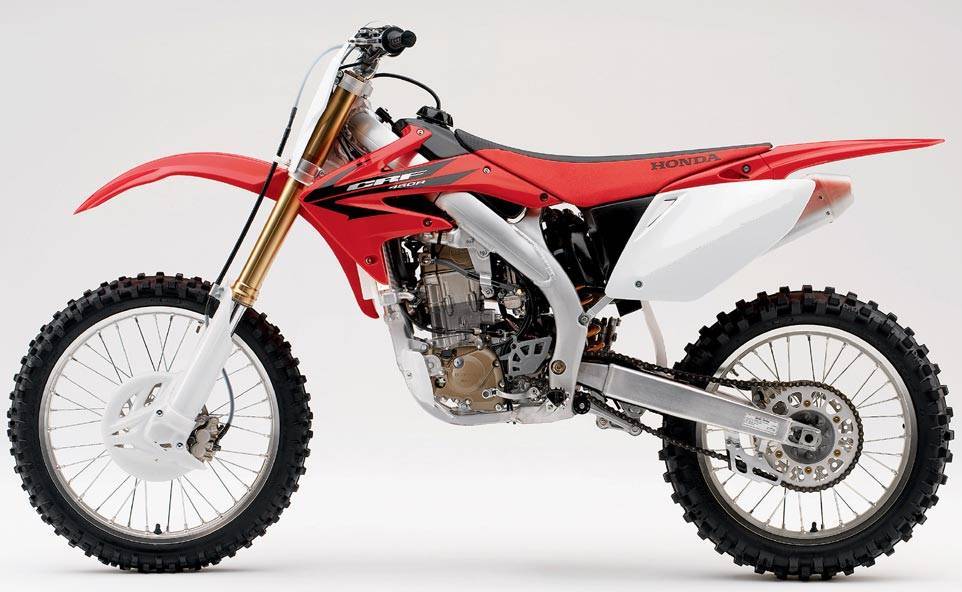

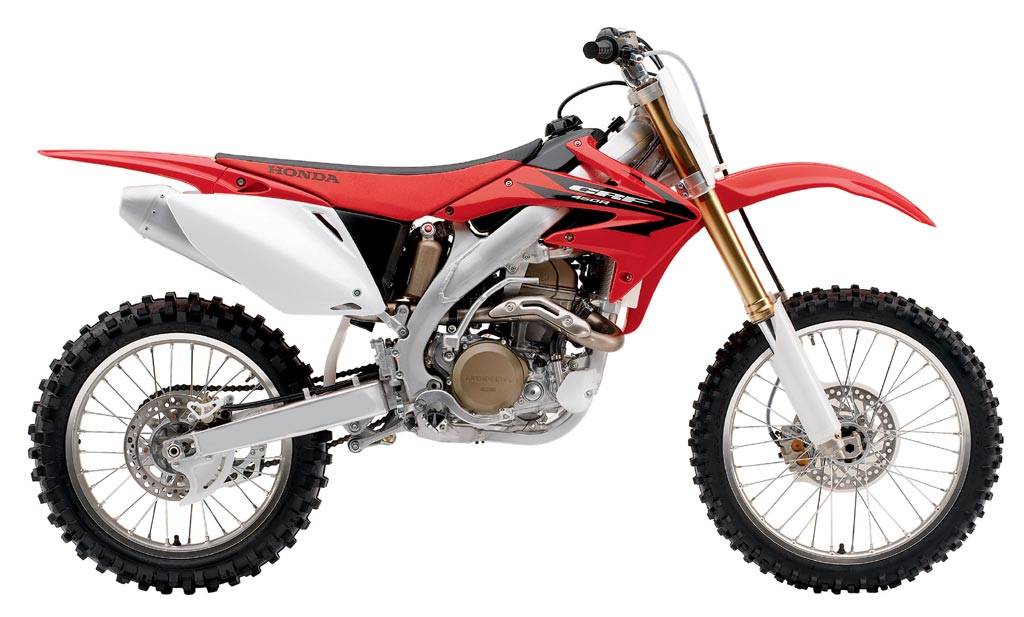

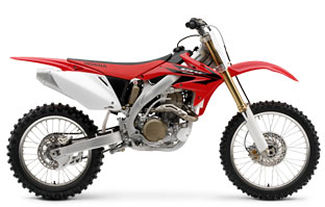

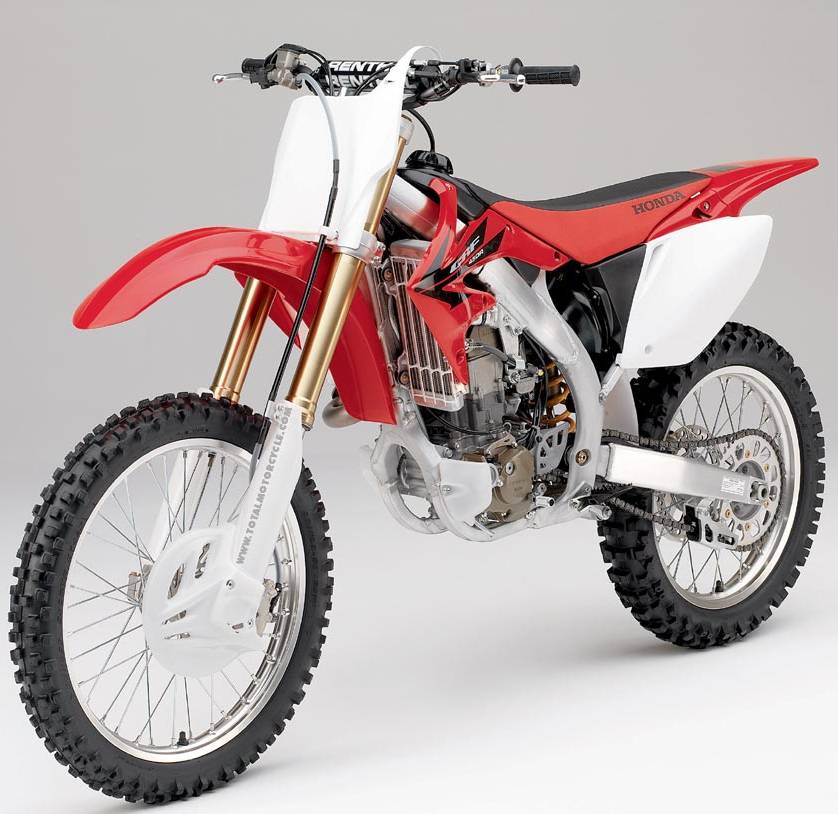

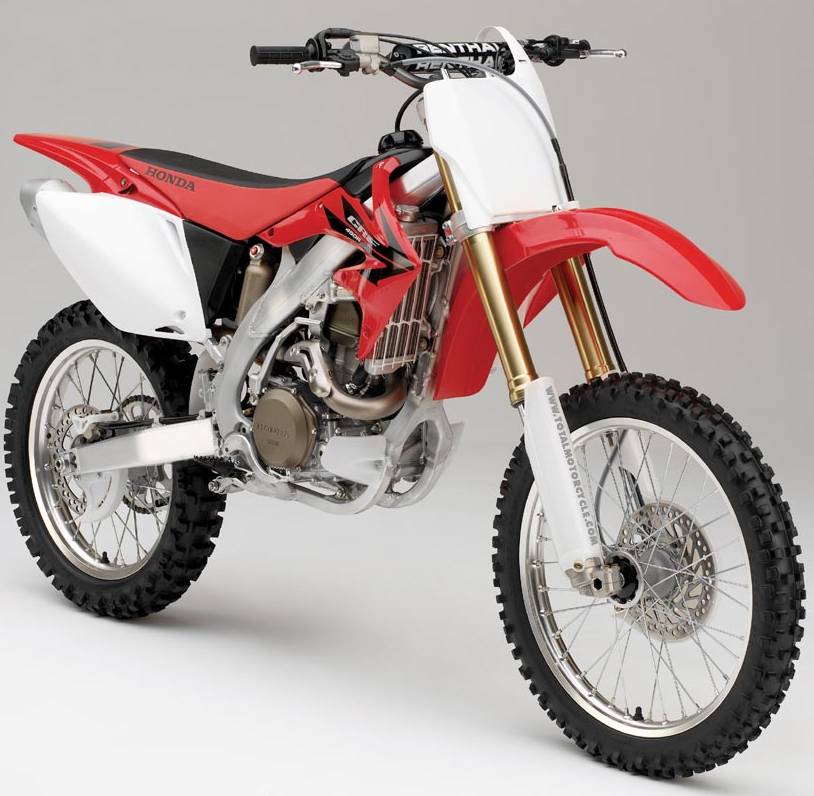

2006 CRF450R Click image to enlarge2006 CRF450R Click image to enlarge2006 CRF450R Click image to enlarge2006 CRF450R Click image to enlarge

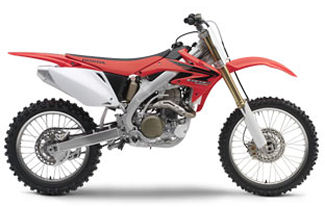

2007 CRF450R
OVERVIEW
Overview: Cycle World's 2006 MX Bike of the Year. Five years in a row. The CRF450R has won pretty much every honor thrown its way -- and it has no plans of letting up. Which is why we've made it even lighter, more responsive and better handling than ever, retooling the cylinder head and intake valves, boosting the carb to 41mm, and adding a new brake lever linkage to improve stopping power, a new subframe and a Dunlop 742 FA front tire. Wicked, eh?
Front Suspension: 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.5-inch travel
Front Brakes: Single 240mm disc with twin-piston caliper
Rear Brake: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 26.79 degrees
Trail: 109.4mm (4.3 inches)
Wheelbase: 58.7 inches
Seat Height: 37.6 inches
Ground Clearance: 13.4 inches
Dry Weight: 218.5 pounds
Fuel Capacity: 1.9 gallons
OTHER
Colors: Red
Model ID: CRF450R
2007 CRF450R
2008 CRF450R
OVERVIEW
The experts are pretty much unanimous in hailing the CRF450R as the best MXer in its class. Holding that advantage, however, demands constant improvement, and the 2008 CRF450R is sharper than ever, with all-new works-style brake rotors, retooled frame geometry, and the revolutionary new Honda Progressive Steering Damper (HPSD). The gauntlet has been thrown. Again.
Front Suspension: 47.0mm inverted Showa® cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link® Showa single-shock with spring preload, 13-position [low-speed] and 3.5-turn [high-speed] compression damping and 17-position rebound damping adjustability; 12.5-inch travel
Front Brakes: Single-disc with twin-piston caliper
Rear Brake: Single-disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 26.76 degrees
Trail: 111.4 mm (4.3 inches)
Wheelbase: 58.6 inches
Seat Height: 37.6 inches
Ground Clearance: 13.4 inches
Curb Weight: 238 lbs (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride)
Fuel Capacity: 1.9 gallons, including .07 gallon reserve
OTHER
Colors:
Red
Black (2008 Special Color, Limited Availability)
Model ID: CRF450R

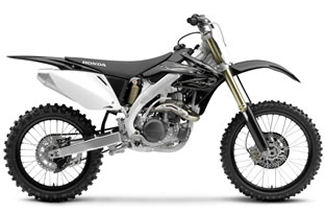

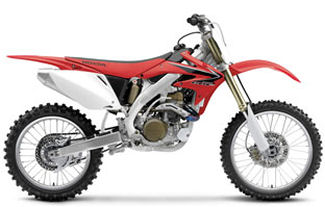

2008 CRF450R2008 CRF450R

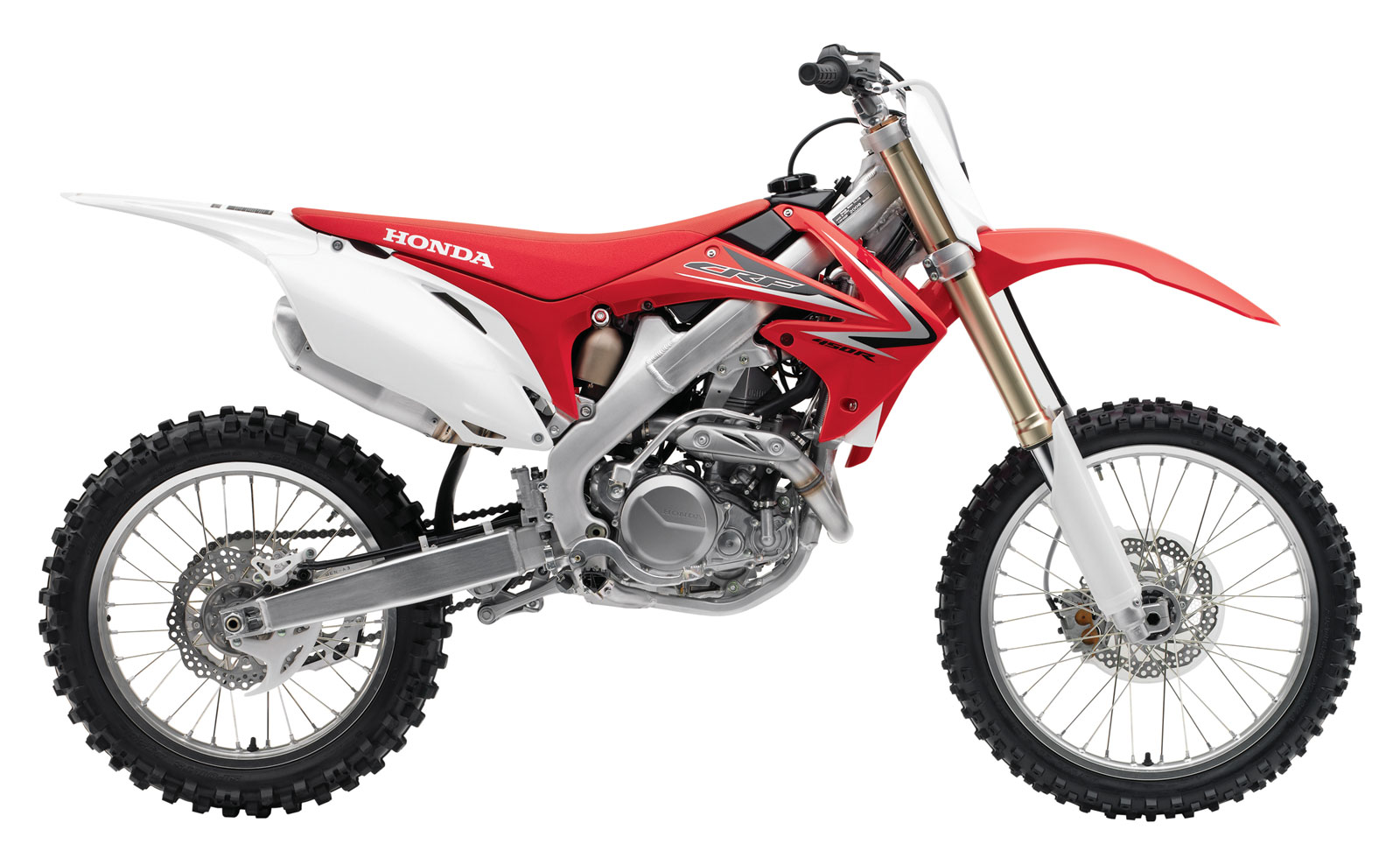

2009 CRF450R
ENGINE
Engine Size: 449cc
Engine Detail: liquid-cooled
Bore Stroke: 96mm x 62.1mm
Compression Ratio: 12.0:1
Fuel System: Programmed Fuel Injection (PGM-FI), 50mm throttle body
Ignition: Full Transistor with three-gearposition electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/48T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 48mm inverted KYB Air-Oil-Separate (AOS) with 16-position rebound and 18-position compression damping adjustability; 12.2 inches travel
Suspension Rear: Pro-Link KYB single shock with spring preload, 20-position rebound damping adjustability, and compression damping adjustment separated into low-speed (18 positions) and high-speed (1 1/2 turns); 12.6 inches travel
Brakes Front: Single 240mm disc with twin-piston caliper
Fuel System: Programmed Fuel Injection (PGM-FI), 50mm throttle body
Ignition: Full transistor with electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/48T
CHASSIS / SUSPENSION / BRAKES
Suspension Front: 48mm inverted KYB® Air-Oil-Separate (AOS) with rebound and compression-damping adjustability; 12.2 inches travel
Suspension Rear: Pro-Link KYB single shock with spring preload, rebound damping adjustability, and compression damping adjustment separated into low-speed and high-speed; 12.6 inches travel
Brakes Front: Single 240mm disc with twin-piston caliper
Fuel Delivery: Programmed Fuel Injection (PGM-FI), 46mm throttle body
Ignition: Full transistor with electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 Chain; 13T/48T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 48mm inverted KYB® Air-Oil-Separate (AOS) with rebound and compression-damping adjustability; 12.2 inches travel
Rear Suspension: Pro-Link KYB single shock with spring preload, rebound damping adjustability, and compression damping adjustment separated into low-speed and high-speed; 12.6 inches travel
Front Brake: Single 240mm disc with twin-piston caliper
Rear Brake: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 120/80-19
DIMENSION
Wheelbase: 58.7 inches
Rake: 26°53' (Caster Angle)
Trail: 114.5mm (4.5 inches)
Seat Height: 37.6 inches
Ground Clearance: 13.1 inches
Fuel Capacity: 1.5 gallons
Curb Weight: 238 lbs
OTHER
Colors: Red
Model Id: CRF450R

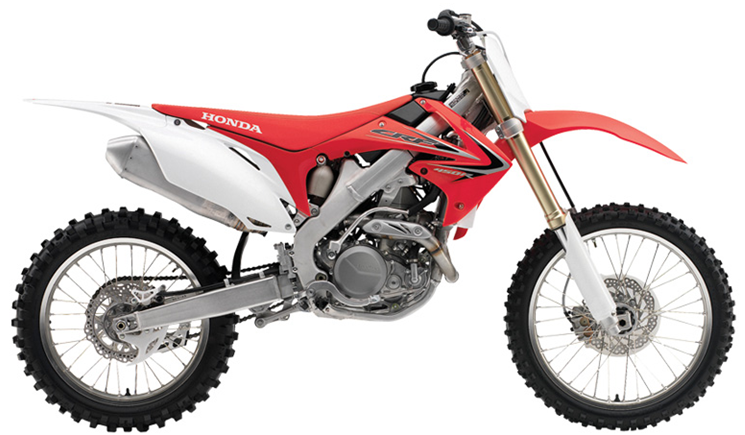

2011 CRF450R Click image to enlarge

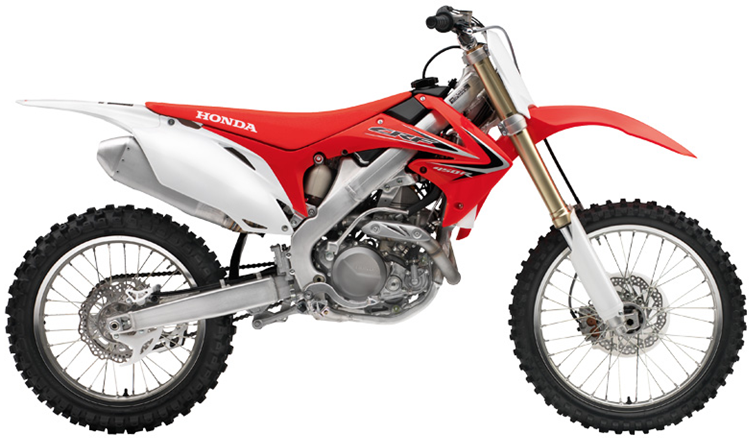

2012 CRF450R
ENGINE
Engine Type: Liquid-cooled 4-stroke 4-valve SOHC single
