1979 Honda GL400 Custom
- ENGINE
- Engine type: Liquid cooled, four stroke, longitudinal 800 V-twin cylinder, SOHC 4 valves per cylinder operated by pushrods
- Displacement: 396cc
- Bore x Stroke: 73 mm x 47.4 mm
- Compression Ratio: 10.0:1
- Valves: 2 valves/cylinder
- Max Power: 40 hp @ 9500 rpm
- Max Torque: 3.22 kg-m @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual shocks
- Front Brakes: single 275 mm disc with 1-piston calipers
- Rear Brakes: 160 mm drum
- Front Tire: 3.25-19
- Rear Tire: 3.75-18
- DIMENSION
- Fuel Capacity: 11 litres (2.9 Gal)
- Dry weight: (without fluids): 200 kg (440.9 pounds)
- OTHER

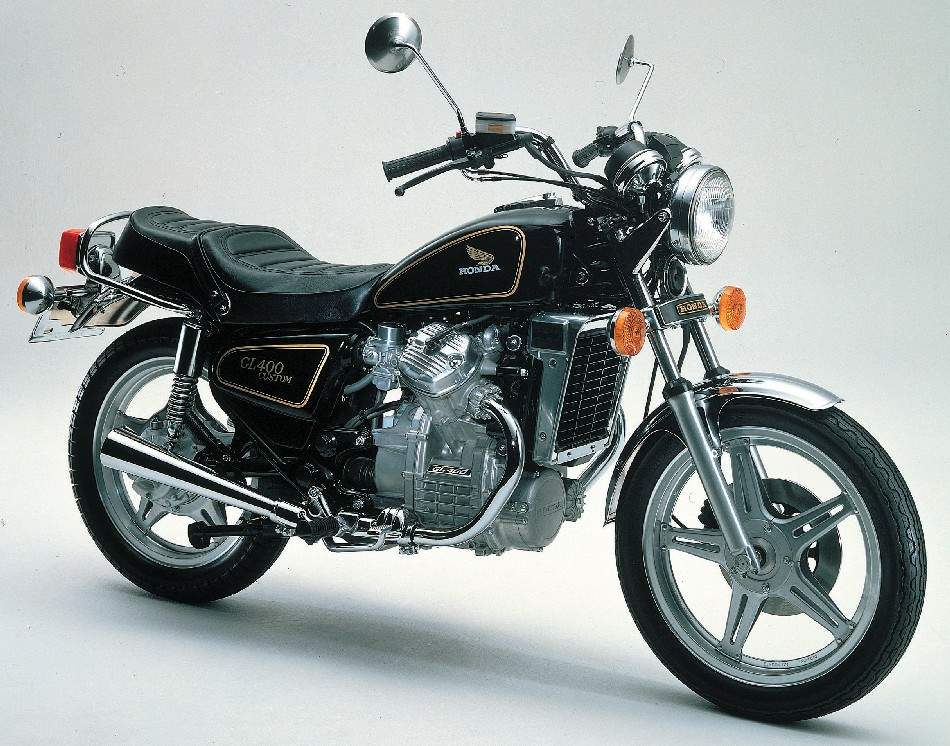

1979 GL400
Click image to enlarge
1981 Honda GL400 Custom
- ENGINE
- DRIVETRAIN
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- OTHER

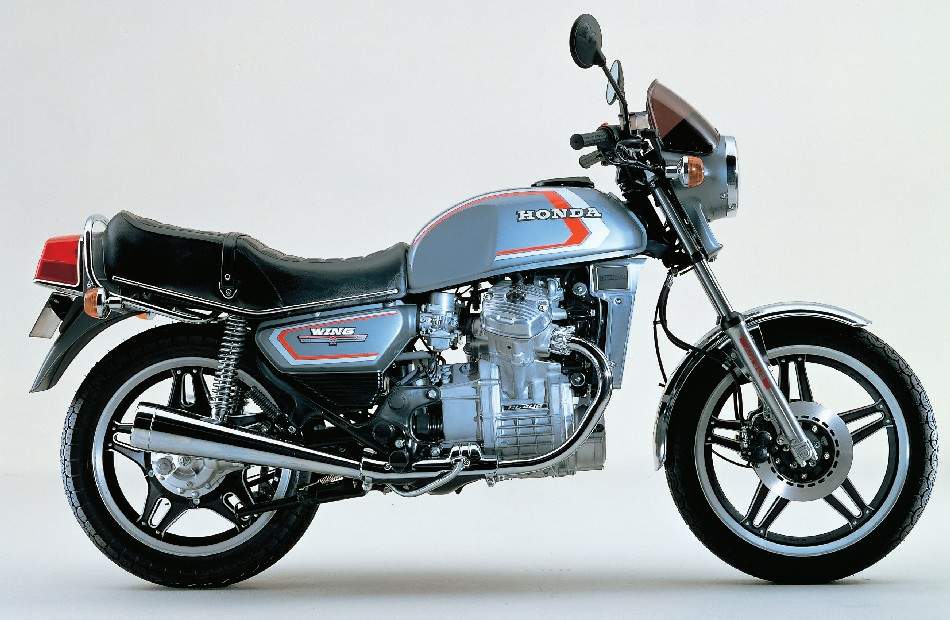

1981 GL400
Click image to enlarge
Honda GL400 Custom
- ENGINE
- Engine Type: 396 cc, 4 Stroke - Liquid Cooled - V-Twin
- Valves: 2 valves/cylinder
- Horsepower: 40 hp (29.8 kW) @ 9500 rpm
- Maximum Torque: 32 Nm (23.6 ft. lbs) @ 7500 rpm
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Shaft
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: single 275 mm disc with 1-piston calipers
- Rear Brakes: 160 mm drum
- Front Tire: 3.00-21
- Rear Tire: 3.75-18
- DIMENSION
- Fuel Capacity: 11 litres (2.9 Gal)
- Dry weight: (without fluids): 200 kg (440.9 pounds)
- OTHER
