1975 Super Sport 400 (CB400F0)
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valve per cylinder.
- Displacement: 408cc
- Bore and Stroke: 51 x 50 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: Four 20mm Mikuni carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 37 hp @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual shocks preload adjustable
- Front Brakes: Single 267mm disc
- Rear Brakes: 160mm drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Dry-Weight: 185 kg (407 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Colors:
Light Ruby Red
Varnish Blue
- The fuel tank and side covers were painted one of the basic colors
- The exhaust system was a 4-into-1
- The handlebars were low
- The serial number began CB400F-1000001.

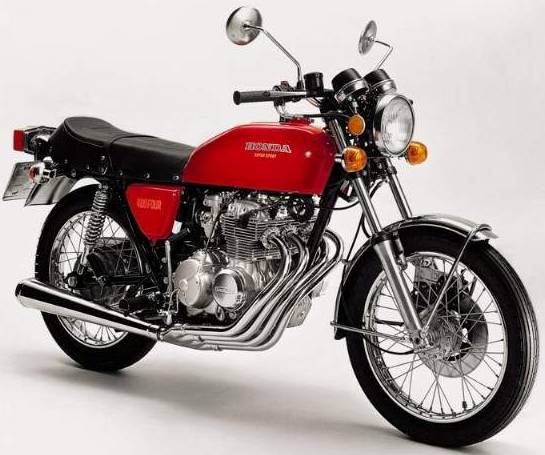

1975 CB400F
Click image to enlarge
1975 Super Sport 400 CB400F0
1976 CB400F'76
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valve per cylinder.
- Displacement: 408cc
- Bore and Stroke: 51 x 50 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: Four 20mm Mikuni carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 37 hp @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual shocks preload adjustable
- Front Brakes: Single 267mm disc
- Rear Brakes: 160mm drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Dry-Weight: 185 kg (407 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Colors:
Light Ruby Red
Parakeet Yellow
- The gas tank was the basic color (red or yellow), but the side covers were black
- The exhaust system was a 4-into-1
- The handlebars were low
- The serial number began CB400F-2000001.

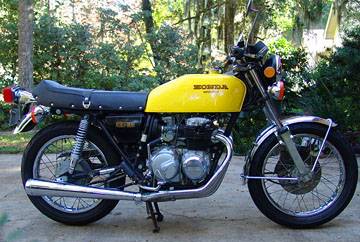

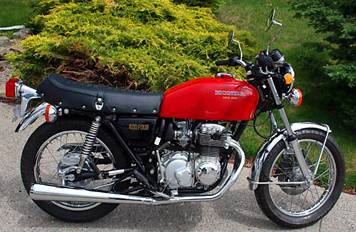

1976 CB400F
1976 CB400F
Click image to enlarge
1977 CB400F'77
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valve per cylinder.
- Displacement: 408cc
- Bore and Stroke: 51 x 50 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: Four 20mm Mikuni carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 37 hp @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual shocks preload adjustable
- Front Brakes: Single 267mm disc
- Rear Brakes: 160mm drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Dry-Weight: 185 kg (407 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Color:
- Candy Antares Red
- Parakeet Yellow
- The gas tank stripes were gold and orange on the red bike, but black and red on the yellow bike
- The gas tank filler cap was recessed
- The handlebars were raised
- The exhaust system was a 4-into-1
- The engine was a 408cc 4-stroke SOHC inline four cylinder with four carburetors
- The transmission was a 6-speed
- The serial number began CB400F-2100001.

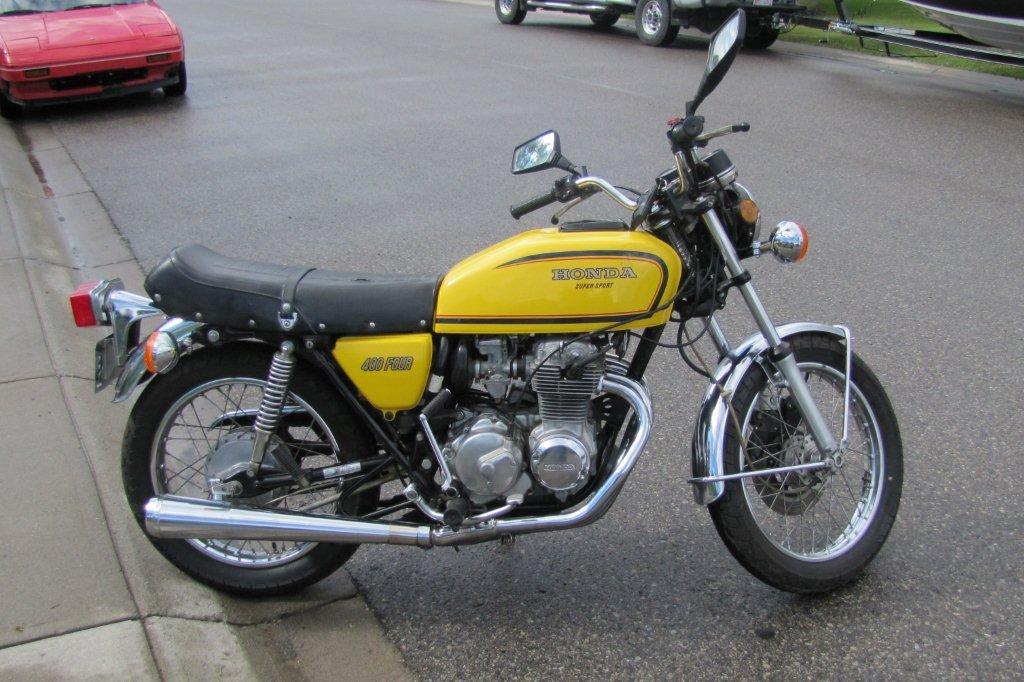

1977 CB400F (photo: Darcy Shier)

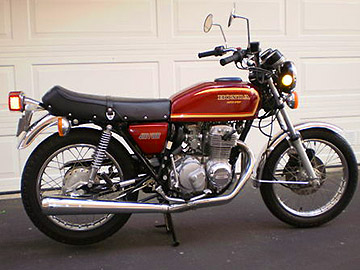

1977 CB400F
1977 CB400F
1978 CB400F
- ENGINE
- Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valve per cylinder.
- Displacement: 408cc
- Bore and Stroke: 51 x 50 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: Four 20mm Mikuni carburetors
- Ignition: Breaker points and condenser
- Starter: Electric and kickstart
- Max Power: 37 hp @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual shocks preload adjustable
- Front Brakes: Single 267mm disc
- Rear Brakes: 160mm drum
- Front Tire: 3.00-18
- Rear Tire: 3.50-18
- DIMENSION
- Dry-Weight: 185 kg (407 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Colors:
- The gas tank stripes were gold on the red bike, but black on the yellow bike
- The gas tank filler cap was recessed
- The handlebars were raised
- The exhaust system was a 4-into-1

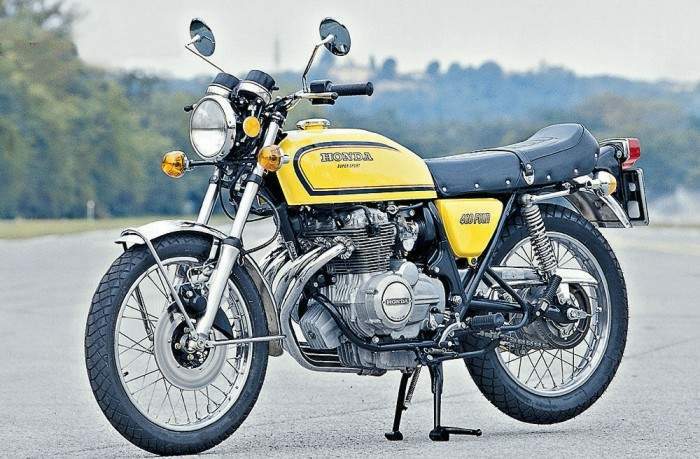

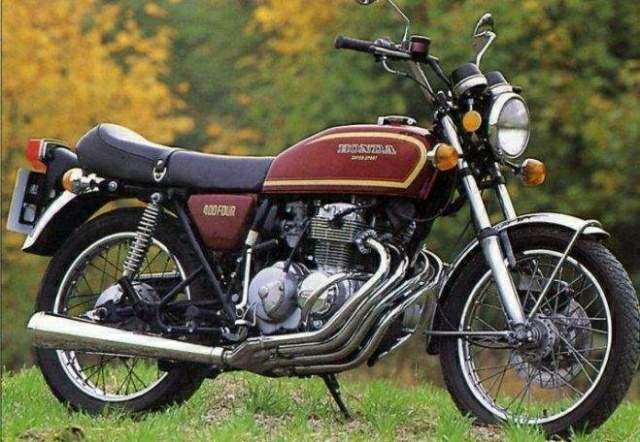

1978 CB400F
Click image to enlarge
1978 CB400F
Click image to enlarge
