1978 CB400TI
- ENGINE
- Engine: Air cooled, parallel twin cylinder, four stroke, SOHC, 360° crankshaft and twin balance-shafts
- Valving: 3 valves per cylinder
- Displacement: 395cc
- Bore and Stroke: 70.5 x 50.6mm
- Compression Ratio: 9.3:1
- Fuel Delivery: Two 32mm Keihin carburetors
- Ignition: CDI
- Starting: Kickstart
- Max Power: 26.8 HP @ 8000 rpm
- Max Torque: 21.39 lb-ft @ 5000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual EVO dampers with 5-way spring preload adjustment.
- Front Brakes: Drum
- Rear Brakes: 153mm Drum
- Front Tire: 3.60 S19
- Rear Tire: 4.10 S18
- Wheels: Wire-spoked
- DIMENSION
- Wet-weight: 177 kg (390 lb)
- Fuel Capacity: 13 Litres (3.4 Gal)
- Consumption average: 4.8 L/100km (48.5 mpg)
- Standing Quarter Mile: 14.6 sec / 143 kph (89.1 mph)
- Top Speed: 170 km/h (105.9 mph)
- OTHER
- Colors:
- The gas tank stripes were black and orange
- There was no tachometer -- only a speedometer
- The wheels had wire spokes and the brakes were mechanically operated drum
- There was only a kickstarter (no electric start)
- The serial number began CB400T-2000022.

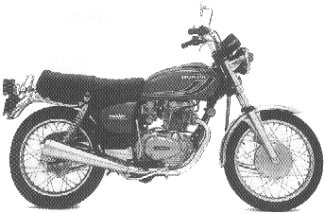

1978 CB400TI
1979 CB400TI
- ENGINE
- Engine: Air cooled, parallel twin cylinder, four stroke, SOHC, 360° crankshaft and twin balance-shafts
- Valving: 3 valves per cylinder
- Displacement: 395cc
- Bore and Stroke: 70.5 x 50.6mm
- Compression Ratio: 9.3:1
- Fuel Delivery: Two 32mm Keihin carburetors
- Ignition: CDI
- Starting: Kickstart
- Max Power: 26.8 HP @ 8000 rpm
- Max Torque: 21.39 lb-ft @ 5000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Dual EVO dampers with 5-way spring preload adjustment.
- Front Brakes: Drum
- Rear Brakes: 153mm Drum
- Front Tire: 3.60 S19
- Rear Tire: 4.10 S18
- Wheels: Wire-spoked
- DIMENSION
- Wet-weight: 177 kg (390 lb)
- Fuel Capacity: 13 Litres (3.4 Gal)
- Consumption average: 4.8 L/100km (48.5 mpg)
- Standing Quarter Mile: 14.6 sec / 143 kph (89.1 mph)
- Top Speed: 170 km/h (105.9 mph)
- OTHER
- Colors:
- Candy Antares Red
- Excel Black
- The gas tank and side cover pinstripes were gold and orange
- There was no tachometer -- only a speedometer
- The wheels had wire spokes and the brakes were mechanically operated drum
- There was only a kickstarter (no electric start)
- The serial number began CB400T-2100006.

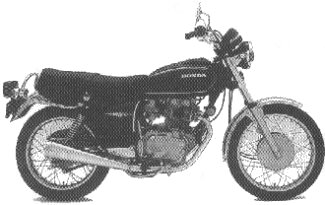

1979 CB400TI
