1992-95 Honda CB400SF (Super Four)
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Fuel Delivery: Four 32mm carburetors
- Max Power: 53 hp 38.6 kW @ 10000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 110/80-18
- Rear Tire: 140/70-17
- DIMENSION
- Dry-Weight: 168 kg (370 lb)
- Fuel Capacity: 11.3 Litres (3 Gal)
- OTHER

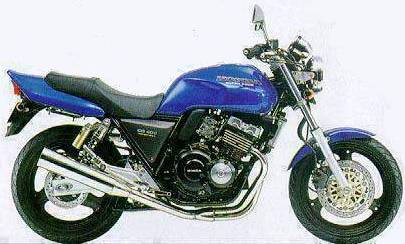

1992 CB400SF (Super Four)
1996-98 Honda CB400SF (Super Four)
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Valves: 4 valves/cylinder
- Fuel Delivery: Four 32mm carburetors
- Max Power: 53 hp 38.6 kW @ 10000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-Speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 110/80-18
- Rear Tire: 140/70-17
- DIMENSION
- Wheelbase: 1460 mm (57.5 inches)
- Seat Height: 790 mm (31.1 inches)
- Dry-Weight: 168 kg (370 lb)
- Fuel Capacity: 11.3 Litres (3 Gal)
- OTHER

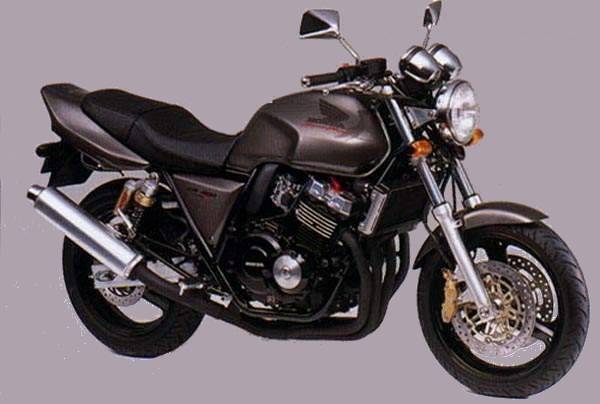

1996 CB400 Super Four

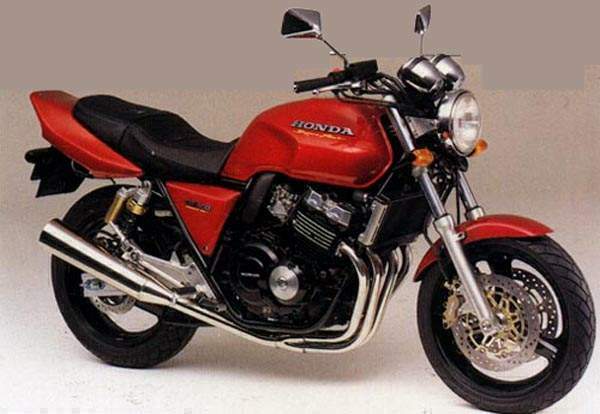

1996 CB400 Super Four
1999 Honda CB400SF (Super Four) VTEC
- ENGINE
- Engine type: Liquid cooled, transverse four cylinders, four stroke, DOHC,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Valves: 4 valves/cylinder
- Fuel Delivery: VP04B
- Fuel Delivery: Four 32mm carburetors
- Ignition System: Full transistor type battery Ignition System:
- Max Power: 53 hp (38.6 kW) @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/60-17
- Rear Tire: 160/60-17
- DIMENSION
- Overall Length: 2050 mm (80.7 inches)
- Overall Width: 725 mm (28.5 inches)
- Overall Height: 1070 mm (42.1 inches)
- Seat Height: 760 mm (29.9 inches)
- Wheelbase: 1415 mm (55.7 inches)
- Fuel Capacity: 18 litres (4.8 Gal)
- Dry weight: 168 kg (370.4 pounds)
- OTHER
2000-2005 Honda CB400SF (Super Four)
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke, DOHC,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Fuel Delivery: Four 32mm carburetors
- Max Power: 53 hp 38.6 kW @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/70 ZR17
- Rear Tire: 160/50 ZR17
- DIMENSION
- Dry-Weight: 170 kg (374 lb)
- Fuel Capacity: 11.3 Litres (3 Gal)
- OTHER

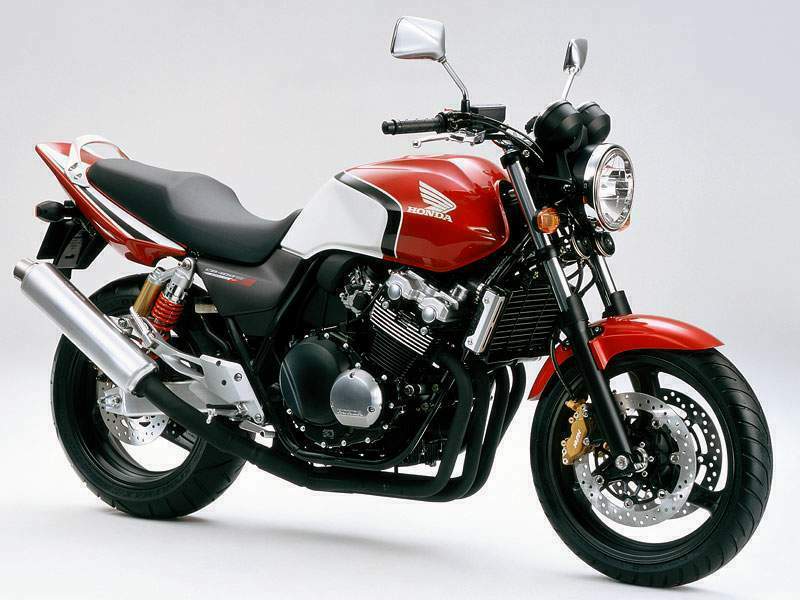

2005 CB400SF (Super Four)
Click image to enlarge

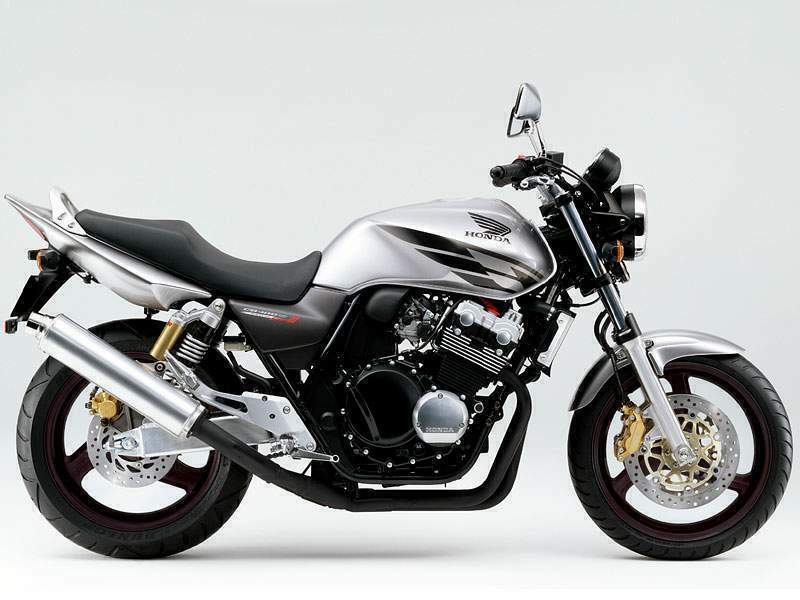

2005 CB400SF (Super Four)
Click image to enlarge
2006-2010 Honda CB400SF (Super Four)
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke, DOHC,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Valves: 4 per cylinder
- Fuel Delivery: Fuel Injection
- Ignition: CDI
- Starting: Electric
- Max Power: 53 hp 38.6 kW @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: High-tension steel cradle frame
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/70 ZR17
- Rear Tire: 160/50 ZR17
- DIMENSION
- Dry-Weight: 170 kg (374 lb)
- Fuel Capacity: 18 Litres (4.75 Gal)
- OTHER
2011 Honda CB400SF (Super Four) SE
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke, DOHC, 4 valve per cylinder
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Fuel Delivery: Fuel Injection
- Ignition: CDI
- Starter: Electric
- Max Power: 53 hp 38.6 kW @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: High-tension steel cradle frame
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/60 ZR17
- Rear TIre: 160/60 ZR17
- DIMENSION
- Dry-Weight: 194 kg (428 lb)
- Fuel Capacity: 18 Litres (4.75 gal)
- OTHER

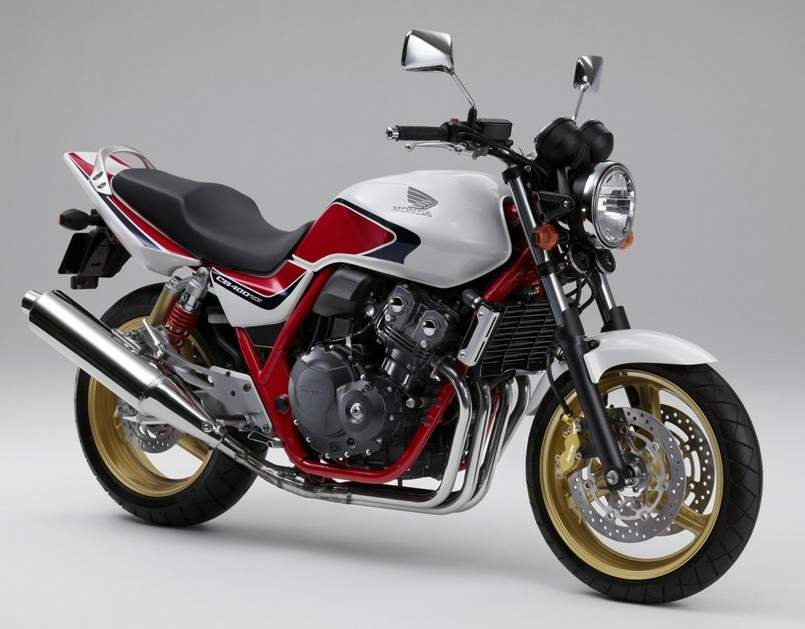

2011 CB400 Super Four SE

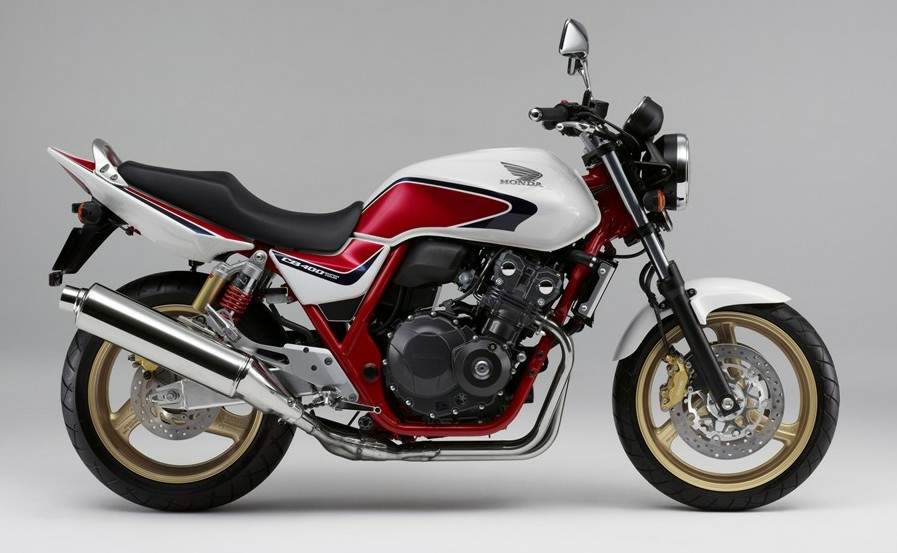

2011 CB400 Super Four SE
