2005-07 Honda CB400 Super Bol D'or
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke, DOHC,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Fuel Delivery: Four 32mm carburetors
- Ignition: CDI
- Starter: Electric
- Max Power: 38.6 kW (53 hp) @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: High-tension steel cradle frame
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/70 ZR17
- Rear Tire: 160/50 ZR17
- DIMENSION
- Dry-Weight: 198kg (437 lb)
- Fuel Capacity: 18 Litres (4.75 gal)
- OTHER

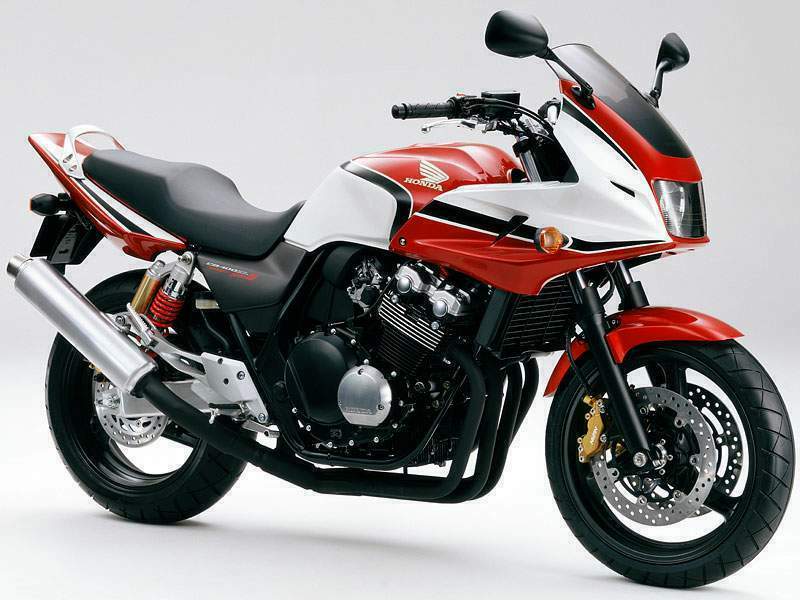

2005 Honda CB400 Super Bol D'or
Click image to enlarge
2008-10 Honda CB400 Super Bol D'or
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke, DOHC,
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Valving: 4 valves per cylinder
- Fuel Delivery: Fuel Injection
- Ignition: CDI
- Starter: Electric
- Max Power: 38.6 kW (53 hp) @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: High-tension steel cradle frame
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/60 ZR17
- Rear Tire: 160/60 ZR17
- DIMENSION
- Dry-Weight: 175kg (385 lb)
- Fuel Capacity: 18 Litres (4.75 gal)
- OTHER

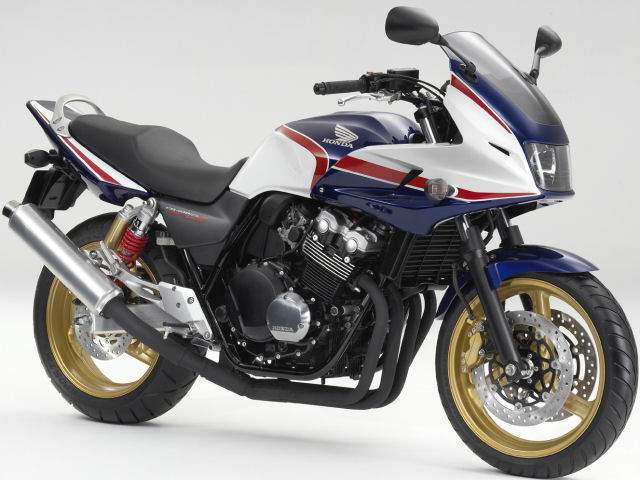

2008 Honda CB400 Super Bol D'or
Click image to enlarge
2011 Honda CB400 Super Bol D'or SE
- ENGINE
- Engine: Liquid cooled, transverse four cylinders, four stroke, DOHC, 4 valve per cylinder
- Displacement: 399cc
- Bore and Stroke: 55 x 42 mm
- Compression Ratio: 11.3:1
- Fuel Delivery: Fuel Injection
- Ignition: CDI
- Starter: Electric
- Max Power: 38.6 kW (53 hp) @ 11000 rpm
- Max Torque: 40.18 Nm @ 7500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Frame: High-tension steel cradle frame
- Front Brakes: Two 296mm discs 4 piston calipers
- Rear Brakes: Single 240mm disc 2 piston caliper
- Front Tire: 120/60 ZR17
- Rear Tire: 160/60 ZR17
- DIMENSION
- Dry-Weight: 198kg (437 lb)
- Fuel Capacity: 18 Litres (4.75 gal)
- OTHER
2011 Honda CB400 Super Bol D'or SE
Click image to enlarge
