1972-73 CB350F0 Four

  • ENGINE
    • Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valve per cylinder.
    • Displacement: 347cc
    • Bore and Stroke: 47 x 50. mm
    • Compression Ratio: 9.3:1
    • Fuel Delivery: 4 x Keihin 656 C, Ø 22 mm
    • Ignition: Breaker points and condenser
    • Starter: Electric and kickstart
    • Max Power: 34 hp @ 9500 rpm
    • Max Torque: 2.79 m-kg @ 8000 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Frame: Simple tubular steel cradle, split under the engine
    • Front Suspension: Telescoping hydraulic forks, 114mm wheel travel.
    • Rear Suspension: Dual adjustable shocks, 91 mm wheel travel
    • Front Brakes: Single 260mm disc (hydraulic)
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 160 kg (352 lb)
    • Fuel Capacity: 12 Litres (3.2 Gal)
  • OTHER
    • Colors:
      • Candy Bacchus Olive
      • Flake Matador Red
    • The fuel tank stripes were white and orange
    • The "350 Four" side cover emblem was red and white
    • The exhaust system was a 4-into-4 (two pipes and mufflers on each side of the bike)
    • The serial number began CB350F-1000001.

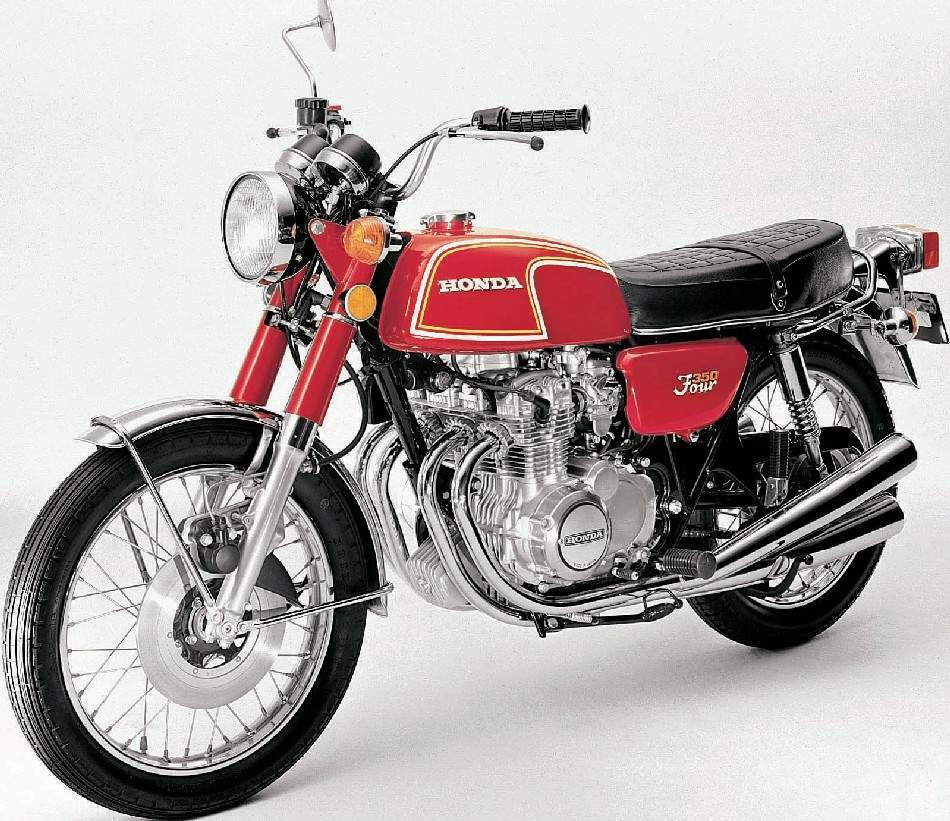

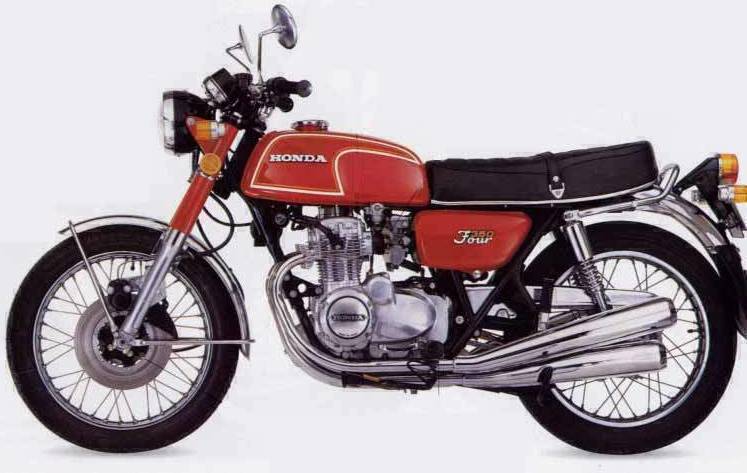

Honda CB350F0 Four
Honda CB350F0 Four
Click image to enlarge

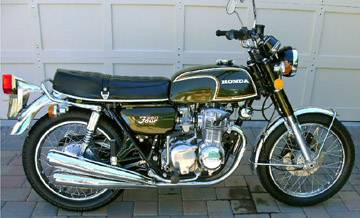

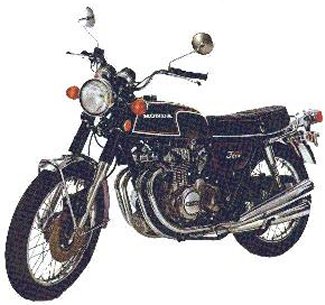

Honda CB350F0 Four
Honda CB350F0 Four
Honda CB350F0 Four
Honda CB350F0 Four

1974 CB350F1

  • ENGINE
    • Engine: Air cooled, transverse four cylinder, four stroke, SOHC, 2 valve per cylinder.
    • Displacement: 347cc
    • Bore and Stroke: 47 x 50. mm
    • Compression Ratio: 9.3:1
    • Fuel Delivery: 4 x Keihin 656 C, Ø 22 mm
    • Ignition: Breaker points and condenser
    • Starter: Electric and kickstart
    • Max Power: 34 hp @ 9500 rpm
    • Max Torque: 2.79 m-kg @ 8000 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Frame: Simple tubular steel cradle, split under the engine
    • Front Suspension: Telescoping hydraulic forks, 114mm wheel travel.
    • Rear Suspension: Dual adjustable shocks, 91 mm wheel travel
    • Front Brakes: Single 260mm disc (hydraulic)
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 160 kg (352 lb)
    • Fuel Capacity: 12 Litres (3.2 Gal)
  • OTHER
    • Color:
      • Glory Blue Black Metallic (the only color in the USA)
      • Silver
      • Flake Matador Red
    • The gas tank stripes were gold
    • The "350 FOUR" side cover emblem was white and orange
    • The exhaust system was a 4-into-4 (two pipes and mufflers on each side of the bike)
    • The engine was a 347cc 4-stroke inline four cylinder with 4 carburetors
    • The transmission was a 5-speed
    • The serial number began CB350F-2000001.

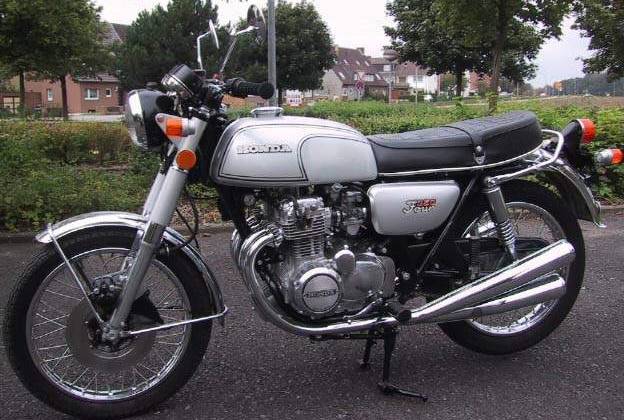

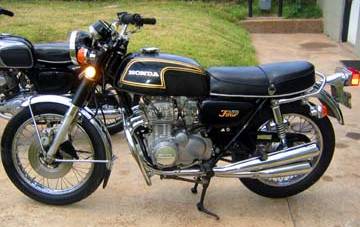

CB350F1 Four
CB350F1 Four
CB350F1 Four
CB350F1 Four

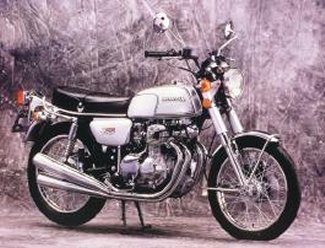

Honda CB350F1 Four
Honda CB350F0 Four
Click image to enlarge
Honda CB350F1 Four
Honda CB350F0 Four
Click image to enlarge
