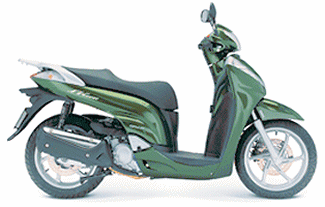

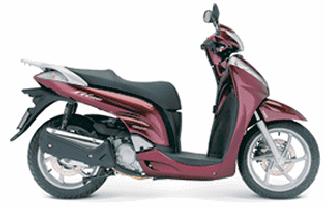

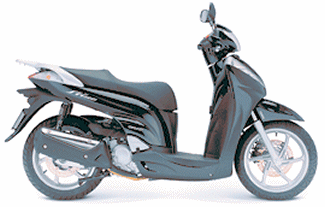

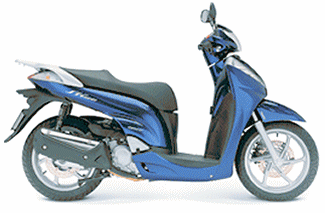

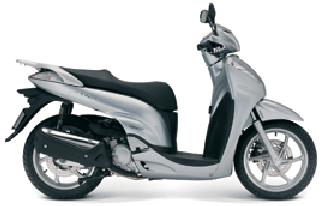

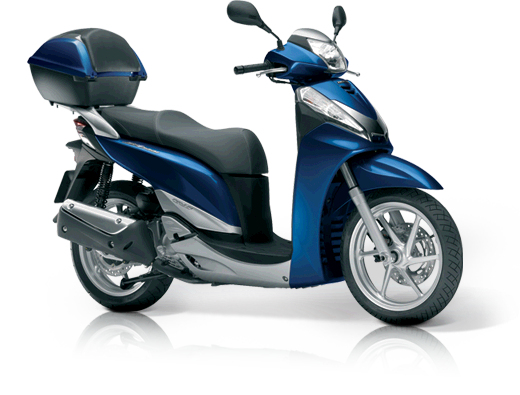

2007 SH300I
- ENGINE
- Engine Type: Liquid-cooled 4-stroke 4-valve SOHC single
- Engine Displacement: 279.1cm3
- Bore & Stroke: 72 x 68.5mm
- Compression Ratio: 10.5:1
- Carburation: PGM-FI electronic fuel injection
- Max. Power Output: 20kW/8,250min-1 (95/1/EC)
- Max. Torque: 26Nm/6,000min-1 (95/1/EC)
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: V-Matic
- Final Drive: V-belt
- Wheels Front: U-section 6-spoke cast aluminium,16 x MT2.75
- Wheels Rear: U-section 6-spoke cast aluminium, 16 x MT3.5
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 35mm telescopic fork, 102mm axle travel
- Suspension Rear: Dual-damper unit swingarm, 95mm axle travel
- Brakes Front: 256mm x 4.5mm hydraulic disc with triple-piston caliper, drilled rotor (*ABS) and sintered metal pads
- Brakes Rear: 256mm x 5mm hydraulic disc with single-piston caliper, drilled rotor (*ABS) and sintered metal pads
- Tires Front: 110/70-16 (52P)
- Tires Rear: 130/70-16 (61P)
- DIMENSION
- Length x Width x Height: 2,100 x 730 x 1,220mm
- Wheelbase: 1,420mm
- Seat Height: 785mm
- Ground Clearance: 136mm
- Fuel Capacity: 9 litres
- Dry Weight: 161.8kg , (164.7kg ABS)
- OTHER
