1991 XR250L'91
- ENGINE
- Engine Type: 249cc OHC RFVC single cylinder
- Spark plug: DPR8Z
- Plug gap: .028
- Battery: YTX4L-BS -- 12 volt
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #520 x 104
- Front sprocket: 13 T
- Rear sprocket: 40 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Front Tire: pressure: 24 psi (165 KPa)
- Rear Tire: pressure: 27 psi (186 KPa)
- OTHER
- Color: Shasta White with Rainbow Blue
- This was "essentially a street-legal XR250R."
- The serial number began JH2MD220*MK000003.

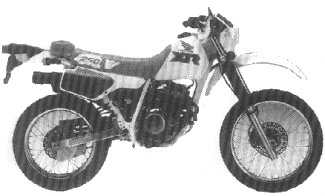

1991 XR250L
1992 XR250L'92
- ENGINE
- Engine Type: 249cc OHC RFVC single cylinder
- Spark plug: DPR8Z
- Plug gap: .028
- Battery: YTX4L-BS -- 12 volt
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #520 x 104
- Front sprocket: 13 T
- Rear sprocket: 40 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Front Tire: pressure: 24 psi (165 KPa)
- Rear Tire: pressure: 27 psi (186 KPa)
- OTHER
- Color: Shasta White with Rainbow Blue
- The gas tank and seat had new graphics
- The serial number began JH2MD220*NK100005.

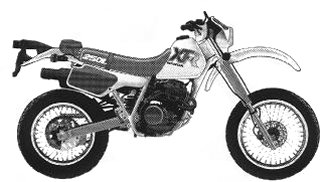

1992 XR250L
1993 XR250L'93
- ENGINE
- Engine Type: 249cc OHC RFVC single cylinder
- Spark plug: DPR8Z
- Plug gap: .028
- Battery: YTX4L-BS -- 12 volt
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #520 x 104
- Front sprocket: 13 T
- Rear sprocket: 40 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Front Tire: pressure: 24 psi (165 KPa)
- Rear Tire: pressure: 27 psi (186 KPa)
- OTHER
- Color: Shasta White with Rainbow Blue
- The gas tank and seat had new graphics
- The width of the footpeg was increased
- The serial number began JH2MD220*PM200004.

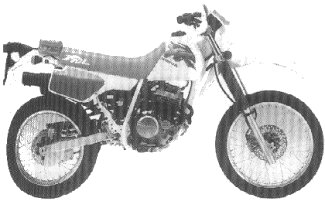

1993 XR250L
1994 XR250L'94
- ENGINE
- Engine Type: 249cc OHC RFVC single cylinder
- Spark plug: DPR8Z
- Plug gap: .028
- Battery: YTX4L-BS -- 12 volt
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #520 x 104
- Front sprocket: 13 T
- Rear sprocket: 40 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Front Tire: pressure: 24 psi (165 KPa)
- Rear Tire: pressure: 27 psi (186 KPa)
- OTHER
- Color: Shasta White with Real Blue
- The gas tank had redesigned graphics where the "XR" was blue outlined in red and the "HONDA" was red
- The "250L" graphic on the seat was also redesigned
- The serial number began JH2MD220*RM300001.

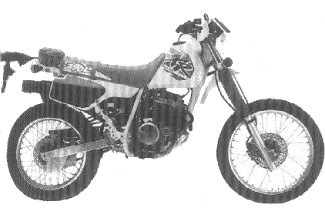

1994 XR250L
1995 XR250L'95
- ENGINE
- Engine Type: 249cc OHC RFVC single cylinder
- Spark plug: DPR8Z
- Plug gap: .028
- Battery: YTX4L-BS -- 12 volt
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #520 x 104
- Front sprocket: 13 T
- Rear sprocket: 40 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Front Tire: pressure: 24 psi (165 KPa)
- Rear Tire: pressure: 27 psi (186 KPa)
- OTHER
- Color: Shasta White with Uranus Violet
- The gas tank decal was also redesigned so that the "XR" was red outlined in purple and the "HONDA" was purple
- The "250L" seat graphic was also redesigned
- The serial number began JH2MD220*SM400001.

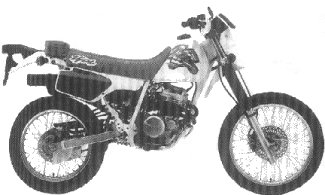

1995 XR250L
1996 XR250L'96
- ENGINE
- Engine Type: 249cc OHC RFVC single cylinder
- Spark plug: DPR8Z
- Plug gap: .028
- Battery: YTX4L-BS -- 12 volt
- DRIVETRAIN
- Transmission: 6-speed
- Chain: #520 x 104
- Front sprocket: 13 T
- Rear sprocket: 40 T
- CHASSIS / SUSPENSION / BRAKES
- DIMENSION
- Front Tire: pressure: 24 psi (165 KPa)
- Rear Tire: pressure: 27 psi (186 KPa)
- OTHER
- Color: Shasta White with Uranus Violet
- The gas tank logo was redesigned so that the "XR was white outlined in Red on a purple background
- The "HONDA" logo was white
- The serial number began JH2MD220*MK000003.

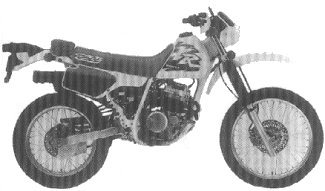

1996 XR250L
