1982 XL250R'82

  • ENGINE
    • Engine Type: 249cc OHC 4-valve single cylinder with two exhaust pipes
    • Spark plug: DR8ES-L
    • Plug gap: .028
    • Electricals: 12-volt electrical system
    • Battery: YB3L-A -- 12 volt
  • DRIVETRAIN
    • Transmission: 6-speed
    • Chain: #520 x 102
    • Front sprocket: 14 T
    • Rear sprocket: 47 T
  • CHASSIS / SUSPENSION / BRAKES
    • Rear Suspension: Pro-Link suspension
    • Front wheel: 21"
    • Rear wheel: 17"
  • DIMENSION
    • N/A
  • OTHER
    • Color: 1982 in Monza Red
    • The gas tank, side covers, fenders, and frame were red
    • The engine was black while the swing arm was silver
    • The serial number began JH2MD030*CM000008.

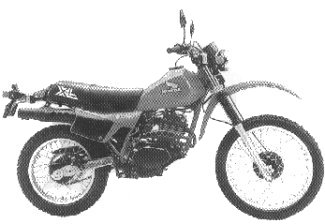

1982 XL250R
1982 XL250R

1983 XL250R'83

  • ENGINE
    • Engine Type: 249cc OHC 4-valve single cylinder with two exhaust pipes
    • Spark plug: DR8ES-L
    • Plug gap: .028
    • Electricals: 12-volt electrical system
    • Battery: YB3L-A -- 12 volt
  • DRIVETRAIN
    • Transmission: 6-speed
    • Chain: #520 x 102
    • Front sprocket: 14 T
    • Rear sprocket: 47 T
  • CHASSIS / SUSPENSION / BRAKES
    • Rear Suspension: Pro-Link suspension
    • Front wheel: 21"
    • Rear wheel: 17"
  • DIMENSION
    • N/A
  • OTHER
    • Color: Monza Red
    • The "XL" logo on the side of the seat was solid white
    • The "250R" side cover had a graphic design
    • The gas tank, side covers, fenders, and frame were red
    • The engine was black while the swing arm was silver
    • The serial number began JH2MD030*DM100001.

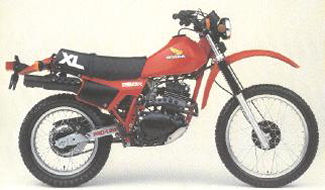

1983 XL250R
1983 XL250R

1984 XL250R'84

  • ENGINE
    • Engine Type: 249cc OHC RFVC radial valve, single cylinder with two carburetors and two head pipes
    • Spark plug: DPR9Z
    • Plug gap: .028
    • Electricals: 12-volt electrical system
    • Battery: YB3L-A -- 12 volt
  • DRIVETRAIN
    • Transmission: 6-speed transmission.
    • Chain: #520 x 102
    • Front sprocket: 13 T
    • Rear sprocket: 40 T
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension: Pro-LinkTM rear suspension
    • Front wheel: 21"
    • Rear wheel: 17"
  • DIMENSION
    • Wheelbase: 1380mm (54.3 in.)
    • Dry weight: 117 kg (257.9 lb)
    • Seat height: 855mm (33.7 in.)
    • Front wheel travel: 220mm (8.7 in.)
    • Rear wheel travel: 195mm (7.7 in.)
  • OTHER
    • Color: Monza Red
    • The headlamp was rectangular with a number plate cowling
    • The seat and fork boots were black
    • The "250R" side cover decal was white while the number plate panels were black
    • The serial number began JH2MD110*EK000009.

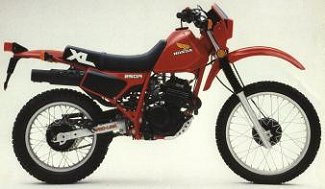

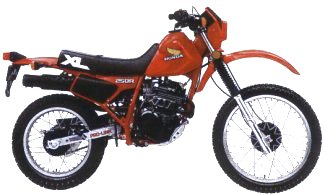

1984 XL250R
1984 XL250R
1984 XL250R
1984 XL250R

1985 XL250R'85

  • ENGINE
    • Engine Type: 249cc OHC RFVC single cylinder with two carburetors and two head pipes
    • Spark plug: DPR9Z
    • Plug gap: .028
    • Electricals: 12-volt electrical system
    • Battery: YB3L-A -- 12 volt
  • DRIVETRAIN
    • Transmission: 6-speed transmission
    • Chain: #520 x 102
    • Front sprocket: 13 T
    • Rear sprocket: 40 T
  • CHASSIS / SUSPENSION / BRAKES
    • Rear Suspension: Pro-Link suspension
  • DIMENSION
    • Front wheel: 21"
    • Rear wheel: 17"
  • OTHER
    • Color: Flash Red
    • The Honda wing tank decal was red, white, and blue
    • The "250R" tank decal was white and blue
    • The headlamp was rectangular with a number plate cowling
    • The seat and fork boots were blue
    • The number plate panels were yellow
    • The serial number began JH2MD110*FK100007.

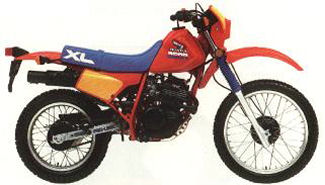

1985 XL250R
1985 XL250R

1986 XL250R'86

  • ENGINE
    • Engine Type: 249cc OHC RFVC radial valve, single cylinder with two carburetors and two head pipes
    • Spark plug: DPR9Z
    • Plug gap: .028
    • Electricals: 12-volt electrical system
    • Battery: YB3L-A -- 12 volt
  • DRIVETRAIN
    • Transmission: 6-speed transmission.
    • Chain: #520 x 102
    • Front sprocket: 13 T
    • Rear sprocket: 40 T
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension: Pro-LinkTM rear suspension
    • Front wheel: 21"
    • Rear wheel: 17"
  • DIMENSION
    • N/A
  • OTHER
    • Color: Shasta White
    • The Honda wing tank decal was red, orange, and yellow
    • The "250R" tank decal was red and blue
    • The engine color was red
    • The number plate panels were black
    • The headlamp was rectangular with a number plate cowling
    • The serial number began JH2MD110*GK200001.

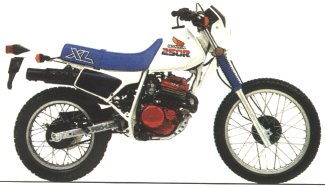

1986 XL250R
1986 XL250R

1987 XL250R'87

  • ENGINE
    • Engine Type: 249cc OHC RFVC radial valve, single cylinder with two carburetors and two head pipes
    • Spark plug: DPR9Z
    • Plug gap: .028
    • Electricals: 12-volt electrical system
    • Battery: YB3L-A -- 12 volt
  • DRIVETRAIN
    • Transmission: 6-speed transmission.
    • Chain: #520 x 102
    • Front sprocket: 13 T
    • Rear sprocket: 40 T
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension: Pro-LinkTM rear suspension
    • Front wheel: 21"
    • Rear wheel: 17"
  • DIMENSION
    • N/A
  • OTHER
    • Color: Shasta White
    • The Honda wing tank decal was red, white, and blue
    • The "250R" tank decal was blue and red
    • The headlamp was rectangular with a number plate cowling
    • The engine color was red
    • The number plate panels were black
    • The serial number began JH2MD110*HK300001.

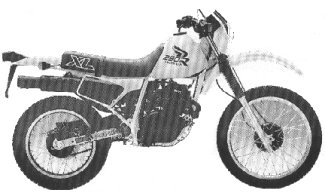

1987 XL250R
1987 XL250R
