1968 Honda Super Sport 250 (CB250K0)
- ENGINE
- Engine: Air cooled, four stroke, twin parallel cylinders, SOHC
- Displacement: 249cc
- Bore and Stroke: 56 x 50.6 mm
- Compression Ratio: 9.5:1
- Fuel Delivery: Two CV
- Valving: 2 per cylinder
- Max Power: 30 hp 21.9 kW @ 10500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Wet-Weight: 170 kg (374 lb)
- Fuel Capacity: 10 Litres (2.6 Gal)
- OTHER
- Colors:
- Candy Blue with White
- Candy Red with White
- Green with White
- The fuel tank is two-toned with white on the bottom half
- The tank also had rubber knee pads
- The upper forks were painted one of the basic colors
- The side covers and headlight shells were white
- The seat cover was not pleated
- The taillight lens was oval-shaped
- The serial number began CB250-1000001.
1968 Honda Super Sport 250 CB250K0 Tank design
1969 Honda Super Sport 250 (CB250K1)
- ENGINE
- Engine: Air cooled, four stroke, twin parallel cylinders, SOHC
- Displacement: 249cc
- Bore and Stroke: 56 x 50.6 mm
- Compression Ratio: 9.5:1
- Fuel Delivery: Two CV
- Valving: 2 per cylinder
- Max Power: 30 hp 21.9 kW @ 10500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Wet-Weight: 170 kg (374 lb)
- Fuel Capacity: 10 Litres (2.6 Gal)
- OTHER
- Colors:
- Candy Blue with White
- Candy Red with White
- Green with White
- The fuel tank is two-toned with white on the bottom half
- The tank also had rubber knee pads
- The upper forks were painted one of the basic colors
- The side covers and headlight shells were white
- The seat cover was not pleated
- The taillight lens was oval-shaped
- The serial number began CB250-1020001.
1969 Honda Super Sport 250 CB250K1 Tank design
1970 Honda Super Sport 250 (CB250K2)
- ENGINE
- Engine: Air cooled, four stroke, twin parallel cylinders, SOHC
- Displacement: 249cc
- Bore and Stroke: 56 x 50.6 mm
- Compression Ratio: 9.5:1
- Fuel Delivery: Two CV
- Valving: 2 per cylinder
- Max Power: 30 hp 21.9 kW @ 10500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Brakes: Drum
- Rear Brakes: Drum
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Wet-Weight: 170 kg (374 lb)
- Fuel Capacity: 10 Litres (2.6 Gal)
- OTHER
- Colors:
- Candy Blue with White
- Candy Red with White
- Green with White
- The fuel tank is two-toned with white on the bottom half
- The tank also had rubber knee pads
- The upper forks were painted one of the basic colors
- The side covers and headlight shells were white
- The seat cover was not pleated
- The taillight lens was oval-shaped
- The serial number began CB250-1000001.

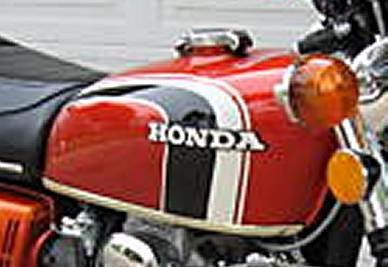

1970 Honda Super Sport 250 CB250K2 Tank design
1971 CB250
- ENGINE
- Engine Type: Air cooled, 2 - cylinders in line, 4-stroke
- Bore and Stroke: 56 mm x 50.6 mm
- Displacement: 249cc
- Valves: 2 valves/cylinder
- Horsepower: 30 hp (22.4 kW) @ 10500 rpm
- Top speed: 152 km/h (95 mph)
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Fuel capacity: (incl. reserve) 10 litres (2.6 gallon US)
- Dry weight: 170 kg (374.8 pounds)
- OTHER
- Identical to the '71 series CB350 except for the 250cc engine.

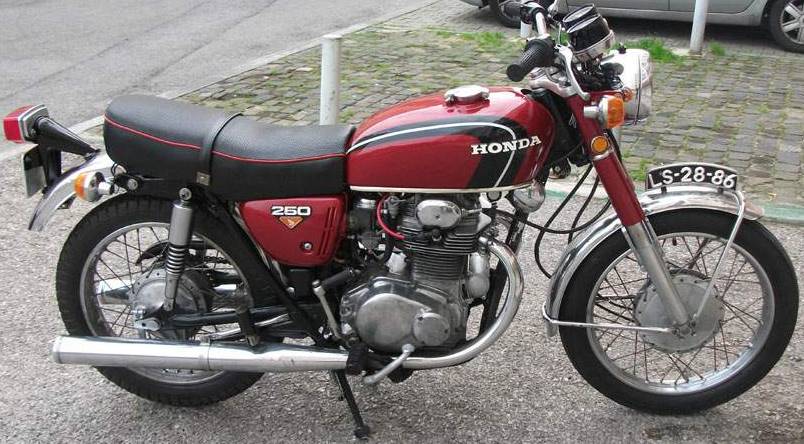

1971 CB250K3
1971 CB250K3
Click image to enlarge
1973 CB250 K5
- ENGINE
- Engine Type: Air cooled, 2 - cylinders in line, 4-stroke
- Bore and Stroke: 56 mm x 50.6 mm
- Displacement: 249cc
- Compression Ratio: 9.5:1
- Valves: 2 valves/cylinder
- Horsepower: 30 hp (22.4 kW) @ 10500 rpm
- Top speed: 152 km/h (95 mph)
- DRIVETRAIN
- Transmission type: 5 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 3.00-18
- Rear Tire: 3.25-18
- DIMENSION
- Fuel capacity: (incl. reserve) 10 litres (2.6 gallon US)
- Dry weight: 170 kg (374.8 pounds)
- OTHER
- Identical to the '73 series CB350 except for the 250cc engine.

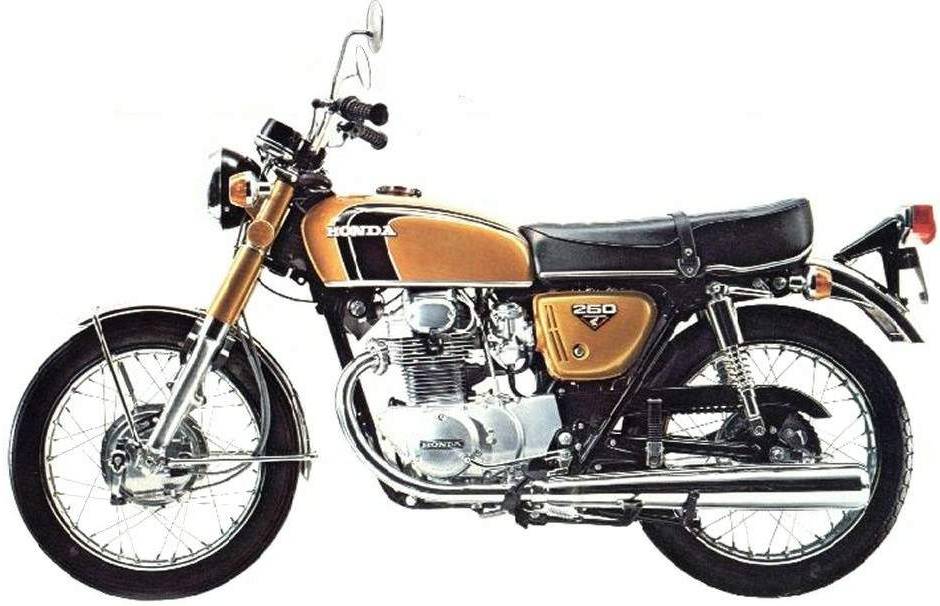

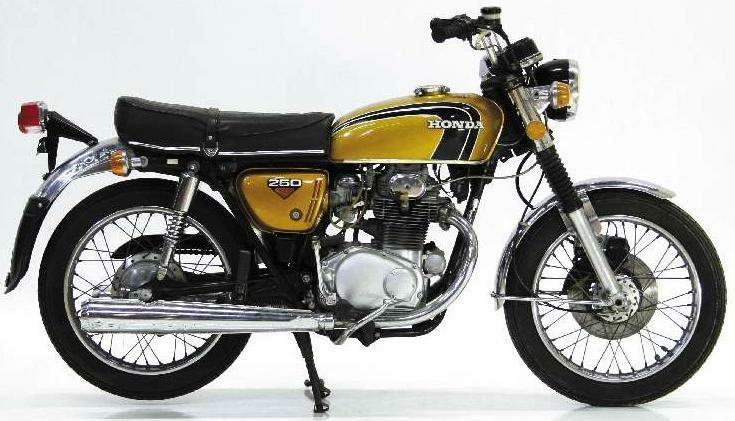

1973 CB250K5

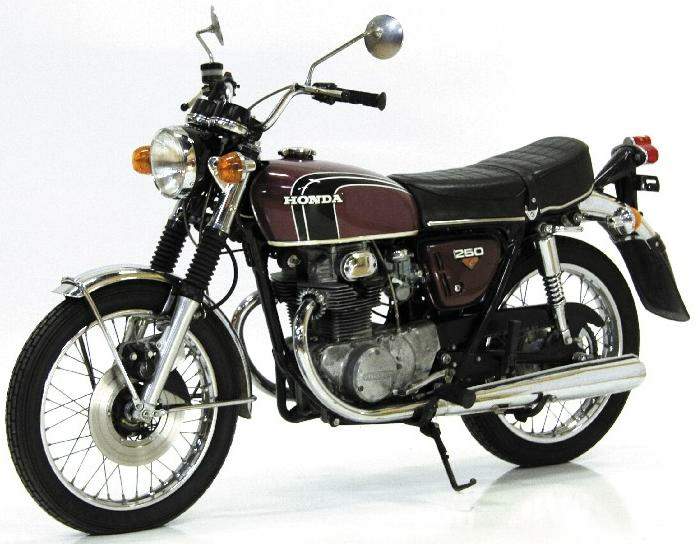

1973 CB250K3 (CB350 shown)
1992 CB250
- ENGINE
- Engine: Air cooled, twin cylinder, four stroke
- Displacement: 234cc
- Bore and Stroke: 53 x 53 mm
- Compression Ratio: 9.2:1
- Fuel Delivery: 26mm Keihin carb
- Max Power: 20 hp 14.6 kW @ 9000 rpm
- Max Torque: 18 Nm @ 6500 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 31mm Telescopic forks
- Rear Suspension: Dual shocks with 5-way preload adjustment.
- Front Brakes: Single 240mm disc
- Rear Brakes: 130mm drum
- Front Tire: 90/100-18
- Rear Tire: 120/90-16
- DIMENSION
- Dry-Weight: 132 kg (290 lb)
- Fuel Capacity : 16 Litres (4.2 Gal)
- OTHER
