Front Suspension: 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension: Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brake: Single 240.0mm disc with CBS three-piston caliper
Rear Brake: Single 220.0mm disc with CBS single-piston caliper with Anti-Lock Braking System®
Front Tire: 110/90-13
Rear Tire: 130/70-12
DIMENSION
Wheelbase: 60.8 inches
Seat Height: 28.3 inches
Dry Weight: 379 pounds
Fuel Capacity: 3.2 gallons
OTHER
Emissions: California version differs slightly due to emissions equipment.

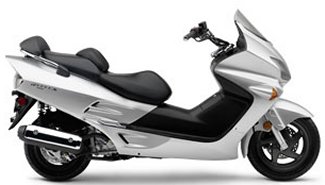

Colors: Metallic Silver
Model ID: NSS250AS
Warranty: 1 year
2005 Reflex NSS250A
2006 NSS250S
OVERVIEW
Overview: The Reflex Sport takes the Reflex to another level in coolness. Featuring the same smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating as the Reflex, but adding a sport-touring-inspired short windshield and chrome accents. It's one of the most stylish scooters on the road.
Front Suspension: 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension: Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brake: Single 240.0mm disc with Combined Braking System three-piston caliper
Rear Brake: Single 220.0mm disc with Combined Braking System single-piston caliper (opt: ABS)
Front Tire: 110/90-13
Rear Tire: 130/70-12
DIMENSION
Wheelbase: 60.8 inches
Seat Height: 28.3 inches
Dry Weight: 373 pounds (379 pounds)
Fuel Capacity: 3.2 gallons
OTHER
Emissions: California version differs slightly due to emissions equipment.

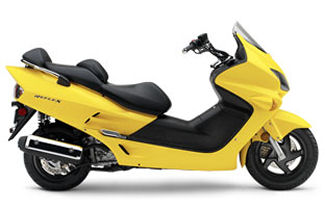

Colors: Yellow
Model ID: NSS250S
2006 NSS250S
2007 NSS250S
OVERVIEW
Overview: Take the already awesome Reflex and add a sporty, shorter windshield, classy chrome accents and unique wheels, and you get the Reflex Sport. It packs all the go-anywhere capabilities of the standard Reflex, taking you from city streets to highway adventures with ease -- with an extra helping of attitude.
