Front Suspension: 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension: Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brake: Single 240.0mm disc with CBS three-piston caliper
Rear Brake: Single 220.0mm disc with CBS single-piston caliper (Opt: Anti-Lock Braking System®)
Front Tire: 110/90-13
Rear Tire: 130/70-12
DIMENSION
Wheelbase: 60.8 inches
Seat Height: 28.3 inches
Dry Weight: 375 pounds (ABS: 379 pounds)
Fuel Capacity: 3.2 gallons
OTHER
Emissions: California version differs slightly due to emissions equipment.

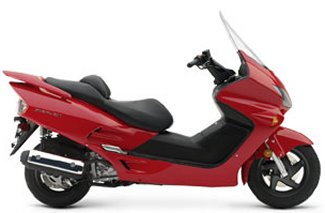

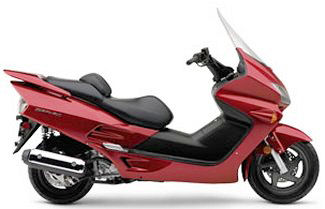

Colors: Candy Dark Red
Warranty: 1 year

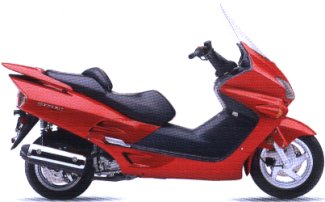

2005 Reflex NSS250
2006 NSS250
OVERVIEW
Overview: Where will you be riding? The highway? Back roads? Around town? The Reflex has got you covered. Featuring a smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating, it's perfect for going just about anywhere.
Front Suspension: 33.0mm hydraulic fork; 3.9-inch travel
Rear Suspension: Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel
Front Brake: Single 240.0mm disc with Combined Braking System three-piston caliper
Rear Brake: Single 220.0mm disc with Combined Braking System single-piston caliper (Opt: ABS)
Front Tire: 110/90-13
Rear Tire: 130/70-12
DIMENSION
Wheelbase: 60.8 inches
Seat Height: 28.3 inches
Dry Weight: 375 pounds (ABS: 379 pounds)
Fuel Capacity: 3.2 gallons
OTHER
Emissions: California version differs slightly due to emissions equipment.

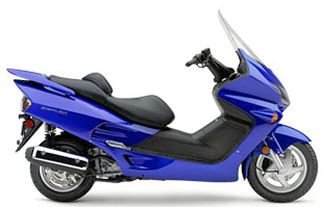

Colors: Candy Blue
Model ID: NSS250
2006 NSS250
2007 NSS250
OVERVIEW
Overview: From city streets to country roads to long stretches of highway, the Reflex is one scooter that's built for any number of rides. Its smooth 249cc engine, automatic transmission and comfortable seating for two deliver the goods to get you going, wherever the day takes you.
