1991 Honda Nighthawk CB250'91 (CB250L'91 in California)
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore and Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity : 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Color: Passion Red
The "HONDA" wing and "NIGHTHAWK" decals were silver
The California serial number began JH2MC241*MK000007 while the rest of the United States models began JH2MC240*MK000014 (where the * indicates a checksum number).

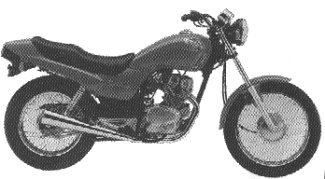

1991 Honda CB250 Nighthawk
1992 CB250'92 Nighthawk
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore and Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity : 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Color:
Myth Blue Metallic
Passion Red
The serial number began JH2MC240*NK100001.

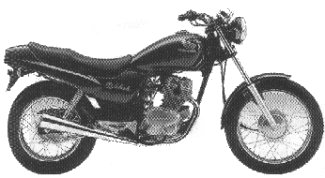

1992 CB250 Nighthawk
1993 CB250'93 Nighthawk
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore and Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity : 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Colors:
Black
Candy Bourgogne Red
Candy Tahitian Blue
The serial number began JH2MC240*PK200001.

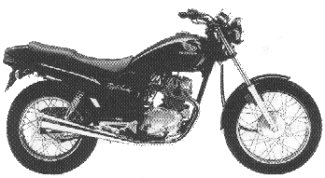

1993 CB250 Nighthawk
1994 CB250'94 Nighthawk
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore and Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity : 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Colors:
Black
Metallic Blue
Candy Red
The serial number began JH2MC240*RK300001.

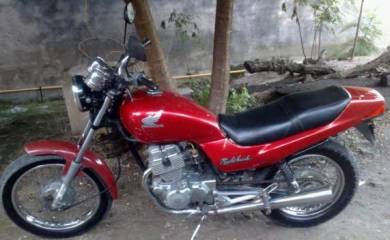

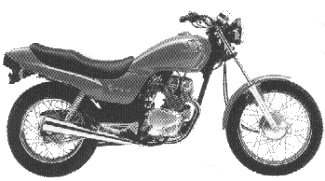

1994 CB250 Nighthawk1994 CB250 Nighthawk
1995 CB250'95 Nighthawk
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore and Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity : 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Colors:
Black
Candy Red
The serial number began JH2MC240*SK400001.

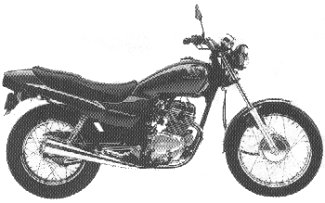

1995 CB250 Nighthawk
1996 CB250'96 Nighthawk
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore x Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity: 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Colors:
Black
Candy Red
The serial number began JH2MC240*TK500001.
1996 CB250 Nighthawk
1997 CB250'97 Nighthawk
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore x Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity: 15 Litres (4 Gal)
Front Tire: pressure: 32 psi (221 KPa)
Rear Tire: pressure: 36 psi (248 KPa)
OTHER
Colors:
Black
Candy Red
The serial number began JH2MC240*VK600001.

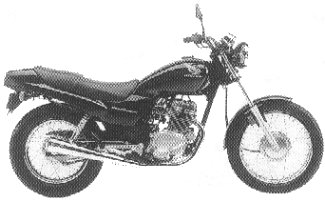

1997 CB250 Nighthawk
1998 Nighthawk 250 (CB250)
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore x Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity: 15 Litres (4 Gal)
OTHER
1999 Nighthawk 250 (CB250)
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore x Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Front Brakes: 152mm drum
Rear Brakes: 152mm drum
Front Tire: 90/100-18
Rear Tire: 120/90-16
DIMENSION
Seat Height: 745 mm (29.3 inches)
Dry-Weight: 130 kg (286 lb)
Fuel Capacity: 15 Litres (4 Gal)
OTHER

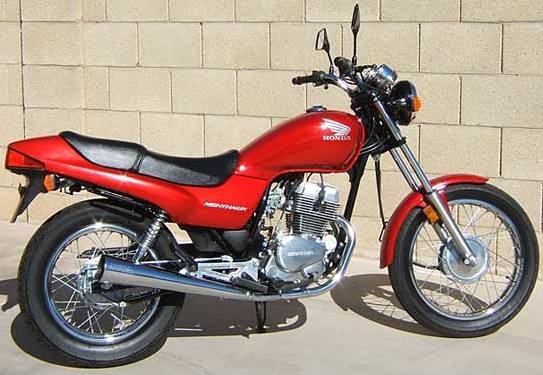

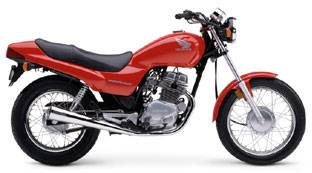

1999 CB250SC Nighthawk Click image to enlarge
2000 Nighthawk 250 (CB250)
ENGINE
Engine: Air cooled, four stroke, twin cylinder
Displacement: 234cc
Bore x Stroke: 53 x 53 mm
Compression Ratio: 9.2:1
Fuel Delivery: 22mm Keihin carb
Ignition: CDI
Starter: Electric
Max Power: 20 hp 14.6 kW @ 9000 rpm
Max Torque: 18 Nm @ 6500 rpm
DRIVETRAIN
Transmission: 5-speed
Final drive: Chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 31mm Telescopic forks
Rear Suspension: Dual shocks with 5-way preload adjustment.
Fuel Capacity: 4.3 gallons, including 0.8-gallon reserve
OTHER
Emissions: Meets current CARB and EPA standards
California version differs slightly due to emissions equipment.
Colors: Red
Model ID: CB250

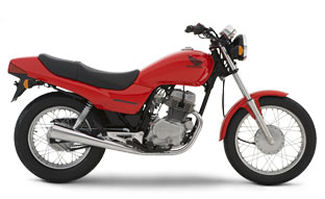

2007 CB250 Nighthawk

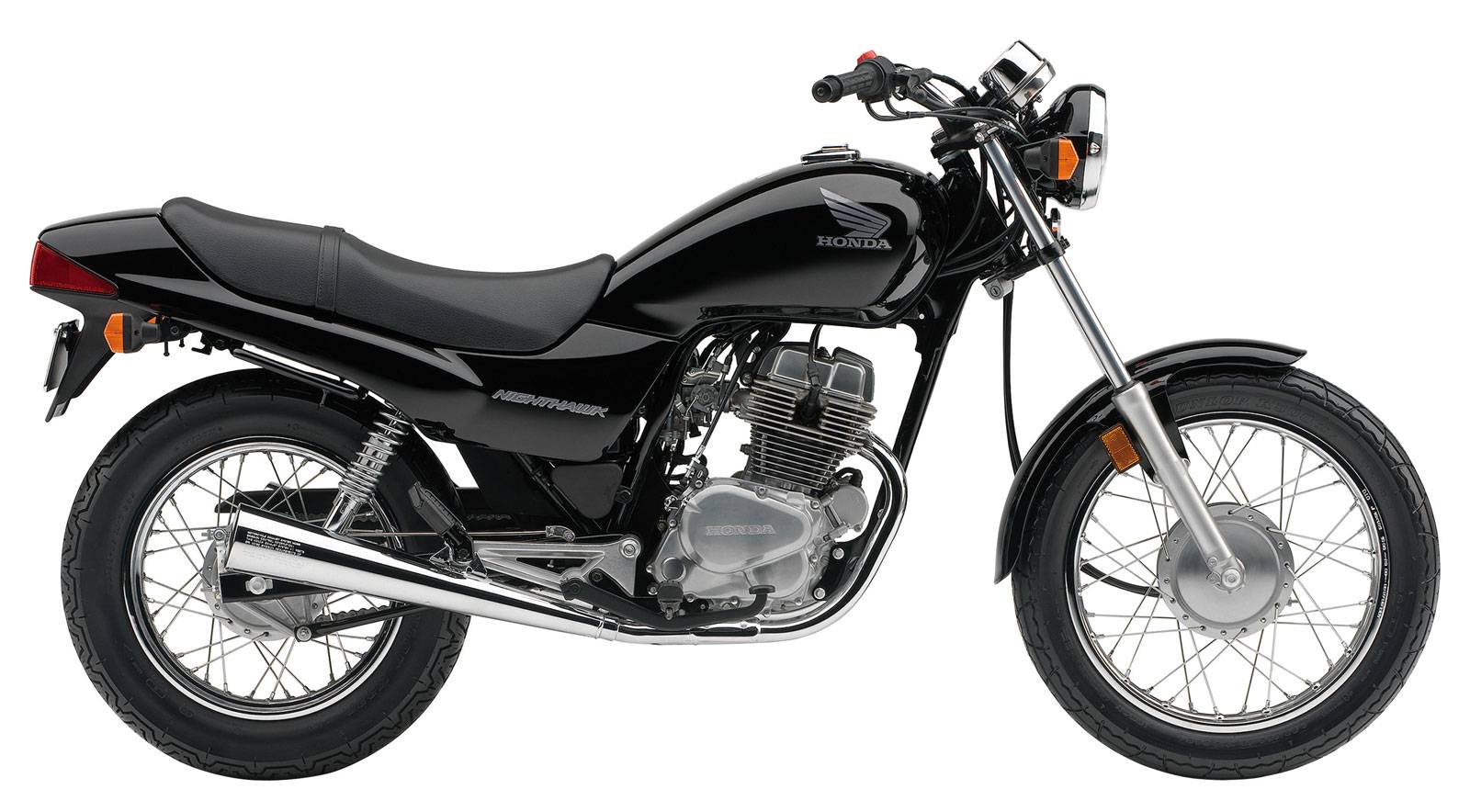

2008 CB250 Nighthawk
OVERVIEW
Overview: Lightweight. Dependable. Performance packed. And as easy on your wallet as it is to use. That's the Nighthawk®, our 250cc all-arounder that goes way beyond what typically defines an intro bike (although it is peerless in that respect). Whether a total beginner or a seasoned vet, the Nighthawk offers every rider the perfect combination of performance, Honda reliability, and perhaps best of all, value.
