1996 Honda Hornet 250
- ENGINE
- Engine: Liquid cooled, four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.
- Displacement: 249cc
- Bore and Stroke: 48.5 x 33.8 mm
- Compression Ratio: 11.5:1
- Max Power: 40 hp 29.2 kW @ 14000 rpm
- Max Torque: 24 Nm @ 11000 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 40mm telescopic forks
- Rear Suspension: Monoshock preload adjustable.
- Front Brakes: Single 296mm disc 2 piston caliper
- Rear Brakes: Single 220mm disc 1 piston caliper
- Front Tire: 130/70-16
- Rear Tire: 180/55-17
- DIMENSION
- Dry-Weight: 151 kg (332 lb)
- Fuel Capacity : 16 Litres (4.2 Gal)
- OTHER

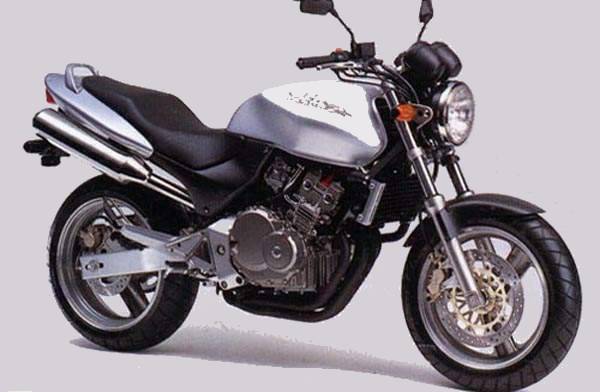

1996 Hornet 250
Click image to enlarge

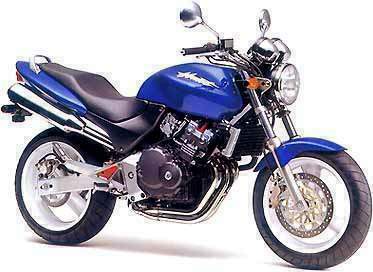

1996 Hornet 250
Click image to enlarge
1999 Honda Hornet 250
- ENGINE
- Engine Type: 249 cc, 4 Stroke - Liquid Cooled - Inline Four
- Bore and Stroke: 48.5 mm x 33.8 mm
- Compression Ratio: 11.5:1
- Valves: DOHC, 4 valves/cylinder
- Fuel Delivery: VP05
- Ignition System: Full transistor type battery Ignition System:
- Horsepower: 40 hp (29.8 kW) @ 14000 rpm
- Maximum Torque: 24 Nm (17.7 ft. lbs) @ 11000 rpm
- DRIVETRAIN
- Transmission: type: 6 speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Tire: 130/70-16
- Rear Tire: 180/55-17
- Front Brakes: single 296 mm disc with 2-piston calipers
- Rear Brakes: single 220 mm disc with 1-piston calipers
- DIMENSION
- Overall Length: 2045 mm (80.5 inches)
- Overall Width: 740 mm (29.1 inches)
- Overall Height: 1055 mm (41.5 inches)
- Seat Height: 760 mm (29.9 inches)
- Wheelbase: 1415 mm (55.7 inches)
- Fuel Capacity: 16 litres (4.2 Gal)
- Dry weight: (without fluids): 151 kg (332.9 pounds)
- OTHER
