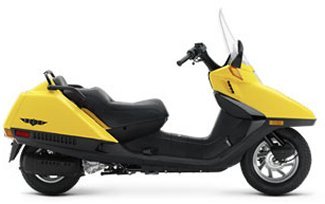

Honda Helix 250 (CN250) Motorcycles

1986 Helix 250 (CN250)

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Colors:
  - Pearl Shell White with white floorboard stripe
  - Candy Glory Red with red floorboard stripe
- V.I.N.: JH2MF020_GK000001 ~
- Engine: MF02E-5000001 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- Colors:
  - Achilles Black Metallic with no floorboard stripe

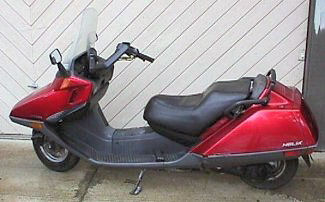

  - Candy Glory Red with no floorboard stripe
- V.I.N.: JH2MF020_HK000001 ~
- Engine: MF02E-5100001 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- New cast aluminum wheels
- New tire design
- Colors:
  - Candy Glory Red
- V.I.N.: JH2MF020_NK000001 ~
- Engine: MF02E-5400001 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- New cast aluminum wheels
- New tire design
- Colors:
  - Candy Glory Red
- V.I.N.: JH2MF020_PK000001 ~
- Engine: MF02E-5401001 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- cast aluminum wheels
- Redesigned graphics
- Colors:
  - Gloss Black
- V.I.N.: JH2MF020_SK000001 ~
- Engine: MF02E-5405667 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- cast aluminum wheels
- Colors:
  - Pure Red
- V.I.N.: JH2MF020_TK000001 ~
- Engine: MF02E-5407318 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- cast aluminum wheels
- Colors:
  - Pure Red
- V.I.N.: JH2MF020_VK200001 ~
- Engine: MF02E-5408851 ~

ENGINE
- Engine Type: 4-stroke liquid-cooled
- Cylinders: One
- Displacement: 244cc
DRIVETRAIN
- N/A
CHASSIS / SUSPENSION / BRAKES
- N/A
DIMENSION
- N/A
OTHER
- cast aluminum wheels
- Colors:
  - Pure Red
- V.I.N.: JH2MF020_WK300001 ~
- Engine: MF02E-5000000 ~

ENGINE
- Engine Type: 244cc liquid-cooled single-cylinder four-stroke
- Fuel Delivery: 30.0mm CV with automatic choke
- Ignition: CDI
DRIVETRAIN
- Transmission: Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.2-inch travel
- Rear Suspension: Swingarm with dual hydraulic shocks; 3.9-inch travel
- Front Brake: Single disc
- Rear Brake: Drum
- Front Tire: 110/100-12
- Rear Tire: 120/90-10
DIMENSION
- Wheelbase: 63.8 inches
- Seat Height: 26.2 inches
- Dry Weight: 349.4 pounds
- Fuel Capacity: 3.2 gallons
OTHER
- Colors:

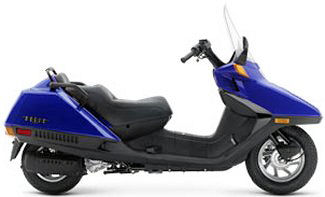

  - Candy Blue

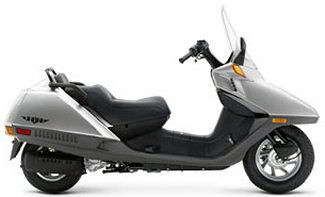

  - Metallic Silver

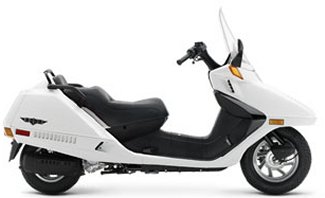

  - Pearl White

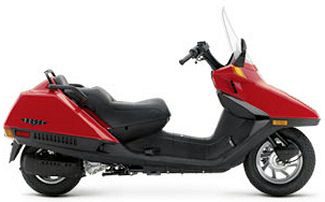

  - Red
  - Yellow
- Warranty: 1 year: Coverage of defects in materials and workmanship

ENGINE
- Engine Type: 244cc liquid-cooled single-cylinder four-stroke
- Fuel Delivery: 30.0mm CV with automatic choke
- Ignition: CDI
DRIVETRAIN
- Transmission: Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.2-inch travel
- Rear Suspension: Swingarm with dual hydraulic shocks; 3.9-inch travel
- Front Brake: Single disc
- Rear Brake: Drum
- Front Tire: 110/100-12
- Rear Tire: 120/90-10
DIMENSION
- Wheelbase: 63.8 inches
- Seat Height: 26.2 inches
- Dry Weight: 349.4 pounds
- Fuel Capacity: 3.2 gallons
OTHER
- Emissions: California version differs slightly due to emissions equipment.
- Colors:

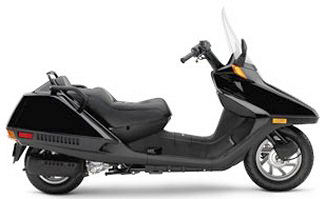

  - Black

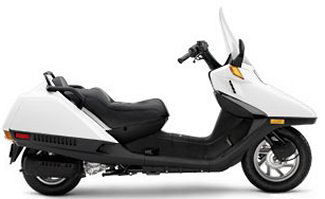

  - Pearl White
- Warranty: 1 year

OVERVIEW
- Overview: Let's see you get comfort, loads of performance, seating for two, and a built-in trunk with plenty of room for all that stuff you're sure to be toting. With all these features, it's pretty easy to see why this 244cc, liquid-cooled four-stroke scooter has been a popular favorite for both the urban and suburban set for years.
ENGINE
- Engine Type: 244cc liquid-cooled single-cylinder four-stroke
- Fuel Delivery: 30.0mm CV with automatic choke
- Ignition: CDI
DRIVETRAIN
- Transmission: Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.2-inch travel
- Rear Suspension: Swingarm with dual hydraulic shocks; 3.9-inch travel
- Front Brake: Single disc
- Rear Brake: Drum
- Front Tire: 110/100-12
- Rear Tire: 120/90-10
DIMENSION
- Wheelbase: 63.8 inches
- Seat Height: 26.2 inches
- Dry Weight: 349.4 pounds
- Fuel Capacity: 3.2 gallons
OTHER
- Emissions: California version differs slightly due to emissions equipment.

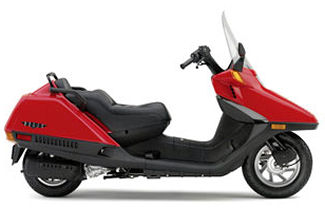

- Colors: Red
- Model ID: CN250

OVERVIEW
- Overview: Let's see... you get comfort, loads of performance, seating for two, and a built-in trunk with plenty of room for all that stuff you're sure to be toting. With all these features, it's pretty easy to see why this 244cc, liquid-cooled four-stroke scooter has been a popular favorite for both the urban and suburban set for years.
ENGINE
- Engine Type: 244cc liquid-cooled single-cylinder four-stroke
- Fuel Delivery: 30.0mm CV with automatic choke
- Ignition: CDI
DRIVETRAIN
- Transmission: Automatic V-Matic
CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Bottom link; 3.2-inch travel
- Rear Suspension: Swingarm with dual hydraulic shocks; 3.9-inch travel
- Front Brake: Single disc
- Rear Brake: Drum
- Front Tire: 110/100-12
- Rear Tire: 120/90-10
DIMENSION
- Wheelbase: 63.8 inches
- Seat Height: 26.2 inches
- Dry Weight: 349.4 pounds
- Fuel Capacity: 3.2 gallons
OTHER
- Emissions: California version differs slightly due to emissions equipment.
- Colors: Red
- Model ID: CN250
