Engine Type: Liquid-cooled 4-stroke 4-valve SOHC single cylinder
Engine Displacement: 249.4cc
Bore & Stroke: 78 x 52.2mm
Compression Ratio: US: 12.5: 1; UK: 12.9:1
Valve Train: Unicam; four-valve
Fuel Delivery: 37mm Keihin FCR flat slide carburetor with throttle position sensor (TPS)
Max Power Output: 20.5kW/9000min-1 (95/1/EC)
Max Torque: 22.5Nm/8000min-1 (95/1/EC)
Ignition: Computer-controlled digital capacitor discharge with electronic advance and lighting coil
Starter: Electric, Primary kick
DRIVETRAIN
Transmission: 5-speed
Final Drive: #520 roller T-ring chain; 13T/49T
Front Wheel: aluminum rim/wire spoke
Rear Wheel: aluminum rim/wire spoke
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47mm Showa inverted leading-axle twin-chamber cartridge type with 16-position rebound and 16-position compression damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link with Showa single damper, adjustable low-speed with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: 240mm hydraulic disc with dual-piston caliper and sintered pads
Rear Brake: s: 240mm hydraulic disc with single-piston caliper and sintered pads
Fuel Delivery: Keihin 37.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starter: Electric & kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47.0mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240.0mm disc with twin-piston caliper
Fuel Delivery: Keihin 37.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starter: Electric & kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47.0mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240.0mm disc with twin-piston caliper
Rear Brake: s: Single 240.0mm disc
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.9 degrees
Trail: 118 mm (4.7 inches)
Wheelbase: 58.3 inches
Seat Height: 37.7 inches
Ground Clearance: 13.6 inches
Dry Weight: 225 pounds
Fuel Capacity: 2.2 gallons
OTHER
Colors: Red
Model ID: CRF250X

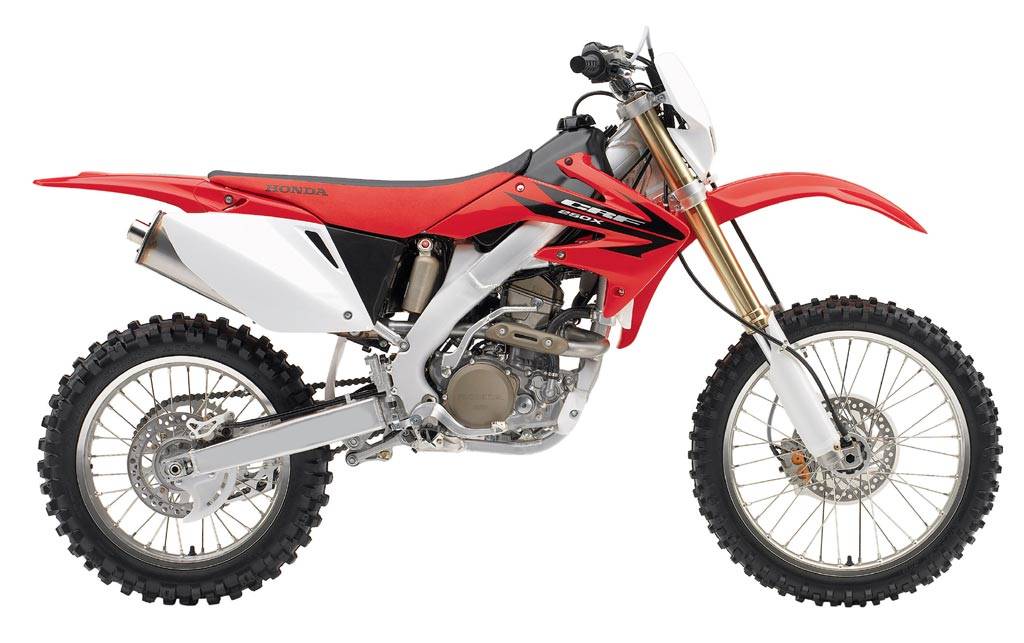

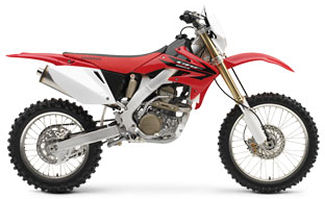

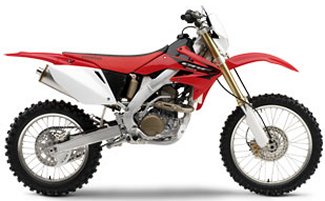

2006 CRF250X Click image to enlarge
2007 CRF250X
OVERVIEW
Great bikes are usually the sum of their superlative parts. Case in point: the CRF250X, a.k.a. the ultimate enduro machine. Boasting smooth, torquey four-stroke power via its Unicam four-valve engine, MX-bred suspension and ever-so-handy electric start, the CRF250X simply blows away everyone who rides it. And now with newly remapped ignition timing and revised engine porting, get ready for an encore performance.
Fuel Delivery: Keihin 37.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starter: Electric & kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47.0mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240.0mm disc with twin-piston caliper
Rear Brake: s: Single 240.0mm disc
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.9 degrees
Trail: 118 mm (4.7 inches)
Wheelbase: 58.3 inches
Seat Height: 37.7 inches
Ground Clearance: 13.6 inches
Dry Weight: 225 pounds
Fuel Capacity: 2.2 gallons
OTHER
Colors: Red
Model ID: CRF250X

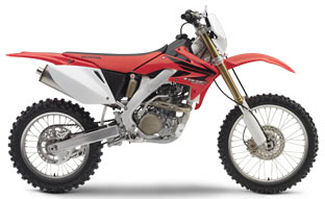

2007 CRF250X

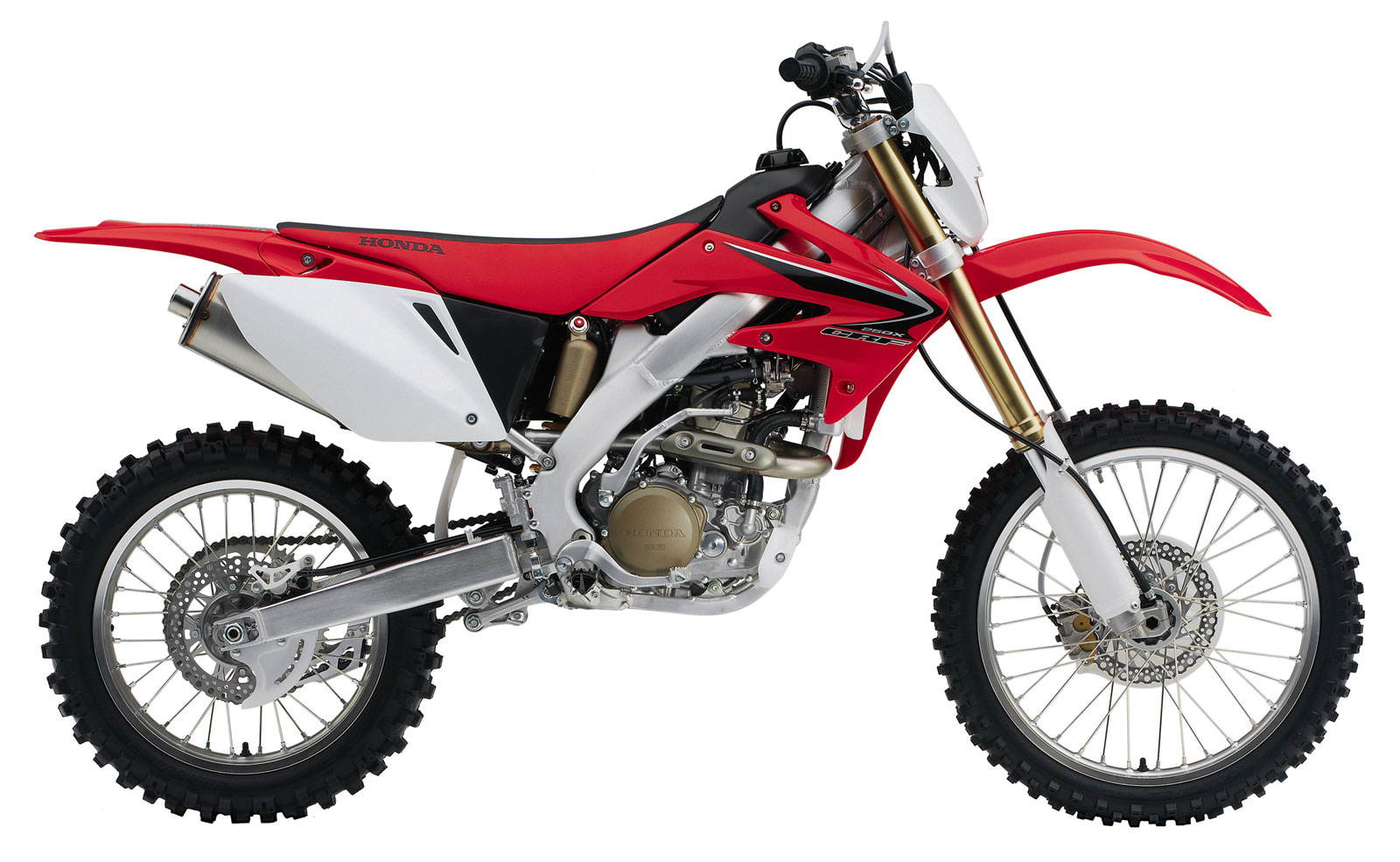

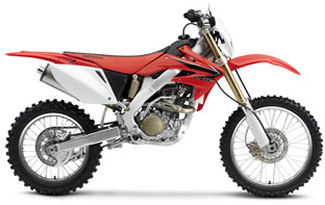

2008 CRF250X
OVERVIEW
With its awesome balance of power, handling, weight and size, the CRF250X is the perfect off-roader for trail riders and pro racers alike. Start with its impeccable CRF250R pedigree, add electric start, wide-ratio gearing, new-for-2008 ignition timing, new brake rotors and a slimmed-down fuel tank, and once again Honda has proven the best can get better.
Fuel Delivery: Keihin 37mm flat-slide carburetor with Throttle Position Sensor (TPS)
Ignition: CD with electronic advance and lighting coil
Starting: Electric and kick
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension: Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low-speed (13 positions) and highspeed (3.5 turns); 12.4 inches travel
Front Brake: Single 240mm disc with twin-piston caliper
Rear Brake: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Wheelbase: 58.3 inches
Rake: 27.54 degrees
Trail: 118mm (4.7 inches)
Seat Height: 37.7 inches
Ground Clearance: 13.6 inches
Curb Weight: 253 lbs (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Delivery: Keihin 37 mm flat-slide carb with throttle position sensor
DRIVETRAIN
Transmission: Wide-ratio five-speed
Final Drive: #520 T-ring-sealed chain; 14T/53T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47 mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustment; 315 mm (12.4 in.) travel
Rear Suspension: Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustment, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 313 mm (12.3 in.) travel
Tires: 80/100 - 21 front; 100/100 - 18 rear
Brakes: Front 240 mm disc with dual-piston caliper; rear 240 mm disc
DIMENSION
Ground Clearance: 346 mm (13.6 in.)
Seat Height: 958 mm (37.7 in.)
Wheelbase: 1,480 mm (58.3 in.)
Curb Weight: 115 kg (253 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 7.3 litres, including 1.6-litre reserve
OTHER
Colour: Extreme Red
Warranty: No warrranty
MSRP: $8,899

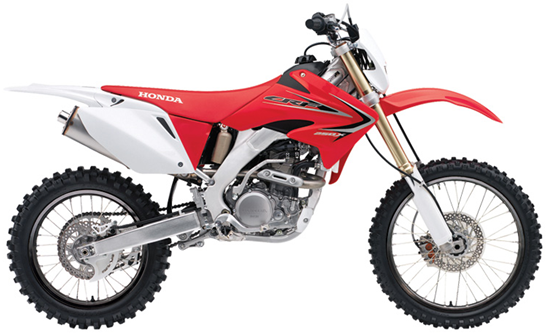

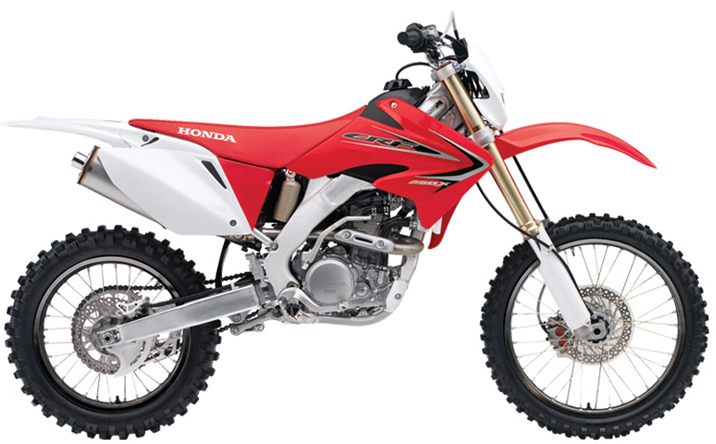

2011 CRF250X Click image to enlarge

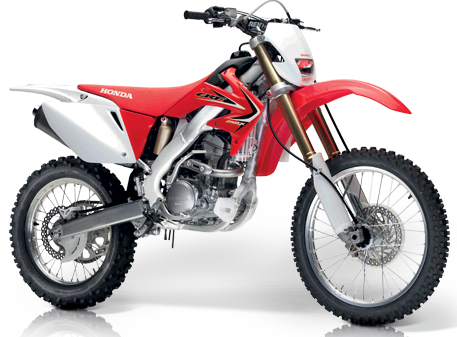

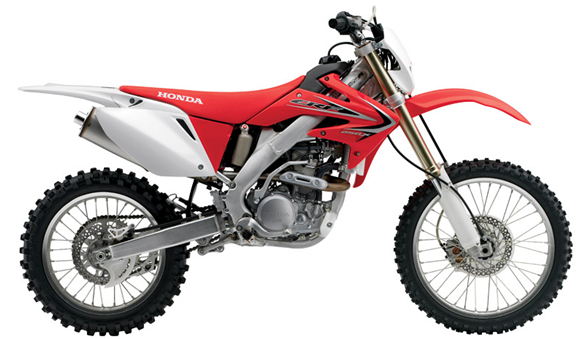

2012 CRF250X
ENGINE
Engine Type: Liquid-cooled 4-stroke 4-valve SOHC single
