Fuel Delivery: Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240mm disc with twin-piston caliper
Rear Brake: s: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 27.5 degrees
Trail: 123.0mm (4.8 inches)
Wheelbase: 58.2 inches
Seat Height: 38 inches
Ground Clearance: 14.2 inches
Dry Weight: 204.0 pounds
Fuel Capacity: 2.0 gallons
OTHER
Colors: Red
Model ID: CRF250R

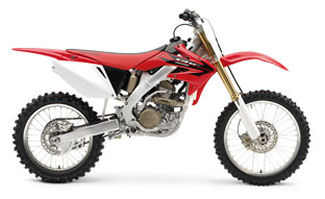

2006 CRF250R

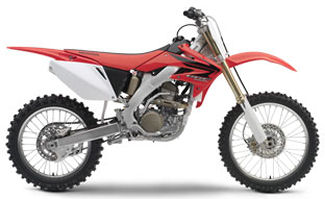

2007 CRF250R
OVERVIEW
With an AMA SX Lites title and countless magazine kudos to its name, some might think the CRF250R would rest on its laurels. Some would be sorely mistaken, because at this level of competition, there is no rest. So we honed this machine to an even finer, higher-revving edge for 2007, shaving weight, retooling cam profiles, revising the brake lever linkage for additional stopping power, and beefing up the clutch to ensure the best is even better.
Fuel Delivery: Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Ignition: CD with electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension: Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes: Single 240mm disc with twin-piston caliper
Rear Brake: s: Single 240mm disc
Front Tire: 80/100-21
Rear Tire: 100/90-19
DIMENSION
Rake: 27.5 degrees
Trail: 123.0mm (4.8 inches)
Wheelbase: 58.2 inches
Seat Height: 38 inches
Ground Clearance: 14.2 inches
Dry Weight: 204.0 pounds
Fuel Capacity: 2.0 gallons
OTHER
Colors: Red
Model ID: CRF250R

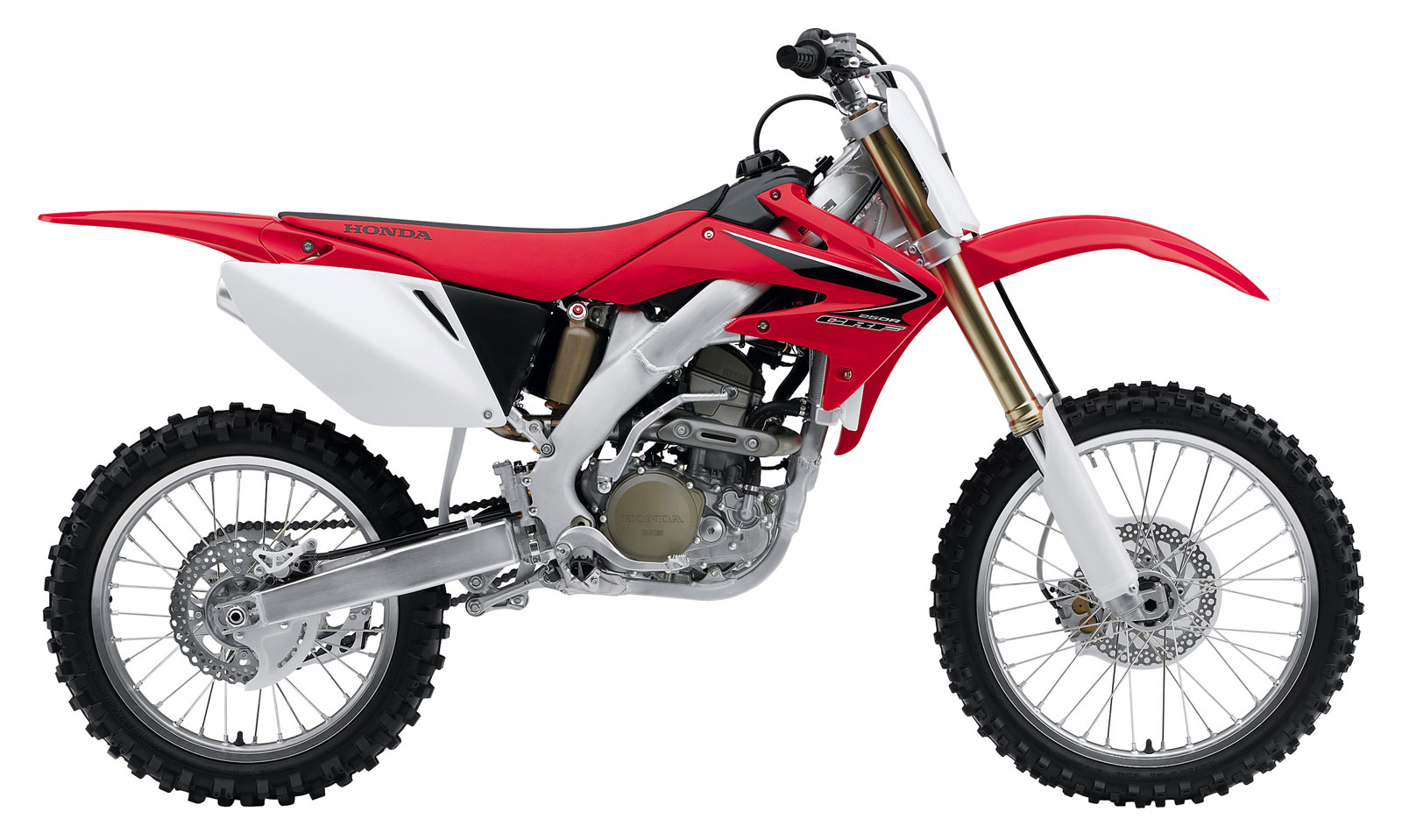

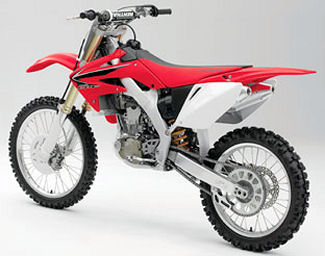

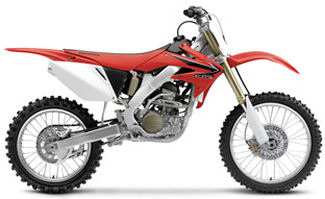

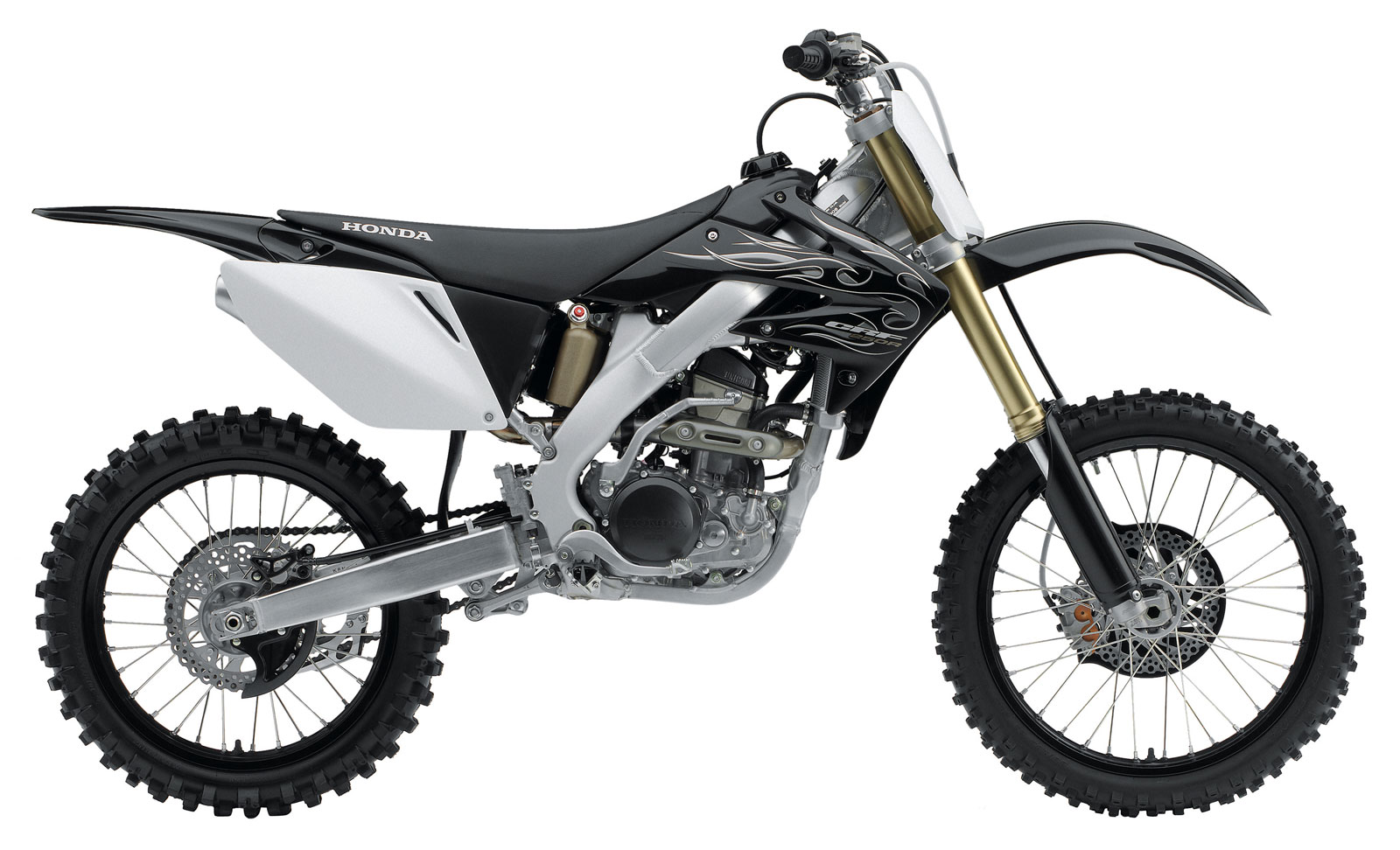

2007 CRF250R

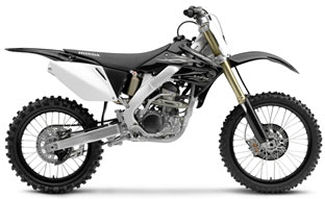

2008 CRF250R
OVERVIEW
Getting in and out of corners is where races are won -- no question. And that's why, like the new CRF450R, the 2008 CRF250R features Honda's revolutionary new Honda Progressive Steering Damper (HPSD), improving cornering traction and stability while reducing fatigue. Add all-new works-style brake discs, power-boosting engine mods (higher compression and new cylinder-head porting), and once again, Honda proves the best can get better.
Fuel Delivery: PGM-FI electronic fuel injection with 50 mm throttle body
Ignition: Full transistor with electronic advance
DRIVETRAIN
Transmission: Close-ratio five-speed
Final Drive: #520 O-ring-sealed chain, 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 48 mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustment; 310 mm (12.2 in.) travel
Rear Suspension: Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustment, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 318 mm (12.5 in.) travel
Front Brake: Single 240mm disc with twin-piston caliper
Rear Brake: Single 240mm disc
Front Tire: Dunlop 742FA 80/100-21
Rear Tire: Dunlop D756 100/90-19
DIMENSION
Rake: 27°12' (Caster Angle)
Trail: 117mm (4.6 inches)
Ground Clearance: 325 mm (12.8 in.)
Seat Height: 955 mm (37.6 in.)
Wheelbase: 1488 mm (58.6 in.)
Curb Weight: 102.5 kg (226 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 5.7 litres (1.5 GalUS)
OTHER
Color: Extreme Red
Warranty: No warrranty
Model Id: CRF250R
MSRP: $8,499

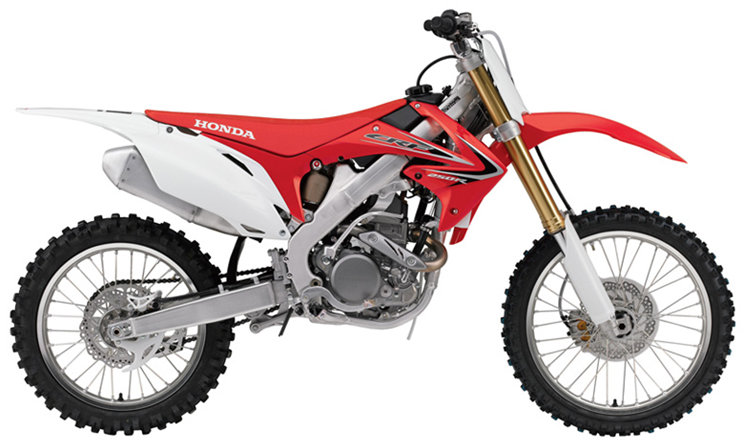

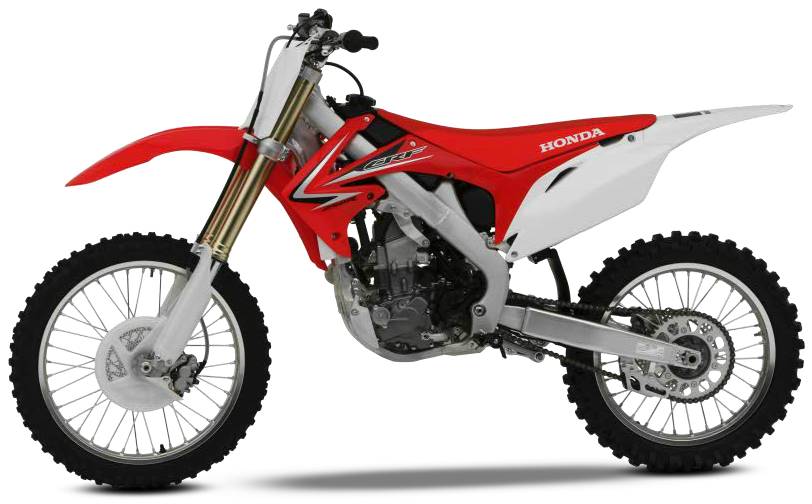

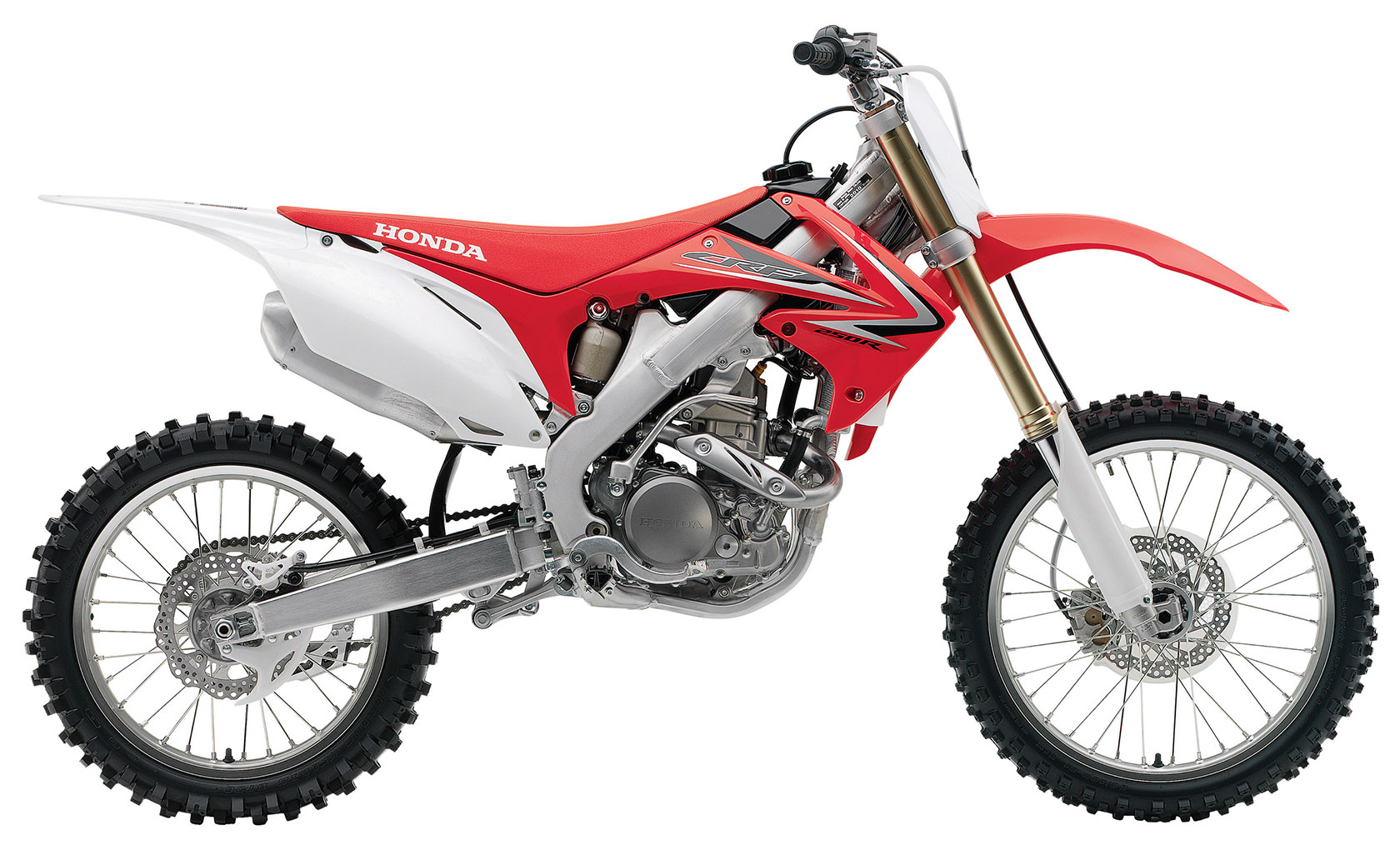

2011 CRF250R Click image to enlarge

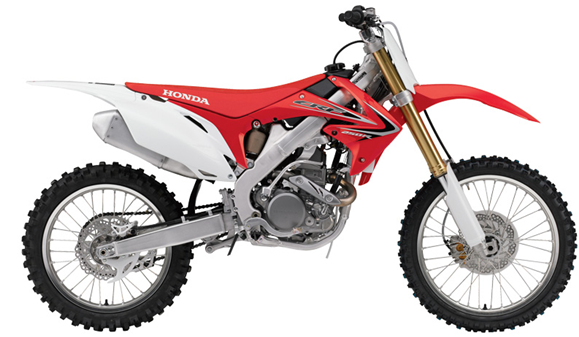

2012 CRF250R
ENGINE
Engine Type: Liquid-cooled 4-stroke 4-valve SOHC single
