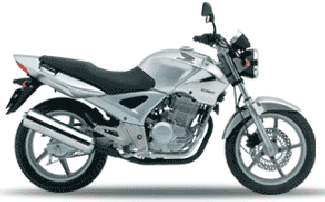

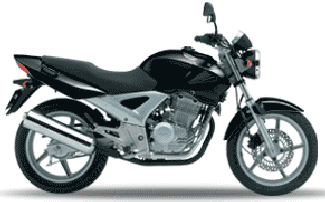

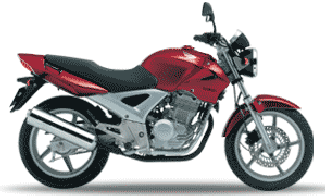

2004 CBF250
- ENGINE
- Engine Type: Single Cylinder - Air-cooled 4-stroke 4-valve DOHC
- Engine Displacement: 249 cc
- Bore & Stroke: 73 x 59.5mm
- Compression Ratio: 9.3 :1
- Fuel Delivery: 32mm VE-L type carburetor
- Max. Power Output: 20 bhp at 8000 rpm
- Max. Torque: 22Nm at 6000 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: O-ring sealed chain
- Front Wheel: 17M/C x MT2.15
- Rear Wheel: 17M/C x MT3.00
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: 37mm telescopic fork, 130mm axle travel
- Rear Suspension: Monoshock, 100mm axle travel
- Front Brakes: 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
- Rear Brakes: 130mm leading/trailing drum
- Front Tire: 100/80 17M/C 52S
- Rear Tire: 130/70 17M/C 62S
- DIMENSION
- Length x Width x Height: 2030 x 745 x 1050mm
- Wheelbase: 1370mm
- Seat Height: 780mm
- Ground Clearance: 180mm
- Fuel Capacity: 16 litres (including 2.5-litre reserve)
- Dry Weight: 138.5kg
- OTHER
2004 cbf250
2004 cbf250
2004 cbf250

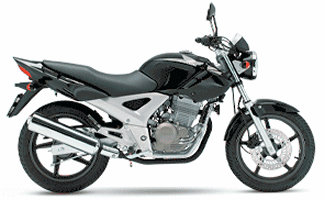

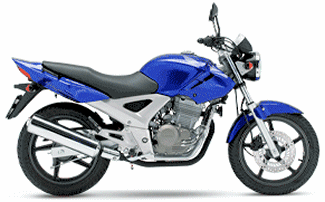

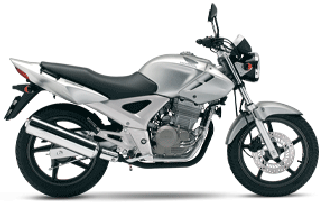

2007 CBF250
- ENGINE
- Engine Type: Single Cylinder - Air-cooled 4-stroke 4-valve DOHC
- Engine Displacement: 249 cc
- Bore & Stroke: 73 x 59.5mm
- Compression Ratio: 9.3 :1
- Carburation: 32mm VE-L type carburetor
- Max. Power Output: 20 bhp at 8000 rpm
- Max. Torque: 22Nm at 6,000 rpm
- Ignition: Digital transistorised with electronic advance
- Starter: Electric
- DRIVETRAIN
- Transmission: 6-speed
- Final Drive: O-ring sealed chain
- Wheels Front: 17M/C x MT2.15
- Wheels Rear: 17M/C x MT3.00
- CHASSIS / SUSPENSION / BRAKES
- Suspension Front: 37mm telescopic fork, 130mm axle travel
- Suspension Rear: Monoshock, 100mm axle travel
- Brakes Front: 276 x 4mm hydraulic disc with dual-piston caliper and sintered metal pads
- Brakes Rear: 130mm leading/trailing drum
- Tires Front: 100/80 17M/C 52S
- Tires Rear: 130/70 17M/C 62S
- DIMENSION
- Length x Width x Height: 2,030 x 745 x 1,050mm
- Wheelbase: 1,370mm
- Seat Height: 780mm
- Ground Clearance: 180mm
- Fuel Capacity: 16 litres (including 2.5-litre reserve)
- Dry Weight: 138.5kg
- OTHER
2007 cbf250
2007 cbf250
2007 cbf250
