1977 Honda CB250T Dream
- ENGINE
- Engine: Air cooled, four stroke, twin cylinder, OHC, 2 valve per cylinder
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4mm
- Ignition: Electronic ignition
- Starter: kickstart
- Max Power: 27 hp @ 11000 rpm
- Top speed: 145 km/h (90 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic
- Rear Suspension: Dual shocks
- Front Brakes: Single disc
- Rear Brakes: Drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-18
- DIMENSION
- Wet-Weight: 173 kg (380 1b)
- OTHER

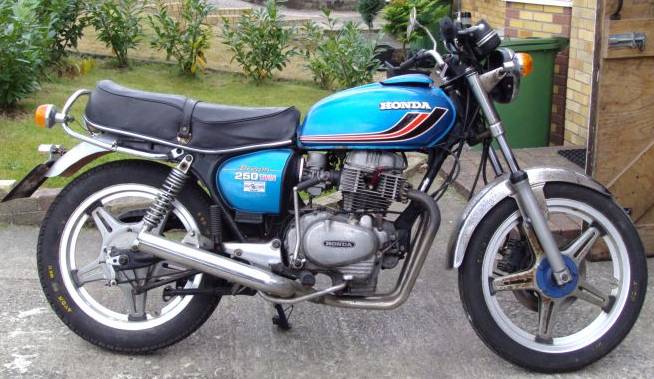

1977 CB250T Dream
Click image to enlarge
1978 Honda CB250T Dream
- ENGINE
- Engine: Air cooled, four stroke, twin cylinder, OHC, 2 valve per cylinder
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4mm
- Ignition: Electronic ignition
- Starter: kickstart
- Max Power: 27 hp @ 11000 rpm
- Top speed: 145 km/h (90 mph)
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic
- Rear Suspension: Dual shocks
- Front Brakes: Single disc
- Rear Brakes: Drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-18
- DIMENSION
- Wet-Weight: 173 kg (380 1b)
- OTHER

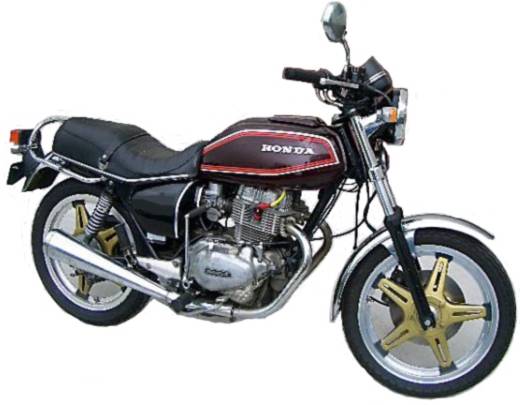

1978 CB250T Dream
Click image to enlarge
1979 Honda CB250T Dream
- ENGINE
- Engine: Air cooled, four stroke, twin cylinder, OHC, 2 valve per cylinder
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4mm
- Ignition: Electronic
- Starter: Kickstart
- Max Power: 27 hp @ 11000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic
- Rear Suspension: Dual shocks
- Front Brakes: Single disc
- Rear Brakes: Drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-18
- DIMENSION
- Wet-Weight: 173 kg (380 1b)
- OTHER

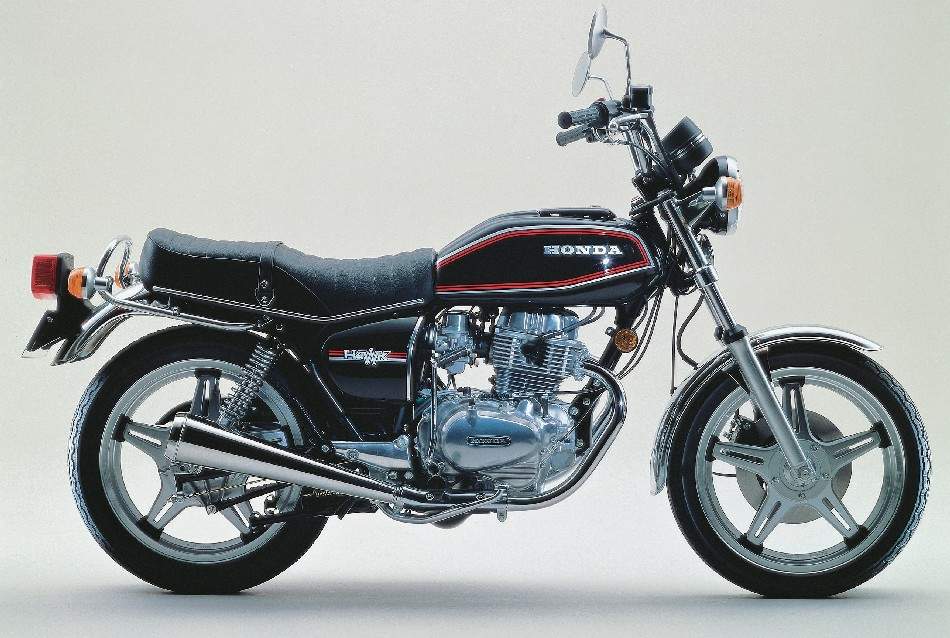

1979 CB250T Dream
Click image to enlarge
1980 Honda CB250T Dream
- ENGINE
- Engine: Air cooled, four stroke, twin cylinder, OHC, 2 valve per cylinder
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4mm
- Ignition: Electronic
- Starter: Kickstart
- Max Power: 27 hp @ 11000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic
- Rear Suspension: Dual shocks
- Front Brakes: Single disc
- Rear Brakes: Drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-18
- DIMENSION
- Wet-Weight: 173 kg (380 1b)
- OTHER

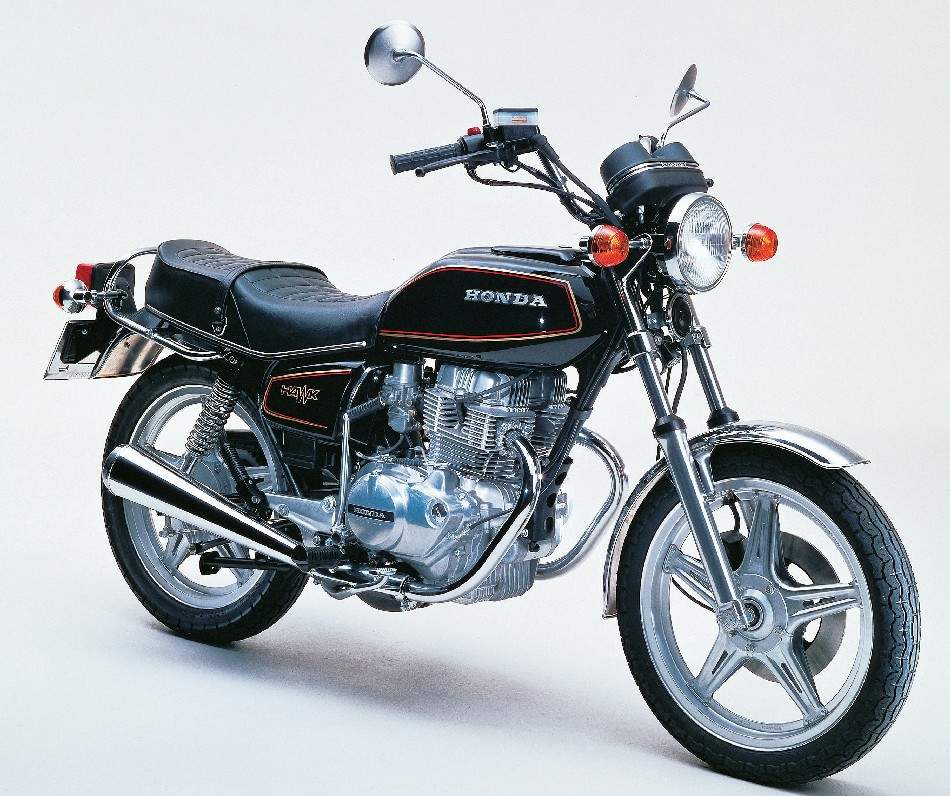

1980 CB250T Dream
Click image to enlarge
1981 Honda CB250T Dream
- ENGINE
- Engine: Air cooled, four stroke, twin cylinder, OHC, 2 valve per cylinder
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4mm
- Ignition: Electronic
- Starter: Kickstart
- Max Power: 27 hp @ 11000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic
- Rear Suspension: Dual shocks
- Front Brakes: Single disc
- Rear Brakes: Drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-18
- DIMENSION
- Wet-Weight: 173 kg (380 1b)
- OTHER

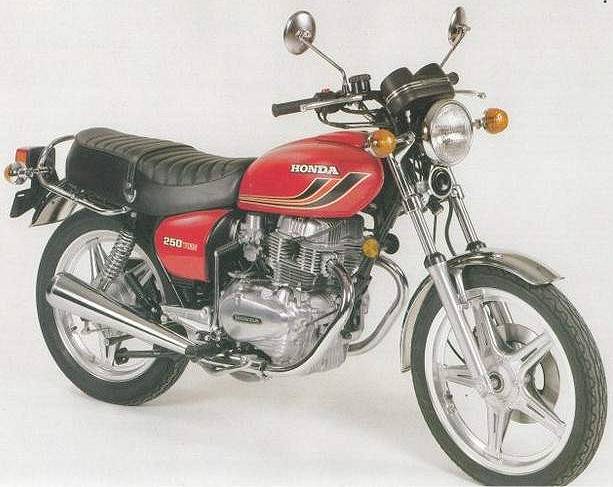

1981 CB250T Dream
Click image to enlarge
