1980 Honda CB250RS
- ENGINE
- Engine: Air cooled, four stroke, single cylinder, SOHC, 4 valve
- Displacement: 249cc
- Bore and Stroke: 74 x 57.8 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 30mm Keihin
- Starter: Kickstart
- Max Power: 11.6 hp @ 8500 rpm
- Max Torque: 12.6 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 120mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 90mm wheel travel
- Front Brakes: Single 250mm disc
- Rear Brakes: 140 drum
- Front Tire: 3.00-18
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 136 kg (299 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel Consumption: 4 L/100km (59 mpg)
- Standing quarter Mile: 16.3 sec
- Top Speed: 136 km/h (84 mph)

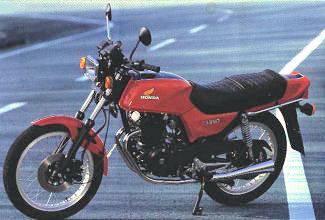

1980 CB250RS
Click image to enlarge

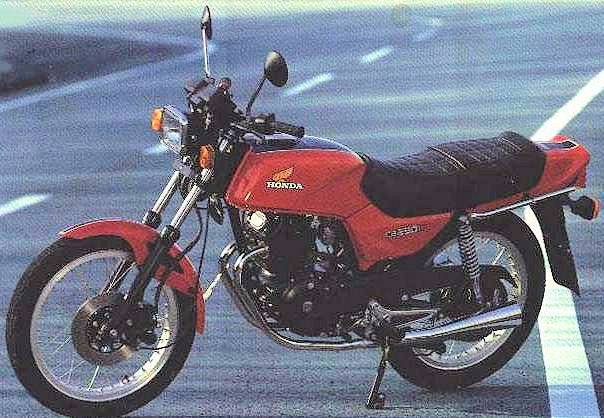

1980 CB250RS
Click image to enlarge
1981 Honda CB250RS
- ENGINE
- Engine: Air cooled, four stroke, single cylinder, SOHC, 4 valve
- Displacement: 249cc
- Bore and Stroke: 74 x 57.8 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 30mm Keihin
- Starter: Kickstart
- Max Power: 11.6 hp @ 8500 rpm
- Max Torque: 12.6 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 120mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 90mm wheel travel
- Front Brakes: Single 250mm disc
- Rear Brakes: 140 drum
- Front Tire: 3.00-18
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 136 kg (299 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel Consumption: 4 L/100km (59 mpg)
- Standing quarter Mile: 16.3 sec
- Top Speed: 136 km/h (84 mph)

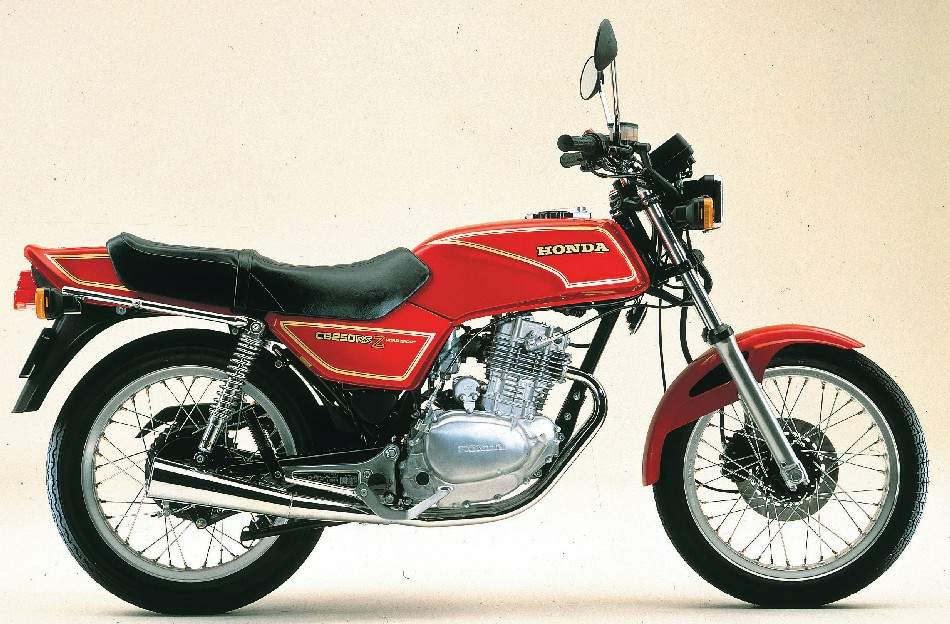

1981 CB250RS
Click image to enlarge
1982 Honda CB250RS
- ENGINE
- Engine: Air cooled, four stroke, single cylinder, SOHC, 4 valve
- Displacement: 249cc
- Bore and Stroke: 74 x 57.8 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 30mm Keihin
- Starter: Kickstart
- Max Power: 11.6 hp @ 8500 rpm
- Max Torque: 12.6 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 120mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 90mm wheel travel
- Front Brakes: Single 250mm disc
- Rear Brakes: 140 drum
- Front Tire: 3.00-18
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 136 kg (299 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel Consumption: 4 L/100km (59 mpg)
- Standing quarter Mile: 16.3 sec
- Top Speed: 136 km/h (84 mph)

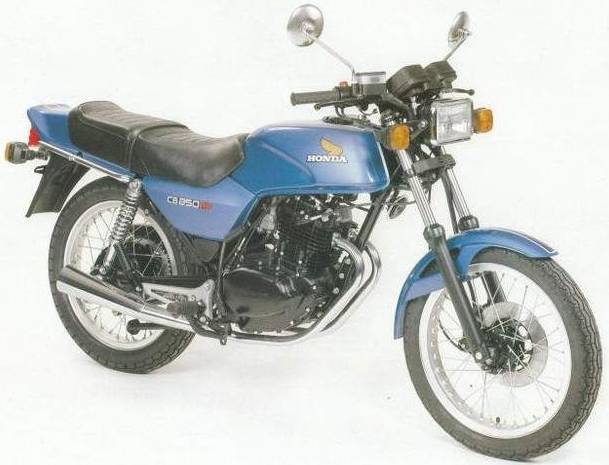

1982 CB250RS
Click image to enlarge
1983 Honda CB250RS
- ENGINE
- Engine: Air cooled, four stroke, single cylinder, SOHC, 4 valve
- Displacement: 249cc
- Bore and Stroke: 74 x 57.8 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 30mm Keihin
- Starter: Kickstart
- Max Power: 11.6 hp @ 8500 rpm
- Max Torque: 12.6 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 120mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 90mm wheel travel
- Front Brakes: Single 250mm disc
- Rear Brakes: 140 drum
- Front Tire: 3.00-18
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 136 kg (299 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel Consumption: 4 L/100km (59 mpg)
- Standing quarter Mile: 16.3 sec
- Top Speed: 136 km/h (84 mph)
1984 Honda CB250RS
- ENGINE
- Engine: Air cooled, four stroke, single cylinder, SOHC, 4 valve
- Displacement: 249cc
- Bore and Stroke: 74 x 57.8 mm
- Compression Ratio: 9.3:1
- Fuel Delivery: 30mm Keihin
- Starter: Kickstart
- Max Power: 11.6 hp @ 8500 rpm
- Max Torque: 12.6 Nm @ 8000 rpm
- DRIVETRAIN
- Transmission: 5-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 120mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 90mm wheel travel
- Front Brakes: Single 250mm disc
- Rear Brakes: 140 drum
- Front Tire: 3.00-18
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 136 kg (299 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel Consumption: 4 L/100km (59 mpg)
- Standing quarter Mile: 16.3 sec
- Top Speed: 136 km/h (84 mph)
