1979-80 CB250N
- ENGINE
- Engine: Air cooled, four stroke, parallel twin cylinder, OHC
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 29mm Mikuni carb
- Ignition: Capacitor discharge (CDI)
- Max Power: 27 hp @ 10000 rpm
- Max Torque: 14.7 ft-lb @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 115mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 65mm wheel travel
- Front Brakes: Single 273mm disc
- Rear Brakes: 160 drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 166 kg (365 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel consumption: 4.9 L/100km (47.7 mpg)
- Standing quarter Mile: 17.5 sec / 119 km/h (74 mph)
- Top Speed: 138 km/h (86 mph)
CB250N

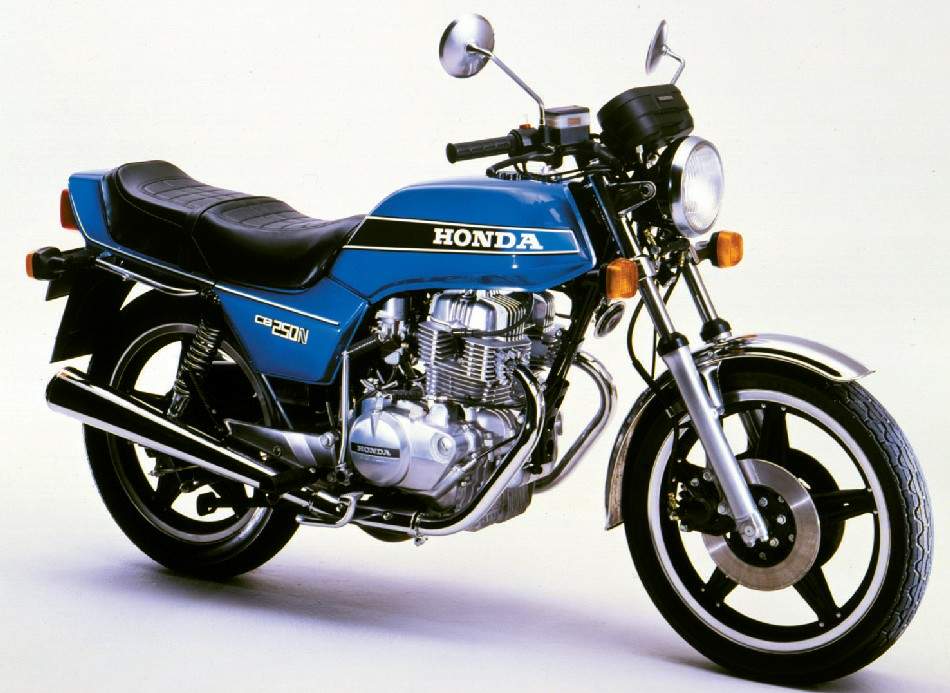

1979 CB250N
Click image to enlarge
1981 CB250N
- ENGINE
- Engine: Air cooled, four stroke, parallel twin cylinder, OHC
- Displacement: 249cc
- Bore and Stroke: 62 x 41.4 mm
- Compression Ratio: 9.4:1
- Fuel Delivery: 29mm Mikuni carb
- Ignition: Capacitor discharge (CDI)
- Max Power: 27 hp @ 10000 rpm
- Max Torque: 14.7 ft-lb @ 8500 rpm
- DRIVETRAIN
- Transmission: 6-speed
- Final drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks, 115mm wheel travel
- Rear Suspension: Dual shock with adjustable preload, 65mm wheel travel
- Front Brakes: Single 273mm disc
- Rear Brakes: 160 drum
- Front Tire: 3.60-19
- Rear Tire: 4.10-19
- DIMENSION
- Dry-Weight: 166 kg (365 lb)
- Fuel Capacity: 14 Litres (3.7 Gal)
- OTHER
- Fuel consumption: 4.9 L/100km (47.7 mpg)
- Standing quarter Mile: 17.5 sec / 119 km/h (74 mph)
- Top Speed: 138 km/h (86 mph)

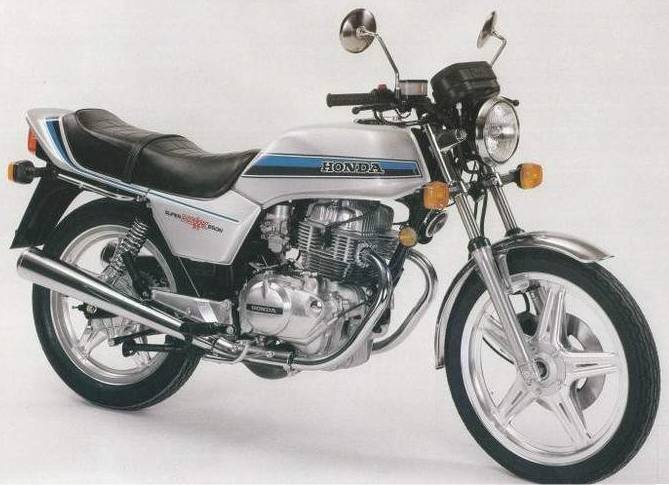

1981 CB250N
Click image to enlarge
