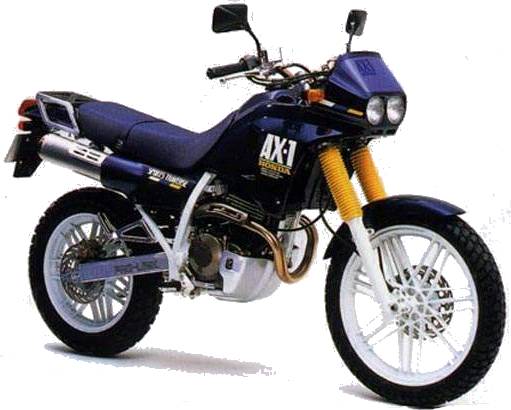

1988 Honda AX1
- ENGINE
- Engine: Liquid cooled, four stroke, single cylinder, DOHC
- Displacement: 249cc
- Bore x Stroke: 70 x 64.8 mm
- Compression Ratio: 11.0:1
- Fuel Delivery: PD6B
- Ignition: CDI
- Starting: Electric
- Max Power: 29 hp @ 8500 rpm
- Max Torque: 2.6 kg-m @ 7500 rpm
- DRIVETRAIN
- Transmission: 6 Speed
- Final Drive: Chain
- CHASSIS / SUSPENSION / BRAKES
- Front Suspension: Telescopic forks
- Rear Suspension: Swing arm system
- Front Brakes: Single disc
- Rear Brakes: Single disc
- Front Tire: 90/100-19
- Rear Tire: 120/90-16
- DIMENSION
- Fuel Capacity : 9 Litres (2.4 Gal.)
- OTHER
1988 AX1
