2008 CRF230L

  • Overview:
    • On paved roads or dirt roads, the all-new CRF230L is ready to handle all kinds of transportation needs. With its compact size, lower seat height, 223cc single cylinder engine and a six speed transmission, it's as peppy as it is frugal. Whether it's on campus, on the RV or on the commute, the CRF230L will provide reliable transportation for years to come.
  • ENGINE
    • Engine Type: 223cc air-cooled single-cylinder four-stroke
    • Bore and Stroke: 65.5mm x 66.2mm
    • Compression Ratio: 9.0:1
    • Valve Train: SOHC; two-valve
    • Fuel Delivery: 30mm CV carburetor
    • Ignition: CDI
  • DRIVE TRAIN
    • Transmission: Six-speed
    • Final Drive: #520 O-ring-sealed chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37mm leading-axle Showa® fork; 9.0-inch (229mm) travel
    • Rear Suspension: Pro-Link Showa® single-shock with spring-preload adjustability; 6.3-inch (160mm) travel
    • Front Brake: Single 240mm disc
    • Rear Brake: 220mm disc
    • Front Tire: 2.75-21
    • Rear Tire: 120/80-18
  • DIMENSIONS
    • Rake: 26.83 degrees
    • Trail: 103mm (4 inches)
    • Wheelbase: 1340mm (52.75 inches)
    • Seat Height: 810mm (31.9 inches)
    • Ground Clearance: 241mm (9.5 inches)
    • Curb Weight: 121 kg (267 lbs) (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride)
    • Fuel Capacity: 8.7 L (2.3 gallons US), including 2.5 L (0.7 gallon US) reserve
    • Fuel Economy: 2.8 L/100Km (84 MPG-US) - Honda's fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
  • OTHER
    • Emissions: Meets current CARB and EPA standards.
    • Available Colors: Red
    • Model ID: CRF230L
    • Warranty: One year, Coverage of defects in materials and workmanship
crf230L

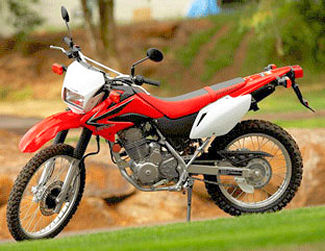

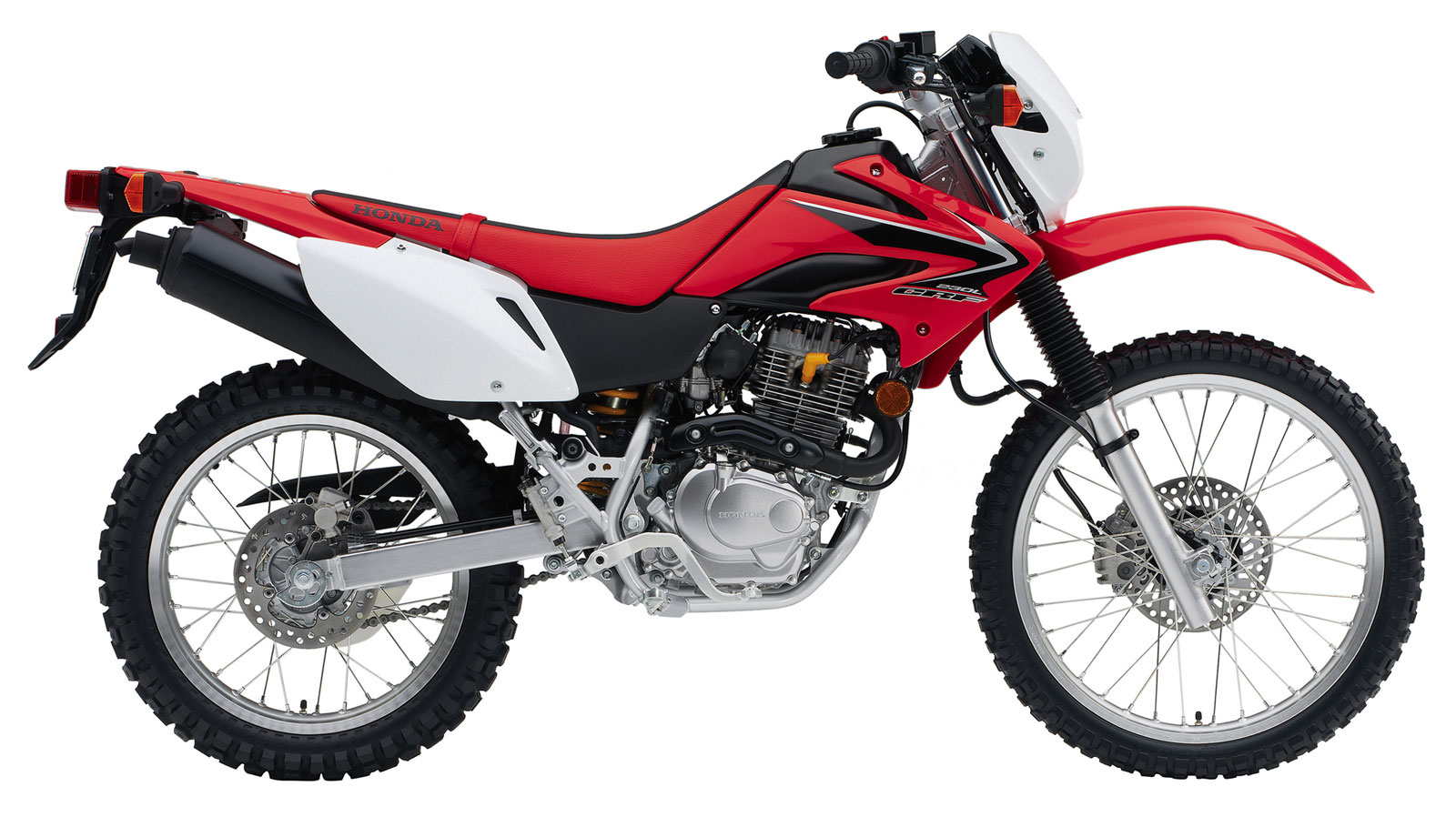

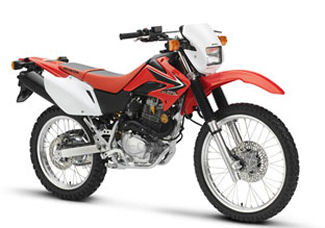

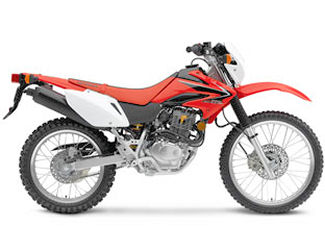

2008 CRF230L
2008 CRF230L
2008 CRF230L
Click image to enlarge
crf230L
2008 CRF230L

2009 CRF230L

  • ENGINE
    • Engine Type: 223cc air-cooled single-cylinder four-stroke
    • Bore and Stroke: 65.5 x 66.2 mm
    • Compression Ratio: 9.0:1
    • Valve Train: SOHC; two valve
    • Fuel Delivery: 30mm CV carbureto
    • Ignition: CD
  • DRIVE TRAIN
    • Transmission: Six-speed
    • Final Drive: #520 O-ring-sealed chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37mm leading-axle Showa® fork; 9.0-inch (229mm) travel
    • Rear Suspension: Pro-Link Showa® single-shock with spring-preload adjustability; 6.3-inch (160mm) travel
    • Front Brake: Single 240mm disc
    • Rear Brake: 220mm disc
    • Front Tire: 2.75-21
    • Rear Tire: 120/80-18
  • DIMENSIONS
    • Rake: 26.83 degrees (caster angle)
    • Trail: 103mm (4 inches)
    • Wheelbase: 1340mm (52.75 inches)
    • Seat Height: 810mm (31.9 inches)
    • Ground Clearance: 241mm (9.5 inches)
    • Curb Weight: 121 kg (267 lbs) (Includes all standard equipment, required fluids and a full tank of fuel -- ready to ride)
    • Fuel Capacity: 8.7 L (2.3 gallons US), including 2.5 L (0.7 gallon US) reserve
    • Fuel Economy: 2.8 L/100Km (84 MPG-US) - Honda's fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
  • OTHER
    • Emissions: Meets current CARB and EPA standards.
    • Available Colors: Red
    • Model ID: CRF230L
    • Warranty: One year, Coverage of defects in materials and workmanship

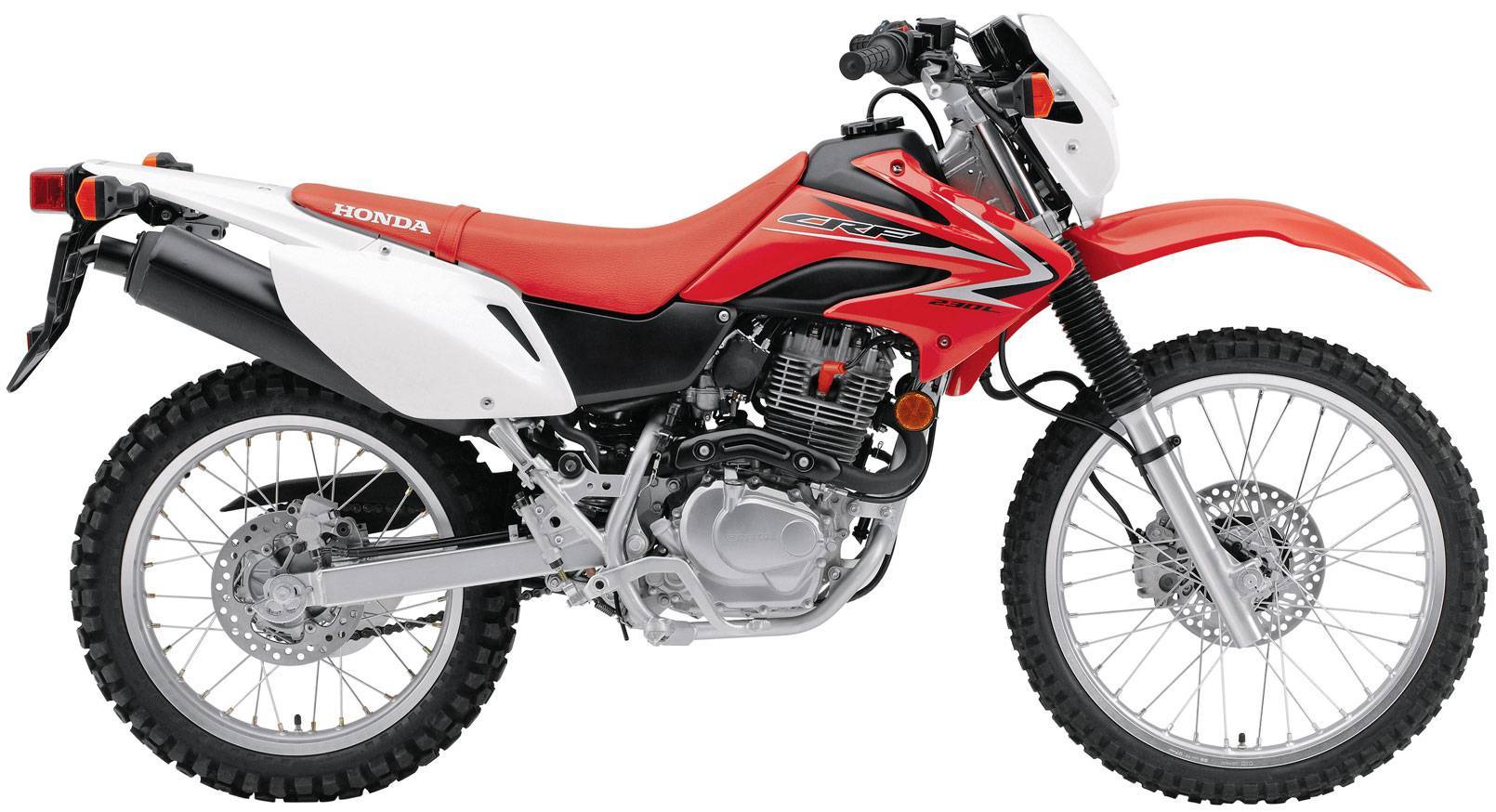

2009 CRF230L
2009 CRF230L
Click image to enlarge

2011 CRF230L

  • ENGINE
    • Engine Type: Air-cooled single-cylinder four-stroke
    • Displacement: 223 cc
    • Bore and Stroke: 65.5 mm x 66.2 mm
    • Compression Ratio: 9.0:1
    • Valve Train: SOHC, 2 valves
    • Fuel Delivery: Single 30 mm CV carb
  • DRIVETRAIN
    • Transmission: Six-speed with manual clutch
    • Final Drive: #520 O-ring-sealed chain, 13T/39T
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 37 mm leading-axle Showa fork; 205 mm (8.1 in.) travel
    • Rear Suspension: Pro-Link Showa single shock with spring preload adjustment; 155 mm (6.1 in.) travel
    • Tires: 2.75 - 21 front; 120/80 - 18 rear
    • Brakes: Front 240 mm disc with dual-piston caliper; rear 220 mm disc with single-piston caliper
  • DIMENSION
    • Ground Clearance: 243 mm (9.6 in.)
    • Seat Height: 810 mm (31.9 in.)
    • Wheelbase: 1,340 mm (52.7 in.)
    • Curb Weight: 121 kg (267 lb) including required fluids and full tank of gas - ready to ride
    • Fuel Capacity: 8.7 litres, including 2.7-litre reserve
  • OTHER
    • Colour: Extreme Red
    • MSRP: $5,899
    • Warranty: 1 year, unlimited mileage, freely transferable warranty.

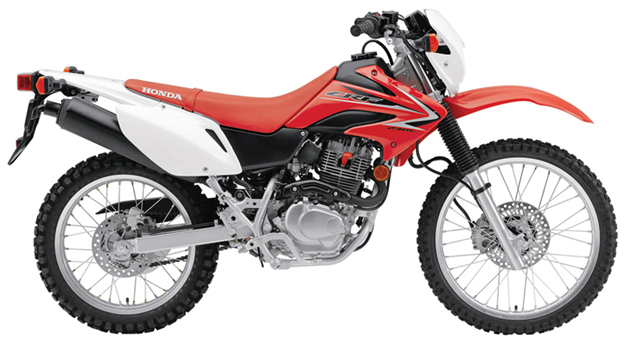

2011 CRF230L
2011 CRF230L
Click image to enlarge
