2003 CRF230F
ENGINE
DRIVETRAIN
CHASSIS / SUSPENSION / BRAKES
DIMENSION
OTHER

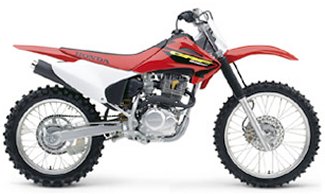

2003 Honda CRF 230
2004 CRF230F
ENGINE
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore and Stroke: 65.5mm x 66.2mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 26mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3 degrees
Trail: 112.0mm (4.4 inches)
Wheelbase: 54.1 inches
Seat Height: 34.1 inches
Ground Clearance: 11.7 inches
Dry Weight: 238.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
OTHER
Colors: Red
Warranty: 6 months

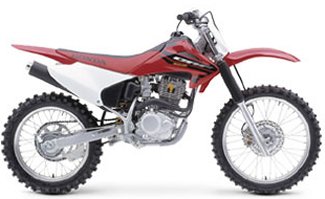

2004 Honda CRF 230
2005 CRF230F
ENGINE
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore and Stroke: 65.5mm x 66.2mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 26mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3 degrees
Trail: 112.0mm (4.4 inches)
Wheelbase: 54.1 inches
Seat Height: 34.1 inches
Ground Clearance: 11.7 inches
Dry Weight: 238.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
OTHER
Colors: Red
Warranty: 6 months

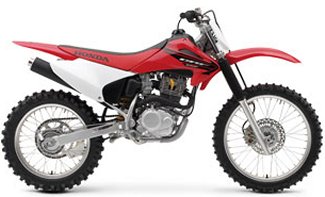

2005 Honda CRF 230
2006 CRF230F
ENGINE
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore and Stroke: 65.5mm x 66.2mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 26mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3 degrees
Trail: 112.0mm (4.4 inches)
Wheelbase: 54.1 inches
Seat Height: 34.1 inches
Ground Clearance: 11.7 inches
Dry Weight: 238.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
OTHER
Colors: Red
Model ID: CRF230F

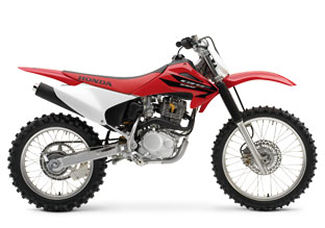

2006 CRF230F
2007 CRF230F
OVERVIEW
Overview: A certified hit with anyone who's ever thrown a leg over it, the CRF230F with its six-speed tranny is, hands down, a blast to ride, packing all the four-stroke performance for which Honda is legendary. With a 34.1" seat height, it's perfectly sized for adults and teenagers alike. And thanks to electric start and plush, long-travel suspension, it's also as easy to ride as it is fun.
ENGINE
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore and Stroke: 65.5mm x 66.2mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 26mm piston-valve
Ignition: CDI
DRIVETRAIN
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3 degrees
Trail: 112.0mm (4.4 inches)
Wheelbase: 54.1 inches
Seat Height: 34.1 inches
Ground Clearance: 11.7 inches
Dry Weight: 238.0 pounds
Fuel Capacity: 2.2 gallons, including 0.4-gallon reserve
OTHER
Colors: Red
Model ID: CRF230F

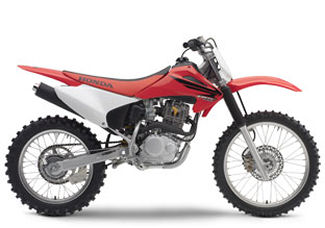

2007 CRF230F
2008 CRF230F
OVERVIEW
Overview: Put in simple, moto-friendly terms, the CRF230F is
a certified blast to ride. Just ask the countless riders, of all
skill and experience levels, who've ever twisted its throttle
and made easy work of the toughest trails. With its six-speed
transmission, plush, long-travel suspension, electric starter,
34.1-inch seat height, and new fuel tank, it's the perfect -- and
perfectly sized -- off-roader for adults and teenagers alike.
ENGINE
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore and Stroke: 65.5mm x 66.2mm
Compression Ratio: 9.0:1
Valve TrainSOHC; two-valve
Fuel Delivery: 26mm piston-valve carburator
Ignition: CDI
DRIVETRAIN
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
Front Brakes: ingle 240mm disc
Rear Brake: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3 degrees
Trail: 112.0mm (4.4 inches)
Wheelbase: 54.1 inches
Seat Height: 34.1 inches
Ground Clearance: 11.7 inches
Curb Weight: TBD
Fuel Capacity: 1.9 gallons, including 0.4-gallon reserve
OTHER
Emissions: Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Colors: Red
Model ID: CRF230F
Warranty: 6 months coverage of defects in materials and workmanship

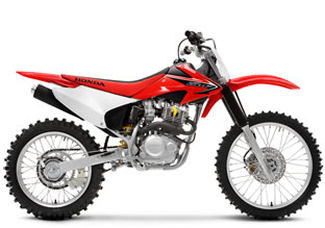

2008 CRF230F
2009 CRF230F
ENGINE
Engine Type: 223cc air-cooled single-cylinder four-stroke
Bore And Stroke: 65.5mm x 66.2mm
Compression Ratio: 9.0:1
Valve Train: SOHC; two-valve
Fuel Delivery: 26mm piston-valve carburator
Ignition: CDI
DRIVETRAIN
Transmission: Six-speed
Final Drive: #520 O-ring-sealed chain; 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37mm leading-axle Showa fork; 9.5-inch travel
Rear Suspension: Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel
Front Brake: Single 240mm disc
Rear Brake: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3 degrees
Trail: 112.0mm (4.4 inches)
Wheelbase: 54.1 inches
Seat Height: 34.1 inches
Curb Weight: 249 pounds (Includes all standard equipment, required fluids and full tank of fuel ready to ride)
Fuel Capacity: 1.9 gallons, including 0.4-gallon reserve
Ground Clearance: 11.7 inches
OTHER
Available Colors: Red
Model Id: CRF230F
Emissions: Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
FACTORY WARRANTY: 6 months, Transferable limited warranty.

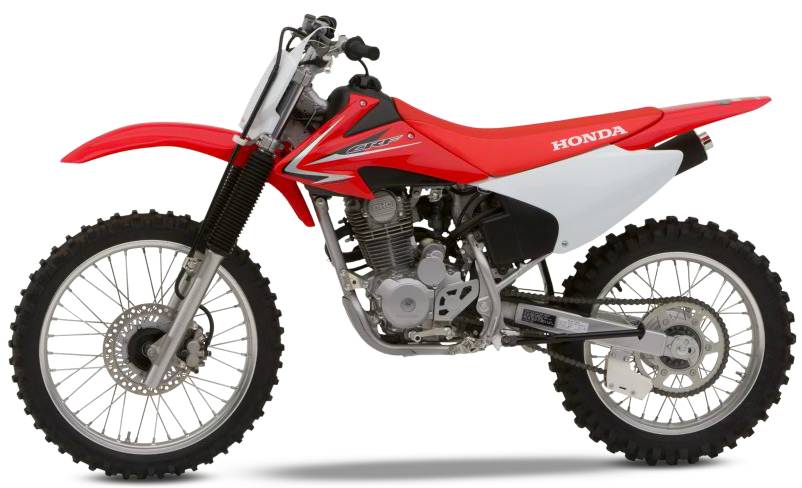

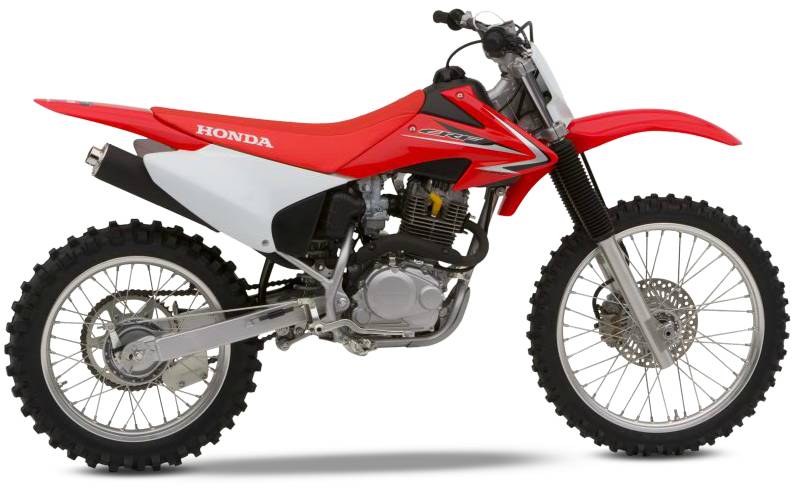

2009 CRF230F Click image to enlarge
2009 CRF230F Click image to enlarge
2009 CRF230F Click image to enlarge
2011 CRF230F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 223 cc
Bore and Stroke: 65.5 mm x 66.2 mm
Compression Ratio: 9.0:1
Valve Train: SOHC, 2 valves
Fuel Delivery: Single 28 mm piston-valve carb
DRIVETRAIN
Transmission: Six-speed with manual clutch
Final Drive: #520 O-ring-sealed chain, 13T/50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37 mm leading-axle Showa fork; 216 mm (8.5 in.) travel
Rear Suspension: Pro-Link Showa single shock with spring preload adjustment; 230 mm (9.1 in.) travel
Tires: 80/100 - 21 front; 100/100 - 18 rear
Brakes: Front 240 mm disc with dual-piston caliper; rear drum
Fuel Capacity: 7 litres, including 1.3-litre reserve
DIMENSION
Ground Clearance: 305 mm (12 in.)
Seat Height: 878 mm (34.6 in.)
Wheelbase: 1,372 mm (54 in.)
Curb Weight: 113 kg (249 lb) including required fluids and full tank of gas - ready to ride
OTHER
Colour: Extreme Red
Warranty: 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus
MSRP: $4,499

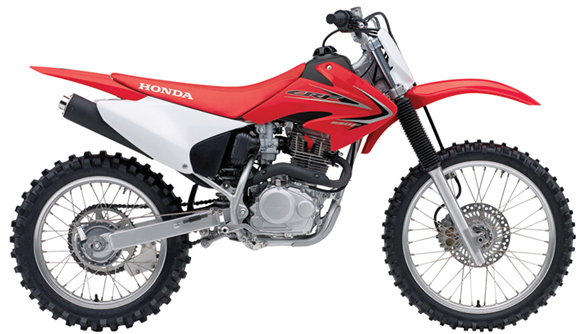

2011 CRF230F Click image to enlarge
2012 CRF230F
ENGINE
Engine Type: Air-cooled single-cylinder four-stroke
Displacement: 223 cc
Bore and Stroke: 65.5 mm x 66.2 mm
Compression Ratio: 9:1
Valve Train: SOHC; two-valve
Fuel Delivery:
USA: 26mm piston-valve carburetor
Canada: Single 28 mm piston-valve carb
Ignition: CD
DRIVETRAIN
Transmission: Six-speed with manual clutch
Final Drive: #520 O-ring-sealed chain
Front sprocket: 13T
Rear sprocket: 50T
CHASSIS / SUSPENSION / BRAKES
Front Suspension: 37 mm leading-axle Showa fork; 216 mm (8.5 in.) travel
Rear Suspension: Pro-Link Showa single shock with spring preload adjustment; 230 mm (9.1 in.) travel
Front Brakes: 240 mm disc with dual-piston caliper
Rear Brakes: Drum
Front Tire: 80/100-21
Rear Tire: 100/100-18
DIMENSION
Rake: 27.3° (Caster Angle)
Trail: 112mm (4.4 inches)
Ground Clearance: 305 mm (12 in.)
Seat Height: 878 mm (34.6 in.)
Wheelbase: 1,372 mm (54 in.)
Curb Weight: 113 kg (249 lb) including required fluids and full tank of gas - ready to ride
Fuel Capacity: 7 litres (1.9 GalUS), including 1.3-litre (0.4 Gal) reserve
OTHER
Emissions: Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Color: Extreme Red
Warranty: 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
Model Id: CRF230F
MSRP: $4,599

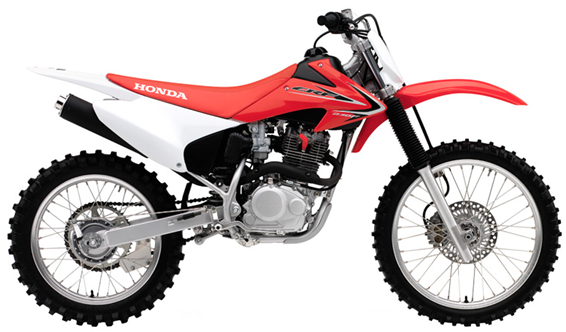

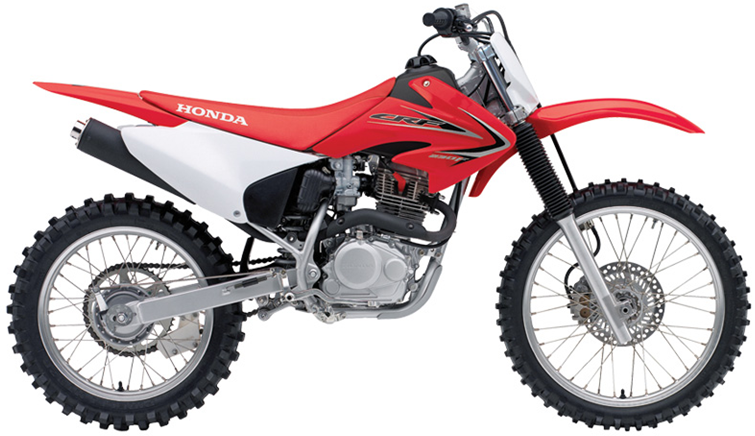

2012 CRF230F Click image to enlarge
